SWIT S-3822B 2-Channel Simultaneous Battery Charger (B-Mount)
SWIT S-3822B 2-Channel Simultaneous Battery Charger (B-Mount)
SWIT S-3822B 2-Channel Simultaneous Battery Charger (B-Mount)
SWIT S-3822B 2-Channel Simultaneous Battery Charger (B-Mount)
SWIT S-3822B 2-Channel Simultaneous Battery Charger (B-Mount)
SWIT S-3822B 2-Channel Simultaneous Battery Charger (B-Mount)

SWIT S-3822B 2-Channel Simultaneous Battery Charger (B-Mount)

Brand: SWIT

MFR: S-3822B

SKU: SF-2443-3RK5

915.00 ﾹ

  • Two Channels for Simultaneous Charging
  • 16.8 VDC, 3A , 50W per Channel
  • Charge B-Mount Batteries with 14.4V Mode
  • Supports AC to 4-Pin XLR Output
  • Lightweight and Portable Design

Items Included

  • SWIT S-3822B 2-Channel Simultaneous Battery Charger (B-Mount)
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Batteries & Power

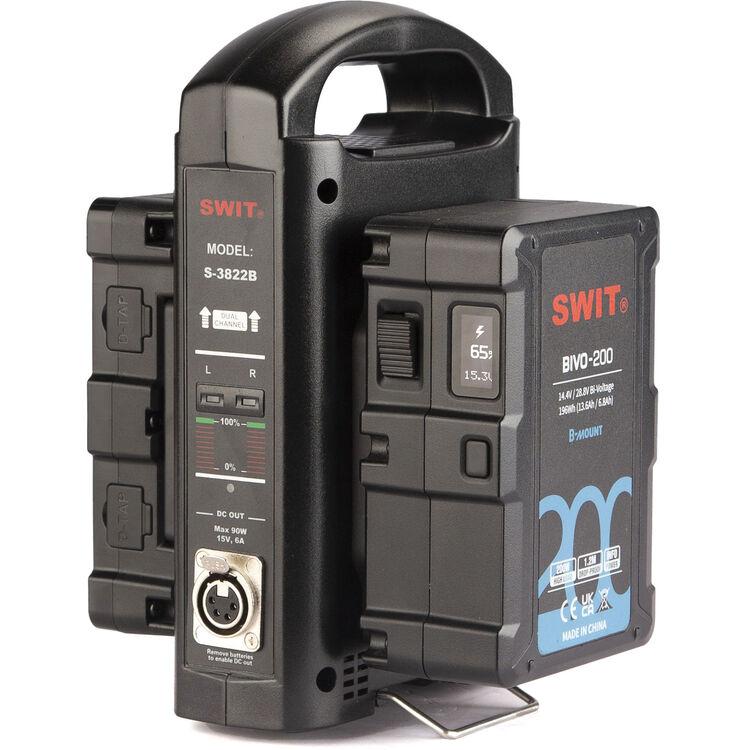

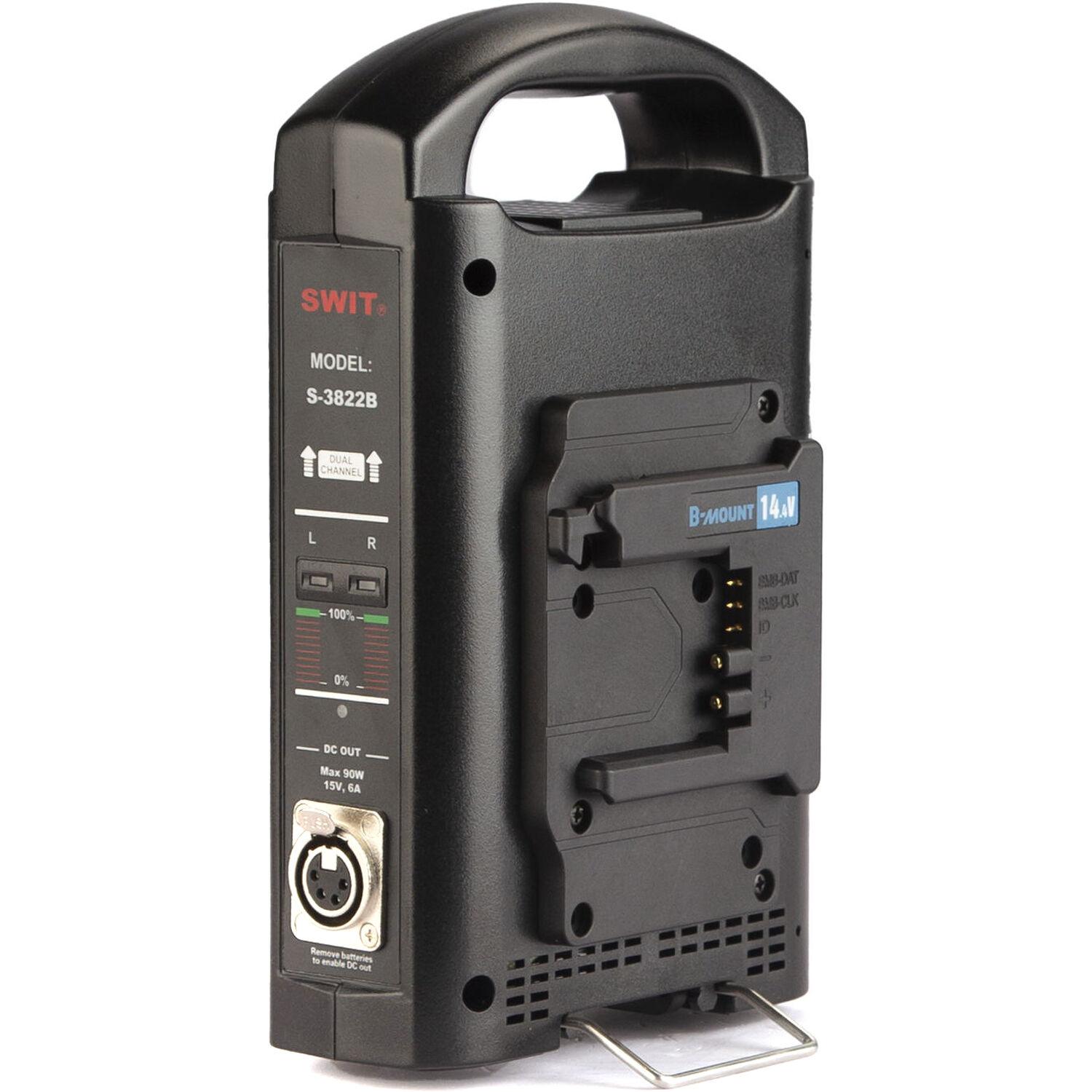

The S-3822B 2-Channel Simultaneous Charger from SWIT is a lightweight and portable charger that can simultaneously charge two B-mount dual-voltage batteries. It features a charging output of 16.8 VDC, 3A, and 50W for each channel and is compatible with B-mount batteries that support 14.4V nominal voltage mode, like the SWIT BIVO series, Bebob, and CoreSWX bi-voltage series.

LED Charging Indicators
LED charging indicators on the front panel indicate the real-time capacity of each channel in different colors: red indicates that the battery is under charging status, green for fully charged status, and flashing red for charging errors.
Optional AC/DC Adapting Output
The charger has a 4-pin XLR female connector on the front panel that, when connected with a separately available SWIT S-7102 4-pin XLR female to male cable, allows it to be used as an AC/DC adapter with a 15 VDC, 6A, 90W output.

Charger
Charger Type
1x Bay Charger for 2x Battery
Compatibility
Battery: B-Mount (16.8 V / 14.4 V)
Charging Modes
Simultaneous
Power I/O
1x XLR 4-Pin Female Input
Battery Bay Output Voltage
16.8 VDC at 3 A
Dimensions
8.9 x 5.6 x 3.5" / 226 x 141 x 90 mm
Weight
2.2 lb / 1 kg
Environmental
Operating Conditions
32 to 113°F / 0 to 45°C at 10 to 90% Humidity
Packaging Info
Package Weight
2.985 lb
Box Dimensions (LxWxH)
10.4 x 6.5 x 4.6"

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • SWIT S-3822B 2-Channel Simultaneous Battery Charger (B-Mount)
