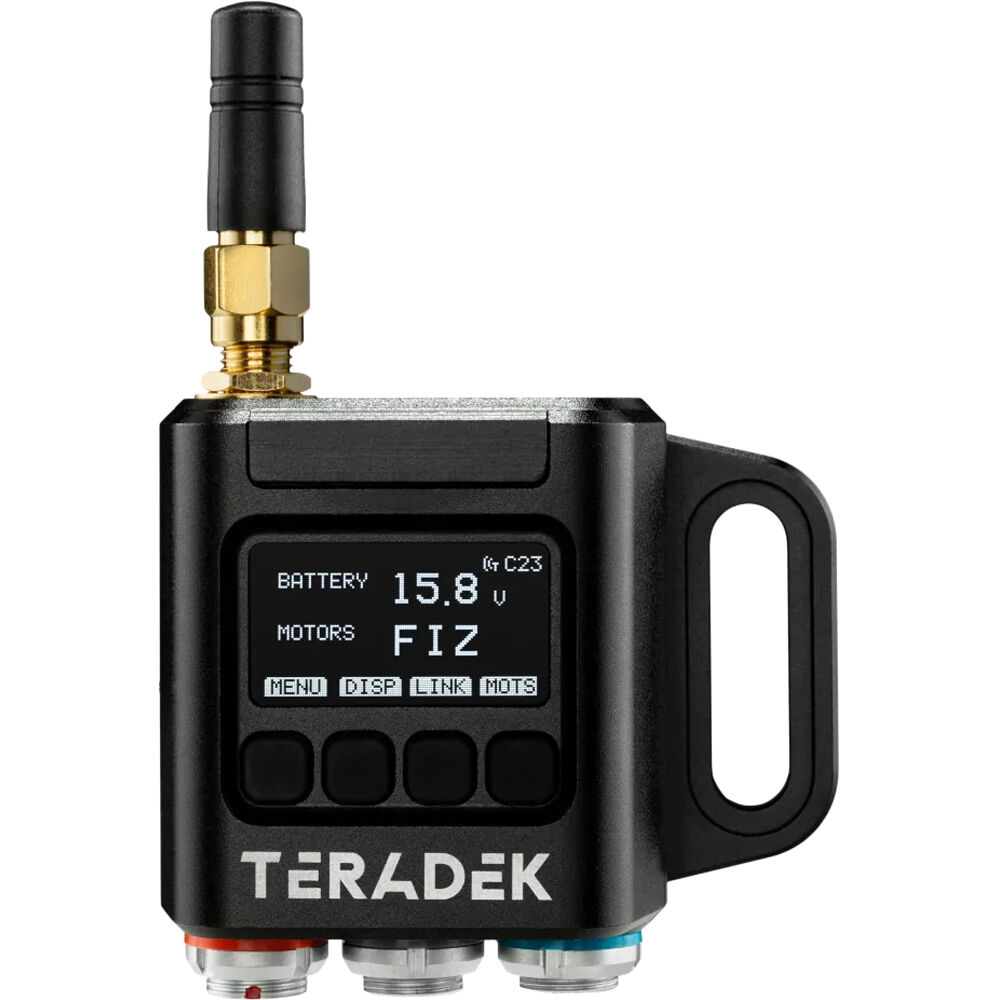

With 3-channel lens control in an ultracompact form factor, the MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth from Teradek allows you to control compatible RT motors for wireless focus, iris, and zoom functionality. The MDR.S has FHSS wireless technology that prevents interference and a 5000' line of sight range. A 6-pin port on the receiver allows you to trigger run/stop on the camera from your connected hand unit.
The MDR.S features a built-in OLED display with four buttons for control over various functions. Further parameters can be controlled via the device's integrated Bluetooth and the Teradek RT smartphone app. A 28V input range allows you flexibility in powering the receiver.
Features at a Glance
General
| Compatibility | Teradek RT |
Display
| Panel Type | OLED |
| Size | Not Specified by Manufacturer |
| Touchscreen | No |
Inputs / Outputs
| USB I/O | 1 x USB-C Female Input |
| Video I/O | 1 x Mini Hirose 6-Pin Input 1 x Mini-DIN 4-Pin Input |
Power
| Power Source | Proprietary Interface |
| DC Input Power | 5 to 28 VDC |
Physical
| Mounting | 1 x Rail |
| Color | Black |
| Dimensions | 2.3 x 1.7 x 0.9" / 58 x 42 x 24 mm |
| Weight | 2.4 oz / 68 g |
Packaging Info
| Package Weight | 0.545 lb |
| Box Dimensions (LxWxH) | 5.9 x 4.25 x 2.3" |
