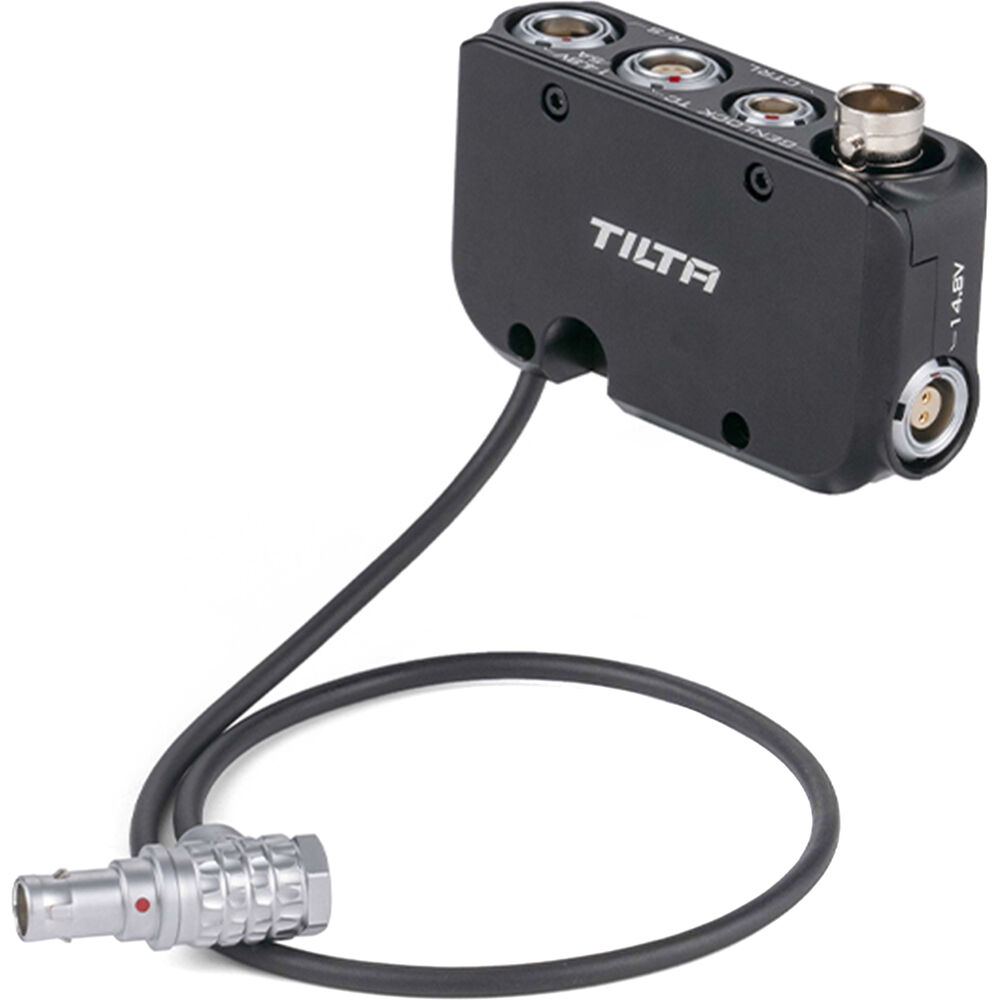

This Advanced I/O Module from Tilta expands the connectivity of your RED V-RAPTOR thanks to its various power, control, and video ports. An integrated extension cable connects to the camera body to increase functionality for run/stop and timecode via a 3-pin Fischer port and 5-pin port. Genlock video is available via a BNC connector.
The module can be mounted to various locations on the separately available RED V-RAPTOR full camera cage for intuitive integration. It can be powered via the 14.8V 2-pin LEMO input.
Compatibility
General
| Compatibility | RED V-RAPTOR |
Power
| Power Source | Camera, Battery |
| DC Input Power | 14.8 VDC |
Physical
| Color | Black |
| Material of Construction | Aluminum Alloy, Steel |
| Cable Length | Not Specified by Manufacturer |
| Dimensions | 6 x 4 x 3" / 152.4 x 101.6 x 76.2 mm |
| Weight | 0.88 lb / 399 g |
Packaging Info
| Package Weight | 0.285 lb |
| Box Dimensions (LxWxH) | 2.9 x 2.8 x 1.8" |
