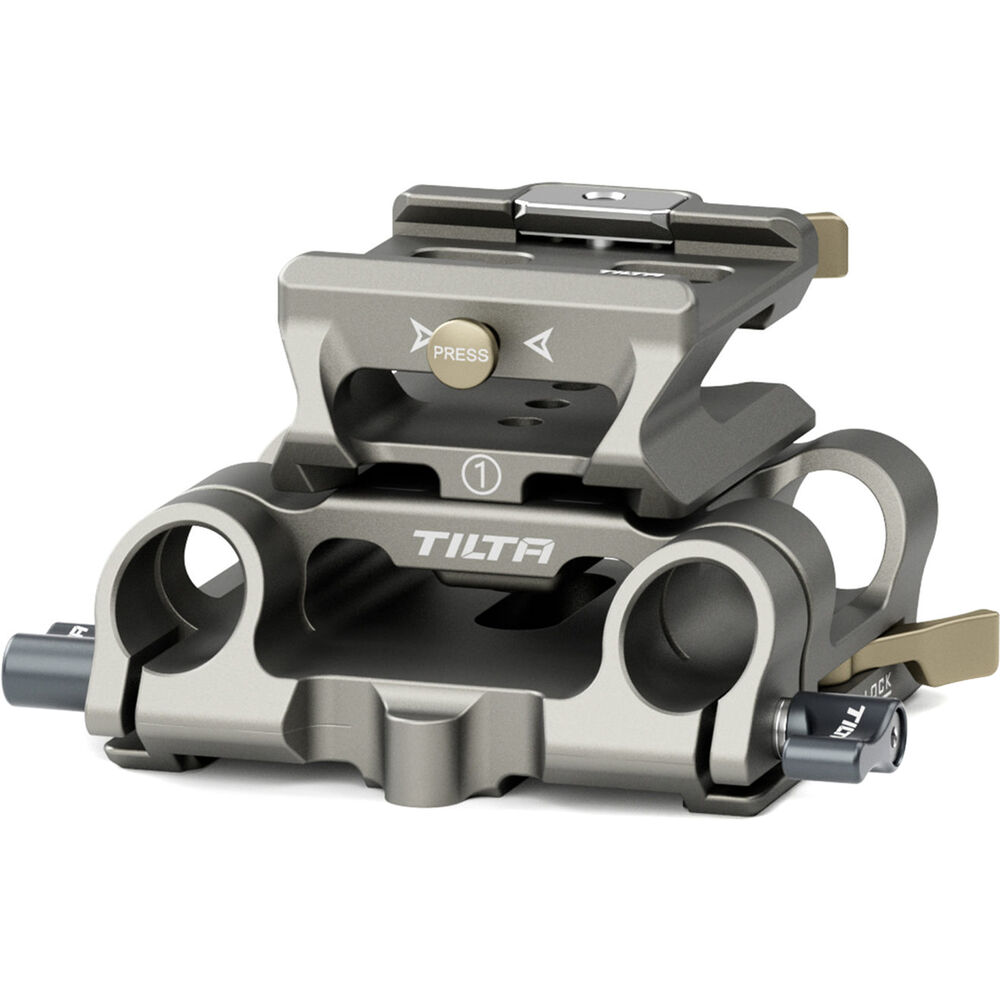

Add this titanium gray Modular 15mm LWS Baseplate Type I from Tilta to your camera rig configuration and achieve the proper height for rod-based lens accessories. It comes with a detachable Arca-type receiver to efficiently switch between tripod and DJI Ronin S series gimbal. Two 15mm LWS rod clamps can incorporate follow focus motors or a matte box into your camera setup.
The main baseplate features two 1/4"-20 threads to attach to a tripod or camera cage. It is compatible with Tilta standard Dovetails and other quick release plates using the 1/4"-20 and 3/8"-16 threads on the bottom. Aluminum and steel make up the baseplate's construction for a lightweight and durable mounting device.
| Support Type | Baseplate |
| Grip Type | None |
| Camera Compatibility | Universal |
Mounting
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | Multiple x 1/4"-20 Female Thread, Multiple x 3/8"-16 Female Thread |
| Camera Mounting | Arca-Type Plate |
| Tripod Mounting | Built-In Arca-Type Plate, Built-In Proprietary Dovetail Plate |
| Rod Ports | 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | None |
| Cable Clamp | None |
General
| Materials | Aluminum, Steel |
| Dimensions | 7 x 4.5 x 4" / 17.8 x 11.4 x 10.2 cm |
| Weight | 13.28 oz / 376 g |
Packaging Info
| Package Weight | 0.855 lb |
| Box Dimensions (LxWxH) | 7.5 x 5.1 x 3.3" |
