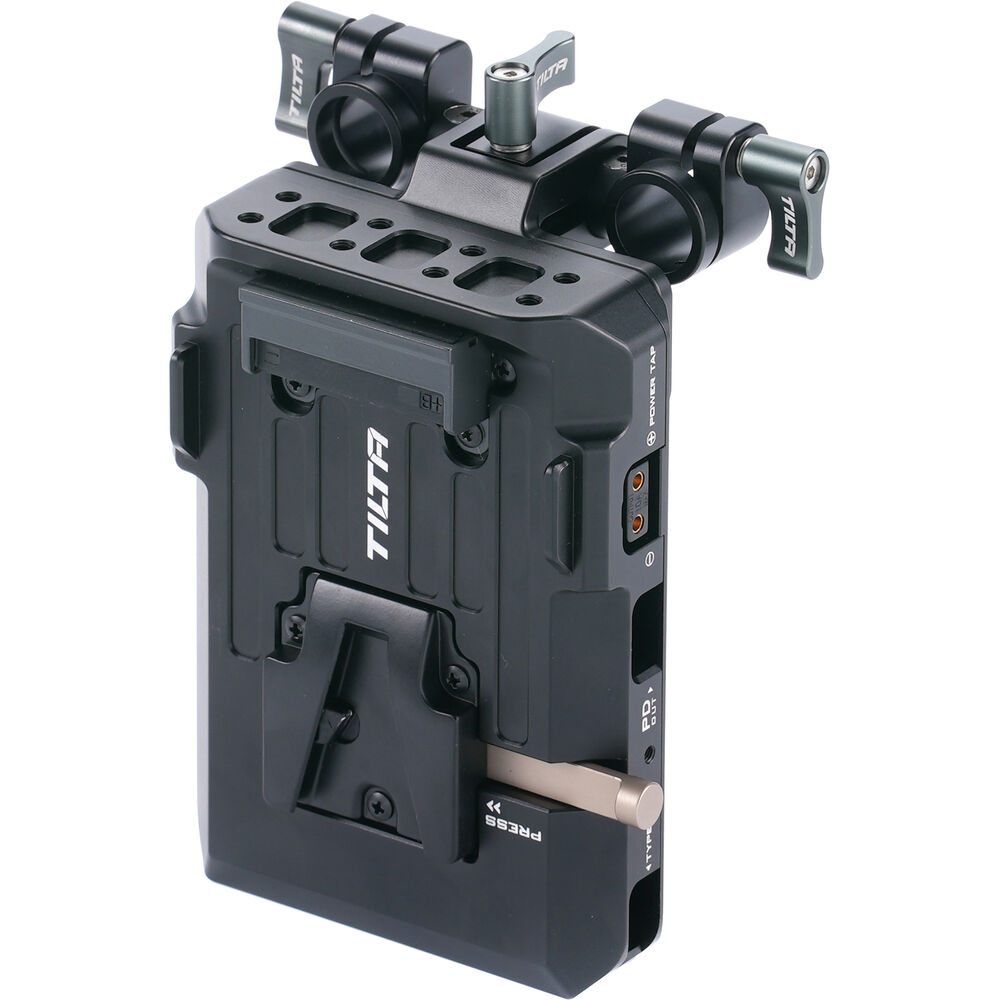

Power your camera and accessories using a high-capacity V-mount battery with this black Smart V-Mount Battery Plate from Tilta. This universal plate features two 14.8 VDC D-Tap outputs, one 5V USB-C output, and one 60W USB-C PD output. The USB-C PD output allows the plate to adjust its voltage to meet the needs of the accessory it is powering.
You can mount the plate onto a standard 15mm LWS rig using the included rod clamp, and it also features multiple 1/4"-20 threads with anti-twist divots to accommodate multiple mounting positions. The battery plate assembly is made of durable aluminum and stainless steel.
Power
| Power Input | V-Mount: VDC |
| Maximum Load | 60 W |
| Power Output | D-Tap: 14.8 VDC USB-C: 5 VDC |
General
| Camera Power Method | Connector |
| Inputs/Outputs | 2 x D-Tap 2 x USB-C |
| Plate Front / Battery Mount | V-Mount |
| Plate Rear Mount | 1/4"-20 Female |
| Number of Battery Bays | 1 |
| Accessory Mounting | 1/4"-20 Female, 15 mm LWS Mount |
| Material of Construction | Aluminum, Stainless Steel |
| Cable Length | 23.6" / 60 cm |
| Dimensions | 6 x 4 x 4" / 15.2 x 10.2 x 10.2 cm |
| Weight | 1 lb / 454 g |
Packaging Info
| Package Weight | 0.99 lb |
| Box Dimensions (LxWxH) | 5.9 x 4.5 x 4" |
