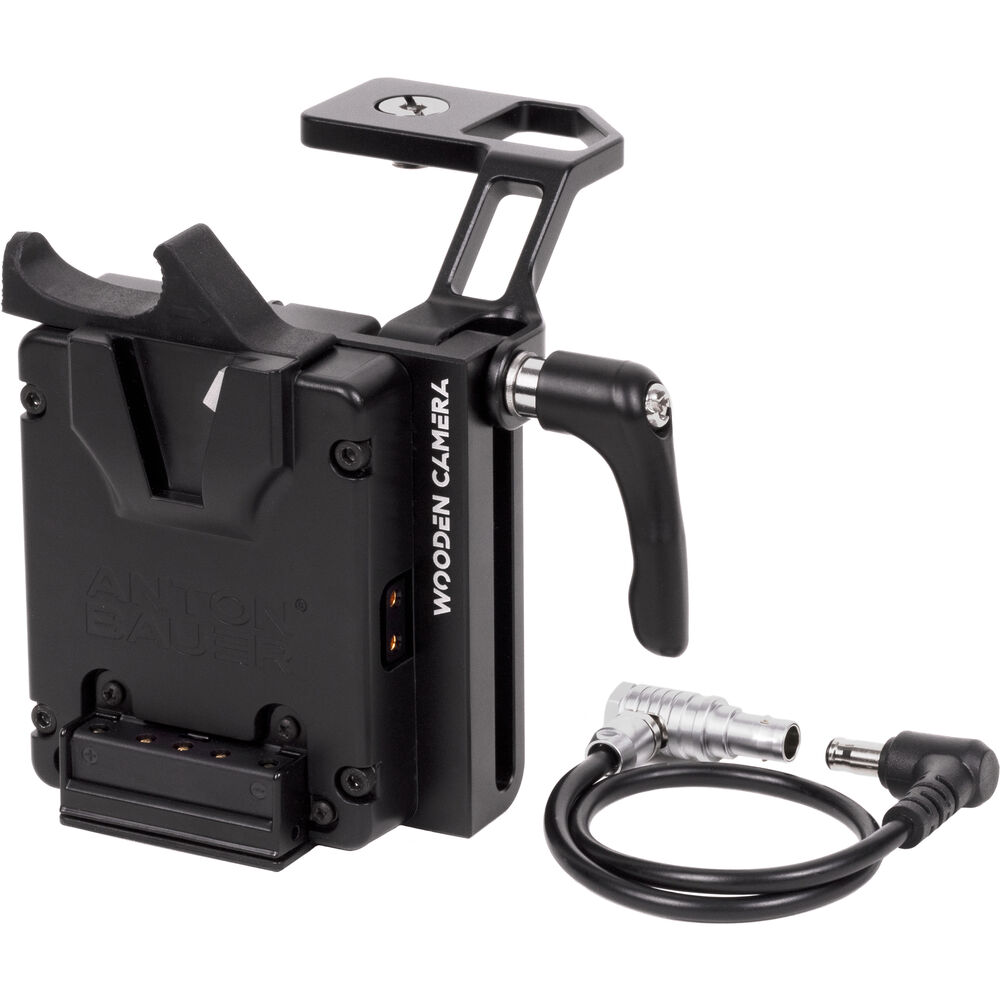

Add a high-capacity battery plate to power your Panasonic BGH1 rig with this compact Micro Battery Slide from Wooden Camera. It supports one V-mount battery while leaving access to the camera's standard battery compartment, and it powers the camera using the included 3-pin LEMO-type connector cable. With the camera's AG-VBR59 battery in place, hot swapping is supported.
The compact battery slide mounts onto a rig using its integrated 3/8"-16 mounting screw. It also features two 5.8V D-Tap outputs for powering accessories. The D-Tap accessory outputs feature a digital fuse that monitors each D-Tap port and disables it if it exceeds the set current for accessories, leaving the camera running without interruption. Once the load has been reduced by removing accessories, a reset button can be pressed to enable accessory power again.
Compatibility
Panasonic BGH1 camera
V-mount battery
Power
| Power Output | D-Tap: VDC at 5.8 A |
General
| Camera Power Method | Connector |
| Inputs/Outputs | 1 x LEMO 3-Pin 2 x D-Tap |
| Plate Front / Battery Mount | V-Mount |
| Plate Rear Mount | 3/8”-16 Female |
| Number of Battery Bays | 1 |
| Hot-Swap Support | Yes |
| Cable Length | 10" / 25.4 cm |
| Dimensions | 5.7 x 4.5 x 1.6" / 14.5 x 11.5 x 4 cm |
| Weight | 10.6 oz / 300 g |
Packaging Info
| Package Weight | 0.945 lb |
| Box Dimensions (LxWxH) | 6.9 x 4.4 x 4.35" |
