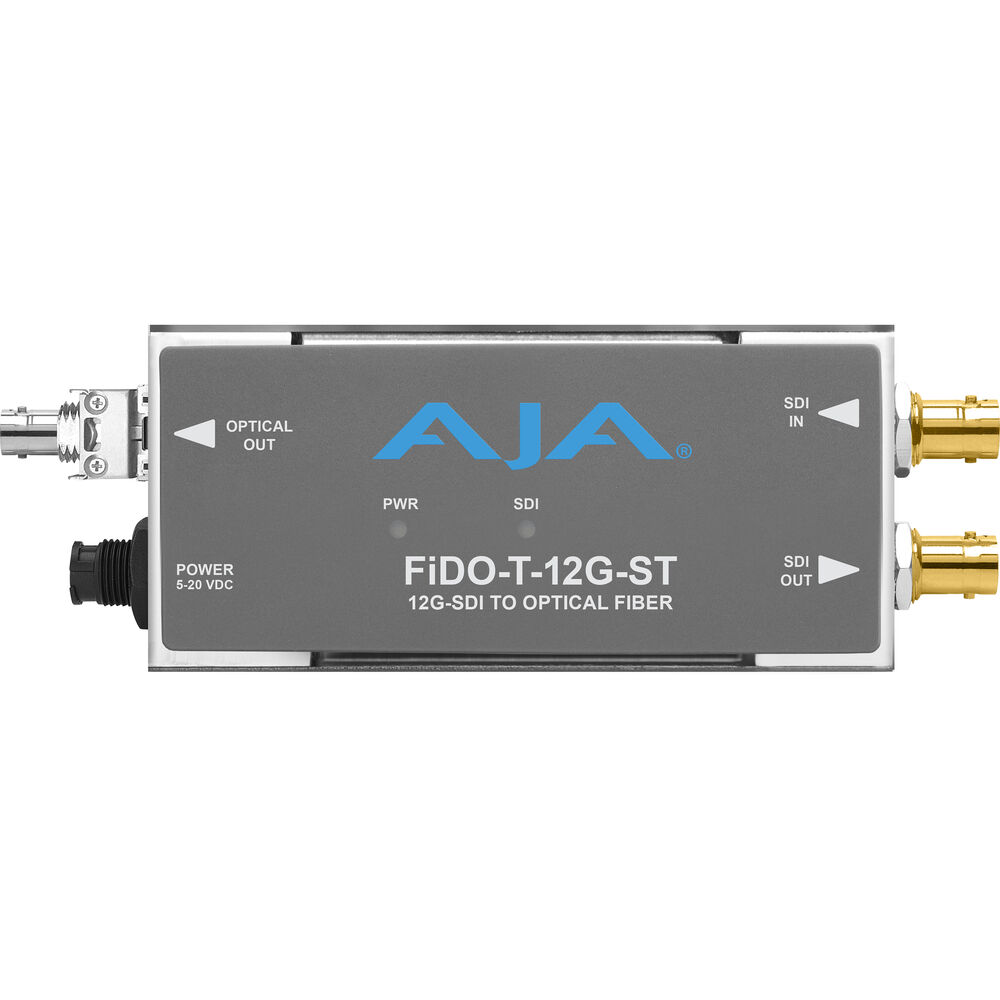

AJA 1-Channel 12G-SDI to Single-Mode ST Fiber Transmitter
AJA 1-Channel 12G-SDI to Single-Mode ST Fiber Transmitter
- SKU : #MP0PFIDO-T-12G-ST | MFR : #FIDO-T-12G-ST | UPC : #812321032291
AJA 1-Channel 12G-SDI to Single-Mode ST Fiber Transmitter
The AJA FiDO-T-12G-ST offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 6 miles over standard single-mode fiber optic cable. The FiDO-T-12G-ST offers a locking ST barrel connector for secure connectivity, advantageous in many live event, production, and mobile environments.
FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks, and on camera.
IN THE BOX
- AJA 1-Channel 12G-SDI to Single-Mode ST Fiber Transmitter
- AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
- Limited 5-Year Manufacturer Warranty
AJA T-12G-ST Specs
| Video Input | Connectors 12G-SDI: 1 x BNC Input Video Formats Bandwidth: 270 Mb/s - 12 Gb/s, Format Agnostic SMPTE Standards SMPTE 259/292/424/2081/2082 |
| Output Video | Connectors 12G-SDI: 1 x BNC SMPTE 259/292/424/2081/2082( Loop Out) Fiber: 1 x Single-Mode ST SMPTE 297/259/292/424/2081/2082 |
| Reclocking |
|
| Power | 5 to 20 VDC Input Required |
| Dimensions | 4.6" x 1.71 " x 0.85" / 117 x 43.5 x 21.6 mm |
| Weight | 0.4 lb / 0.2 kg |
Packaging Info
| Package Weight | 1.23 lb |
| Box Dimensions (LxWxH) | 7.3 x 5.8 x 4.2" |
