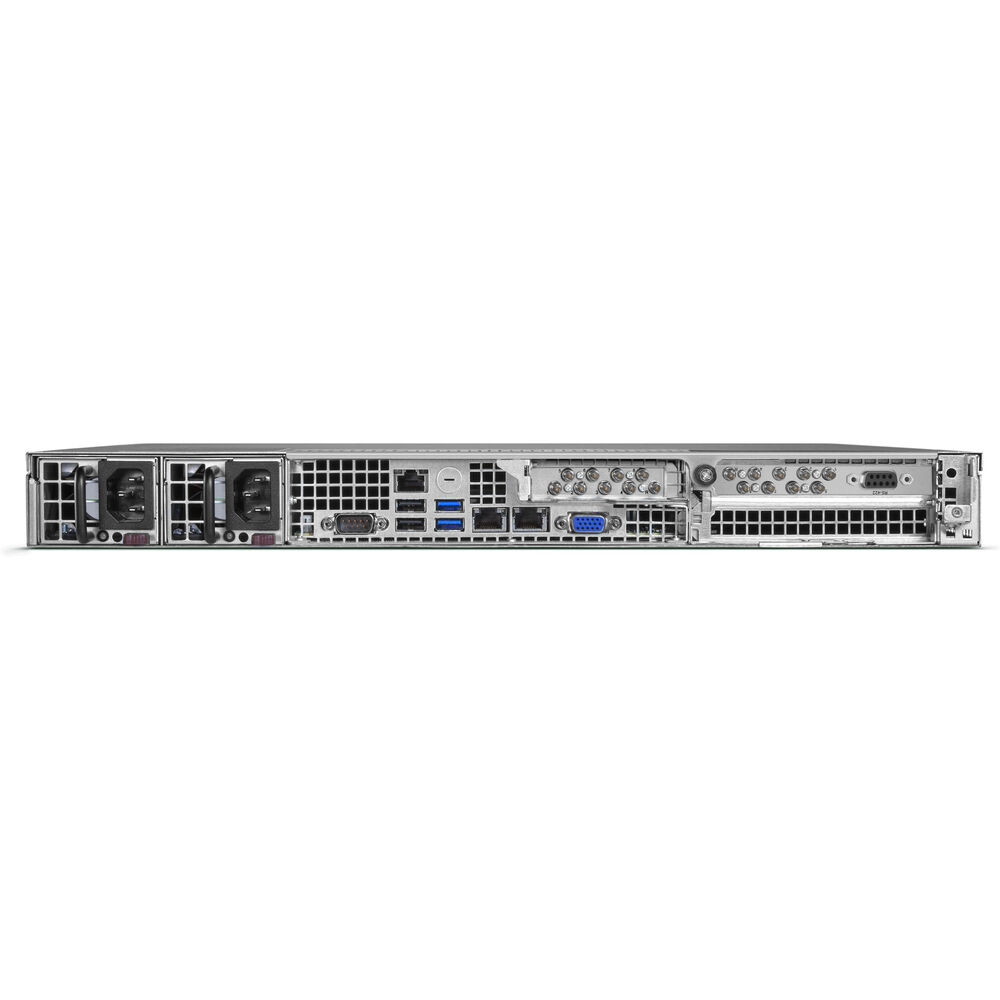

The Bridge NDI 3G Converter from AJA provides high-capacity 3G-SDI to NDI and NDI to 3G-SDI conversion in a compact 1 RU form. Designed to fit into your existing SDI or NDI workflow, this plug-and-play converter is ideal for broadcast, security, sports, entertainment, and other AV applications.
Converter features include support for up to DCI 4K60 4:2:2 10-bit video, 16 x 3G-SDI input/output ports, two x 10 GigE RJ45 input/output ports, support for up to 16-channel embedded audio, and both local and remote control.
3G-SDI to NDI & NDI to 3G-SDI Conversion
Applications
Use for broadcasting, eSports, entertainment venues and other facilities and security and surveillance
3G-SDI Input & Output
Selectable NDI Profiles
Choose between 8-bit and 16-bit, 4:2:2 NDI encoding profiles
16-Channel Audio
Flexible Operation
All Encoding Modes
Accepts up to 16 incoming HD video signals via 3G-SDI and applies NDI encoding to each channel, enabling up to 16 individual HD NDI channels to be output via 10 GigE.
The same 16 channels of 3G-SDI can also be used to enable:
When configured for encoding all incoming SDI inputs to NDI outputs, supports:
Simultaneous 3G-SDI inputs:
Simultaneous encoding for individual 1080p channels:
Simultaneous encoding for 1080p video and key pairs:
Simultaneous encoding for DCI 4K/UHD 4K groups:
Supported encoded output via 10 GigE:
All Decoding Modes
Decodes all incoming NDI signals input via the 10 GigE ports directly to the SDI outputs.
Decodes up to 16 x NDI or NDI HX inputs to uncompressed HD video for output via 16x 3G-SDI outputs.
Decodes up to 8 x NDI streams and an alpha channel for conversion and output as 8 x dual 3G-SDI HD video and key channels.
When decoding up to 4x 4K/UltraHD NDI streams, the 16 x connections can support either square division or 2SI for SDI output.
Simultaneous NDI/NDI HX Inputs:
Simultaneous 1080p decoding:
Simultaneous 1080p video and key pairs decoding:
Simultaneous DCI 4K/UHD DK decoding:
Supported decoding output via dual 10 GigE ports:
Encoding/Decoding Combos
Provides up to 8-channel combinations of SDI to NDI encoding and NDI to SDI decoding and SDI to NDI encoding in each direction.
Remote or Local Control
Monitoring
Confidence monitoring via BNC or VGA video output
Inputs / Outputs
Inputs/Outputs | 16 x BNC (3G-SDI) |
Audio Inputs | None |
Video Outputs | 1 x DE-15/DB-15 (VGA) (Monitor) |
Audio Outputs | None |
Other I/O | 1 x RJ45 NDI Input/Output 1 x RJ45 Control Input/Output |
Expansion Slots | None |
Format Support
Input Video Format | RJ45 (8-Bit 4:2:2 YUV) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps SDI (10-Bit 4:2:2 YUV) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Output Video Format | RJ45 (16-Bit 4:2:2 P216) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps RJ45 (8-Bit 4:2:2 YUV) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps SDI (10-Bit 4:2:2 YUV) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Output Audio Format | USB Audio |
Embedded Audio | LAN (RJ45)/SDI: 16-Channel |
Standards
Video Standard Compliance | SMPTE 292M/424M |
HDR Compatibility | Not Specified by Manufacturer |
IP Streaming
Video IP Encoding | NDI: 1920 x 1080 to 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50i, 50p, 59.94i, 59.94p, 60p (150 to 250 Mb/s) NDI: 1920 x 1080 at 50i, 59.94i (150 to 250 Mb/s) NDI: 1280 x 720 at 50p, 59.94p, 60p (150 to 250 Mb/s) |
Video IP Decoding | NDI: 1920 x 1080 to 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p NDI: 1920 x 1080 at 50i, 59.94i (150 to 250 Mb/s) NDI: 1280 x 720 at 50p, 59.94p, 60p (150 to 250 Mb/s) |
Hardware
Wi-Fi | None |
Power
Power I/O | 2 x IEC C14 (100 to 240 VDC) Input |
Power Consumption | Device: 190 W |
Environmental
Operating Temperature | 41 to 95°F / 5 to 35°C |
Storage Temperature | -40 to 140°F / -40 to 60°C |
Operating Humidity | 8 to 90% (Non-Condensing) |
Storage Humidity | 5 to 95% (Non-Condensing) |
General
Certifications | ICES-3(A), CE, FCC *as per Manufacturer |
Dimensions | 17.2 x 16.9 x 1.7" / 43.7 x 42.9 x 4.3 cm |
Weight | 18.1 lb / 8.2 kg |
Packaging Info
Package Weight | 27.34 lb |
Box Dimensions (LxWxH) | 25.9 x 23 x 8.1" |
