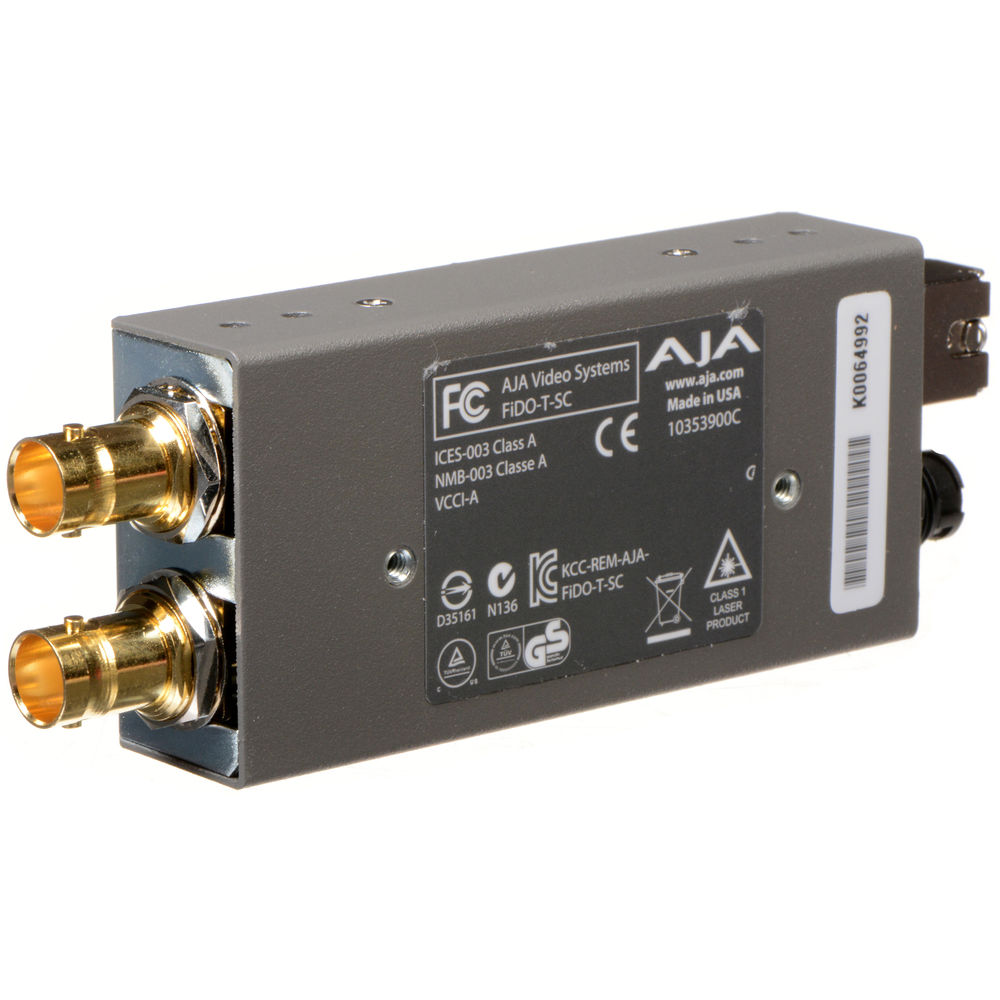

Convert a 3G-SDI signal to an SC fiber output in resolutions up to 1080p. Transmit the output signal up to six miles at the max resolution over a single-mode fiber cable, and monitor the signal locally over a 3G-SDI loop output. AJA's FiDO-T-SC features one 3G-SDI input, one SC optical fiber output, and one 3G-SDI loop output, in a compact body suitable for indoor and outdoor use. Use it with compatible devices, or pair it with a corresponding FiDO Mini Converter.
Key Features
Formats | 3 Gbps, 1.5 Gbps, 270 Mbps (automatically selected based on input) |
Input | 1 x 3G/HD/SD-SDI on BNC |
Output | 1 x SC optical fiber 1 x 3G/HD/SD-SDI loop-out on BNC |
Supported Resolution | Up to 1920 x 1080p |
Power | 5-20 VDC |
Power Consumption | 1.5 W |
Dimensions | 4.6 x 1.7 x 0.9" (12 x 4.3 x 2.4 cm) |
Packaging Info
Package Weight | 1.25 lb |
Box Dimensions (LxWxH) | 9.8 x 7.2 x 2.8" |
