AJA FS4 4-Channel 12G-SDI/1-Channel UHD 4K Frame Synchronizer/Converter
AJA FS4 4-Channel 12G-SDI/1-Channel UHD 4K Frame Synchronizer/Converter
- SKU : #B6L3FS4 | MFR : #FS4 | UPC : #892448000106
Features
- 4 x 12G/6G/3G/HD/SD-SDI Video I/O
- Supports Dual 10-Bit Video Signals
- 16-Channel AES Audio per Input
- 4-Channel and Single-Channel Modes
- HDMI Monitor Output
- Scaling, Aspect Ratio Conversion
- Internal Keyer, Signal Processing
- SNMP Monitoring, Closed Captioning
- Web-Based Remote Control
Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less
You Pay:
AED 23,022.28
VAT Excl.
VAT Excl.
AJA FS4 4-Channel 12G-SDI/1-Channel UHD 4K Frame Synchronizer/Converter
Convert and synchronize up to UHD 4K video with audio with the FS4 4-Channel 12G-SDI & 1-Channel UHD 4K Frame Synchronizer/Converter from AJA. This 1 RU matrix synchronizer can operate in single-channel mode for UHD 4K processing, scaling, and cross conversion to various 2K/HD/SD formats, and it can also operate in four-channel mode where it can process, scale, and cross convert up to four video signals simultaneously between 2K/HD/SD formats.
In single-channel mode, you can upscale HD or SD video to and from UHD 4K as well as converting multiple channels of audio over 3G-SDI, AES, and MADI in a wide-ranging matrix. In four-channel mode, you can simultaneously convert and scale up to four 2K/HD and SD video signals. Features include scaling, color correction, proc amp controls, motion adaptive deinterlacing, and more.

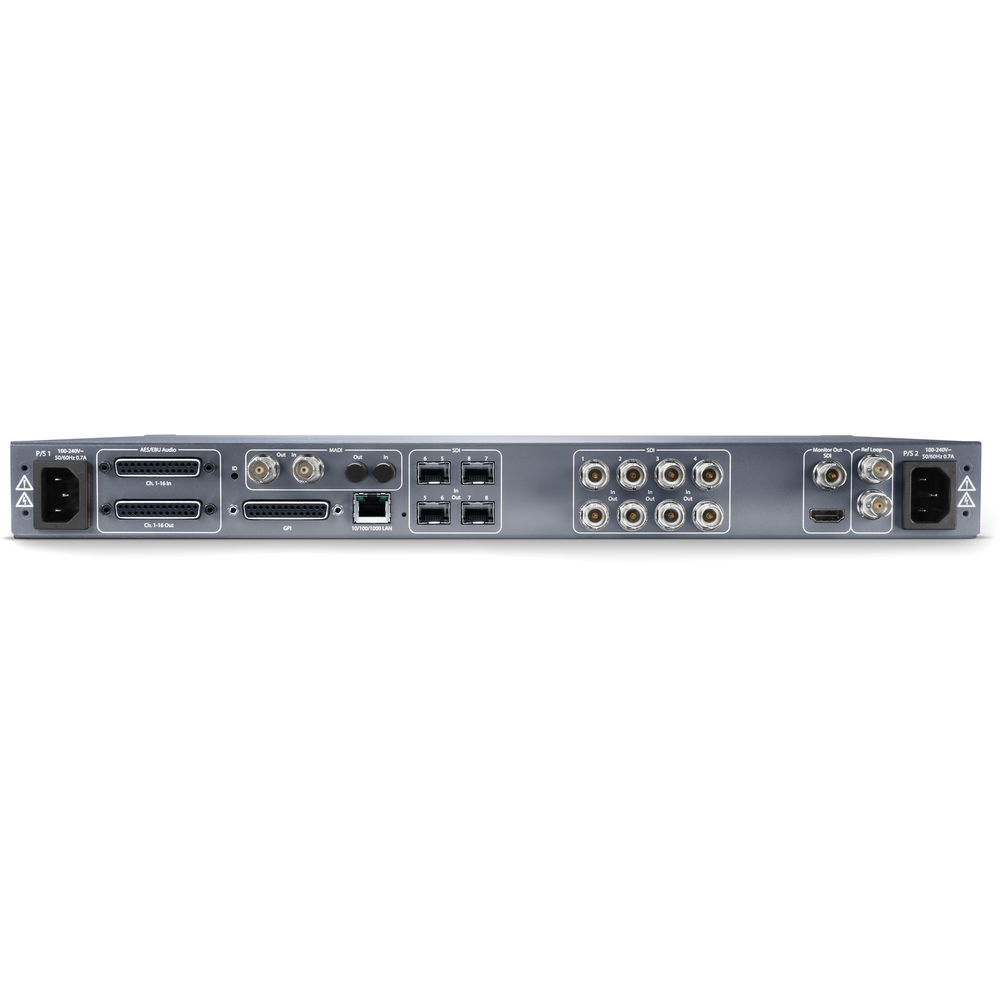

The unit has four 12G/6G/3G-SDI inputs and four 12G/6G/3G-SDI outputs, reference loop input/output, GPI input, DB-25 AES/MADI audio input and output, 3G-SDI and HDMI monitor output, MADI input and output, analog audio input and output, and Gigabit Ethernet for LAN management. The unit also allows you to add a separately available fiber SFP unit for additional inputs and outputs. Its redundant power supply allows you to keep the unit running if one power source fails.
- Single-channel mode provides a full suite of 4K/UltraHD processing and up, down, cross conversion to and from 2K, HD, or SD
- Four-channel mode offers 4 x 2K/HD/SD channels of simultaneous conversion and processing, all within a 1 RU chassis for multichannel high-density delivery
- Panel design provides straightforward operation in single- or four-channel mode
- Legacy signals and archival material need to be integrated into the 4K environment
- 4K sources need to be down-converted for current 2K/HD pipelines
- Supports up, down, cross conversion from SD, HD, or 2K over 12G/6G/3G-SDI video to 4K or UltraHD video and back
- Supports both Quadrant (Square Division) and 2SI (Two Sample Interleave) output formats
- Hardware conversion technology ensures better image quality for your productions
- Utilizes standard BNC as well as optional SFP inputs and outputs to integrate easily into a variety of workflows and facilities with support for SDI workflows all the way up to 12G
- BNC inputs and outputs accept 4K/UltraHD/2K/HD/SD resolution SDI signals in single-channel mode
- 2K/HD/SD inputs can be routed to multiple locations simultaneously without the need for any external signal distribution in four-channel mode
- Looping reference input allows the synchronizer to be locked to your house reference signal for rock-solid stability
- Digital audio can be disembedded and embedded between SDI, MADI, and AES for an array of routing possibilities
IN THE BOX
- AJA FS4 4-Channel 12G-SDI/1-Channel UHD 4K Frame Synchronizer/Converter
- Limited 5-Year Manufacturer Warranty
Inputs / Outputs
| Video Inputs | 4 x BNC (12G-SDI) Female |
| Audio Inputs | None |
| Video Outputs | 4 x BNC (12G-SDI) Female 1 x HDMI (HDMI 1.4a) Female (Preview) 1 x BNC (3G-SDI) Female (Preview) |
| Audio Outputs | None |
| Other I/O | 1 x DB-25 GPI Input/Output (Shared 4 x GPI Inputs, 4 x GPO Outputs) 1 x DB-25 Input (Shared AES/EBU Audio Input) 1 x DB-25 Output (Shared AES/EBU Audio Output) 2 x BNC Reference Input/Output 1 x RJ45 LAN Input/Output (Shared SNMP, HTTP) 1 x BNC Input (Shared MADI) 1 x BNC Output (Shared MADI) 1 x 1/8" / 3.5 mm Input 1 x 1/8" / 3.5 mm Output |
| Expansion Slots | None |
Format Support
| Input Video Format | SDI (10-Bit 4:2:2) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 480i / 525 lines |
| Input Audio Format | AES/EBU: 48 kHz / 24-Bit |
| Output Video Format | SDI (10-Bit 4:2:2 YCC) DCI 4K at 24/25/29.97/30/50/59.94/60 fps UHD 4K 24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 576i / 625 lines |
| Output Audio Format | AES/EBU: 48 kHz / 24-Bit |
| Embedded Audio | SDI: 8-Channel |
Standards
| Video Standard Compliance | SMPTE 259M/292M/297M/372M/424M-B/425M/ST-2081/ST-2082 |
Hardware
| Wi-Fi | None |
Power
| Power I/O | 2 x NEMA 5-15R Input |
| Power Consumption | Device: 100 to 240 VAC (55 W) |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 10 to 90% |
General
| Dimensions | 17.5 x 16 x 1.75" / 44.45 x 40.64 x 4.45 cm |
| Weight | 7 lb / 3.18 kg |
Packaging Info
| Package Weight | 11.3 lb |
| Box Dimensions (LxWxH) | 21.3 x 18.3 x 7" |
