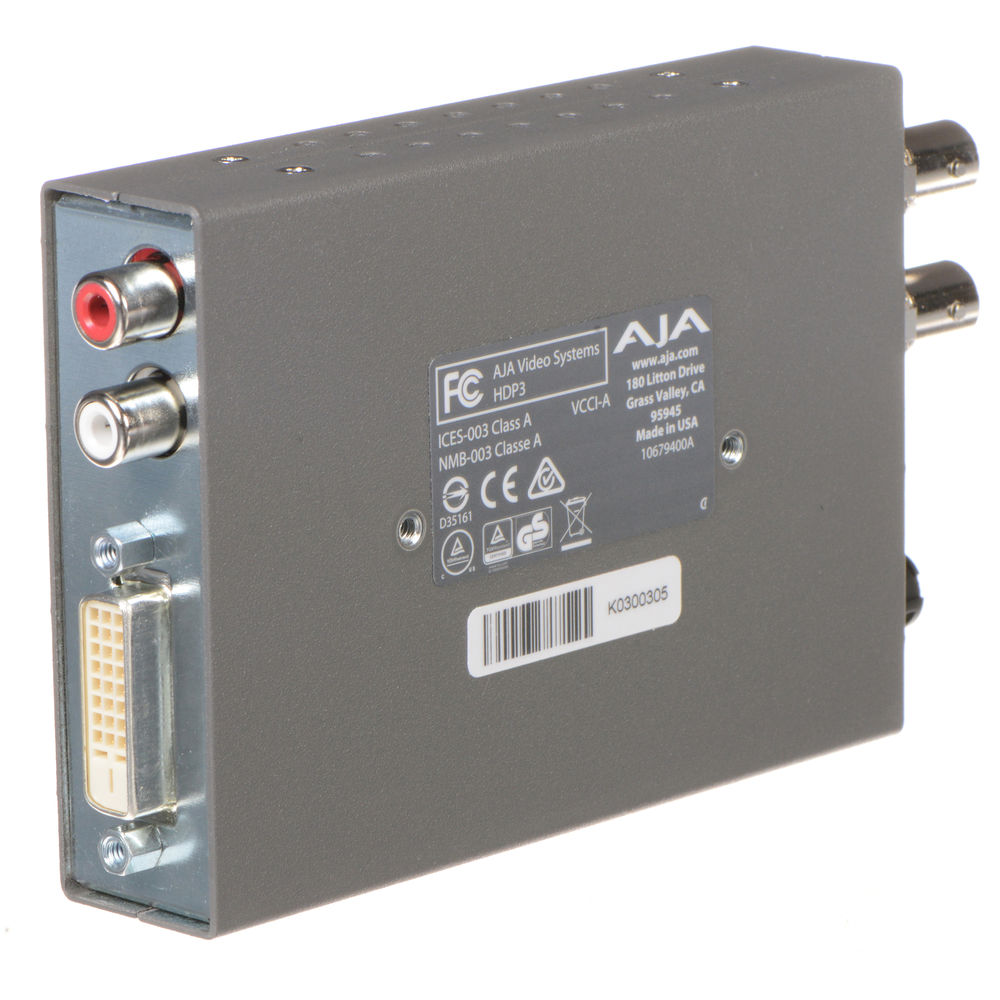

The HDP3 3G-SDI to DVI-D and Audio Converter from AJA is a compact converter with support for 3G-SDI input up to 1080p60 and 1920 x 1200, and a DVI-D output for devices such as LCD, DLP, and plasma monitors or projectors. The converter scales, deinterlaces, and automatically resizes 4:3 or 16:9 video input and outputs to a DVI-D display. The converter can input and output up to eight channels of embedded audio over DVI-D and the 3G-SDI loop output as well as split the audio output to the stereo 2RCA analog output.
General
Compact and Portable
The HDP3 is small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig
Universal Power Supply
Ships with a universal power supply unit that includes international plug connections for use around the world, and it plugs into the unit's locking power connector
Inputs / Outputs
Video Inputs | 1 x BNC (3G-SDI) Female |
Audio Inputs | None |
Video Outputs | 1 x DVI-D DL (DVI/HDMI 1.3) Female 1 x BNC (HD-SDI) Female (Loop Output) |
Audio Outputs | 1 x 2RCA Stereo Analog Female |
Expansion Slots | None |
Format Support
Input Video Format | SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 1080i 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 60 fps |
Output Video Format | DVI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps WUXGA (1920 x 1200) 576i / 625 lines 50 fps 480i / 525 lines 60 fps |
Output Audio Format | Analog: 24-Bit |
Embedded Audio | SDI: 8-Channel HDMI: 2-Channel |
Standards
Video Standard Compliance | SMPTE 259M/292M/424M-A/424M-B |
EDID Support | Auto-Detect |
Wi-Fi | None |
Power
Power I/O | 1 x Proprietary (5 to 20 VDC) Input |
Power Consumption | Device: 6.5 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -40 to 140°F / -40 to 60°C |
Operating Humidity | 10 to 90% |
General
Dimensions | 5.8 x 3.1 x 1" / 14.73 x 7.87 x 2.54 cm |
Weight | 11.22 oz / 318 g |
Packaging Info
Package Weight | 1.75 lb |
Box Dimensions (LxWxH) | 7.3 x 6 x 4.3" |
