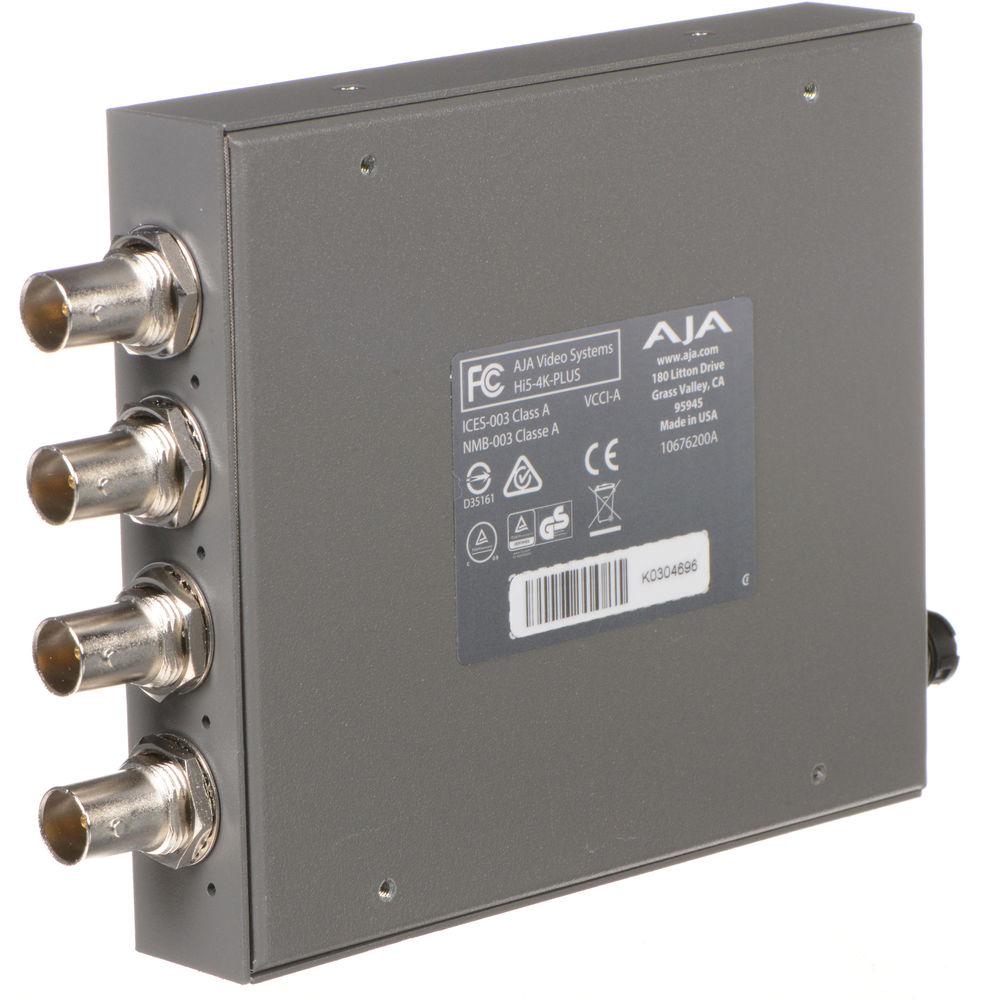

Convert SDI to HDMI video with up to 4K60 resolutions with the Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter from AJA. The Hi5-4K-Plus offers HDR and HLG support, four 3G-SDI inputs, one HDMI 2.0 output, high-resolution embedded audio, app configuration via USB, and a durable, compact form.
The HDMI output offers up to 4K60 monitoring for up to professional 4:4:4 workflows, and it supports HDR 10 and HLG color depth. Embedded audio output supports up to 8-channel audio over HDMI and maintains sync at all times. The Hi5-4K-Plus can be configured and monitored using the AJA Mini-Matrix app from your iOS smartphone, or it can be configured with the Mini-Config software from your macOS or Windows computer using the USB port. A universal power supply is included to power the unit, or you can power it using a separately available D-Tap cable using a high-capacity battery source.
Connectivity
Integrates 4K monitors that utilizes an HDMI 2.0 connection through a single cable with the ones that use four SDI cables to carry the full resolution image
Audio
Up to 8 channels of embedded audio in the incoming SDI signal are carried through seamlessly into the HDMI output, ensuring your audio is always in sync and can be easily played back on the connected monitor
4K and UltraHD
Hi5-4K-Plus allows allowing UltraHD monitors to be used in 4K productions and 4K monitors to be used in 3840 x 2160 resolution
Supports High Frame Rate (HFR) inputs; 4K/UHD signals at 50 or 60 fps can be fed into the converter and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays
HD Support
When you're not working in 4K, Hi5-4K-Plus converter can still be a useful tool for converting HD-SDI to HDMI
A single HD-SDI signal coming into the converter will be sent out as an HD resolution HDMI signal
Universal Power Supply
Ships with a universal power supply unit that includes international plug connections for use around the world
Compact and Portable
The Hi5-4K-Plus mini converter is small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig
A locking power connector can't accidentally pull loose, and an optional D-Tap power cable allows for battery power in remote locations
General
4 x 3G-SDI inputs
Support for 4:2:2/4:4:4 HDMI 2.0 output
HD conversion supported
Embedded audio support
Configure via USB port and supplied MiniConfig software
Uses 5 to 20 VDC power
Video Inputs | 4 x BNC (3G-SDI) Female |
Audio Inputs | None |
Video Outputs | 1 x HDMI (HDMI 2.0) Female |
Audio Outputs | None |
Other I/O | 1 x Unspecified Interface Firmware Input |
Expansion Slots | None |
Input Video Format | SDI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps DCI 4KPsF 23.98/24/25/29.97/30 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4KPsF 23.98/24/25/29.97/30 fps DCI 2K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
Output Video Format | HDMI (8/10-Bit 4:4:4/4:2:2/4:2:0 YCC) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
Embedded Audio | SDI: 16-Channel HDMI: 8-Channel |
Hardware
Wi-Fi | Yes |
OS Compatibility | macOS Windows *As of October, 2020: Check with manufacturer for the most up-to-date compatibility |
Power
Power I/O | 1 x Barrel (5 to 20 VDC) Input |
Power Consumption | Device: 12 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C (Recommended) |
Storage Temperature | -40 to 140°F / -40 to 60°C |
Operating Humidity | 10 to 90% |
General
Dimensions | 5.76 x 4.02 x 0.9" / 146.31 x 102.11 x 22.86 mm |
Weight | 10.6 oz / 300 g |
Packaging Info
Package Weight | 1.55 lb |
Box Dimensions (LxWxH) | 7.2 x 5.8 x 4.2" |
