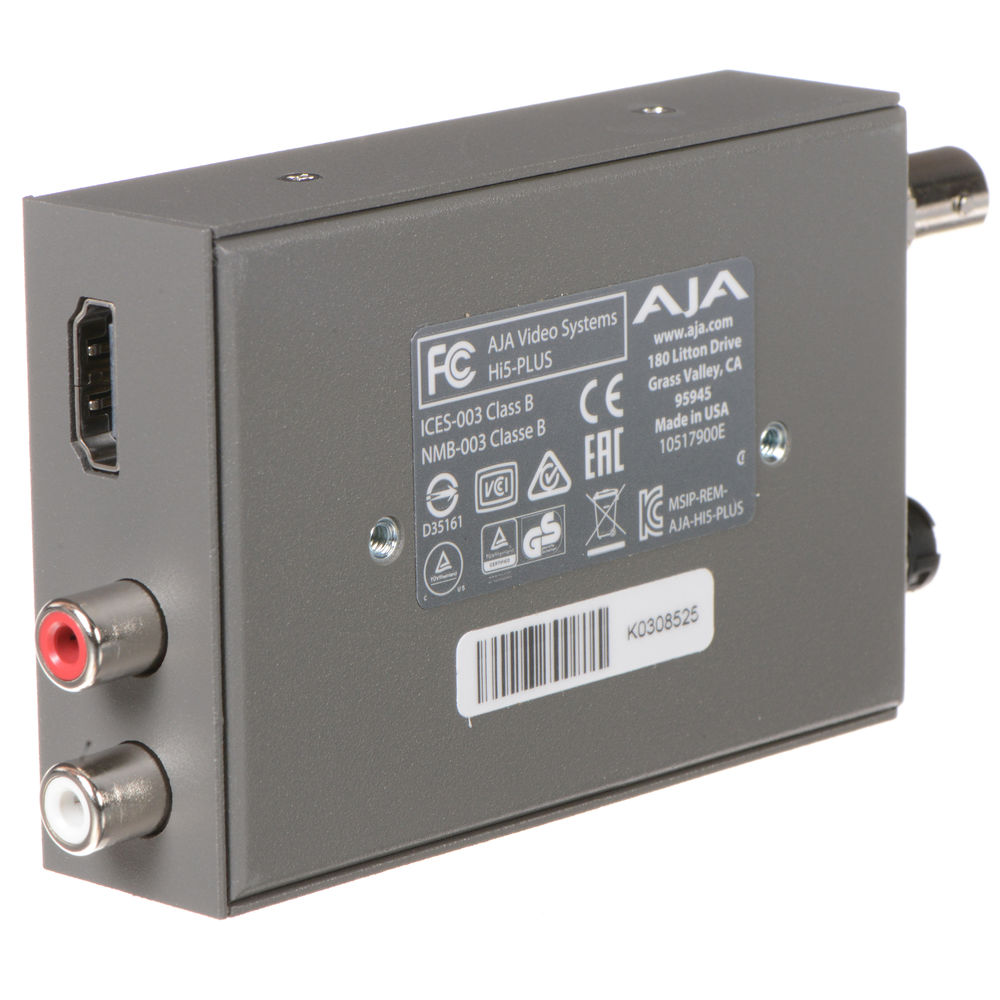

AJA Hi5-Plus 3G-SDI to HDMI Mini-Converter
AJA Hi5-Plus 3G-SDI to HDMI Mini-Converter
- SKU : #S3U2HI5-PLUS | MFR : #HI5-PLUS | UPC : #892448000236
Features
- Routes SDI Signals to HDMI Monitors
- Outputs 30-Bit Deep Color RGB Signal
- Passes 8 of 16 SDI Audio Ch to HDMI Out
- 0 to 7 Frame Synchronization Audio Delay
- 2-Ch RCA Analog Audio Output
- PsF to Progressive Conversion
- Includes International PSU
- Configurable via AJA MiniConfig Software
Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less
You Pay:
AED 1,854.82
VAT Excl.
VAT Excl.
AJA Hi5-Plus 3G-SDI to HDMI Mini-Converter
The AJA Hi5-Plus 3G-SDI to HDMI Mini-Converter allows you to output an SDI signal to an HDMI monitor. When used with a compatible HDMI monitor, it outputs a 30-bit Deep Color RGB signal, providing the full range of color available on a 3G/HD-SDI signal.
Using a free-download AJA MiniConfig control software, you get to select 8 of 16 SDI embedded audio channels and pass them to the HDMI output. You can also delay the audio from 0 to 7 frames for proper synchronization with the output video. Two channels of RCA audio output allow you to pass separate RCA audio at the same time with your HDMI audio. MiniConfig also provides detailed information about the current input and output formats, allows you to control all the parameters of the Hi5-Plus, and lets you download firmware updates. It's compatible with Mac and PC and interfaces with the converter via a USB connection between the converter and the computer.
The Hi5-Plus features a compact, portable, and rugged design and comes with a universal power supply with international plugs for use around the world.
Deep Color HDMI
When used with a compatible HDMI monitor, the Hi5-Plus outputs a 30-bit Deep Color RGB signal, providing the full range of color available on a 3G/HD-SDI signal.
Audio Integration
Using a free-download AJA MiniConfig control software, you can select 8 of 16 SDI embedded audio channels and pass them to the HDMI output. The audio can also be delayed from 0 to 7 frames for proper synchronization with the output video. Two channels of RCA analog audio output allow direct external monitoring without the need to disembed the audio separately.
PsF to Progressive Conversion
HDMI monitors do not natively support PsF signals, but the Hi5-Plus converts incoming 1080PsF signals to 1080p for full compatibility.
USB and MiniConfig Support
The Hi5-Plus supports AJA's free-download MiniConfig software, which provides detailed information about the current input and output formats, allows you to control all the parameters of the Hi5-Plus, and lets you download firmware updates. MiniConfig is compatible with Mac and PC and interfaces with the converter via a USB connection between the converter and the computer.
Universal Power Supply
A universal power supply with international plug connections for use around the world is included.
IN THE BOX
- AJA Hi5-Plus 3G-SDI to HDMI Mini-Converter
- AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
- Limited 5-Year Manufacturer Warranty
| Video Input | 3G-SDI with embedded audio |
| Input Formats | 525i, 625i 720p 50, 59.94, 60 1080i 50, 59.94, 60 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive) 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2K x 1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive) |
| Video Outputs | HDMI with embedded audio up to 8 channels (selectable by MiniConfig software) 8-bit RGB 4:4:4 10-bit YCbCr 4:2:2 12-bit |
| Audio Input | SDI embedded audio, select 8 of 16 channels and pass to the HDMI output |
| Audio Output | 2-channel RCA-style (-10 dBV nominal) |
| Power | Uses AJA Power Supply model DWP-U-R1 (included) 100-240 V, 50/60 Hz universal input +5 V DC regulated, 7.5 W capacity |
| Dimensions | 4.6 x 2.4 x 1" (11.7 x 6.1 x 2.5 cm) |
Packaging Info
| Package Weight | 1.44 lb |
| Box Dimensions (LxWxH) | 10.15 x 5.65 x 3.8" |
