The Zen Tour Synergy from Antelope is a desktop interface designed to bring studio-quality sound to your home, studio, or on-the-road productions. Use it to record vocals and instruments or reamp clean recorded guitars back out through amplifiers for a more realistic tone. With USB 2 and Thunderbolt over USB Type-C, the interface facilitates connection to both Mac and Windows operating systems. ADAT and S/PDIF I/O ports facilitate digital expansion, letting you add up to ten more channels of audio.
The mic preamps provided in this interface are ultralinear, fully discrete designs that work seamlessly with Antelope's mic modeling technology. Should you have a separately available Antelope modeling microphone and software, you'll be able to get the sound of a vintage, prized mic chain, from capsule to preamp. Additionally, the interface offers FPGA Synergy Core FX Processing, so you can run Antelope's FPGA effects.
The Zen Tour Synergy offers a bevy of analog connection points. You'll find four mic/line inputs, four instrument inputs, eight line outputs over DB25 connections, two reamp outputs, two monitor outputs, and two independent headphone outputs. The 64-bit clocking ensures you'll have clean, delineated signal in your recording chain and when you're mixing with monitors or through headphones. An intuitive touchscreen on the interface lets you control the Zen Tour Synergy with ease, while a software mixer offers flexible routing. A power adapter is included along with a USB cable.
Included FX
Zen Tour Synergy Core includes a compelling library of 36 real-time studio effects:
Multitude of Connections
The Zen Tour Synergy Core offers a choice of four instrument/line inputs, four mic/line inputs, eight line outputs, two monitor outputs, two headphone outputs and two reamp outputs. The unit is digitally expandable over ADAT and S/PDIF for an additional 10 digital input and 10 output channels. Additionally, all line outputs are DC coupled and ready for control voltage (CV) applications such as controlling modular synthesizers. As a final touch, an integrated talkback microphone lets you demo vocals and propel your voice to the live room.
4 Discrete Microphone Preamps
Fully discrete ultralinear microphone preamps offer stellar studio-quality sound. Musical and transparent, these pres are designed to complement the Antelope Audio Edge and Verge modeling microphones' sonic characteristics and deliver the power of Antelope's Accusonic 3D mic modeling technology right on your desktop.
Atomic Clocking
Antelope's proprietary 64-bit Acoustically Focused Clocking technology and Jitter Management algorithm helps deliver artifact-free audio with impeccable stereo separation and instrument delineation.
Latency-Free Direct Monitoring
Record and monitor with maxed-out effects chains at high sample rates and low buffer sizes without taxing your CPU. You can enjoy latency-free direct monitoring over four independent internal mixers with 32 assignable inputs and stereo outputs.
Touchscreen Controls
The Zen Tour Synergy Core has touchscreen controls giving immediate access to metering, level controls, presets, and settings. The intuitive interface and precise tactile control facilitate fast, efficient work at all times, without staring at a monitor.
Portable
Zen Tour Synergy Core is a desktop-sized solution. With it, all you need to make great recordings in your project studio, rehearsal space, or on the road is power, a decent laptop, and reliable headphones. The Synergy Core architecture lets you run processing-heavy projects without carrying external equipment like DSP accelerators, FX processors, and authorization dongles.
Easy to Route
Built inside the software Control Panel, a comprehensive Routing Matrix houses a full-fledged digital patch bay to freely route audio between the interface's analog and digital inputs and outputs. Run DAW playback through Synergy Core FX, reamp guitar DIs through the Shred Guitar Amps and Cabs, and integrate external equipment.
Cross-Platform Connectivity
The Zen Tour Synergy Core carries both Thunderbolt 3 (USB Type-C) and USB 2.0 (USB Type-B) ports for cross-platform compatibility with Mac and Windows machines.
Other Features at a Glance
Channels of I/O | ADAT: 8 Input / 8 Output at 44.1/48 kHz 4 Input / 4 Output at 88.2/96 kHz 2 Input / 2 Output at 176.4/192 kHz S/PDIF: 2 Input / 2 Output at 44.1/192 kHz USB: 24 Input / 24 Output Thunderbolt: 32 Input / 32 Output Analog: 8 Input / 14 Output |
Built-In DSP | 4 x |
Maximum Sampling Rate | 192 kHz / 24-Bit |
Number of Microphone Inputs | 8 Preamps |
Built-In Microphone | Yes |
Input Level Adjustment | via Touchscreen 1 x Knob |
Expansion Slots | No |
Signal Processing
Pad | No |
High-Pass Filter | No |
Solo/Mute | No |
Connectivity

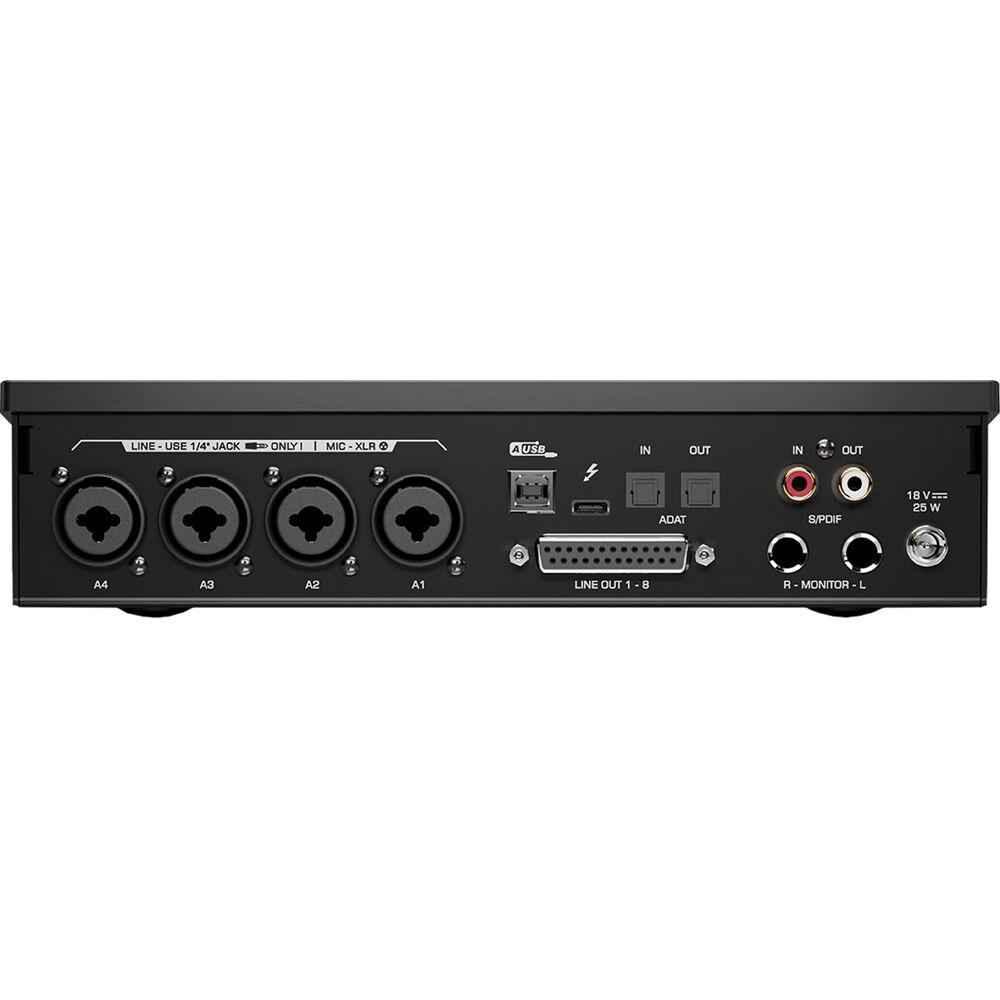

Analog Audio I/O | 4 x 1/4" TS Mic/Line/Hi-Z Input 4 x Combo XLR-1/4" TRS Mic/Line Input 8 x DB-25 25-Pin Line Output (on Optional Breakout Cable) 2 x 1/4" TRS Stereo Output 2 x 1/4" TRS Headphone Output 2 x 1/4" TRS Mic/Re-Amp Output |
Digital Audio I/O | 1 x TOSLINK Optical ADAT Input 1 x TOSLINK Optical ADAT Output 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output |
Host Connection | 1 x USB-B 1 x USB-C |
Host Connection Protocol | USB 2.0 Thunderbolt 3 |
USB (Non-Host) | No |
Sync I/O | No |
Network I/O | No |
MIDI I/O | No |
Performance
THD | Mic: -106 dB |
EIN | Mic: -128 dBu |
Digital Audio
Sample Rates | Up to 192 kHz |
Sample Rate Conversion | On All Inputs (44.1 to 192 kHz) |
Bit Depths | Up to 24-Bit |
Clocking | Internal: |
Audio Storage & Playback
Memory Card Slot | No |
Compatibility
OS Compatibility | macOS 10.12 or Later Windows 10 *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
Included Software | No |
Compatible Software (Not Included) | Pro Tools Logic Cubase |
RAM Requirements | 4 GB, 8 GB Recommended |
Storage Requirements | 4 GB |
Mobile Device Compatibility | No |
Internet Connection | Required for Registration, Software/Driver Download |
Power
Power Requirements | AC/DC Power Adapter (Included) |
AC Input Power | 18 VAC, 60 Hz |
AC/DC Power Adapter | 18 VAC (Included) |
Power Consumption | 25 W |
Physical
Operating Temperature | 32 to 122°F / 0 to 50°C |
Dimensions | 10 x 6.6 x 2.4" / 25.4 x 16.8 x 6.1 cm |
Weight | 3.5 lb / 1.6 kg |
Packaging Info
Package Weight | 7.535 lb |
