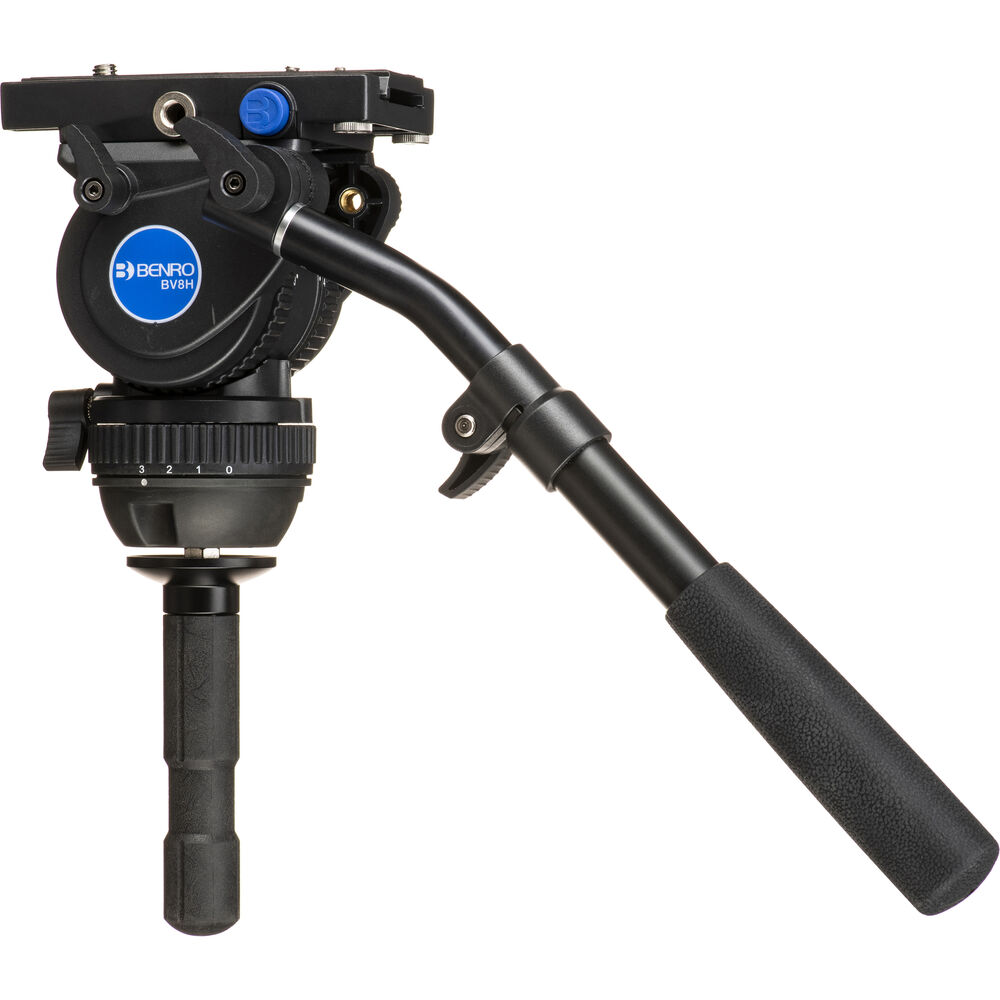

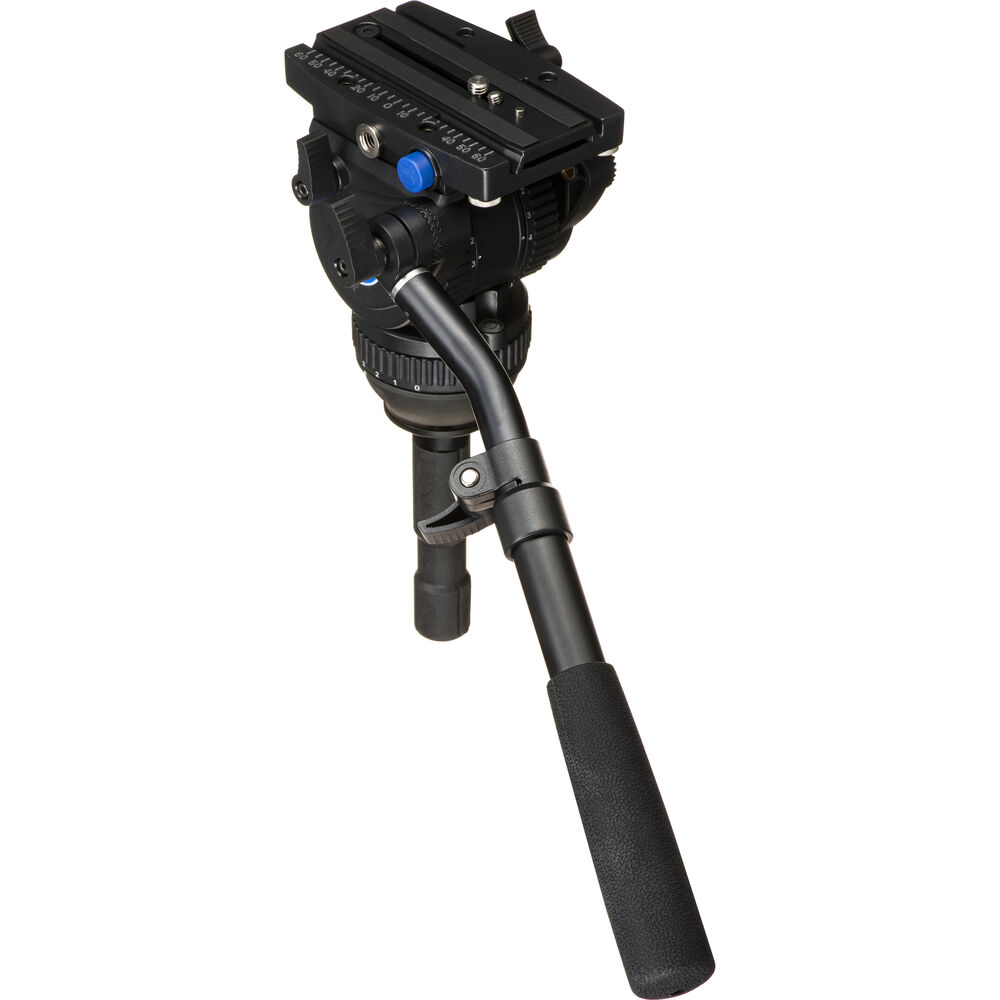

The Benro BV8H 75mm Video Head supports cameras and accessories up to 17.6 pounds, and features a sliding balance plate with both a 1/4"-20 and 3/8"-16 camera tie-down screws. Incorporating a 75mm half ball fitting for quick leveling without having to adjust the legs, it provides a wide platform to support your camera.
The BV8H fluid head features a 4-step counterbalance system with a zero setting for when you want the head to be completely free. Likewise, the pan and tilt functions feature three steps, plus a zero setting. Pan and tilt drag are independent and each function has its own lock. An integrated 3/8"-16 threaded mounting hole enables you to mount accessories directly to the head, relieving the strain of mounting them to your camera. The panhandle mounts via a rosette, and can be attached to either side of the fluid head. An integrated bubble level helps you quickly level the head.

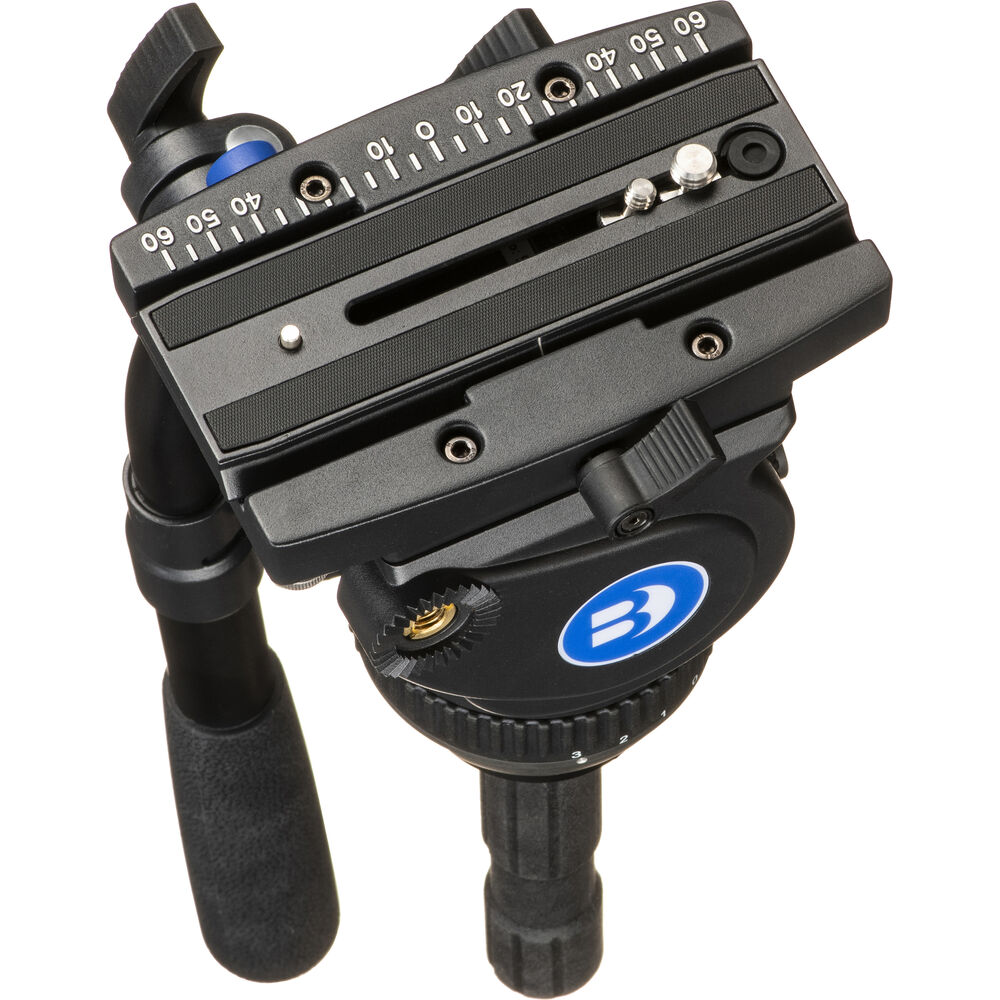

Camera Plate
Camera Plate Features | Sliding Balance Plate |
Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
Plate Dimensions | 5.55 x 1.96" / 14.1 x 4.98 cm |
Head
Base Mount | 75 mm Half Ball |
Counter Balance | Incremental 4-Step Plus 0 (0 to 17.6 lb / ) |
Bubble Level | 1 |
Pan & Tilt
Drag Control | Tilt: 3-Step Plus 0 Pan: 3-Step Plus 0 |
Vertical Tilt | +90° to -70° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
General
Load Capacity | 17.6 lb / 8 kg |
Packaging Info
Package Weight | 7.6 lb |
Box Dimensions (LxWxH) | 18.4 x 10.1 x 8" |
