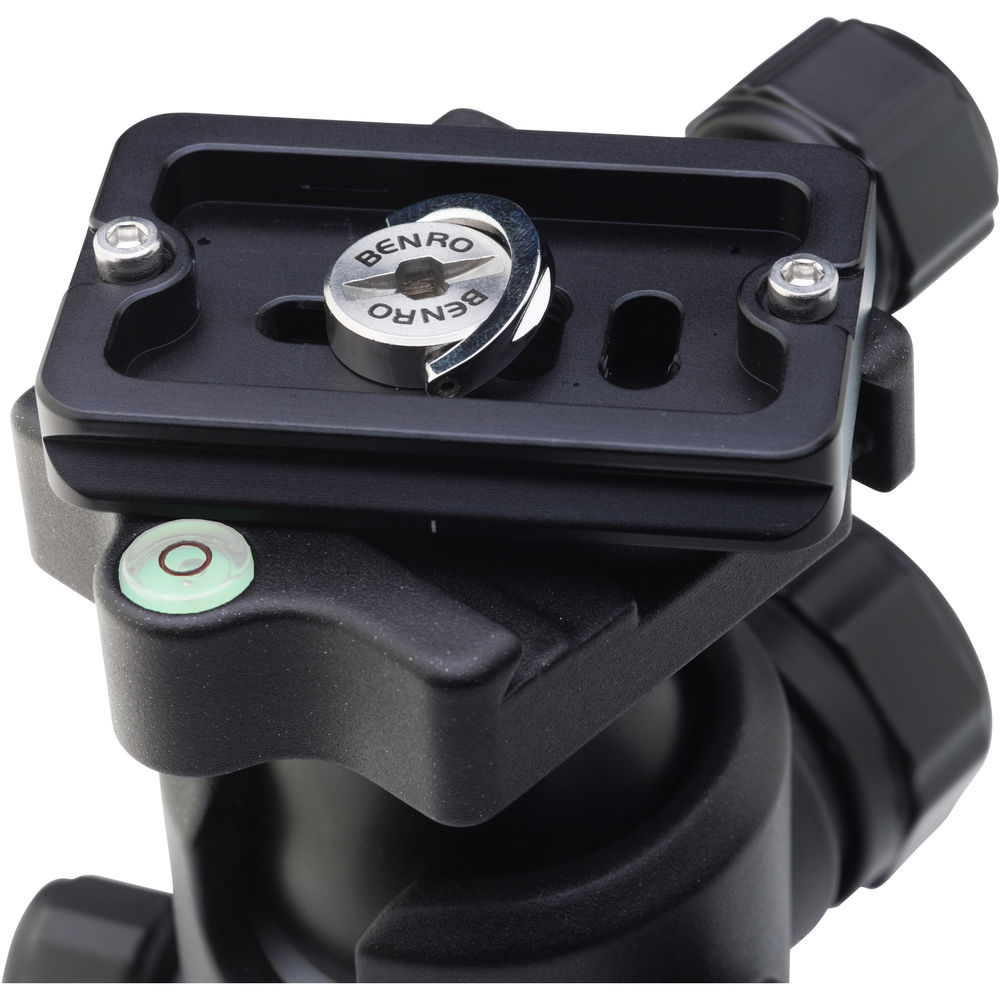

The IB1 Triple Action Ball Head from Benro is an Arca-type compatible head with a load capacity of 17.6 lb. It stands 3.8" high, and weighs 12.8 oz. There are separate locks for both the ball movement and the 360° panning motion, as well as a friction control knob. A 90° notch makes it easy to switch to portrait orientation. The numbered scale on the head's base allows for easily repeatable pans, and a bull's eye bubble helps ensure they head is level with the horizon.
Head
Head Type | Ball Head |
Base Mount | 3/8"-16 Female |
Camera Mounting Screw | 1/4"-20 Male |
Quick Release Plate Type | Arca-Type |
Number of Bubble Levels | 1 |
Friction Control | Yes |
Independent Pan Lock | Yes |
Ball Sphere Diameter | 1.4" / 36 mm |
General
Load Capacity | 17.6 lb / 7.98 kg |
Weight | 12.8 oz / 380 g |
Packaging Info
Package Weight | 1.15 lb |
Box Dimensions (LxWxH) | 5.8 x 4.5 x 4.3" |
