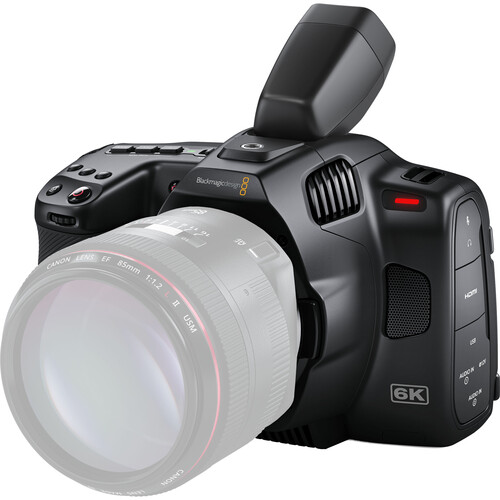

Blackmagic Design Pocket Cinema Camera 6K Pro (Canon EF)

Blackmagic Design Pocket Cinema Camera 6K Pro (Canon EF)

Blackmagic Design Pocket Cinema Camera 6K Pro (Canon EF)

  • SKU : #RFSTCINECAMPOCHDEF06K | MFR : #CINECAMPOCHDEF06K
Blackmagic Design Pocket Cinema Camera 6K Pro (Canon EF)
Blackmagic Design Pocket Cinema Camera 6K Pro (Canon EF)
Features
  • Bright 1500 cd/m² Tilting HDR LCD
  • Super35 HDR Sensor, Gen 5 Color Science
  • Dual XLR Inputs, Canon Active EF Mount
  • NP-F570 Battery, Built-In ND Filters
  • Record 6K 6144 x 3456 up to 50 fps
  • Dual Native 400 & 3200 ISO to 25,600
  • CFast 2.0 & SD/UHS-II Card Slots
  • Record up to 120 fps Windowed HD
  • USB Type-C Recording, 3D LUT Support
  • 13-Stop Dynamic Range, Autofocus Support

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 10,264.00
VAT Excl.

Blackmagic Design Pocket Cinema Camera 6K Pro (Canon EF)

To top their previous achievement with the Pocket Cinema Camera 6K, Blackmagic Design adds an even more full-featured, compact Super35 camera to their cine-style line with the Pocket Cinema Camera 6K Pro. The 6K Pro features all the recording features, sensor, dynamic range, buttons, and ports as its predecessor, and adds a variety of important new features such as a 5" tilting HDR capacitive touchscreen LCD with 1500 cd/m² brightness, a Pro EVF option, built-in clear/2/4/6-stop ND filters, dual mini-XLR inputs, an accurate timecode clock, an NP-F570 L-series battery slot, and updated Gen 5 color science.

With only a slightly larger form factor than the 6L, the 6K Pro records the same resolutions up to 50 fps 6144 x 3456 video, and it retains the valuable active Canon EF mount, letting users take advantage of the expansive array of EF/EF-S mount lenses available. The EF mount supports iris, autofocus, and zoom functions using electronic communication when using compatible lenses.

The 6K Pro can turn one frame into two by cropping a second shot from one frame, upscaling to 8K, or simply capturing rich, detailed footage with your favorite EF/EF-S-mount lens. The updated Gen 5 internal color processing makes it easy to intercut 6K Pro, 6K, and BMPCC 4K footage. Record using the internal CFast 2.0 and SD/UHS-II card slots or via the full-size HDMI port to an optional ATEM Mini switcher for live streaming, or output via the USB Type-C port to capture longer clips to an external SSD. The 6K Pro includes a DaVinci Resolve Studio license and supports Blackmagic Raw capture from the sensor. Using the Raw format with the sensor's metadata simplifies editing to suit any project and makes editing easier with DaVinci Resolve.

The compact 6K Pro retains the familiar controls and menu layout of the 6K model, such as ISO support up to 25,600, 13 stops of dynamic range, and 1920 x 1080 HDR monitor output. Professional audio support now includes two mini XLR inputs with phantom +48V power, a 3.5mm stereo input, a mono speaker, a headphone output, and a built-in stereo mic system.

Additional pro features include lens metadata support, 3D LUT application for both monitoring and recording, up to 21.2MP still image capture, and a multifunction grip that enables single-handed operation. Sync multiple cameras for a concert, event, or other multicamera shoots by linking an external timecode generator to the 6K Pro internal timecode generator (accessed via the 3.5mm audio port). Then save valuable time by using Resolve to automatically sync your multicamera shots in post.

In addition to the DaVinci Resolve Studio activation key, the 6K Pro comes with a 30W power supply offering simultaneous battery charging, an MP-F570 battery, a lens port cap, and a camera strap. Optional accessories designed specifically for the 6K Pro include the BMPCC Pro EVF and BMPCC Pro Battery Grip, available separately.

New 6K Pro Features

5" tilting HDR capacitive touchscreen LCD with 1500 cd/m² brightness

Built-in clear/2/4/6-stop IR ND filters

Dual mini-XLR inputs

Electronic lens communication with iris, autofocus, and zoom control available with compatible lenses

  • Super-accurate timecode clock
  • NP-F570 L-series battery slot
  • Updated Gen 5 color science
  • Optional Pro EVF and battery grip

Features

Active Canon EF Lens Mount

Choose from a wide array of Canon EF/EF-S-mount lenses and automatically populate lens metadata with compatible lenses

Super35 Image Sensor / Dual Native ISO

The 6K Pro camera uses a Super35-size sensor, 13 stops of dynamic range, and a dual native ISO up to 25,600 to capture rich images at resolutions up to 6144 x 3456 up to 50 fps

Blackmagic Raw and ProRes Options

Capture in Blackmagic Raw or ProRes 422 options depending on your project's needs

Up to 6K Shooting Resolutions

Multiple resolutions include 6144 x 3456 (6K), 6144 x 2560 (6K 2.4:1), 5744 x 3024 (5.7K 17:9), 4096 x 2160 (4K DCI), 1920 x 1080 (HD), and more

Versatile Media Capture Options

Record internally to CFast 2.0 or SD/UHS-II card slots, or capture longer clips using the USB Type-C output to an external SSD

DaVinci Resolve Studio License Included

The 6K Pro is compatible with DaVinci Resolve and includes an activation key for Resolve Studio

IN THE BOX

    • Blackmagic Design Pocket Cinema Camera 6K Pro (Canon EF)
    • Lens Port Cap
    • Camera Strap
    • Power Supply with International Adapters (30W)
    • L-Series NP-F570 Battery
    • DaVinci Resolve Studio Activation Key
    • Limited 1-Year Manufacturer Warranty

Key Specs

Lens MountCanon EF
Sensor ResolutionEffective: 21.2 Megapixel (6144 x 3456)
Image Sensor23.1 x 12.99 mm (Super35) CMOS
Internal Recording Modes

ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT
DCI 4K (4096 x 2160) up to 59.94 fps [24.25 to 117.88 MB/s]
UHD 4K (3840 x 2160) up to 59.94 fps [22.4 to 110 MB/s]
1920 x 1080p up to 120 fps [5.6 to 27.5 MB/s]
Blackmagic RAW
6144 x 3456 up to 50 fps [49 to 483 MB/s]
6144 x 2560 up to 59.94 fps [37 to 359 MB/s]
5744 x 3024 up to 59.94 fps [40 to 395 MB/s]
4096 x 2160 up to 59.94 fps [28 to 163 MB/s]
3728 x 3104 up to 59.94 fps [36 to 265 MB/s]
2880 x 1512 up to 120 fps [14 to 101 MB/s]

Show More

External Recording Modes

4:2:2 10-Bit via HDMI
1920 x 1080p
Raw via USB
6144 x 3456 at 23.98/24.00/25/29.97/50 fps
6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps
5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps

Show More

Media/Memory Card SlotSlot 1: SD/SDHC/SDXC (UHS-II)
Slot 2: CFast
Video I/O1x HDMI (Unspecified Signal) Output
Mobile App CompatibleNo
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Battery TypeSony L-Series

Imaging

Lens MountCanon EF
Lens CommunicationYes, with Autofocus Support
Sensor ResolutionEffective: 21.2 Megapixel (6144 x 3456)
Image Sensor23.1 x 12.99 mm (Super35) CMOS
Image StabilizationNo
Built-In ND FilterMechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Internal Filter HolderNo
Capture TypeStills & Video

Exposure Control

Shutter TypeElectronic Rolling Shutter
Shutter TypeElectronic Rolling Shutter
ISO Sensitivity Range100 to 25,600
Shutter Angle5 to 360°
Advertised Dynamic Range13 Stops

Video Capture

Internal Recording ModesProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT
DCI 4K (4096 x 2160) up to 59.94 fps [24.25 to 117.88 MB/s]
UHD 4K (3840 x 2160) up to 59.94 fps [22.4 to 110 MB/s]
1920 x 1080p up to 120 fps [5.6 to 27.5 MB/s]
Blackmagic RAW
6144 x 3456 up to 50 fps [49 to 483 MB/s]
6144 x 2560 up to 59.94 fps [37 to 359 MB/s]
5744 x 3024 up to 59.94 fps [40 to 395 MB/s]
4096 x 2160 up to 59.94 fps [28 to 163 MB/s]
3728 x 3104 up to 59.94 fps [36 to 265 MB/s]
2880 x 1512 up to 120 fps [14 to 101 MB/s]
External Recording Modes4:2:2 10-Bit via HDMI
1920 x 1080p
Raw via USB
6144 x 3456 at 23.98/24.00/25/29.97/50 fps
6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps
5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps
Sensor Crop While Recording6K (6144 x 2560) in 2.4:1 When Recording in Raw
5744 x 3024 When Recording in Raw
4K (4096 x 2160) When Recording in Raw
3728 x 3104 When Recording in Raw
2868 x 1512 When Recording in Raw
Fast-/Slow-Motion SupportYes
Built-In MicrophoneStereo
IP StreamingYes

Still Image Capture

Image File FormatDNG

Interface

Media/Memory Card SlotSlot 1: SD/SDHC/SDXC (UHS-II)
Slot 2: CFast
Video I/O1x HDMI (Unspecified Signal) Output
Audio I/O2x Mini XLR Mic/Line (+48 V Phantom Power) Input
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O1x Weipu SF610/S2 (12 to 20VDC) Input
Other I/O1x USB-C (USB 3.2 / 3.1 Gen 1) Control/Video Output
1x 1/8" / 3.5 mm (Timecode) Input (Shared with Mic/Line Input)
WirelessBluetooth Control
Mobile App CompatibleNo
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Global Positioning (GPS, GLONASS, etc.)No

Monitor

TypeOptional, Not Included

Focus

Focus TypeAuto and Manual Focus

Environmental

Operating Temperature32 to 104°F / 0 to 40°C
Storage Temperature-4 to 113°F / -20 to 45°C
Operating Humidity0 to 90%

General

Battery TypeSony L-Series
Tripod Mounting Thread2x 1/4"-20 Female
Accessory Mounting Thread1x 1/4"-20
Material of ConstructionCarbon Fiber
Dimensions (W x H x D)7.08 x 4.41 x 4.84" / 179.83 x 112.01 x 122.94 mm
Weight2.73 lb / 1.24 kg

Packaging Info

Package Weight4.61 lb
Box Dimensions (LxWxH)10.5 x 8.75 x 7"
