The Cable Techniques Bud II Battery Distribution System SR Kit is designed for connecting the Cable Techniques Battery Bud II Portable DC Power Distribution Box to a variety of different audio devices. The kit consists of the Bud II distribution box, an NP-1 Battery cap input and cable for connecting a rechargeable battery, a BB-SDMX-18 18" Hirose to Hirose power output cable, and two BB-SR-24/1 24" Hirose right angle power output cables, each capable of powering a receiver.

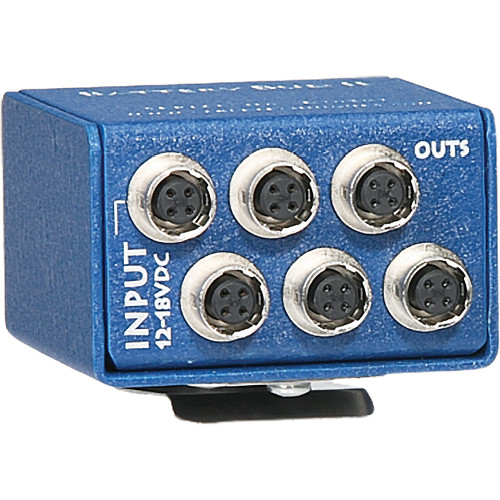

Cable Techniques Battery Bud II Portable DC Power Distribution Box
The Battery Bud II from Cable Techniques is a lightweight and portable DC power distribution box that allows you to power multiple devices from a single battery or power source. The Battery Bud II accepts 12-18VDC power and uses standard 4-pin Hirose connectors. It offers a single power input and 5 outputs, all of which are on the bottom of the unit for seamless bag integration. An internal 6A electronic auto-resetting breaker prevents damage due to overload. A recessed power switch makes it easy to have a "master" switch for your whole bag of gear. The Battery Bud II has a lightweight metal construction with a removable belt clip and a durable powder coat finish.
Cable Techniques BB-NP - 15" NP-1 Cap to Hirose 4 Battery Bud Input Cable
This is an NP-1 Cap to Hirose 4 adaptor with a 15" input cable for use with the Cable Techniques Battery Bud distributor.
Cable Techniques BB-SDMX-18 - Hirose to Hirose 4-Pin Power Cable (18")
The BB-SDMX-18 from Cable Techniques is a power cable designed for use with Sound Devices 664, 633, MixPre and 442, 302, 552, 744T, 722, 702, 702T, 788T, PIX 240/220, SQN, PSC ProMix 6, M4 mk2, M3 and AlphaMix, Wendt X5 and X3, Lectrosonics Quadpack, Zaxcom Nomad and Maxx, and Sennheiser EK3041/3241 with GA 3041-C
Cable Techniques BB-SR-24/1 Output Cable (24" / 609.6mm)
The Cable Techniques BB-SR-24/1 Output Cable (24" / 609.6mm) from Redding Audio is designed for use with Lectrosonics SR receivers and SMBATELIM battery eliminators.
Compatible with Lectrosonics SR receivers
Connectors | 1 x 4-Pin Hirose Input 5 x 4-Pin Hirose Outputs |
Power | 12-18VDC |
Dimensions | 2 x 2 x 1.25" (51 x 51 x 32mm) |
Weight | 2.9 oz (82g) |
Packaging Info
Package Weight | 0.225 lb |
Box Dimensions (LxWxH) | 6.3 x 4.55 x 1.8" |
Packaging Info
Package Weight | 0.16 lb |
Box Dimensions (LxWxH) | 6.85 x 4.25 x 2.5" |
Connectors | 2 x Hirose |
Length | 18" (457mm) |
Packaging Info
Package Weight | 0.08 lb |
Box Dimensions (LxWxH) | 5.35 x 4.7 x 0.6" |
Connectors | Hirose 4-pin male to right angle locking coaxial barrel |
Compatibility | Lectrosonics SR receivers (not in camera slot) & SMBATELIM battery eliminators |
Length | 24" (609.6 mm) |
Packaging Info
Package Weight | 0.1 lb |
Box Dimensions (LxWxH) | 6.1 x 4.3 x 0.3" |
