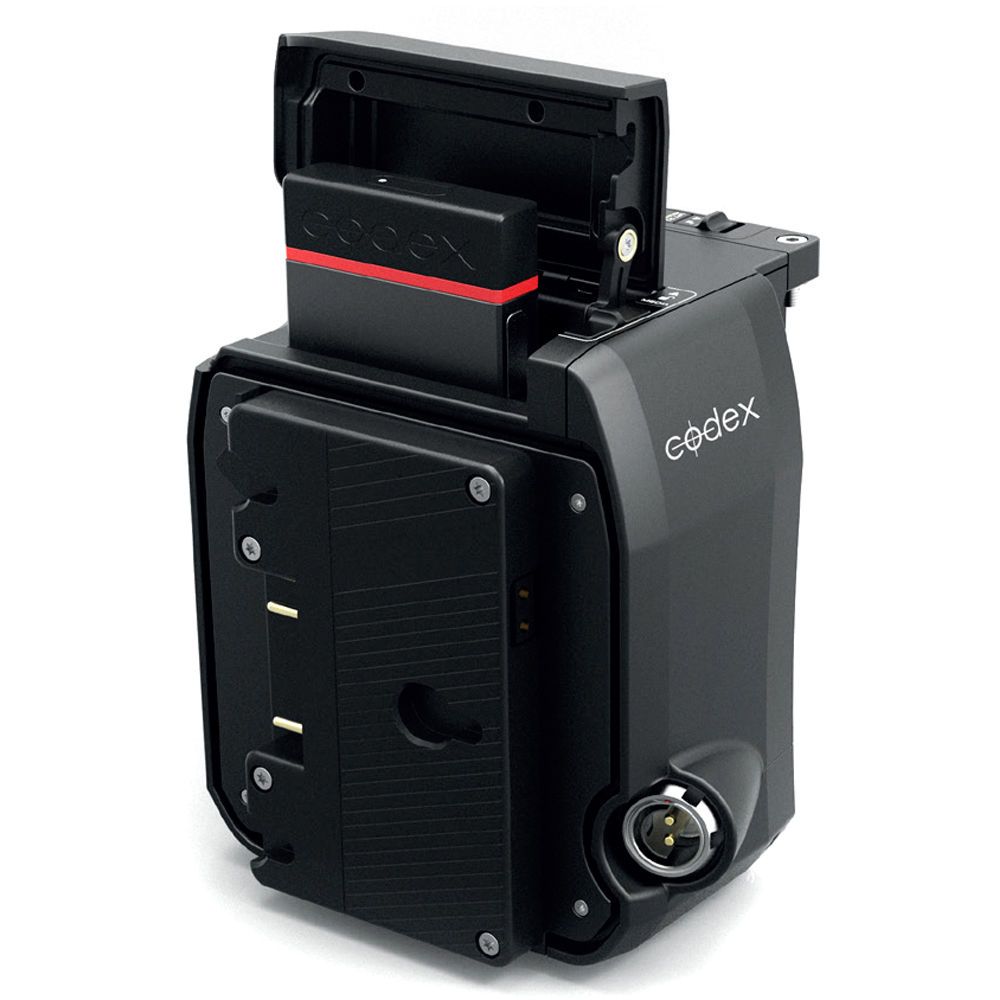

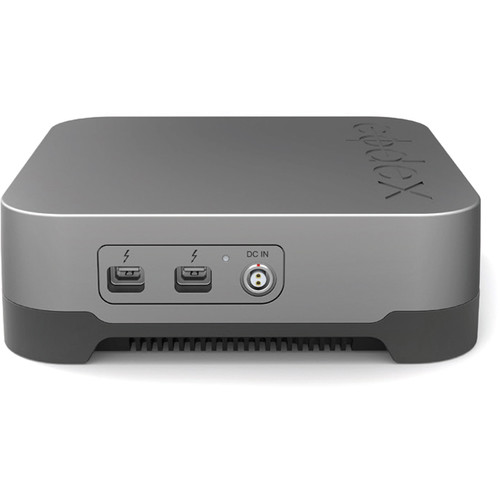

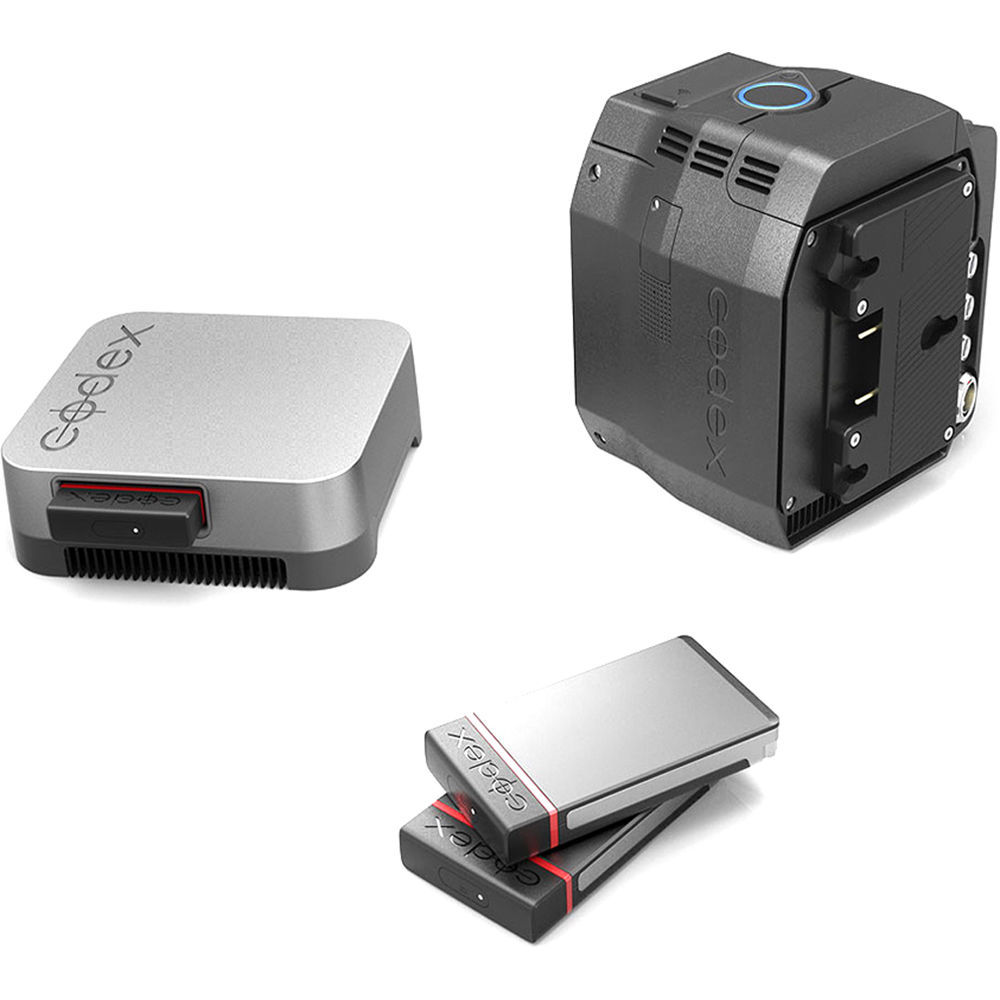

The CDX-37018 Codex Capture Drive 2.0 from Canon is designed to provide 1TB storage to the CDX-36150 digital raw recorder. It feeds seamlessly into Codex's industry standard workflows via the Codex Vault and Codex Capture Drive 2.0 dock (available separately). It delivers a bandwidth of up to 20 Gb/s.
Storage Capacity | 1 TB |
Performance
Interface | PCIe (Unspecified Type) |
Power
Power Consumption | 22 W (Maximum) |
Environmental
Operating Temperature | 32 to 102°F / 0 to 70°C |
Storage Temperature | -40 to 185°F / -40 to 85°C |
Operating Humidity | 5 to 95% |
Operating Shock | 1500 G / 0.5 ms |
Operating Vibration | 3.08 G / 7 to 800 Hz |
Physical
Dimensions | 2.4 x 4.33 x 0.64" / 61 x 110 x 16.2 mm |
Weight | 7.05 oz / 200 g |
Packaging Info
Package Weight | 0.685 lb |
Box Dimensions (LxWxH) | 5.8 x 3.6 x 1.1" |
