Canon EU-V3 Expansion Unit
Canon EU-V3 Expansion Unit
- SKU : #WMDN5931C001 | MFR : #5931C001 | UPC : #013803355567
Features
- For C300 Mark III, C500 Mark II
- V-Mount Plate, 4-Pin XLR DC Input
- SDI Return Video, D-Tap Output
- Tally Signal, RJ-45 Ethernet Jack
- Input via Ethernet Interface/XC Protocol
- RS-422 Control via "Remote B" Port
- 12V Output via 4-Pin Hirose Interface
- 12-Pin Interface for Lens Power
Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less
You Pay:
AED 11,015.33
VAT Excl.
VAT Excl.

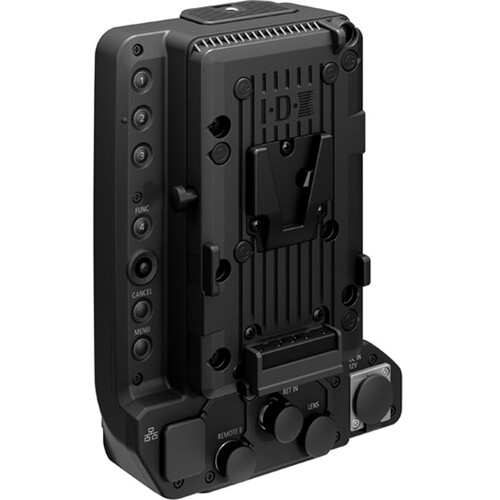

Canon EU-V3 Expansion Unit
The Canon EU-V3 Expansion Unit mounts easily on your C300 Mark III or C500 Mark II camera, providing multiple interfaces for easier integration with a studio or live production setup. The EU-V3 expansion unit is powered via the 4-pin XLR DC input or using a battery and the V-mount plate. This unit provides a D-Tap output, return video, tally, Ethernet/XC protocol, RS-422 Remote B, and RJ45 Ethernet interfaces plus a 4-pin Hirose 12V output and 12-pin lens port.
Compatibility
Canon
- C300 Mark III
- C500 Mark II
IN THE BOX
- Canon EU-V3 Expansion Unit
- Terminal Cap
- Hex Socket Head Bolt (M4)
- Limited 1-Year Manufacturer Warranty
General
| Compatibility | Canon C300 Mark III Canon C500 Mark II |
Inputs / Outputs
| Connector 1 | 1 x 4-Pin XLR Power |
| Connector 2 | 1 x RS-422 Control 1 x RJ45 Ethernet 1 x 4-Pin Hirose (12V) 1 x 12-Pin Lens Interface 1 x D-Tap Output |
Physical
| Dimensions | 7.4 x 5.6 x 4" / 18.8 x 14.2 x 10.2 cm |
| Weight | 1.5 lb / 680 g |
Packaging Info
| Package Weight | 2.35 lb |
| Box Dimensions (LxWxH) | 11.1 x 8 x 7.3" |
