This black 2 x PTC-140 Camera Kit with RMC-180 Mark II Controller from Datavideo supports HD production and is an excellent choice for house of worship, education, and corporate work. The included controller supports up to four cameras, controlling their position and movement. The two included cameras support control via DVIP and VISCA/Pelco-P/D Serial Control, support RTSP and RTMP streaming protocols, and output HD video via HDMI or HD-SDI connectors.
Datavideo HD/SD-SDI and HDMI PTZ Camera with 20x Optical Zoom (Black)

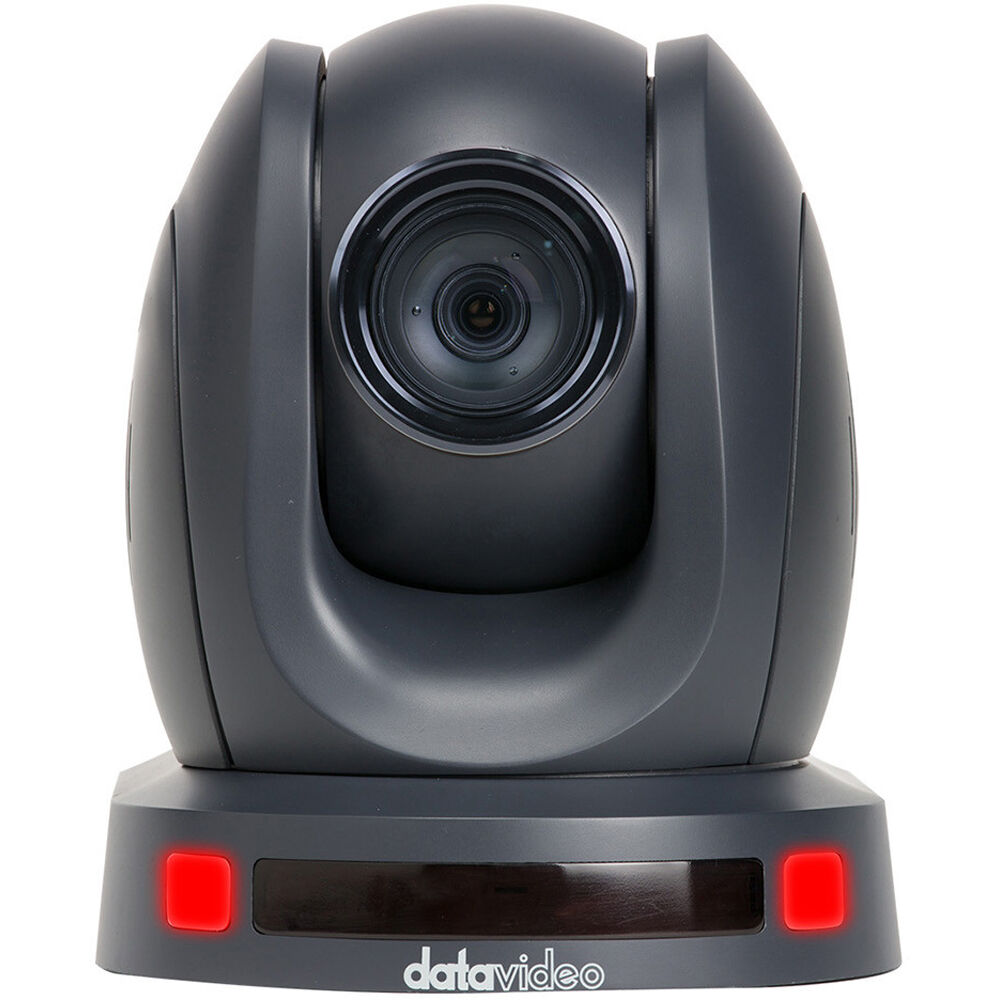

Add a high-resolution PTZ camera to your conference room, education setting, live event, house of worship, or remote video conference with this black HD/SD-SDI and HDMI PTZ Camera with 20x Optical Zoom from Datavideo. The camera features remote pan, tilt, and zoom control via a remote control or via IP and serial protocols, and its built-in zoom lens offers an optical zoom range of 20x with a 10x digital zoom to view just about any angle in your setting. The camera supports frame rates and resolutions up to 1080p60, allowing you to utilize high-quality video for your broadcasts and internet streams. The camera sends video over its HDMI and/or SD/HD-SDI ports to compatible HDMI or SDI video converters, switchers, recorders, or other devices. It can also live stream video via the LAN Ethernet port.
With 255 programmable preset positions, you can set the camera to rapidly move between positions using a variety of protocols including DVIP over your LAN, RS-232 using an optional serial controller, or IR control using the included IR remote. The camera compresses using the common, high-quality H.264 and H.265 protocols for streaming over your LAN, and you can simultaneously encode two live video streams using standard RTSP or RTMP protocols that are compatible with a variety of Internet streaming sites. The camera also supports external audio input via its 3.5mm stereo line-level input, and you can mount the camera via the 1/4"-20 threaded mounting thread. There is a red/green tally light on the camera so your room will know whether the camera is on or off.
The camera includes a ceiling mount kit, and you can utilize the separately available WM-1 wall mount kit if you prefer to mount the camera on a wall. In addition to a power supply, safety cable, and UV filter to protect the lens, the camera includes serial cables to get your started.
Key Features
Datavideo RMC-180 Mark II PTZ Camera Controller

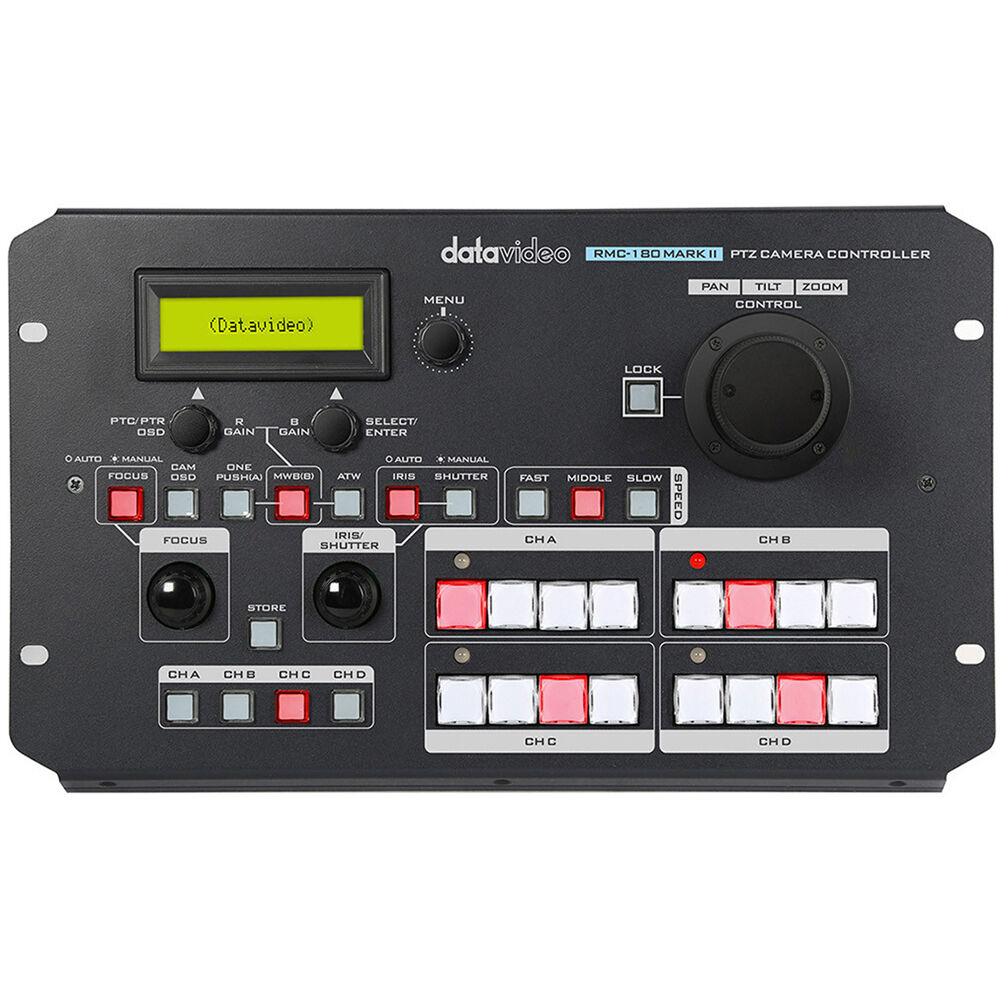

Use the Datavideo RMC-180 Mark II PTZ Camera Controller to adjust the focus, iris, zoom, and other settings of up to four PTZ cameras via RS-422 and VISCA protocols in live event or conference applications. One main joystick and various knobs and buttons allow for easy setup and control of connected cameras through four RJ45 inputs. Four shortcut keys per camera can be programmed into position presets for effects like close-ups and wide shots.
Plug-and-Play Interface

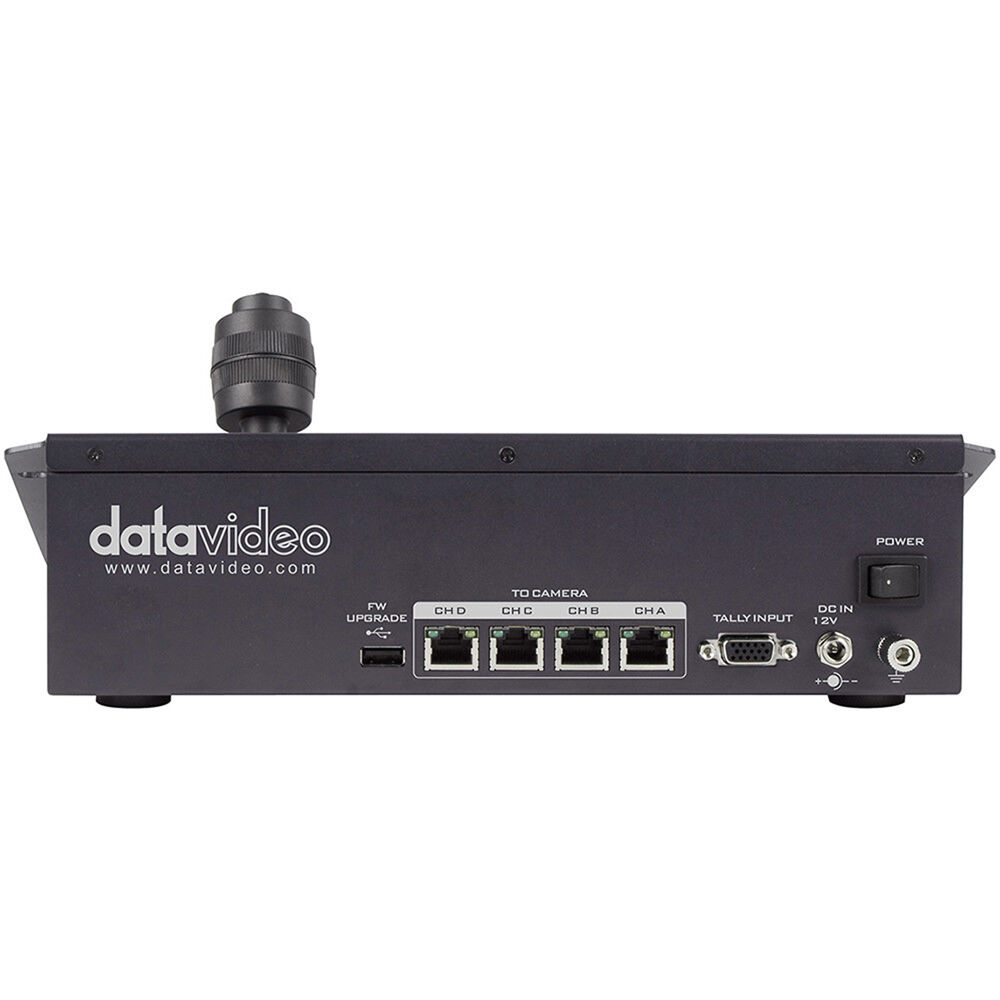

Connect your compatible PTZ camera units to the RMC-180 via four RJ45 inputs on the back panel. The ports feature RS-422 interface standards and are compatible with any RJ45 cable. VISCA protocols can also be utilized by the unit. The status of the controls can be viewed via the monochrome panel display, and firmware updates can be achieved via the USB-A input.
Multicamera Control
An ergonomic joystick and tactile button layout make for easy setup and control of up to four Datavideo PTZ cameras and robotic pan/tilt heads for any live production scenario.
Camera Position Presets
Shortcut keys on the RMC-180 control panel can save up to four preset positions for each connected camera (up to eight presets if only two cameras are connected). Program close-ups and wide shots, and recall them with the press of a button.
Manual Controls
Control each camera's focus and iris manually using the embedded dials. Other manual settings include pan, tilt, zoom, gain, and OSD functions on specific models. Commands are delivered via Cat 5/6 cable.
Speed Mode
The controller can move the PTZ cameras at slow, medium, and fast speeds. Select the speed of your camera movement with the quick option buttons to match the pacing of your event.
Tally Light Support
A DB-15 tally input port on the control unit allows for compatibility with Datavideo's switcher and camera tally indicators. Two different modes—tally user and tally input—can be implemented to suit your workflow.
Controls PTR-10 with Presets
The same four presets per camera can be used to control the PTR-10 robotic pan/tilt head. Iris and focus control extend to the mounted camera on the head.
Imaging
Image Sensor | 1/2.8"-Type CMOS |
Sensor Resolution | Effective: 2.07 Megapixel |
IR Cut Filter | No |
Built-In ND Filter | None |
Focus Control | Autofocus Manual Focus |
Exposure Control
Shutter Type | Electronic Rolling Shutter |
Gain | 0 to 15 dB |
Signal-to-Noise Ratio | 55 dB |
Minimum Illumination | 0.5 Lux |
Flip / Mirror Support | Image Flip, Mirror (Vertical) |
White Balance | 3000 to 6500K Presets: Auto, Manual, One Push |
Lens
Focal Length | 5.2 to 98mm |
Optical Zoom Ratio | 20x |
Max Digital Zoom | 10x |
Field of View | Horizontal: 54.7 to 3.3° |
Maximum Aperture | f/1.6 to 3.5 |
Video Capture
External Recording Modes | SDI/BNC / HDMI 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
Broadcast Output | NTSC |
IP Streaming | H.264, H.265, RTMP, RTSP, SRT, TCP 1920 x 1080 1280 x 720 |
Control
Presets | 255 via IR, RS-232, VISCA |
Move Speed | Pan: 0.1 to 60°/sec Tilt: 0.1 to 30°/sec |
Movement Range | Pan: 340° Tilt: 120° (-30 to 90°) |
Tally Light | Yes |
Supported Control Protocols | IP IR Pelco-D Pelco-P RS-232 VISCA |
Interface
Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI 1.0 Output |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
Other I/O | 1 x Block 2-Pin (RS-485) Input 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x RJ45 (LAN) Output |
Power
Power I/O | 1 x Barrel (12VDC) Input |
Power Consumption | Device: 12 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
General
Mounting | 1 x 1/4"-20 Female 1 x WM-1 for Wall |
Mobile App Compatible | Yes: Android & iOS App Name: DVIP Network Config Functionality: Setup *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Certifications | FCC Part 15 *as per Manufacturer |
Dimensions (W x H x D) | 6.1 x 7.3 x 7.2" / 15.6 x 18.6 x 18.2 cm |
Weight | 56.4 oz / 1.6 kg |
Packaging Info
Package Weight | 7.69 lb |
Box Dimensions (LxWxH) | 14.3 x 11.6 x 11.3" |
General
Number of Supported Cameras | 4 Channels via RS-422 |
Supported Control Protocols | RS-422 VISCA |
Control I/O | 4 x RJ45 (RS-422, VISCA) |
Other I/O | 1 x USB-A Input 1 x DE-15/DB-15 (Tally) Input |
Controls | 1 x Pan/Tilt, Zoom Joystick 2 x Gain Knobs 1 x Focus Knob 1 x Iris Adjustment, Shutter Speed Knob Programmable, Multifunction, Iris Adjustment, Shutter Speed, Focus, Auto-Focus, Camera Selection Buttons |
Presets | 16 |
Display
Touchscreen | No |
Power
PoE Support | None |
Power Connectors | 1 x Barrel / Coaxial |
DC Input Power | 12 VDC at 1 A |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -40 to 140°F / -40 to 60°C |
Physical
Security Lock Support | None |
Dimensions | 12.2 x 6.7 x 4.9" / 310 x 170 x 125 mm |
Weight | 3.3 lb / 1.5 kg |
Packaging Info
Package Weight | 4.98 lb |
Box Dimensions (LxWxH) | 15.1 x 10.4 x 7.9" |
