The MS-2850A Mobile Studio from Datavideo includes the SE-2850 HD/SD 8-channel video switcher, HDR-70 HDD recorder, TLM-170LM 17.3" 3G-SDI Full HD rackmount LCD monitor, ITC-100 8-user wired intercom system with four belt packs and headsets, AD-100M audio delay box, and PD-2A 1 RU power distribution center.
The MS-2850A HD/SD mobile video studio is a ready-to-go solution. It is designed around the SE-2850 HD/SD 8-channel (upgradeable to 12 channels) broadcast quality video switcher. It is perfect for outdoor events, conferences, education, and places of worship. Producing high-quality pictures with versatile input/output configurations, the SE-2850A also has powerful yet easy-to-use effects such as dual picture-in-picture, downstream keyer (DSK), and logo insertion.
The switcher is integrated with the essential elements required for live production including a recorder, a multiview monitor, and an intercom system. Also included is an impact-protective 8 RU flight case for secure and safe transport.

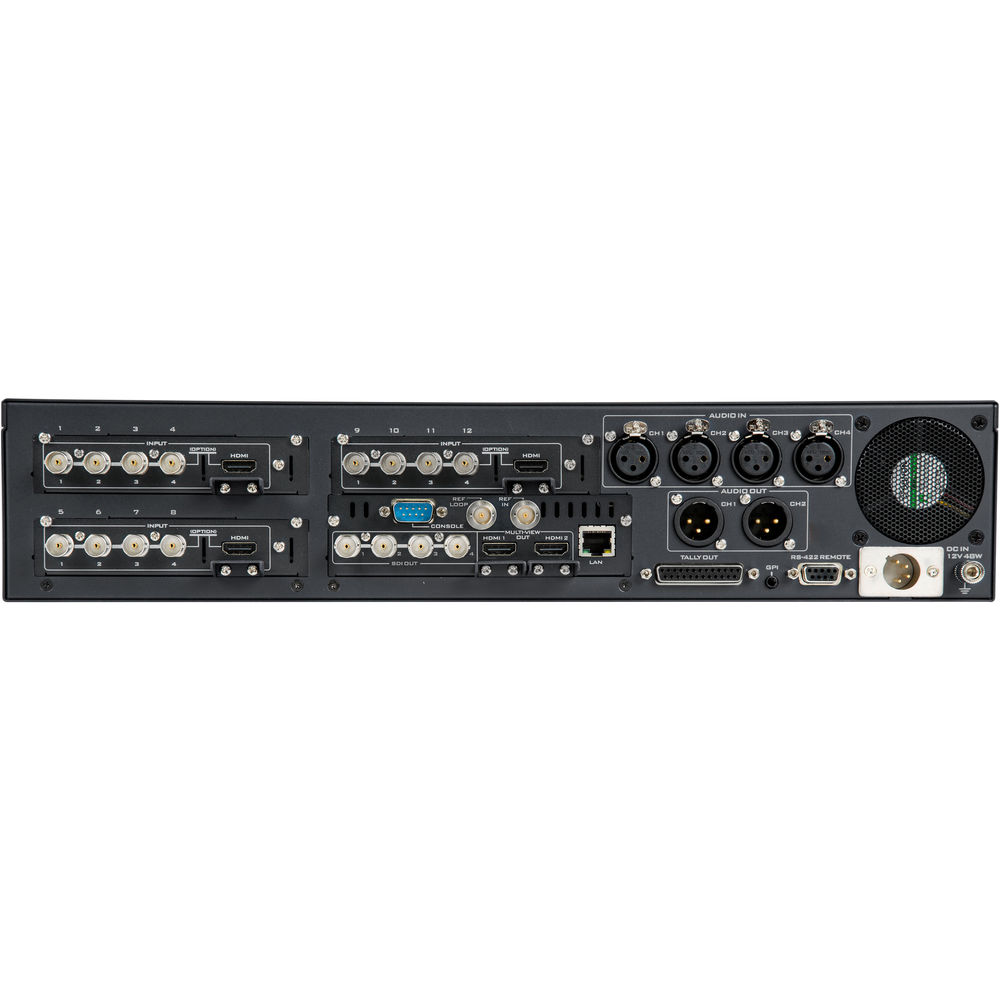

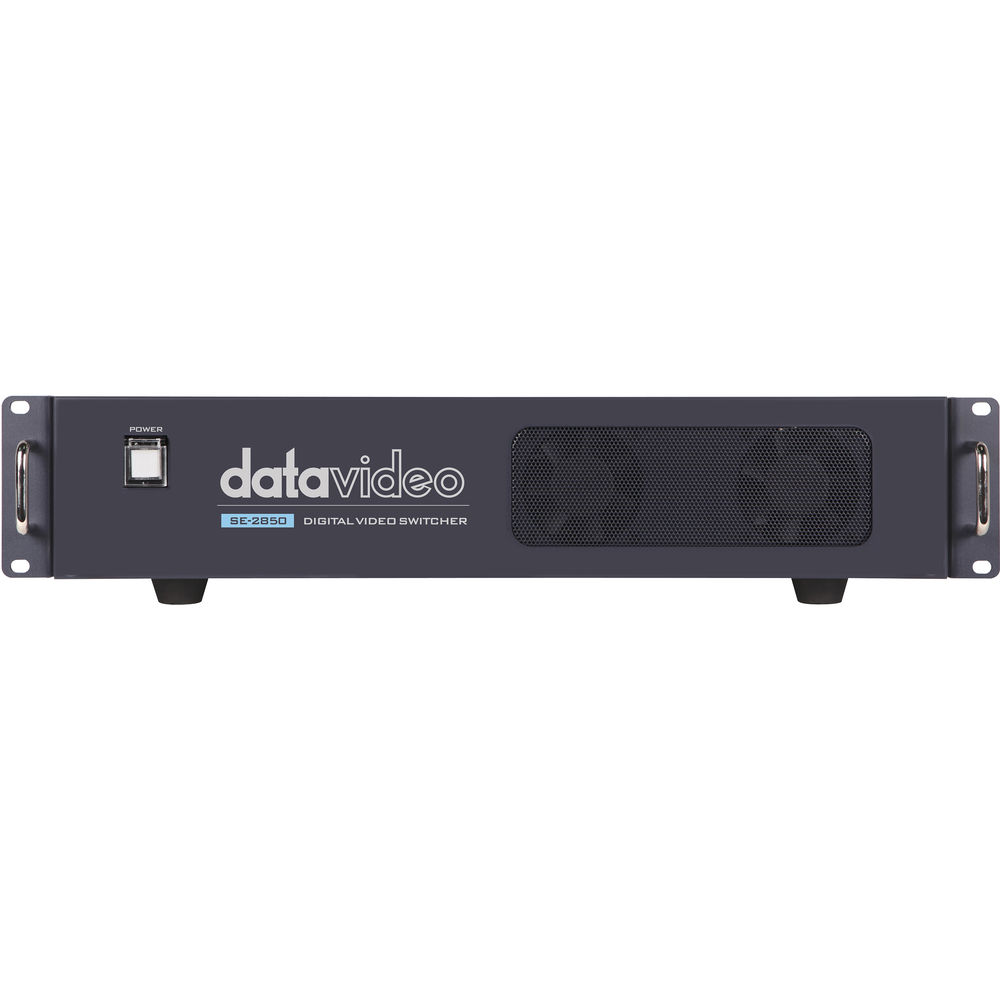

Datavideo SE-2850 HD/SD 8-Channel Video Switcher
The SE-2850 HD/SD 8-Channel Video Switcher from Datavideo is a mixed format switcher with 8 HD/SD-SDI inputs and four assignable SDI and two assignable HDMI outputs for routing any combination of HD and SD video.
This switcher supports SDI/HDMI YUV 10-bit 4:2:2, and HDMI/RGB 4:4:4 color sampling for smoother color gradations. Housed in a 2 RU frame, the SE-2850 is ideal for use in both large broadcast systems or portable mini-racks for live productions. Routing is controlled via Ethernet using the included Windows software or via RS-422 control.
For advanced audio control, the SE-2850 can be connected to an external mixer (not included). Additional switcher features include dual PiP, two downstream keyers, cross-point video and audio, two independent logo functions, and a built-in title overlay system. The SE-2850 includes four XLR audio inputs with each audio channel featuring de-embedding and audio delay.
Features

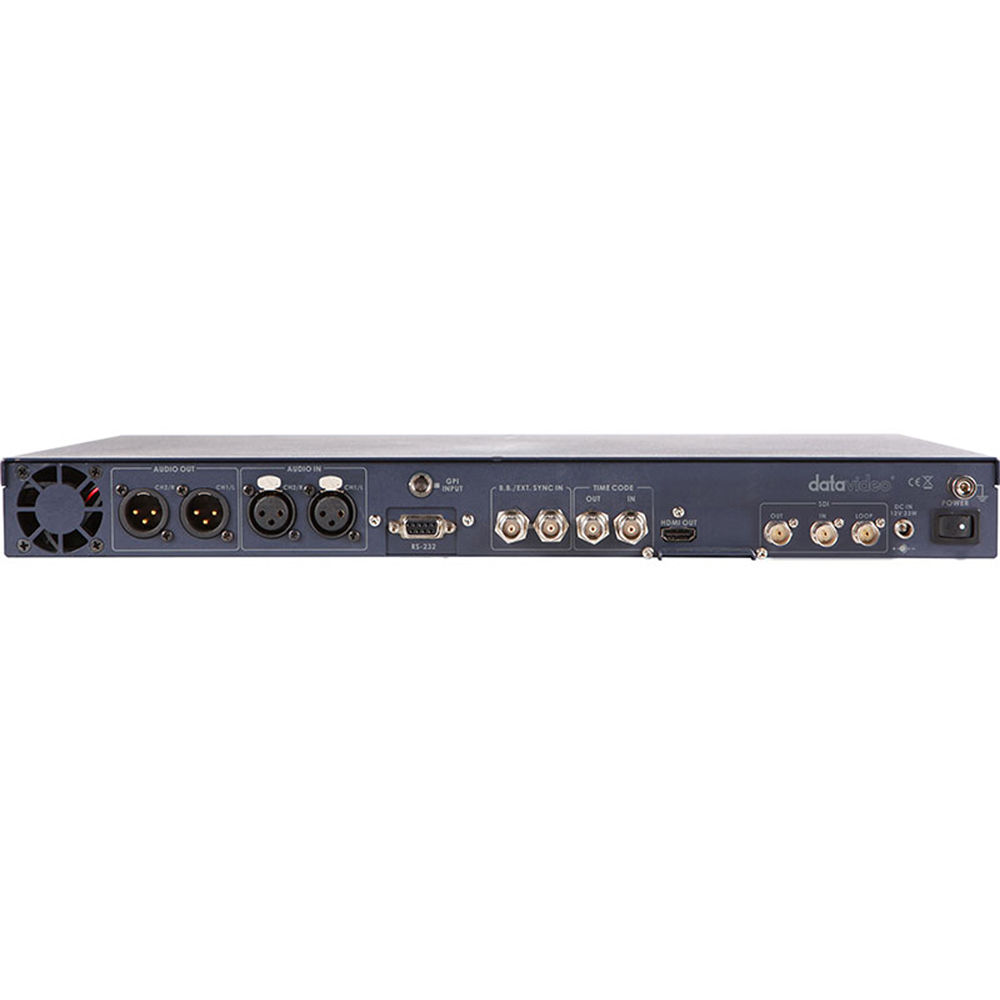

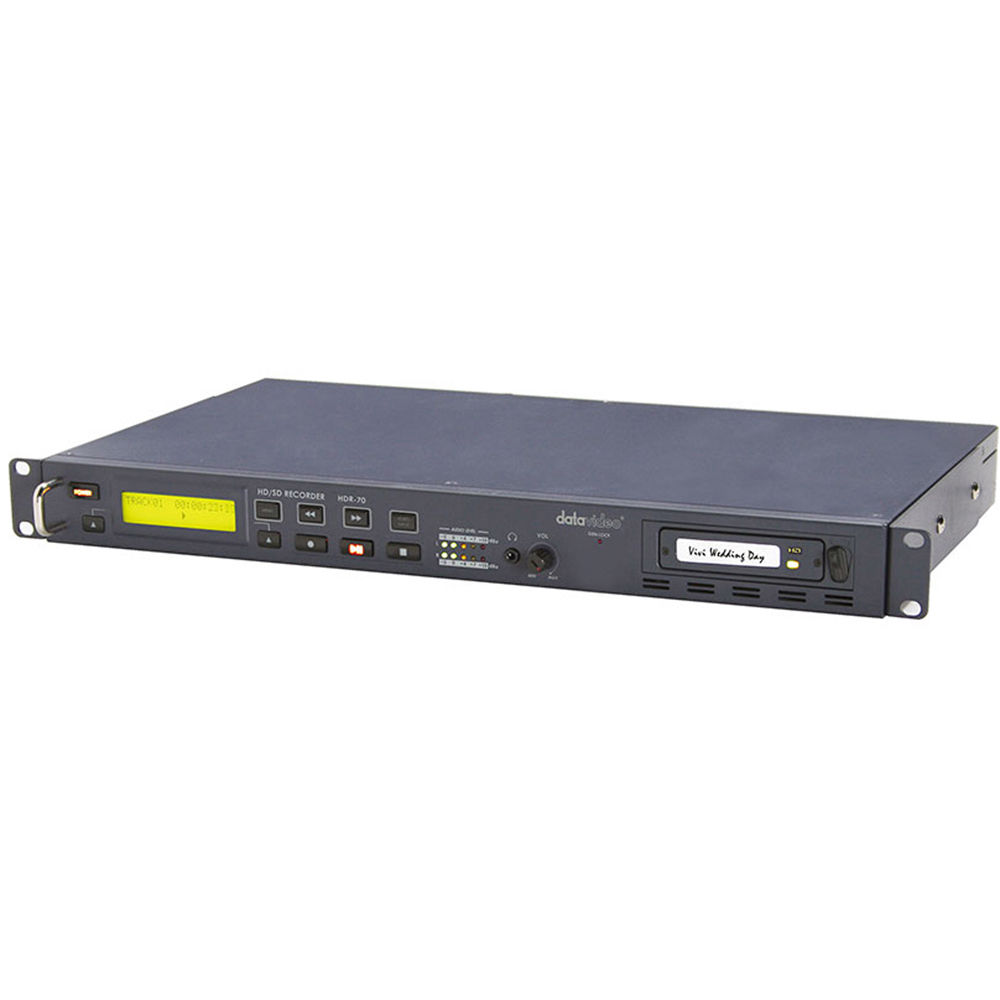

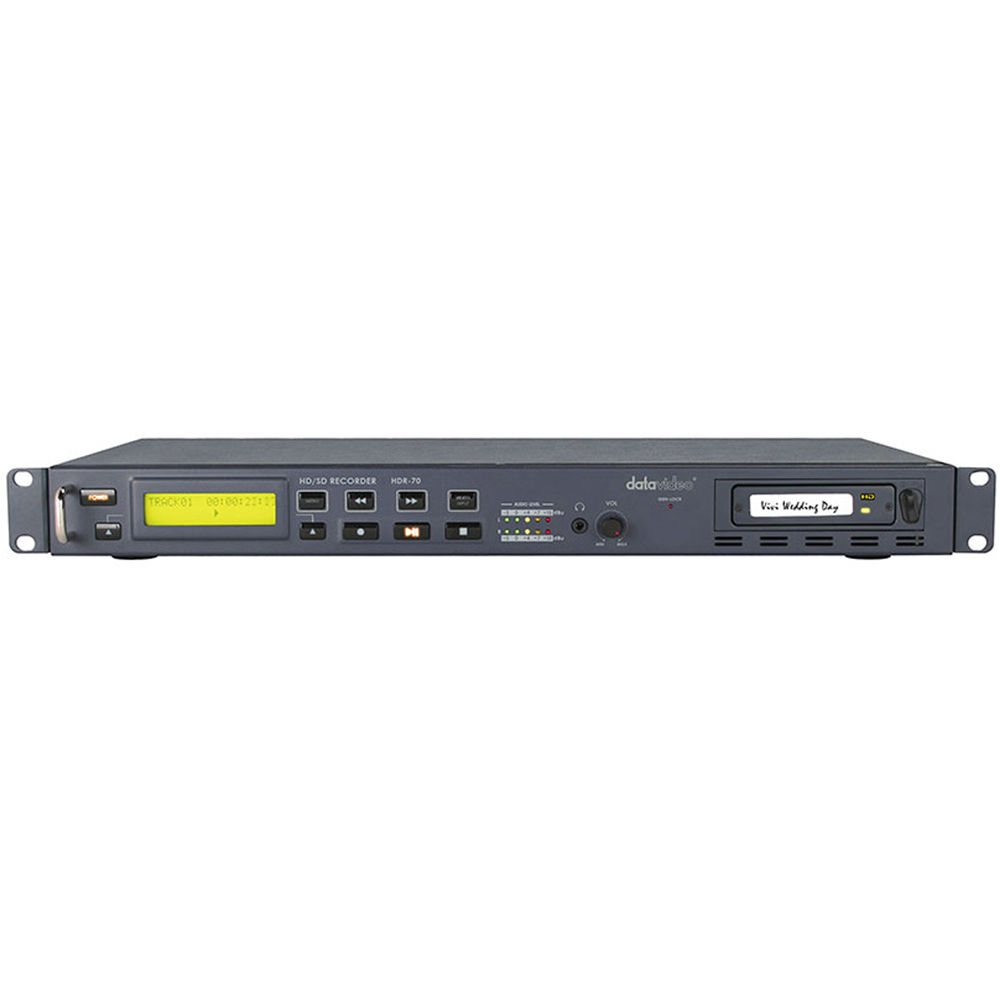

Datavideo HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay
The DataVideo HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay is a rack mountable video recorder for studio control rooms or video production trucks. It records NTSC, PAL, and HD video signals and features an SD/HD-SDI input and two mini-XLR recording to 2.5" form factor HDD or SSDs in a removable drive caddy. The HDR-70 features selectable color sampling ratio and data rate settings. This compact unit features a small footprint and is made from painted aluminum for strength. The front panel buttons provide you local tape deck like control of the unit, with built-in led audio level meters. The HDR-70 features two XLR inputs and outputs for balanced audio.
The included drive caddy supports available drives (both HDD and SSD) up to 500GB, and once removed from the HDR-70 the enclosures can be connected directly to a computer via the built-in USB 2.0 or eSata interface for off loading or editing directly from the drive. The unit writes to the NTFS file format system, which makes the drive readable by both Mac and Windows systems and avoids the 4GB file size limitation of FAT32 systems. For remote control, the HDR-70 features a 9-pin connector that allows control by RS-232 or RS-422. The unit is powered by 12 volts DC, and the cable connector features a locking collar so the power cable can't be accidentally unplugged.
HDR-70 Video Support
Features

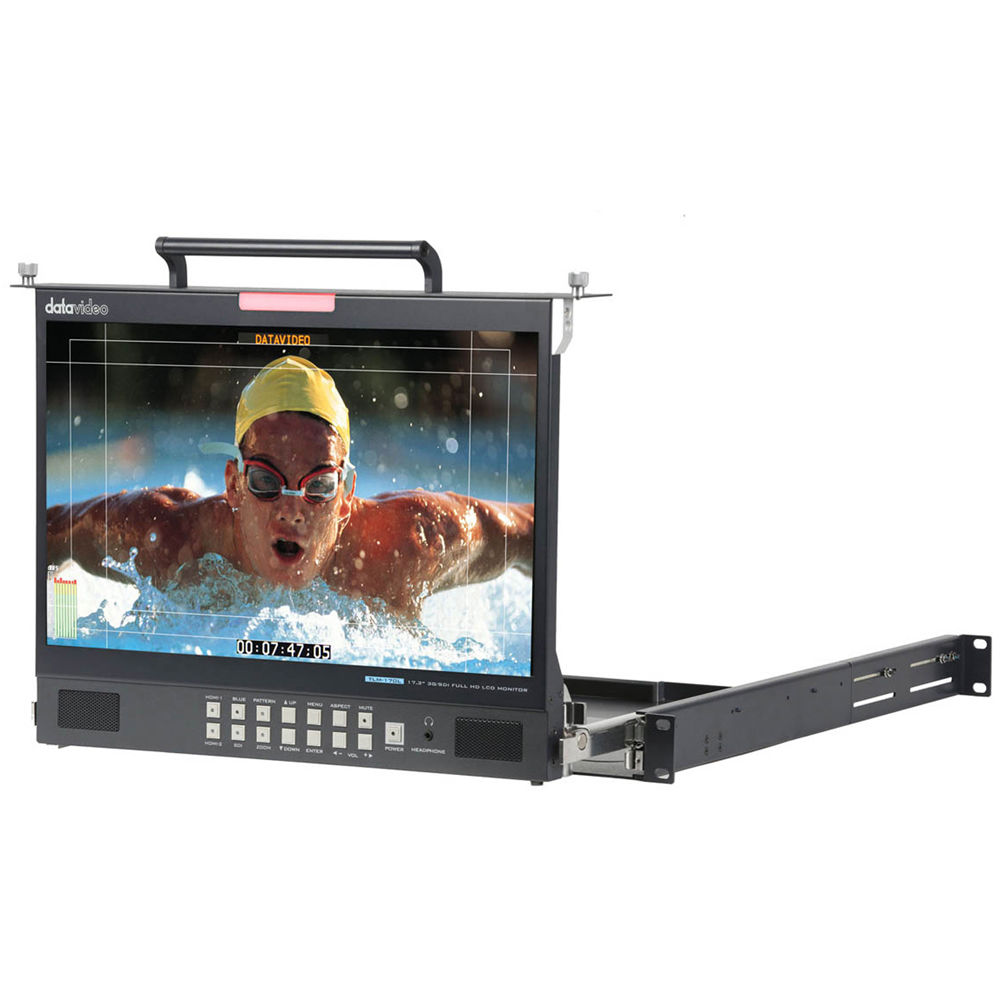

Datavideo 17.3" 3G-SDI Full HD Rackmount LCD Monitor
The 17.3" 3G-SDI Full HD Rackmount LCD Monitor from Datavideo is suitable for applications in a live production gallery, 19" rack monitoring, OB Van, or a video editing suite. It comes with a 3G-SDI video input with loop-through output and two HDMI inputs. The monitor supports embedded audio on SDI and HDMI (version 1.3). The monitor offers viewing angles of 70°/70°/60°/60° (left, right, top, and bottom) and brightness rating of 300 cd/m². This unit has a native resolution of 1920 x 1080. The contrast ratio of 400:1 showcases the monitor's ability to handle light and dark images on-screen.

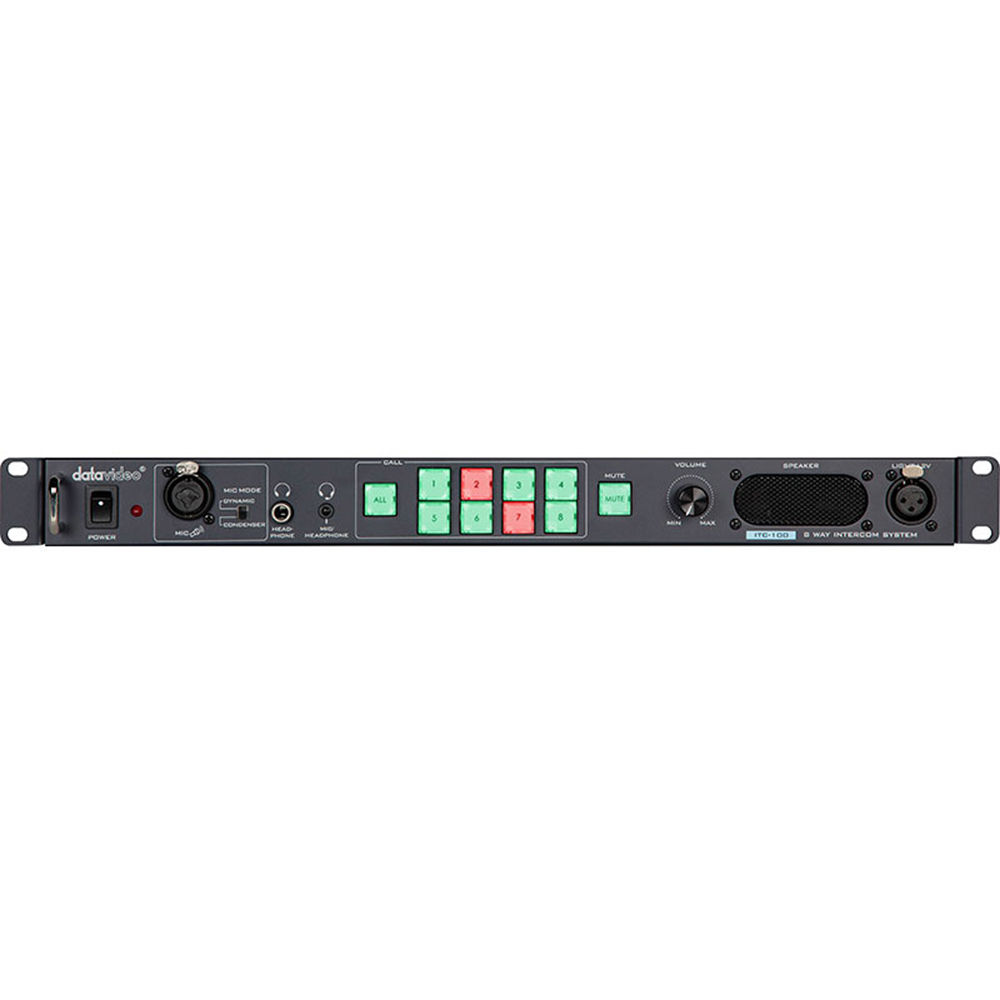

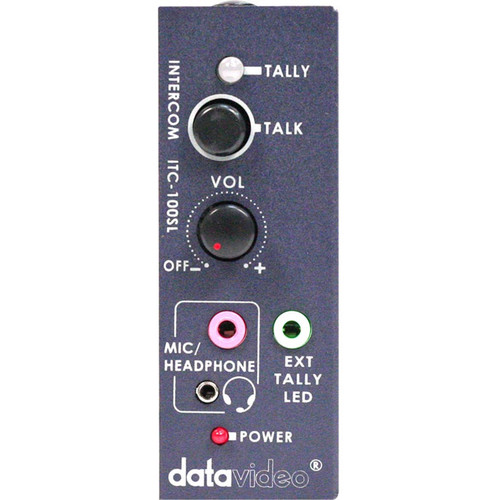

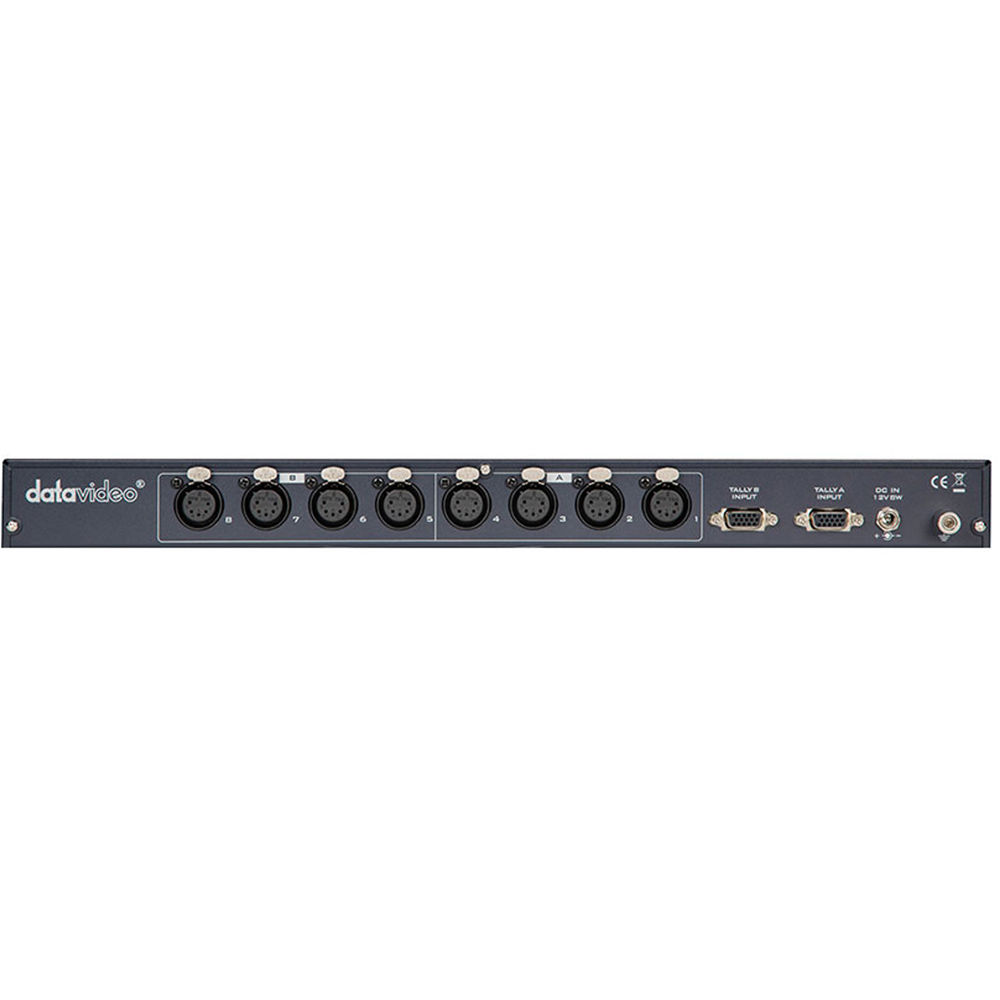

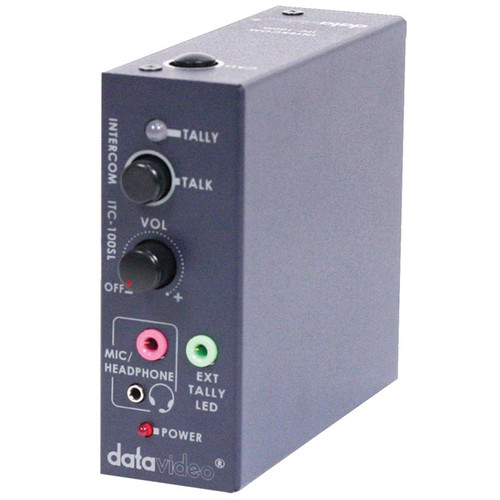

Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets

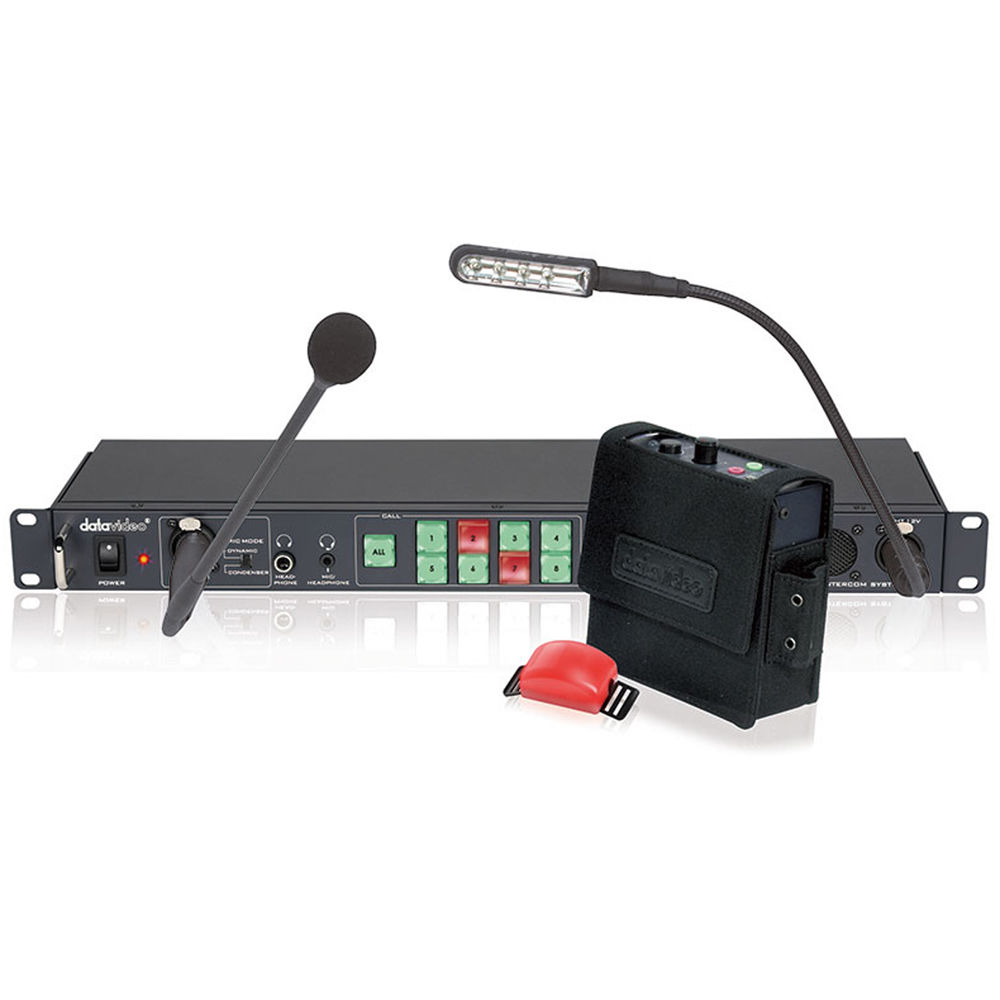

One of the innovative features of the rack-mountable ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets from Datavideo is that it can use headsets ranging from low-cost cell phone headsets to high-quality professional units.

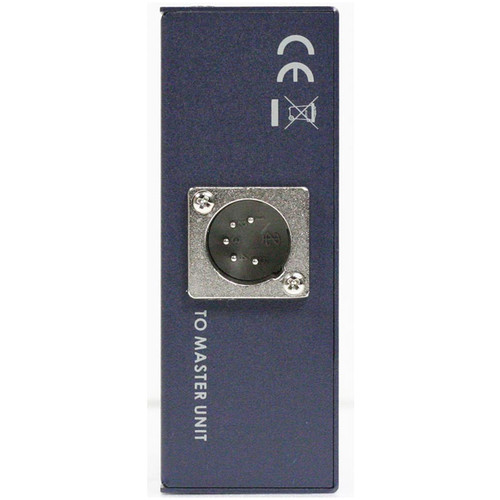

Up to 8 users can be connected to the ITC-100 via PTT wired beltpacks. Four beltpacks, four headsets, four cables and a tally light set are all included. Cables for connecting the beltpacks may be up to 984 ft long, and use 5-pin XLR connectors. The base station features all call and mute buttons, a mic input, built-in speaker, and standard headphone jacks.

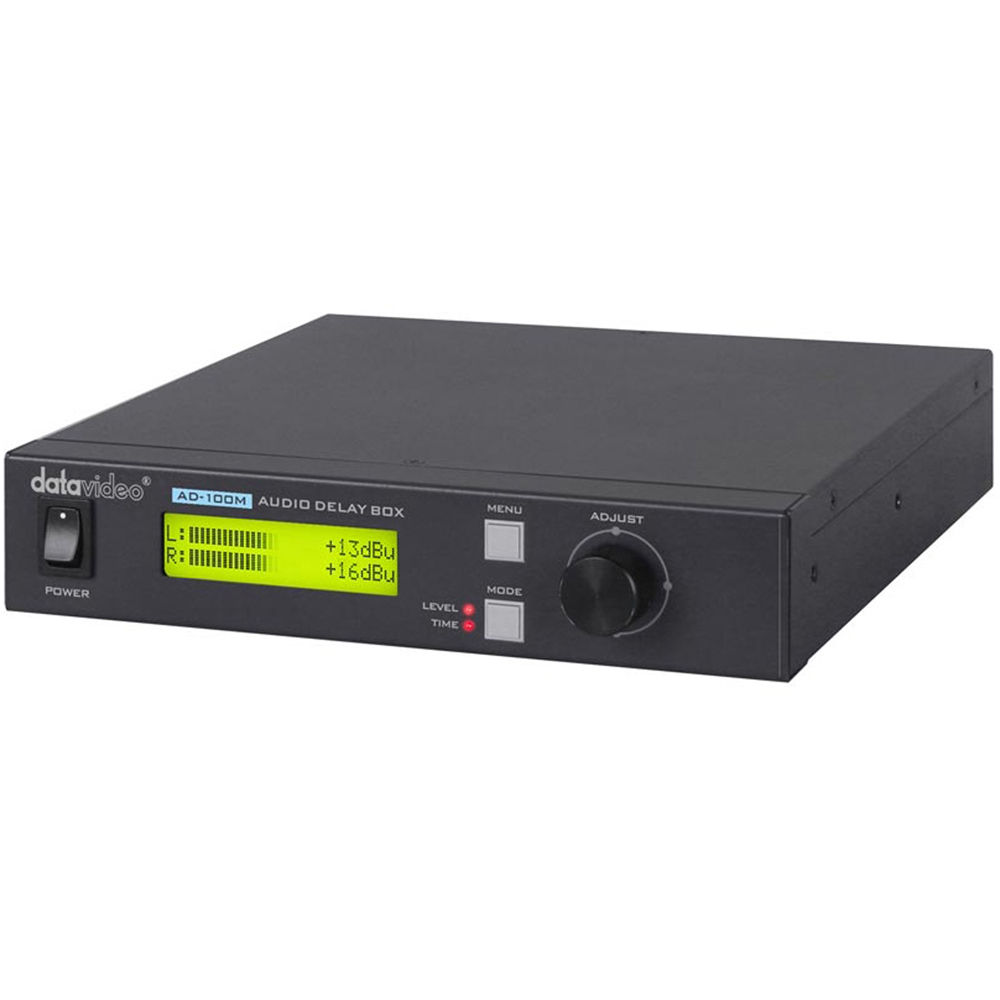

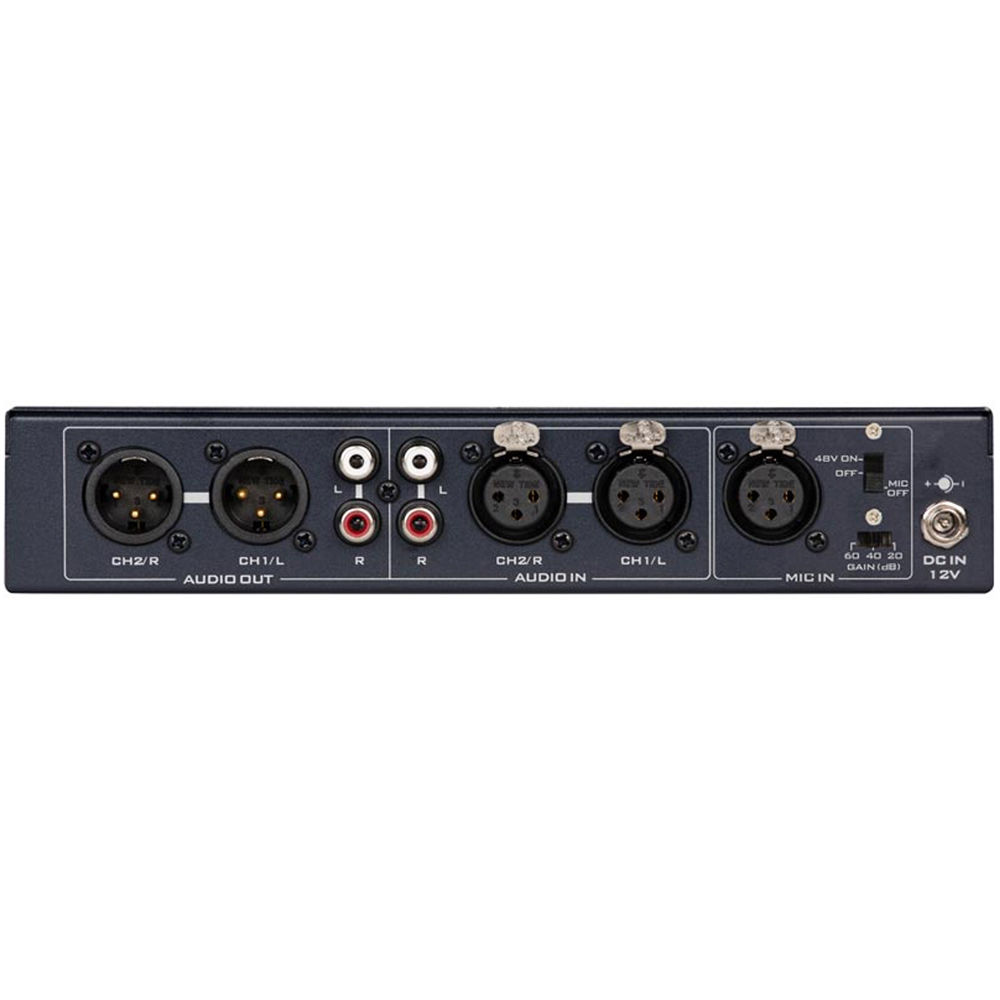

Datavideo AD-100M Audio Delay Box with Microphone Input
The Datavideo AD-100M Audio Delay Box allows you to sync an audio or mic signal to video. Its easy-to-use design features a menu/mode LCD and only a few controls such as an "Adjust" dial, and it's housed in a rugged, metal enclosure for use in the studio or in the field. It offers an audio delay time from 0 to 700 ms.
Key Features
Datavideo PD-2A 1RU 19" Rack Power Distribution Center
The PD-2A 1RU 19” Rack Power Distribution Center from Datavideo provides steady power supply for studio equipment, such as the video switcher, monitors, recorders, and intercom system.
The PD-2A power distribution center features auto-switchable inputs of 110/120VAC, a UPS interface, and 12VDC ports. In addition, it also features four 12V/3A terminals, two 12V/5A terminals, two 12V/10A terminals (shared), and XLR DC outputs. It adds reliability to studio equipment and consolidates power supplies and cabling.
Video
Video Standards | HD, SD |
Video Format | 3G/HD/SD input: 1080i: 60/59.94/50 1080p: 60/59.94/30/25 HD Output: 1080i: 60/59.94/50 SD Output: 576i: 50 Hz 480i: 59.94 Hz |
Video Processing | SDI: 4:2:2 HDMI: YUV 4:2:2 10-bit, RGB 4:4:4 |
Inputs/Outputs
Input Routable / Crosspoint | 12, repeatable |
Video Inputs | 8x SDI, 2x HDMI |
Graphics Input | Maximum: 2 x HDMI |
Video Outputs | 4 x SDI, assignable: PGM, PVW, AUX, Clean Out 2 x HDMI, assignable: PGM, Multi-View |
Down-Conversion | 4 x SDI (channels 1-4) |
Multiview Outputs | 2 x HDMI |
Audio
Audio Input | 4 x XLR, balanced |
Audio Output | 2 x XLR, balanced |
Embedded Audio | Input Maximum: 16 x channels Output Maximum: 4 x channels |
Audio Delay | Up to 8 frames (SDI-input audio only) |
Effects
Chroma Key | N/A |
Keyer/DSK | 2 x DSK Support: Lumakey & Linear key (key/fill) |
PIP | 2 x |
Logo Overlay | 2 x or 1 x logo + 1 x clock |
Still Store | 12 x |
Effects | FTB, Cut, 8 x wipes with border |
Transition Preview | PiP, DSK |
Control
Sync / Reference In/Out | Built-in GenLock External sync supported with loop-through |
PC Remote Control | Ethernet (downloadable Windows software) RS-422 |
Physical
Chassis | 2 RU, rackmount mainframe |
Power | 12 VDC, 48 W |
Dimensions | Main Unit: 17 x 9.9 x 3.7" (432 x 251 x 93 mm) Control Unit: 17 x 12.3 x 2.8" (433 x 313 x 71 mm) |
Weight | Main Unit: 10.4 lb (4.7 kg) Control Unit: 5.5 lb (2.5 kg) |
Packaging Info
Package Weight | 22.65 lb |
Box Dimensions (LxWxH) | 21.9 x 15 x 12.6" |
Drive Enclosure
Material of Construction | Painted aluminum |
Interface (Inputs/Outputs) | USB 2.0 eSata |
Internal Interface | SATA |
Drive Compatibility | HDD: Western digital, Fujitsu, Hitachi Compatible with SSD |
Power | 5VDC |
Dimensions | 6 x 5 x 1" (15.2 x 12.7 x 2.5 cm) |
Weight | 1 lb (0.5 kg) |
Recorder
Signal System | HD NTSC PAL |
Supported Video Formats | 1080p 24/23.98 1080i 60/59.94/50 720p 60/59.94/50 NTSC PAL |
Recording Formats | HD Long GOP 4:2:2 or 4:2:0 i-frame: 8-bit 4:2:2 SD Long GOP 4:2:2 or 4:2:0 i-frame: 8-bit 4:2:2 Audio PCM, 24-bit, 8 channels, 48kHz |
Data Rates | HD 10 to 25Mb/s, 4:2:0 35 to 100Mb/s, 4:2:2 SD 8Mb/s, 4:2:0 15 to 50Mb/s, 4:2:2 |
Inputs | Video: 1 x SD/HD-SDI Audio: 2 x Balanced stereo mini-XLR (analog, stereo pair 2-channels) GPI 1 x mini-XLR Timecode 1 x BNC Black Burst/Sync 1 x BNC |
Outputs | Video: 1 x SD/HD-SDI 1 x SD/HD-SDI (loop through) 1 x HDMI Audio: 2 x Balanced stereo mimi-XLR (analog, stereo pair 2-channels) Timecode 1 x BNC Black Burst/Sync 1 x BNC |
Control Interface | RS 422, RS 232 9-pin DIN |
Recording Time | 250GB Hard Drive 5 Mb/s: 111 hours 10 Mb/s: 55 hours 15 Mb/s: 37 hours 20 Mb/s: 27 hours 40 Mb/s: 15 hours 60 Mb/s: 9 hours 320GB Hard Drive 5 Mb/s: 142 hours 10 Mb/s: 70 hours 15 Mb/s: 47 hours 20 Mb/s: 35 hours 40 Mb/s: 19 hours 60 Mb/s: 12 hours 500GB Hard Drive 5 Mb/s: 220 hours 10 Mb/s: 111 hours 15 Mb/s: 74 hours 20 Mb/s: 55 hours 40 Mb/s: 27 hours 60 Mb/s: 18 hours |
File Format | MXF/OP1A |
File System Format | NTFS |
Recording Limit | 99 bins 99 clips per bin |
Material of Construction | Painted aluminum |
Rack Height | 2RU |
Power Requirements | 12VDC |
Power Consumption | 16W |
Dimensions | 17.3 x 11.4 x 1.9" (44 x 29 x 4.9 cm) |
Weight | 7 lbs. (3.17 kg) |
Packaging Info
Package Weight | 11.6 lb |
Box Dimensions (LxWxH) | 21.4 x 14.6 x 6.7" |
Recorder
Size | 17.3" / 43.9 cm |
Resolution | 1920 x 1080 |
Viewing Angle | 60°/60°/70°/70° |
Luminance | 300 cd/m² |
Contrast | 400:1 |
Response Time | Not specified by the manufacturer |
Video Input/Output | 2 x HDMI input (Ver. 1.3) 1 x BNC input (3 Gb/s HD/SD-SDI) 1 x BNC output (loop-through, 3 Gb/s HD/SD-SDI) |
Signal Format | 1920 x 1080p: 60/59.94/50 1920 x 1080p: 30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 720 x 480i (NTSC), 720 x 576i (PAL) |
Timing | VESA Timing: 1680 x 1050 (16:10) 1360 x 768 (16:9) 1280 x 1024 (5:4) 1280 x 1024 (4:3) 1280 x 960 (4:3) 1280 x 768 (4:3) 1152 x 864 (4:3) 1024 x 768 (4:3) 800 x 600 (4:3) |
Audio Input | 3G/HD/SD-SDI embedded audio HDMI embedded audio (Ver.1.3) 1 x Internal speaker 1 x 3.5 mm Headphone socket Note: Internal speaker circuit will automatically mute when headphones are connected |
Tally | 1 x Tally port Bi-Color Tally Light: Live: Red Cued: Green |
USB | 1 x USB (USB 2.0 FW auto upgrade) |
Power | 12 VDC |
Power Consumption | 16 W |
Operating Temperature | 32 to 113°F / 0 to 45°C |
VESA Mounting | 100 mm x 100 mm |
Storage Temperature | 14 to 140°F / -10 to 60°C |
Dimensions | 15.8 x 10.2" / 40.1 x 25.99 cm |
Weight | 9.03 lb / 4.1 kg |
Packaging Info
Package Weight | 19.6 lb |
Box Dimensions (LxWxH) | 26 x 23.4 x 6.8" |
Frequency Response | 550 Hz - 3.6 kHz <±3 dB |
Total Harmonic Distortion (THD) | <3% |
Signal to Noise Ratio | >50 dB |
Operating Range | Up to 660' (200 m) Between Base Station and Slave |
Connectors | 1 x 12 V 1.5A Power Input 2 x 15-Pin Sub-D Tally Connectors 1 x 3.5mm Stereo Headphone/Mic Combo Jack 1 x 1/4" Stereo Headphone Jack 1 x 3-Pin XLR Light Socket 1 x XLR/TRS Combo Mic Input |
Speaker | 2.75 x 1.2" (70 x 30 mm) (3 W, 32 Ohms) |
Operating Temperature | 41 to 104° (5 to 40°C) |
Dimensions | 1 RU |
Weight | 4.2 lbs (1.9 kg) |
Packaging Info
Package Weight | 23 lb |
Box Dimensions (LxWxH) | 20.5 x 15 x 8.5" |
Recorder
Audio Input | 3 x XLR, 2 for line in, 1 for mic in (gain +20/40/60 dB) 2 (L/R) x RCA |
Audio Output | 2 x XLR 2 (L/R) x Unbalanced RCA |
Display | SMT LCD |
Output Volume | Attenuating from 0 to -60 dBu |
Audio Delay | Up to 700 ms |
Chassis | Rack-mountable with optional RMK-1 rackmount kit |
Power | 12 VDC, 18 W |
Dimensions | 8.3 x 6.7 x 1.7" / 211 x 220 x 42 mm |
Packaging Info
Package Weight | 4.165 lb |
Box Dimensions (LxWxH) | 11.05 x 10.45 x 5.2" |
Recorder
Input | AC Input Outlet: 1 x AC input AC Input Voltage: 100 to 240 VAC AC Input Current Rating: 100 to 240 VAC, maximum 6.3 A AC Frequency: 50 or 60 Hz DC Input: 1 x 12 VDC, supports non-regulated 12 VDC output DC Input: 400 W |
Output | DC Output: 12 V, ±5%, 4 x 3 A XLR DC female jack 12 V, ±5%, 2 x 5 A XLR DC female jack 12 V, ±5%, 2 x 10 A XLR DC female jack |
Efficiency | Output: More than 80% |
Noise | DC Output: +5%, -3% |
Ambient Operating Temperature | 32 to 104°F (0 to 40°C) |
Operating Humidity | 5 to 90% RH, non-condensing |
Storage Temperature | -4 to 185°F (-20 to 85°C) |
Storage Humidity | 5 to 90% RH, non-condensing |
Dimensions | 17.3 x 8.4 x 0.1" (440.0 x 214.0 x 46.0 mm) |
Weight | 10.8 lb (4.9 kg) |
Packaging Info
Package Weight | 12.95 lb |
Box Dimensions (LxWxH) | 22.5 x 13.4 x 7" |
