The 24mm T2.8 Gnosis Macro Prime Lens from DZOFilm provides immersive close-up views of your subjects with up to 0.8:1 magnification and a wider, encompassing field of view. This ARRI LPL-mount lens with focus marks in feet comes with both ARRI PL and Canon EF mounts, enabling you to use it with a wide range of cine-style cameras
Full-Frame Coverage
This wider lens provides an 83.8° field of view in full-frame and an 88° FOV in VV (VistaVision) format.
Wide-Angle Macro Lens
Interchangeable Mount
Fast T2.8 Aperture
A fast T2.8 maximum aperture enables you to capture extremely sharp images, even at lower light levels.
Quality Optical Design
Focus Marks in Feet
Focus scales are marked in feet.
DZOFilm 32mm T2.8 Gnosis Macro Prime Lens (LPL with PL & EF Mounts, Feet)
Impressive Close-Ups
The 32mm T2.8 Gnosis Macro Prime Lens from DZOFilm provides impressive close-up views of your subjects with up to 1:1 magnification and a wide, encompassing field of view. This ARRI LPL-mount lens with focus marks in feet comes with both ARRI PL and Canon EF mounts, enabling you to use it with a wide range of cine-style cameras
Full-Frame Coverage
The 32mm wide lens provides both full-frame and VV (VistaVision) sensor coverage.
Wide Macro Lens
Interchangeable Mount
Sharp Macro Magnification
Provides crisply detailed images and a wide-angle, immersive view with uniform color reproduction and 1:1 macro magnification at 6.6".
Fast T2.8 Aperture
A fast T2.8 maximum aperture enables you to capture extremely sharp images, even at lower light levels.
Quality Optical Design

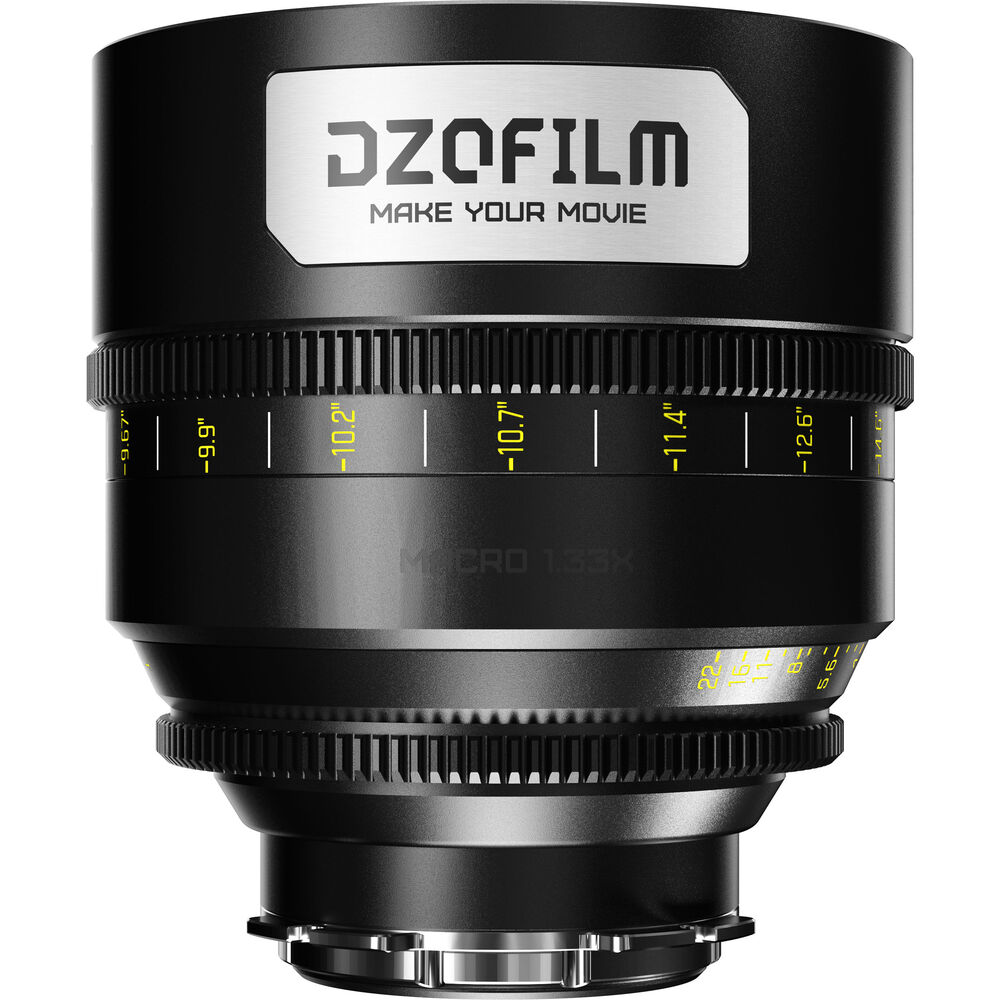

DZOFilm 65mm T2.8 Gnosis Macro Prime Lens (LPL with PL & EF Mounts, Feet)
Impressive Close-Ups
The 65mm T2.8 Gnosis Macro Prime Lens from DZOFilm provides impressive close-up views of your subjects with up to 1:33 magnification and a standard field of view. This ARRI LPL-mount lens with focus marks in feet comes with both ARRI PL and Canon EF mounts, enabling you to use it with a wide range of cine-style cameras.
Full-Frame Coverage
The 65mm standard lens provides both full-frame and VV (VistaVision) sensor coverage.
Macro Lens
Interchangeable Mount
Quality Optical Design
Fast T2.8 Aperture
A fast T2.8 maximum aperture enables you to capture extremely sharp images, even at lower light levels.
Focus Marks
Focus scales are marked in feet.
Focal Length | 24mm |
Lens Mount | ARRI LPL |
Lens Format Coverage | Full Frame |
Image Circle | 46.5 mm |
Maximum Aperture | T2.8 |
Minimum Aperture | T22 |
Horizontal Angle of View | Full Frame: 83.8° |
Minimum Focus Distance | From Image Plane: 6.1" / 15.5 cm |
Optical Design | 12 Elements in 10 Groups |
Diaphragm Blades | 16 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch |
Front Diameter | 114 mm |
Filter Thread | 105 mm |
Focus Scales | Imperial |
Focus Rotation | 300° |
Iris Rotation | 62° |
Electronic Communication | No |
Maximum Magnification Ratio | 0.8:1 |
Image Stabilization | No |
Lens Support | 3/8"-16 Mounting Threads |
Length | 3.9" / 100 mm |
Weight | 2.78 lb / 1.26 kg |
Focal Length | 32mm |
Lens Mount | ARRI LPL |
Lens Format Coverage | Full Frame |
Image Circle | 46.5 mm |
Maximum Aperture | T2.8 |
Minimum Aperture | T22 |
Minimum Focus Distance | From Image Plane: 6.6" / 16.8 cm |
Optical Design | 11 Elements in 9 Groups |
Diaphragm Blades | 16 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch |
Front Diameter | 114 mm |
Filter Thread | 105 mm |
Focus Scales | Imperial |
Focus Rotation | 300° |
Iris Rotation | 55° |
Electronic Communication | No |
Maximum Magnification Ratio | 1:1 |
Image Stabilization | No |
Lens Support | 3/8"-16 Mounting Threads |
Length | 4.4" / 112 mm |
Weight | 3.22 lb / 1.46 kg |
Packaging Info
Package Weight | 12.2 lb |
Box Dimensions (LxWxH) | 18.5 x 16.2 x 9" |
Focal Length | 65mm |
Lens Mount | ARRI LPL |
Lens Format Coverage | Full Frame |
Image Circle | 46.5 mm |
Maximum Aperture | T2.8 |
Minimum Aperture | T22 |
Minimum Focus Distance | From Image Plane: 9.36" / 23.77 cm |
Optical Design | 11 Elements in 8 Groups |
Diaphragm Blades | 16 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch |
Front Diameter | 114 mm |
Filter Thread | 105 mm |
Focus Scales | Imperial |
Focus Rotation | 300° |
Iris Rotation | 67° |
Electronic Communication | No |
Maximum Magnification Ratio | 1.33:1 |
Image Stabilization | No |
Lens Support | 3/8"-16 Mounting Threads |
Length | 4.4" / 112 mm |
Weight | 3.24 lb / 1.47 kg |
Packaging Info
Package Weight | 11.89 lb |
Box Dimensions (LxWxH) | 18.5 x 16.5 x 8.9" |
