Cinematic, Painterly Look

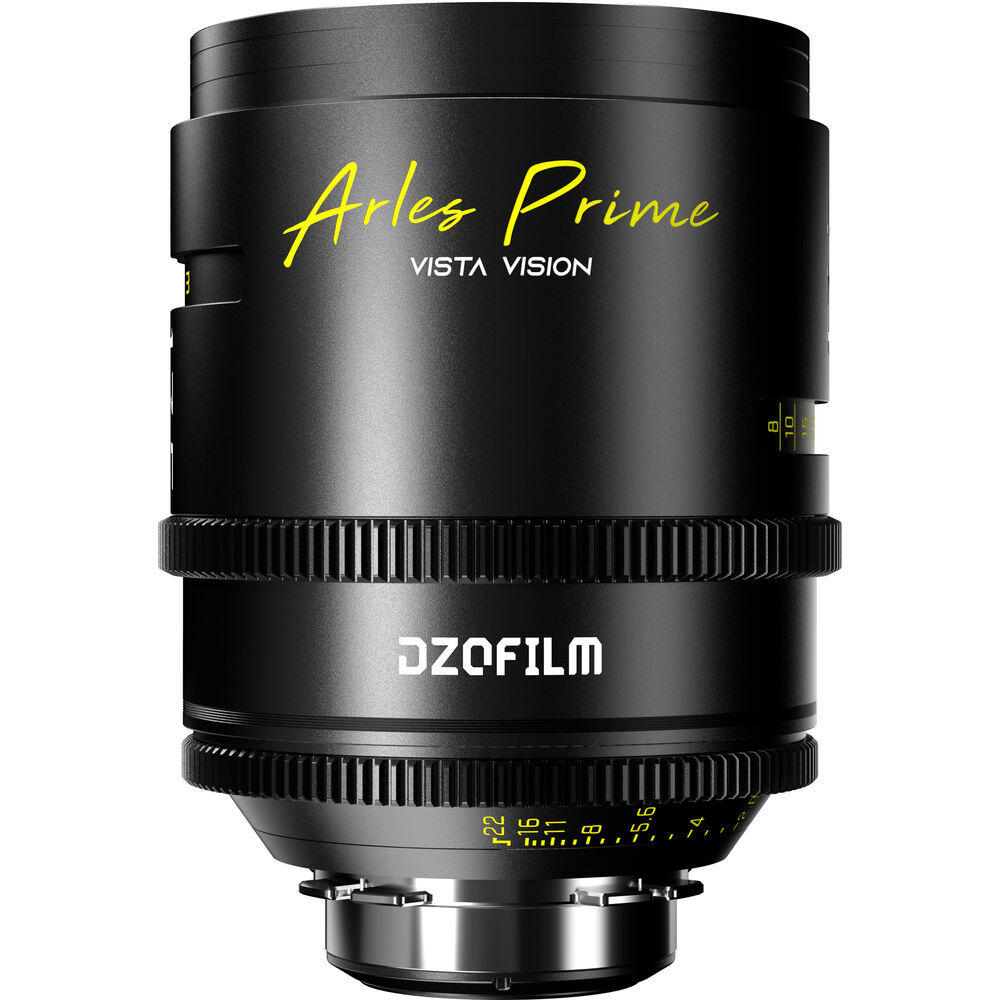

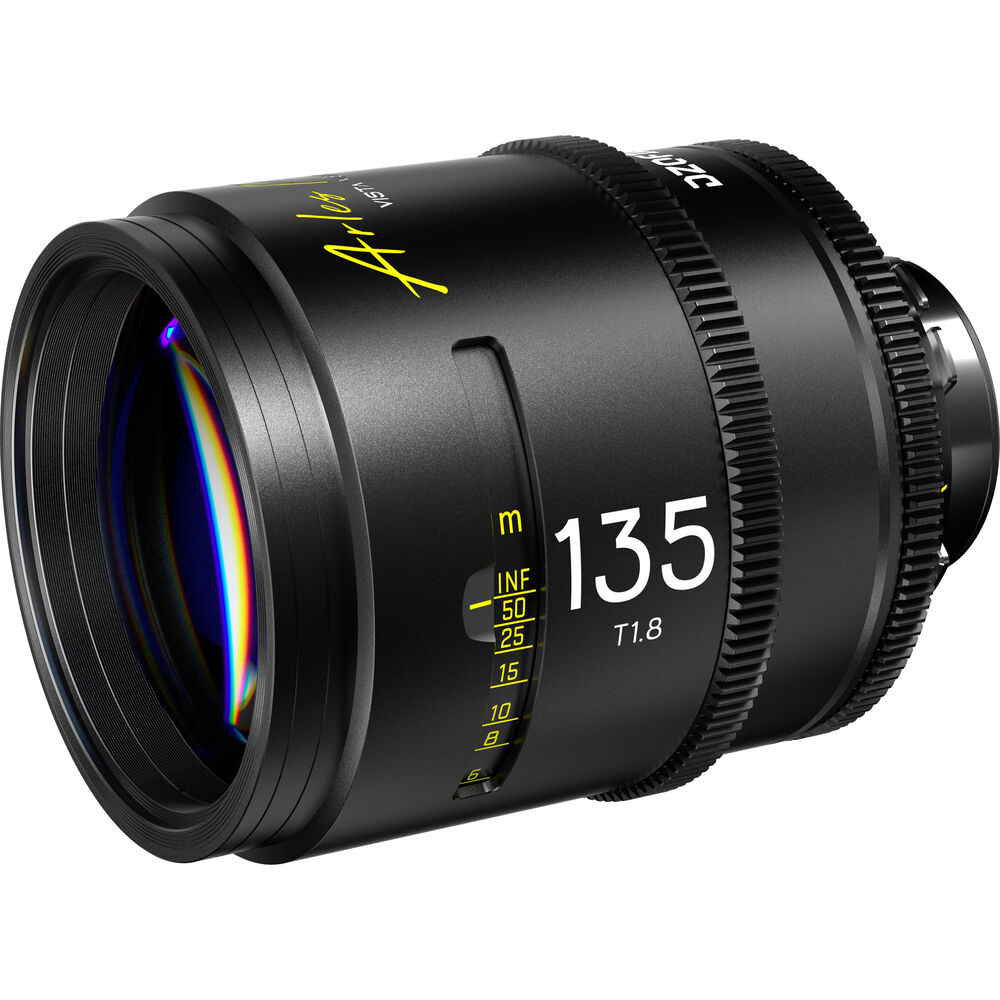

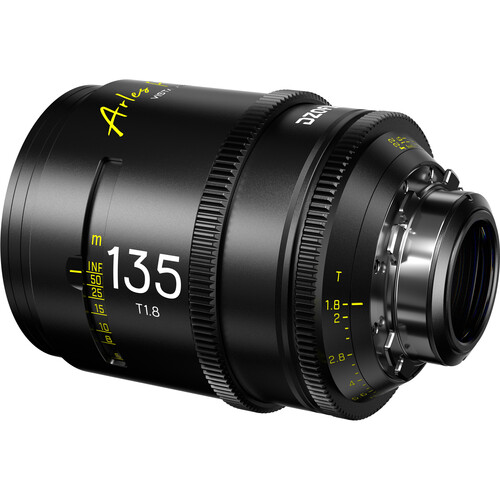

Equip your full-frame ARRI PL-mount camera with the Arles 135mm T1.8 FF/VV Prime Cine Lens from DZOFilm to capture consistently sharp, natural-looking imagery. This longer 135mm prime lens has an aperture range of T1.8 to T22, offering excellent low-light capture and arrestingly shallow depth of field. A 16-blade iris and optical construction of multiple grouped elements provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 77° for intuitive manual adjustments.
Large-Format Coverage
Painterly Rendering
Use the Arles series lenses at maximum aperture to create a soft, lower contrast look with slightly swirling peripheral bokeh.
Minimal Breathing and Aberration
Interchangeable PL Mount
This ARRI PL-mount lens can be used with a separately available Canon EF mount, offering compatibility with a wide range of cine-style, mirrorless, and DSLR cameras.
Consistency across Series
A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. Each lens in the Arles series has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.
Maximum Aperture | T1.8 |
Minimum Aperture | T22 |
Lens Mount | ARRI PL |
Lens Format Coverage | Full-Frame |
Image Circle | 50.0 mm |
Angle of View | Full Frame Diagonal: 17° Vertical: 9° Horizontal: 19° |
Focus Scales | Imperial |
Optical Design | 14 Elements in 12 Groups |
Filter Thread | 86 mm |
Minimum Focus Distance | From Camera Sensor: 3.2' / 98 cm |
Aperture/Iris Blades | 16 |
Image Stabilization | No |
Gear Standard | 0.8 MOD |
Gear Rotation | Focus: 270° (Manual Only) Iris: 77° (Manual Only) |
Diameter | 3.7" / 95 mm |
Length | 5.1" / 130 mm |
Weight | 4.08 lb / 1.85 kg |
Packaging Info
Package Weight | 6.12 lb |
Box Dimensions (LxWxH) | 13.3 x 7 x 6.9" |
