This DZOFilm Arles FF/VV Prime Cine 10-Lens Set includes 10 focal lengths spanning a comprehensive range from wide to telephoto. This ARRI PL full-frame compatible set comprises 14, 21, 25, 35, 40, 50, 75, 100, 135, and 180mm lenses plus a lens case. All the lenses share similar gearing, iris blades, front diameters, and aperture ranges for easy switching. See below for more information on the individual lenses included in this kit.

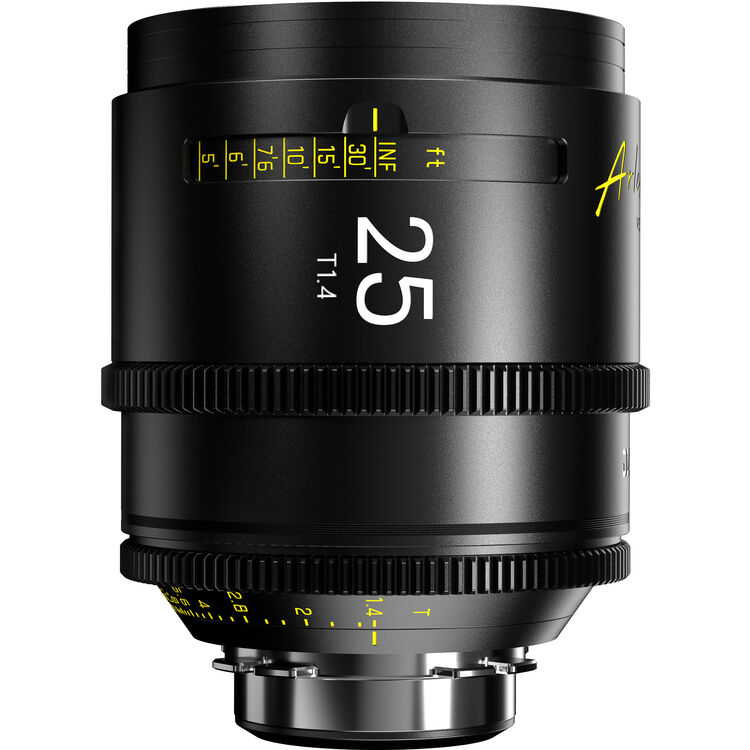

DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Equip your full-frame ARRI PL-mount camera with the Arles 25mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 14 elements in 12 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 77° for intuitive manual adjustments.
The lens features an 87.44° diagonal field of view to ensure your subject remains in the frame. A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.
Features at a Glance
DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Equip your full-frame ARRI PL-mount camera with the Arles 35mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 14 elements in 12 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 80° for intuitive manual adjustments.
The lens features a 67.15° diagonal field of view to ensure your subject remains in the frame. A 95mm outside diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outside diameters across the range of lenses, switching between focal lengths is a breeze.
Features at a Glance

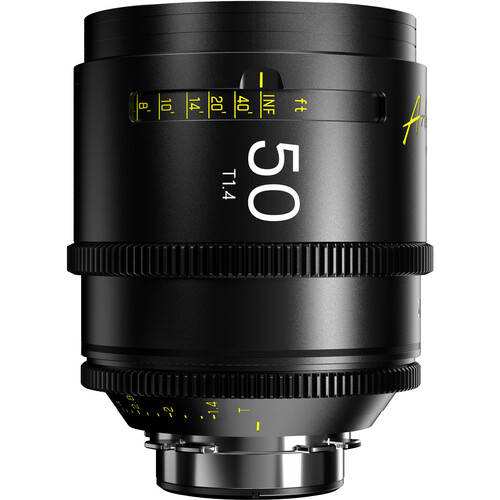

DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Equip your full-frame ARRI PL-mount camera with the Arles 50mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 13 elements in 9 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 80° for intuitive manual adjustments.
The lens features a 50.23° diagonal field of view to ensure your subject remains in the frame. A 95mm outside diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outside diameters across the range of lenses, switching between focal lengths is a breeze.
Features at a Glance

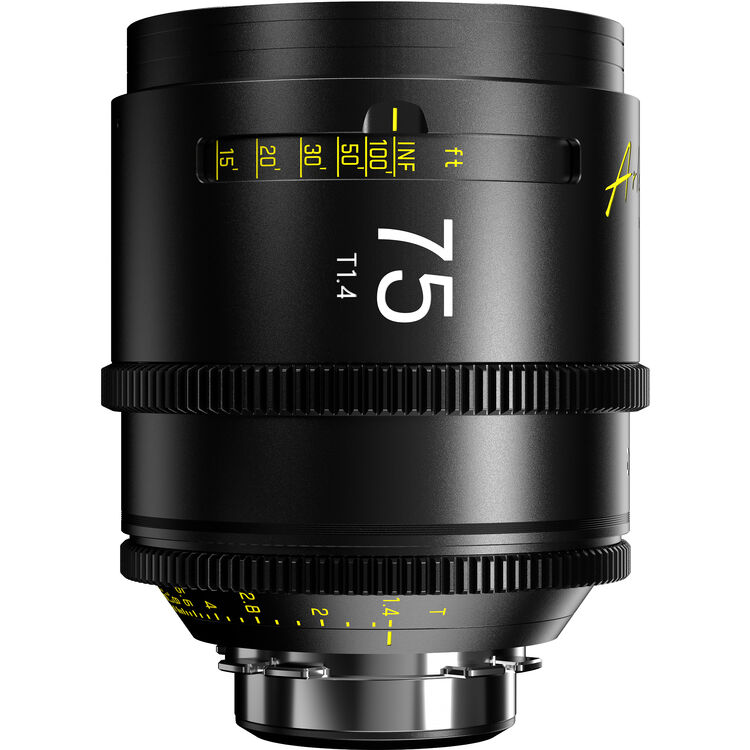

DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Equip your full-frame ARRI PL-mount camera with the Arles 75mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 13 elements in 9 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 82° for intuitive manual adjustments.
The lens features a 34.1° diagonal field of view to ensure your subject remains in the frame. A 95mm outside diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outside diameters across the range of lenses, switching between focal lengths is a breeze.
Features at a Glance

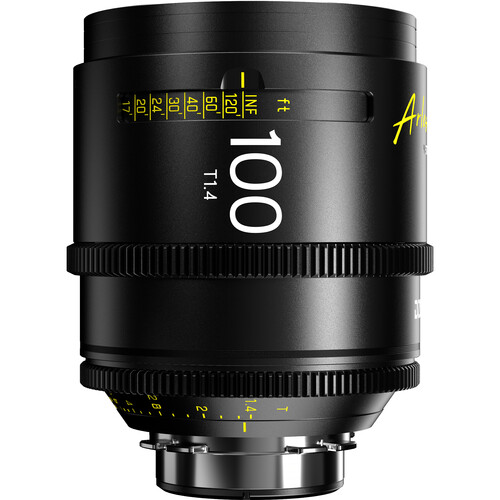

DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Equip your full-frame ARRI PL-mount camera with the Arles 100mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 13 elements in 8 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 90° for intuitive manual adjustments.
The lens features a 25.96° diagonal field of view to ensure your subject remains in the frame. A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.
Features at a Glance

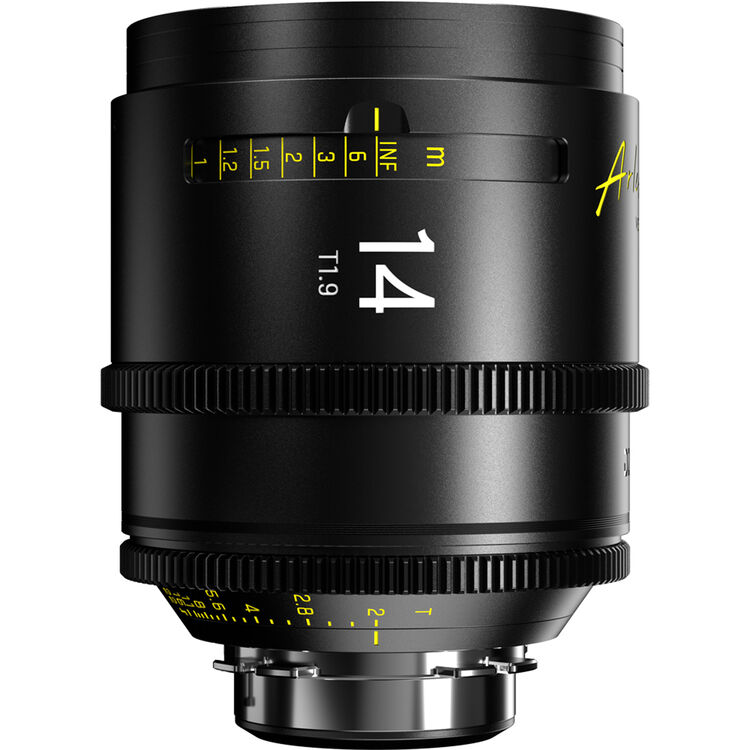

DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens (ARRI PL)
Cinematic, Painterly Look
Equip your full-frame ARRI PL-mount camera with the Arles 14mm T1.9 FF/VV Prime Cine Lens from DZOFilm to capture consistently sharp, natural-looking imagery. This 14mm prime lens has an aperture range of T1.9 to T22, offering excellent low-light capture and arrestingly shallow depth of field. A 16-blade iris and optical construction of multiple grouped elements provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 77° for intuitive manual adjustments.
Large-Format Coverage
Painterly Rendering
Use the Arles series lenses at maximum aperture to create a soft, lower contrast look with slightly swirling peripheral bokeh.
Minimal Breathing and Aberration
Interchangeable PL Mount
This ARRI PL-mount lens can be used with a separately available Canon EF mount, offering compatibility with a wide range of cine-style, mirrorless, and DSLR cameras.
Consistency across Series
A 95mm outer diameter lets you incorporate different matte boxes or filters into your camera configuration. Each lens in the Arles series has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.

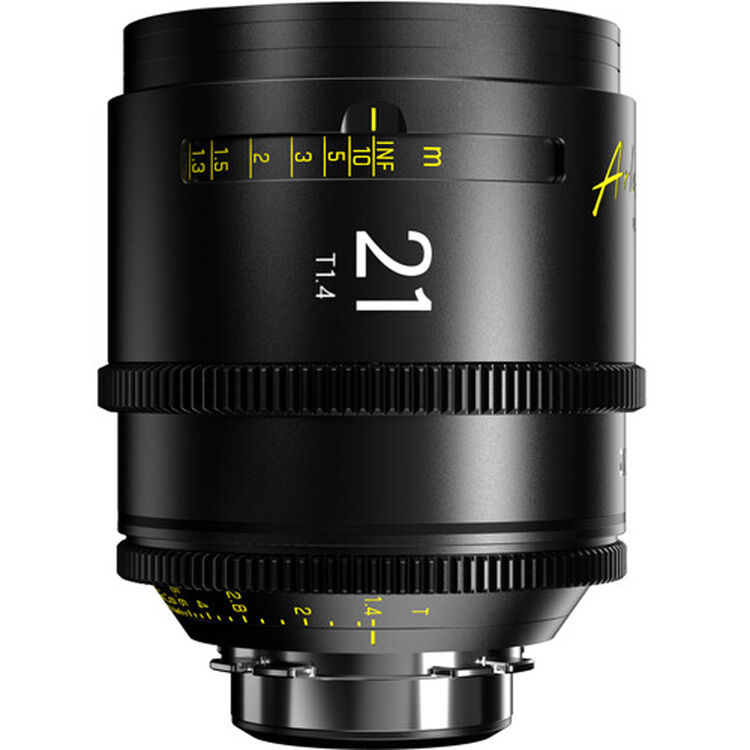

DZOFilm Arles 21mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Cinematic, Painterly Look
Equip your full-frame ARRI PL-mount camera with the Arles 21mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture consistently sharp, natural-looking imagery. This 21mm prime lens has an aperture range of T1.4 to T22, offering excellent low-light capture and arrestingly shallow depth of field. A 16-blade iris and optical construction of multiple grouped elements provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 77° for intuitive manual adjustments.
Large-Format Coverage
Painterly Rendering
Use the Arles series lenses at maximum aperture to create a soft, lower contrast look with slightly swirling peripheral bokeh.
Minimal Breathing and Aberration
Interchangeable PL Mount
This ARRI PL-mount lens can be used with a separately available Canon EF mount, offering compatibility with a wide range of cine-style, mirrorless, and DSLR cameras.
Consistency across Series
A 95mm outer diameter and an M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. Each lens in the Arles series has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.

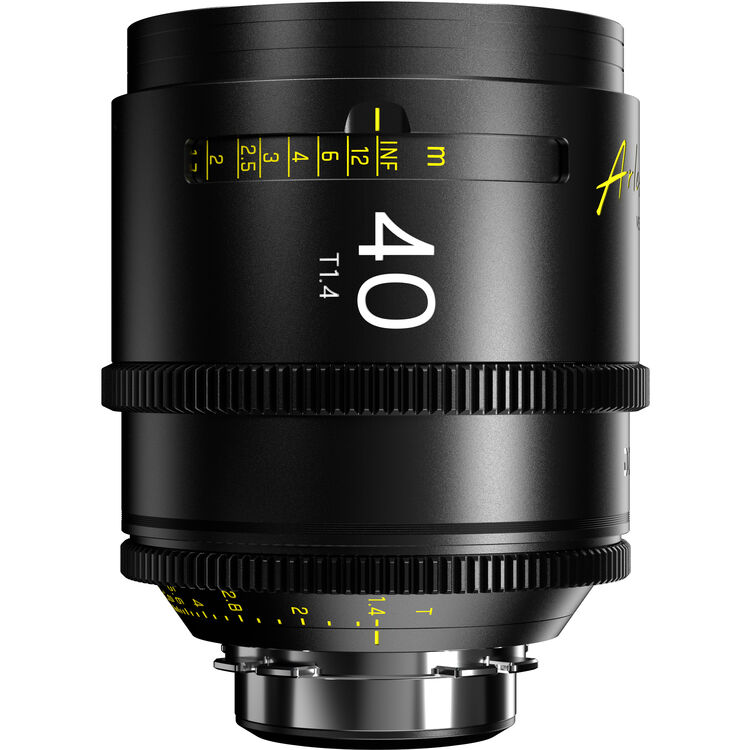

DZOFilm Arles 40mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Cinematic, Painterly Look
Equip your full-frame ARRI PL-mount camera with the Arles 14mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture consistently sharp, natural-looking imagery. This 40mm prime lens has an aperture range of T1.4 to T22, offering excellent low-light capture and arrestingly shallow depth of field. A 16-blade iris and optical construction of multiple grouped elements provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 77° for intuitive manual adjustments.
Large-Format Coverage
Painterly Rendering
Use the Arles series lenses at maximum aperture to create a soft, lower contrast look with slightly swirling peripheral bokeh.
Minimal Breathing and Aberration
Interchangeable PL Mount
This ARRI PL-mount lens can be used with a separately available Canon EF mount, offering compatibility with a wide range of cine-style, mirrorless, and DSLR cameras.
Consistency Across Series
A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. Each lens in the Arles series has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.

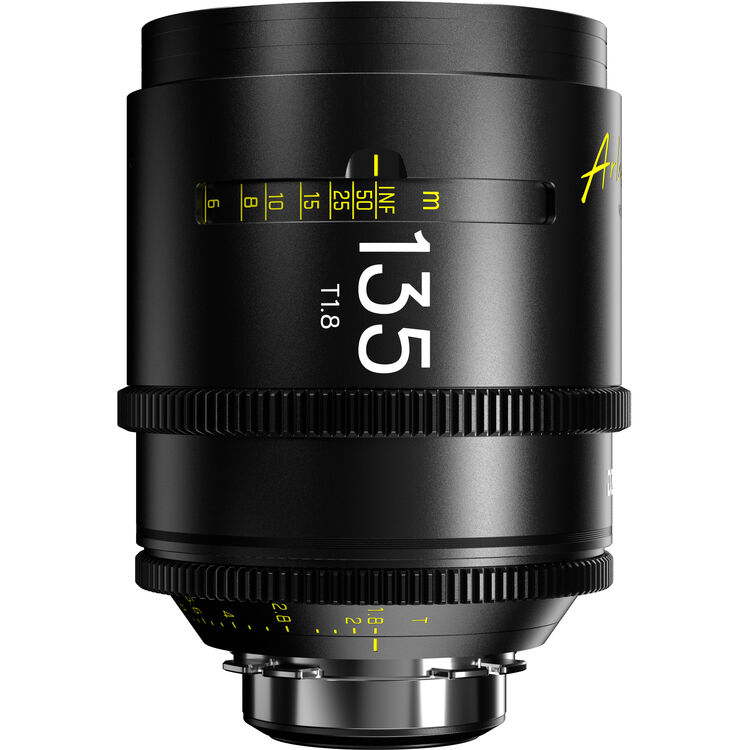

DZOFilm Arles 135mm T1.8 FF/VV Prime Cine Lens (ARRI PL)
Cinematic, Painterly Look
Equip your full-frame ARRI PL-mount camera with the Arles 135mm T1.8 FF/VV Prime Cine Lens from DZOFilm to capture consistently sharp, natural-looking imagery. This longer 135mm prime lens has an aperture range of T1.8 to T22, offering excellent low-light capture and arrestingly shallow depth of field. A 16-blade iris and optical construction of multiple grouped elements provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 77° for intuitive manual adjustments.
Large-Format Coverage
Painterly Rendering
Use the Arles series lenses at maximum aperture to create a soft, lower contrast look with slightly swirling peripheral bokeh.
Minimal Breathing and Aberration
Interchangeable PL Mount
This ARRI PL-mount lens can be used with a separately available Canon EF mount, offering compatibility with a wide range of cine-style, mirrorless, and DSLR cameras.
Consistency across Series
A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. Each lens in the Arles series has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.

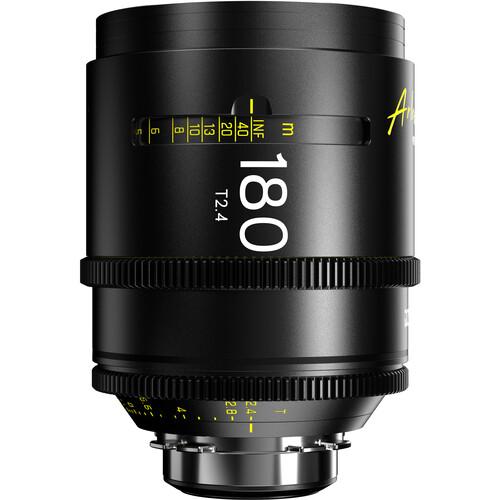

DZOFilm Arles 180mm T2.4 FF/VV Prime Cine Lens (ARRI PL)
Cinematic, Painterly Look
Equip your full-frame ARRI PL-mount camera with the Arles 180mm T2.4 FF/VV Prime Cine Lens from DZOFilm to capture consistently sharp, natural-looking imagery. This longer 180mm prime lens has an aperture range of T2.4 to T22, offering excellent low-light capture and arrestingly shallow depth of field. A 16-blade iris and optical construction of multiple grouped elements provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 77° for intuitive manual adjustments.
Large-Format Coverage
Painterly Rendering
Use the Arles series lenses at maximum aperture to create a soft, lower contrast look with slightly swirling peripheral bokeh.
Minimal Breathing and Aberration
Interchangeable PL Mount
This ARRI PL-mount lens can be used with a separately available Canon EF mount, offering compatibility with a wide range of cine-style, mirrorless, and DSLR cameras.
Consistency across Series
A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. Each lens in the Arles series has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.
DZOFilm Hard Case with Foam Insert for Set of 5 Arles Prime Lenses
Use this Hard Case with Foam Insert from DZOFilm to safely transport and protect a set of five Arles cine-style prime lenses. It has a waterproof exterior, a pressure equalization valve, and a foam interior with custom cutouts to cushion and protect your lenses. The case has a flip-up handle that folds out of the way for storage and two latches keep the lid securely closed. It accepts user-supplied padlocks for additional security options.
Maximum Aperture | T1.4 |
Minimum Aperture | T22 |
Lens Mount | ARRI PL |
Lens Format Coverage | Full-Frame |
Image Circle | 46.5 mm |
Angle of View | Full Frame Horizontal: 80.36° Vertical: 47.28° Diagonal: 87.44° |
Focus Scales | Imperial |
Optical Design | 14 Elements in 12 Groups |
Filter Thread | 86 mm |
Minimum Focus Distance | From Camera Sensor: 13.78" / 0.35 m |
Aperture/Iris Blades | 16 |
Image Stabilization | No |
Gear Standard | 0.8 MOD |
Gear Rotation | Focus: 270° (Manual Only) Iris: 77° (Manual Only) |
Diameter | 3.7" / 95 mm |
Length | 4.8" / 121 mm |
Weight | 3.3 lb / 1490 g |
Packaging Info
Package Weight | 5.585 lb |
Box Dimensions (LxWxH) | 13 x 7.4 x 7" |
