E-Image EG04AS 2-Stage Aluminum Tripod System with GH04 Dual-Base Fluid Head
E-Image EG04AS 2-Stage Aluminum Tripod System with GH04 Dual-Base Fluid Head
- SKU : #4ZVCEG04AS | MFR : #EG04AS | UPC : #847983025022
Features
- 13. lb Payload, Fixed Counterbalance
- GA752S Tripod with Mid-Spreader/Feet
- GH04 Fluid Head with Pan Bar
- Dual 75mm/Flat Base Head
- Manfrotto 501PL-Type Quick Release Plate
- Tilt Range of 90/-75°
- 25.2 to 61.4" Total Height Range
- Twist-Lever Leg Locks
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
You Pay:
AED 1,065.13
VAT Excl.
VAT Excl.
E-Image EG04AS 2-Stage Aluminum Tripod System with GH04 Dual-Base Fluid Head

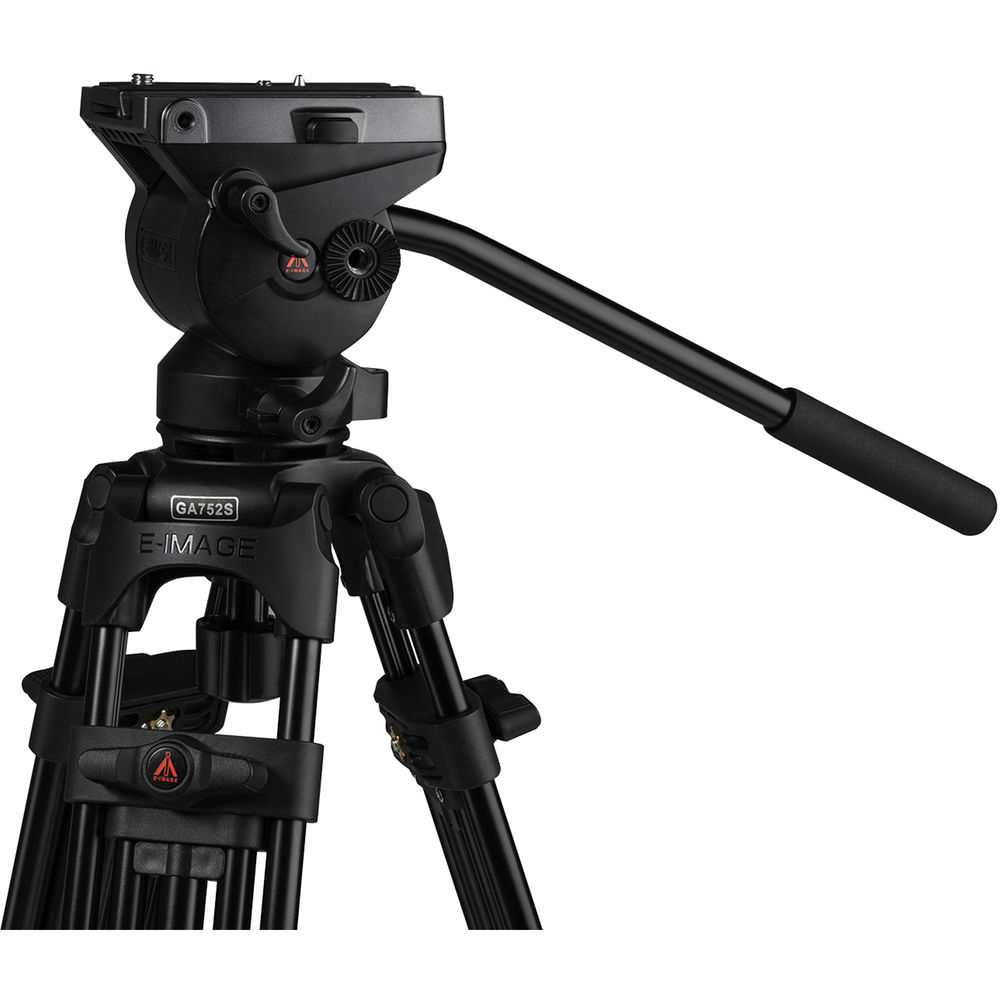

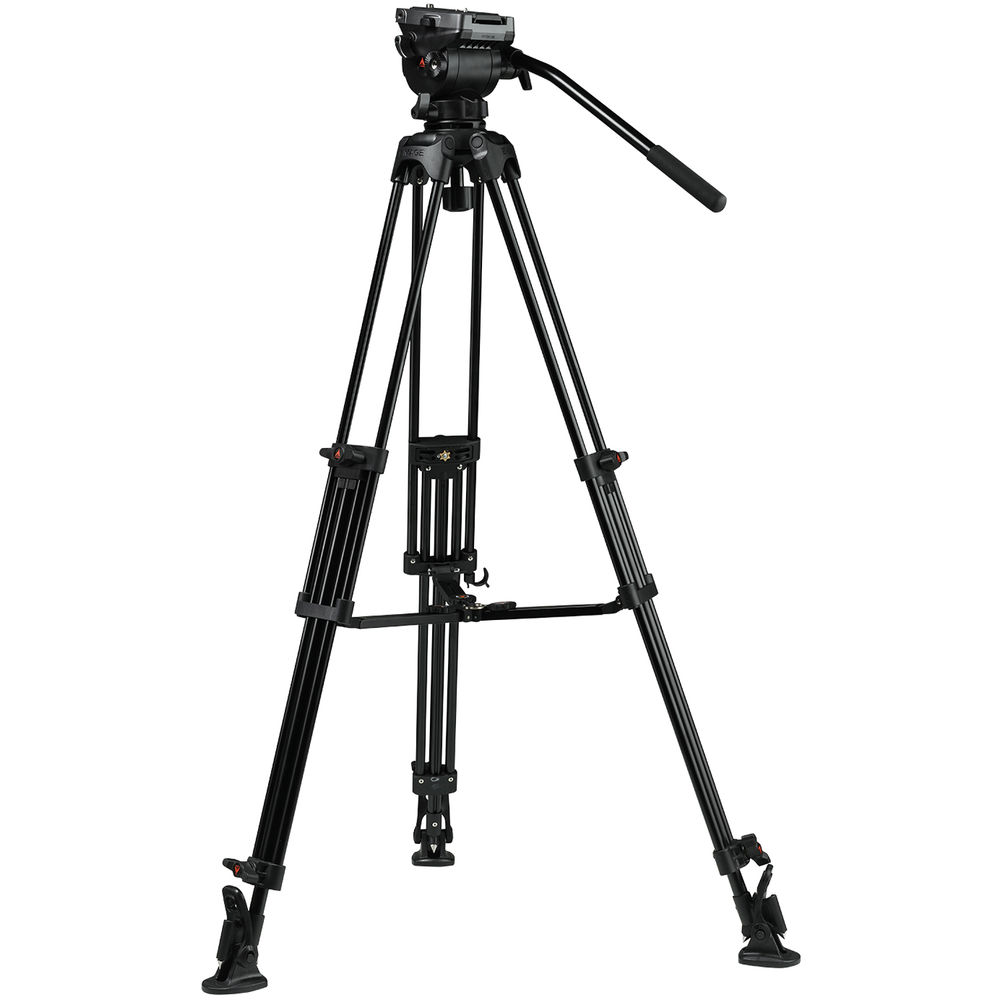

The E-Image EG04AS Aluminum Tripod System supports cameras and accessories weighing up to 13.2 lb. It includes the GH04 dual-base fluid head with a pan bar, GA752 two-stage aluminum tripod legs, and GS01 mid-level spreader. The tripod legs feature three sections with twisting leg locks. The tripod system extends to a height of 61.4" and collapses down as low as 34.4". The dual-base head comes with a removable 75mm ball base as well as a flat base, suitable for tripods or sliders. It features a 1/4"-20 thread for attaching an articulating arm or other accessories.

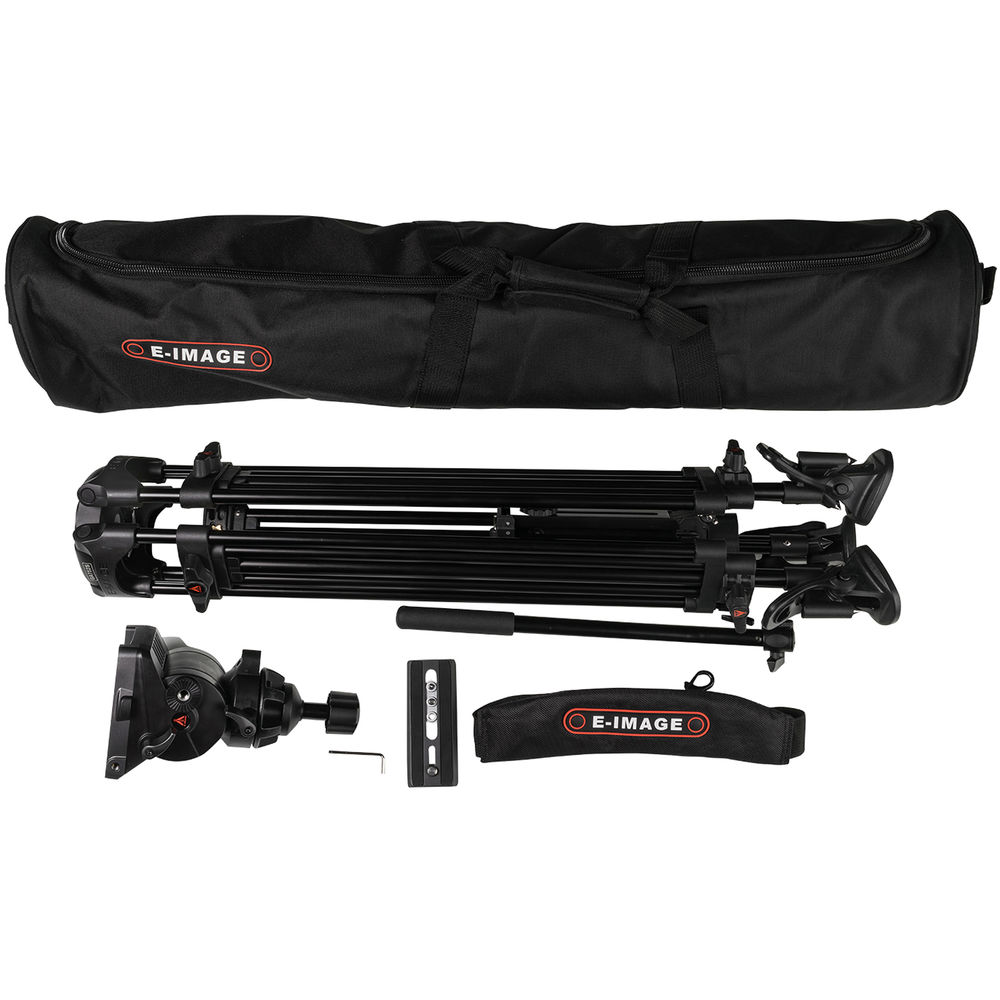

IN THE BOX
- E-Image EG04AS 2-Stage Aluminum Tripod System with GH04 Dual-Base Fluid Head

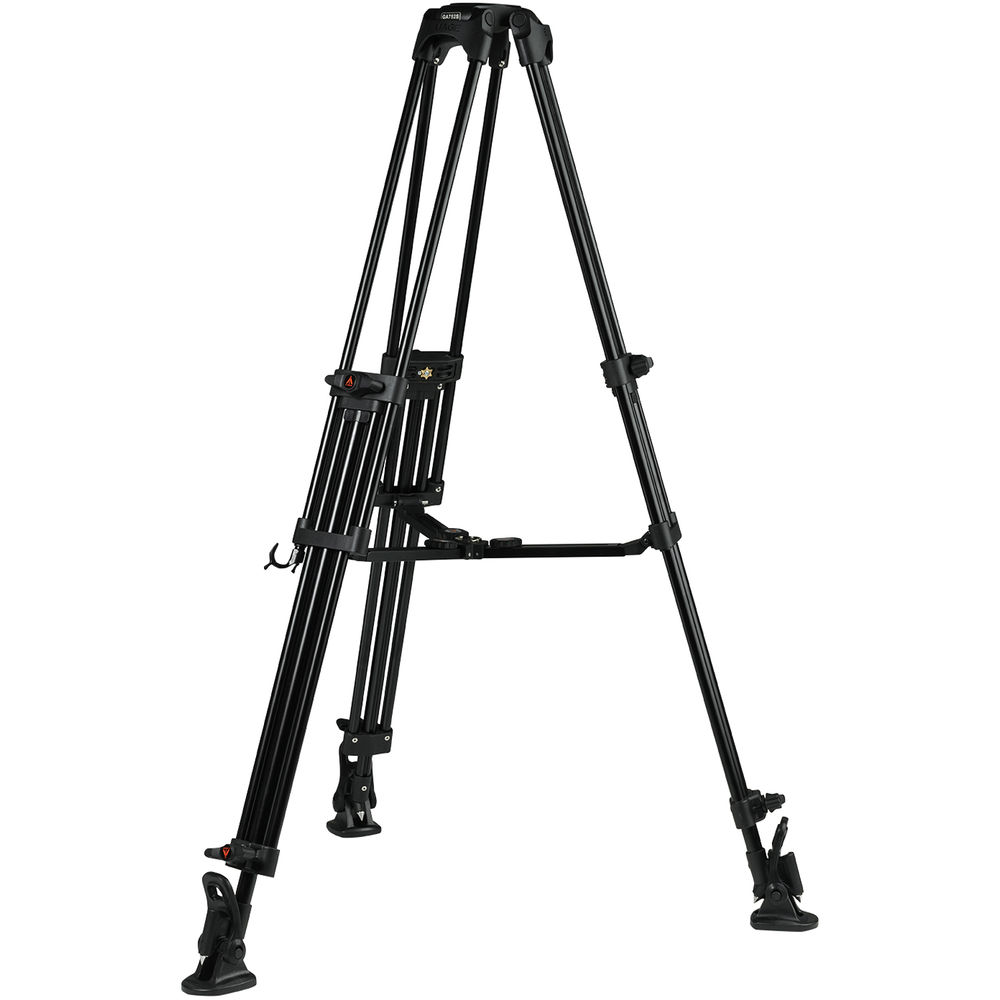

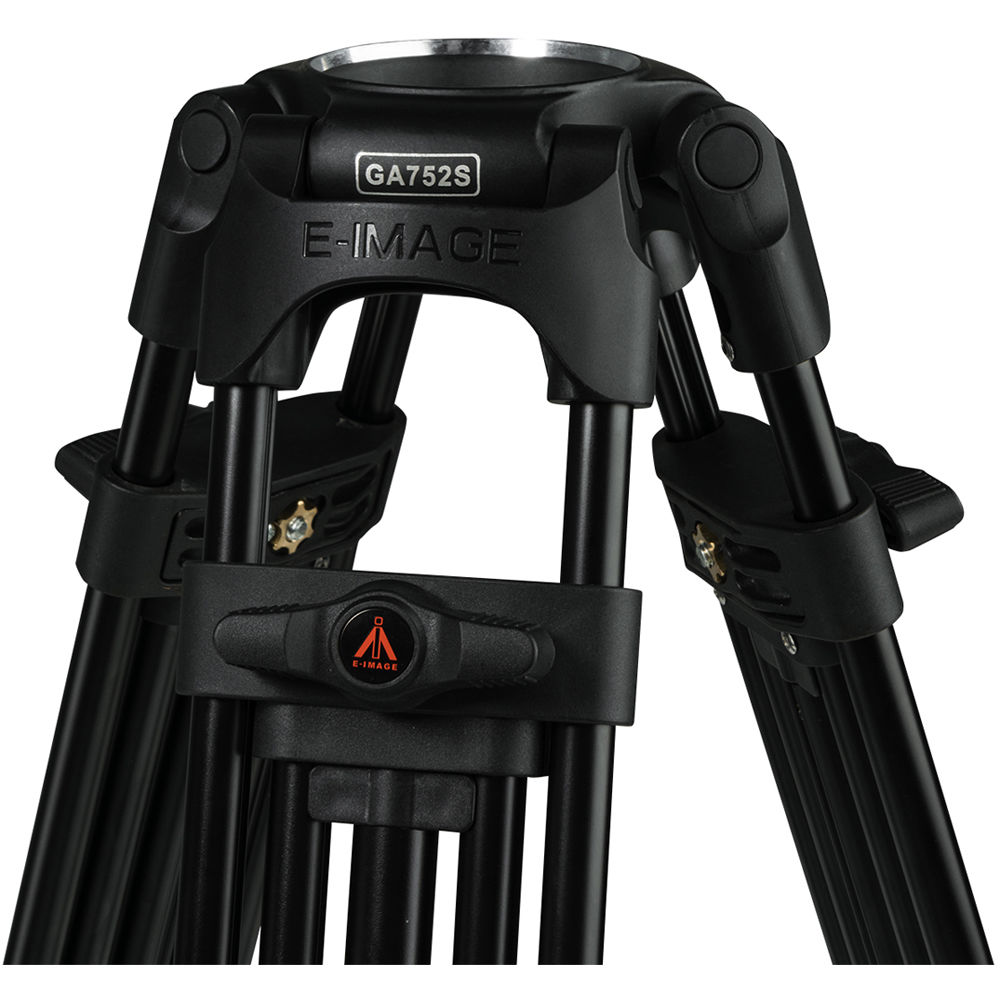

- E-Image GA752S 75mm Lightweight Aluminum Tripod with Mid-Level Spreader

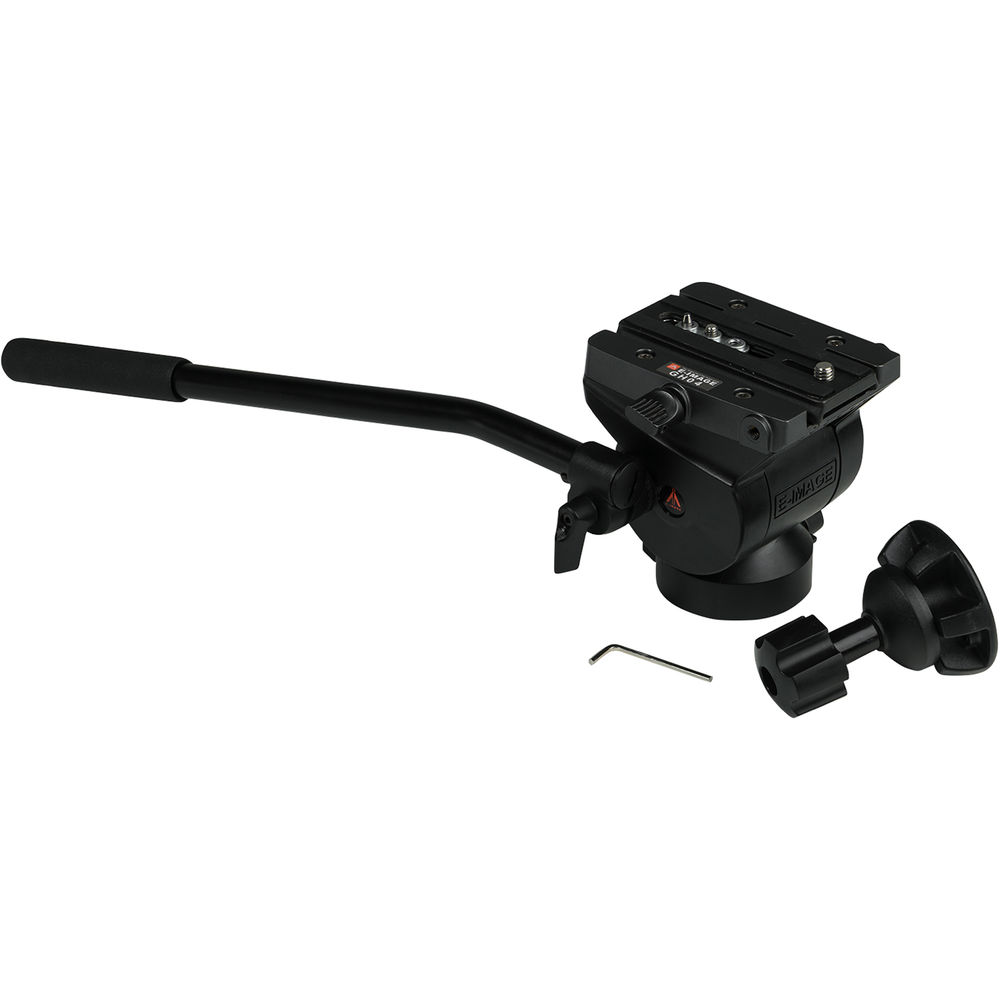

- GH04 Fluid Head

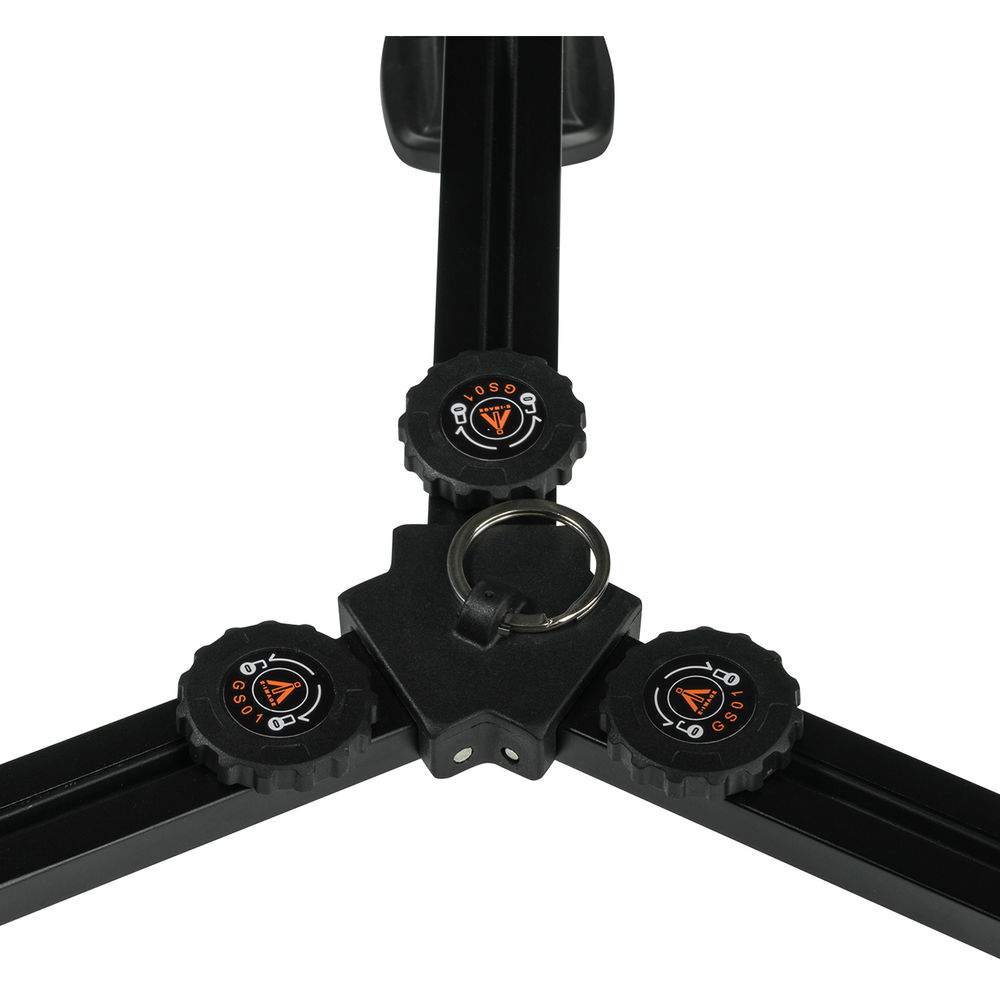

- E-Image GS01 Mid-Level Spreader
- E-Image Pan Handle for GH03 Fluid Head
Camera Attachment
| Camera Plate Features | Quick Release, Sideload, Sliding Balance Plate |
| Camera Plate Type | 501PL |
| Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin 1 x 3/8"-16 Male with Locating Pin |
| Safety Lock | Yes |
| Plate Dimensions | 4.7 x 2 x 0.5" / 120 x 50 x 12 mm |
Head
| Base Mount | 75 mm Half Ball Flat Base |
| Roll Adjustment | No |
| Counter Balance | Fixed |
| Pan Handle Fittings | 2 x Rosette |
| Included Pan Handle Length | 14" / 35.6 cm |
| Bubble Level | 1 |
| Accessory Mounting | 1 x 1/4"-20 Female Thread |
| Height | 6.0" / 153.00 mm |
Pan & Tilt
| Drag Control | Pan: Fixed Tilt: Fixed |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Lateral Tilt | No |
General
| Load Capacity | 13.2 lb / 6 kg |
| Maximum Working Height | Not Specified by Manufacturer |
| Minimum Working Height | 30.5" / 77.5 cm |
| Closed Length | Not Specified by Manufacturer |
| Materials | Aluminum |
| Weight | 9 lb / 4.1 kg |
Legs
| Leg Lock Type | Rotating Locking Lever |
| Independent Leg Spread | Yes |
| Leg Sections | 3 |
| Bubble Level | No |

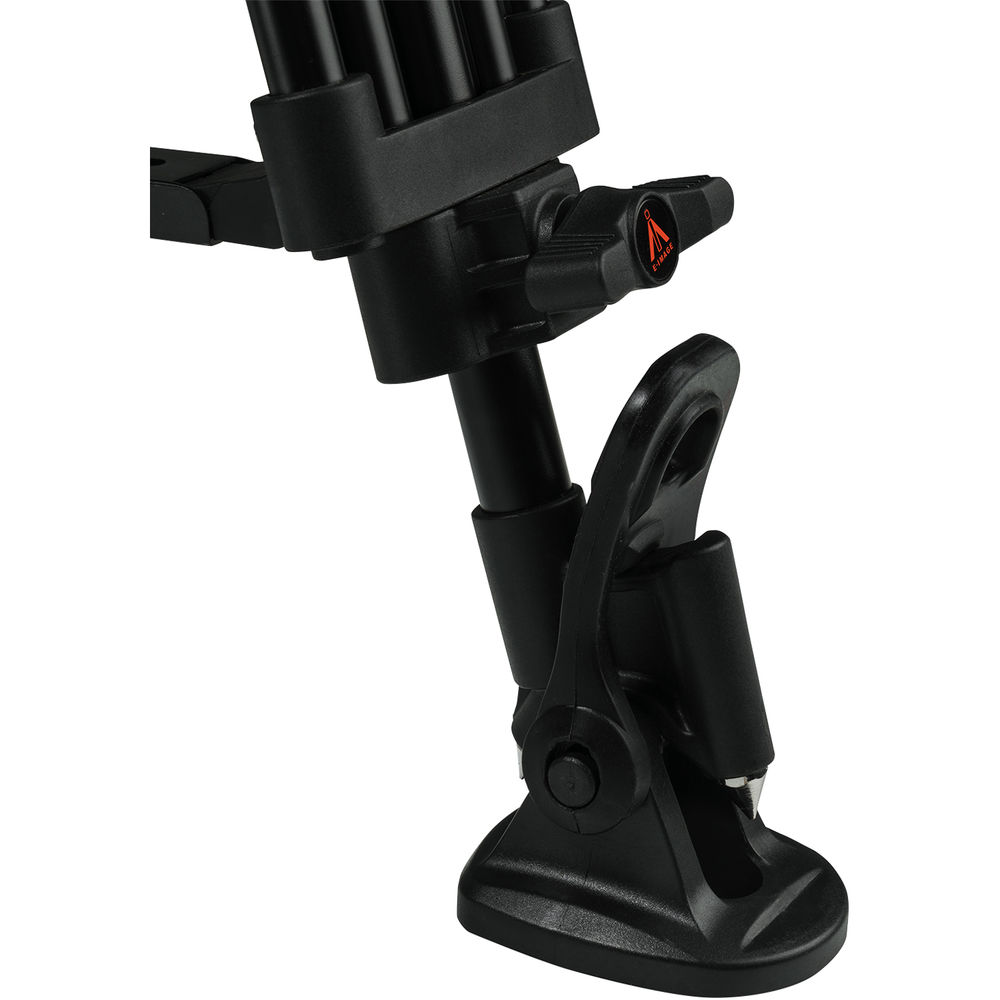

| Feet Features | Rubber, Dual Spiked |
| Spreader | Mid-Level (Included) |
Packaging Info
| Package Weight | 13.25 lb |
| Box Dimensions (LxWxH) | 36.5 x 8.25 x 8.25" |
