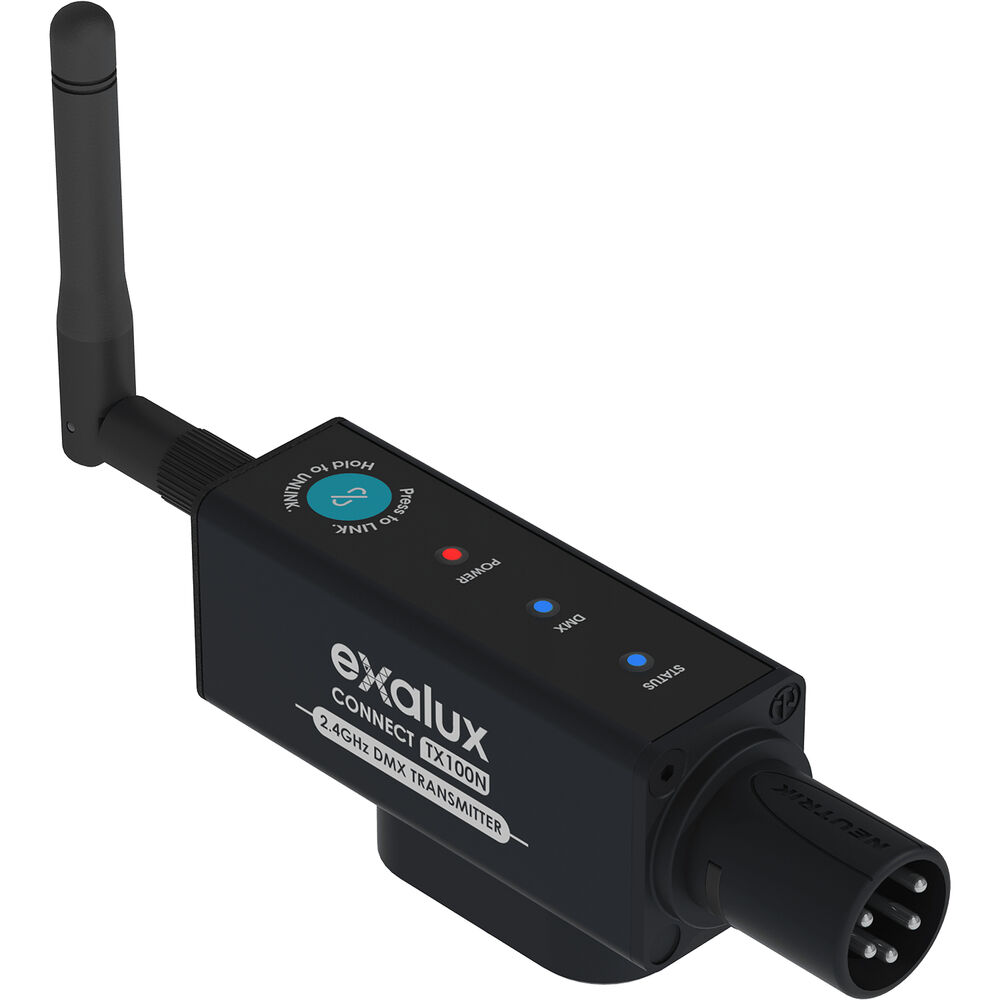

The CONNECT-TX100N DMX Transmitter from Exalux is an ultracompact wireless DMX transmitter that can be used in studios or on location. It can convert a wired DMX console into a wireless DMX console, allowing you to control all your CRMX-compatible lighting fixtures. The TX100N features PoD technology that enables the unit to be powered via its XLR connector. The unit is fully compliant with all LumenRadio CRMX receivers, such as RX100S and RX200N. The external antenna allows for a long range, up to 546 yards, depending on the transmitter and the environment.
Thanks to its wide supply range (5 to 24 VDC), the TX100N can be powered through the USB connector of a DMX fixture, a V-mount battery via the D-Tap connector, or another external power supply, available separately.
General
Inputs/Outputs | 1 x XLR 5-Pin (DMX) Male Output 1 xDC Barrel (Power) Female Input |
Channels | 0 |
Cooling System | No |
Frame Rates | 0.8 to 830 Hz |
Latency | 5 ms |
Sensitivity | 20 dBm |
Wireless Range | 547 yd / 500 m |
Frequency | 2.4 to 2.48 GHz |
Antenna Gain | 20 dBi (External) |
Transmit Power | 20 dBm |
Power
Power Consumption | 1.5 W |
DC Input Power | 4.75 VDC |
PoE Port Power | Yes |
Compatibility
Protocol | DMX512 |
Environmental
Operating Temperature | 14 to 131°F / -10 to 55°C |
Storage Temperature | -4 to 167°F / -20 to 75°C |
Certifications | CE |
Environmental Protection | Dust-Resistant (IP30) |
Physical
Material of Construction | Aluminum, Plastic |
Dimensions | 4.1 x 1.4 x 1.0" / 103.0 x 35.0 x 26.0 mm (Without Antenna) 5.5 x 1.4 x 1.0" / 139.0 x 35.0 x 26.0 mm (Including Antenna) |
Weight | 6.5 oz / 185 g |
