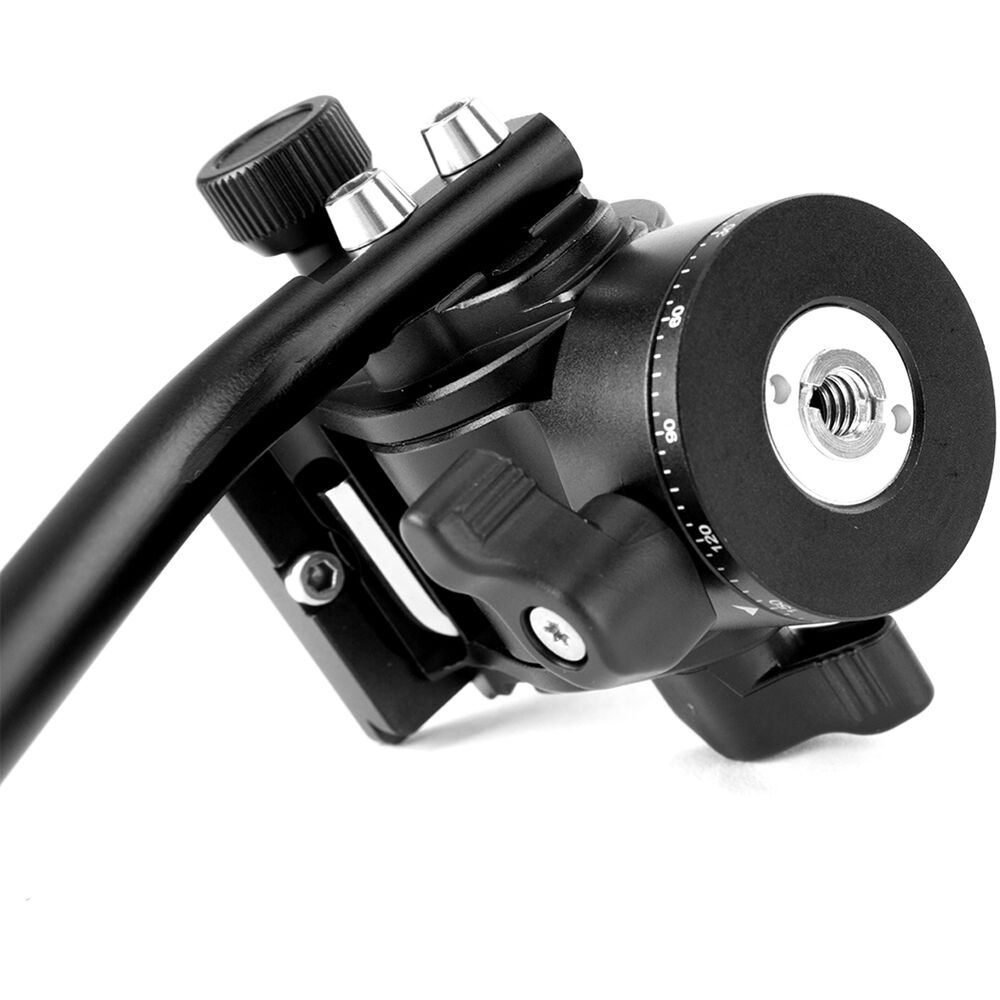

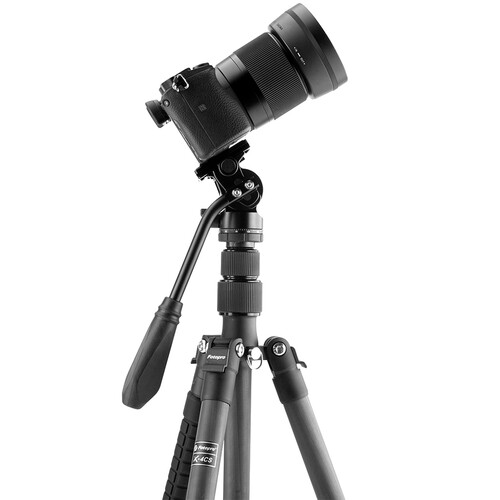

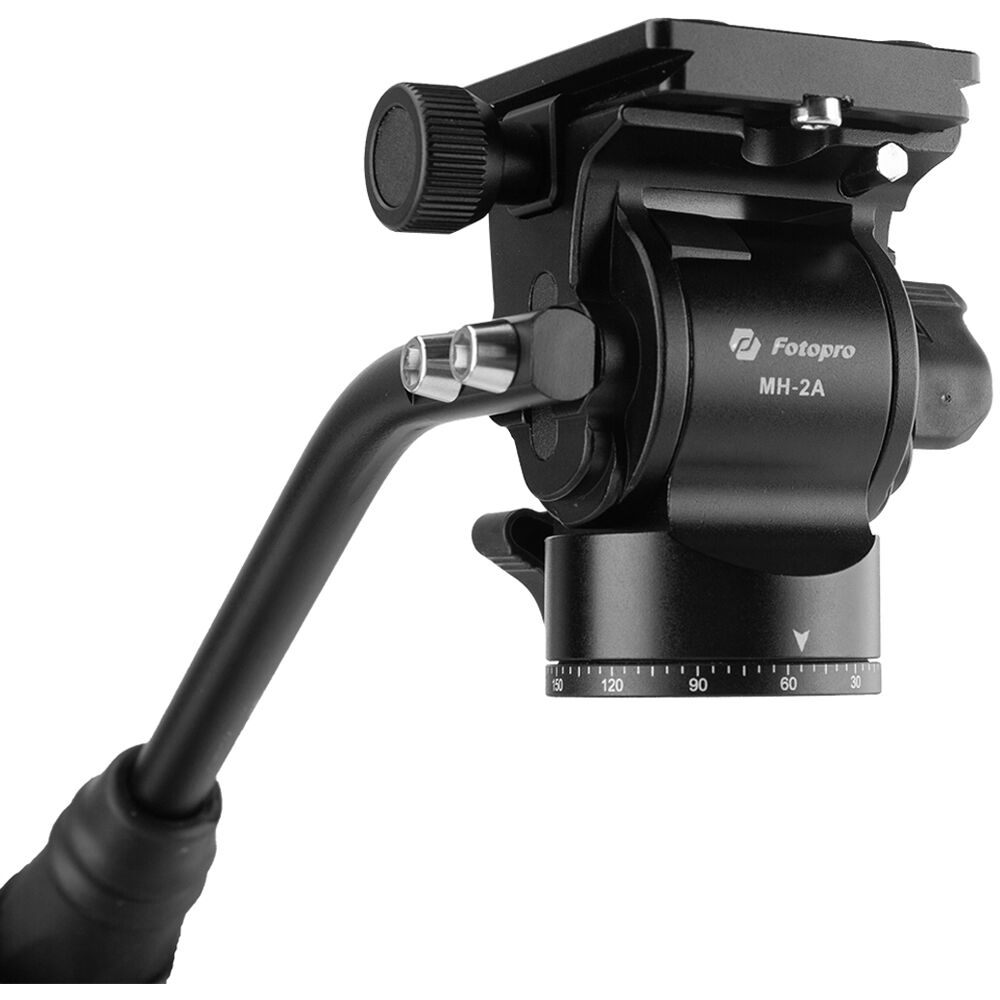

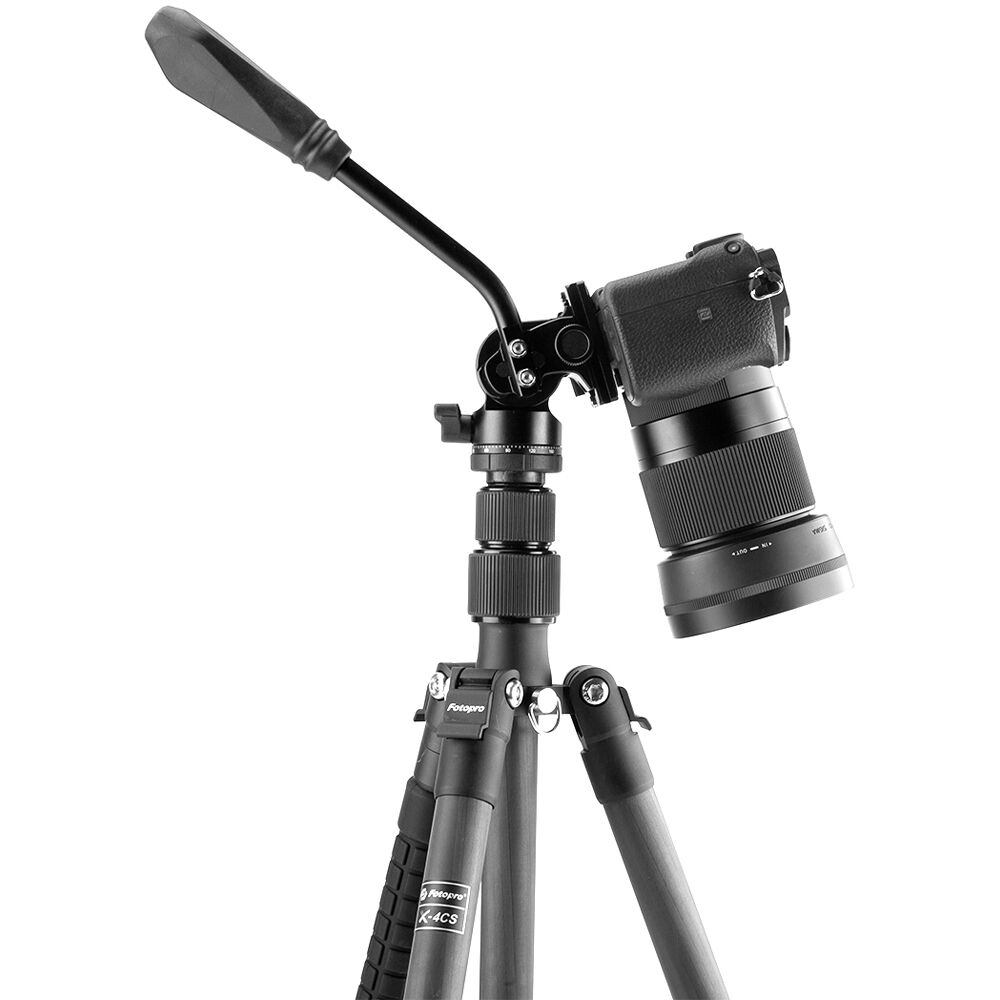

Create smooth pan and tilt moves with your small camera rig using the lightweight MH-2A Metal Mini Fluid Ball Head from Fotopro. The tiny metal fluid head features a flat 37mm base for mounting onto a separately available compact tripod using its combo 1/4"-20 and 3/8"-16 thread interface. Its maximum load capacity is 6.6 lb and it only weighs 10.2 oz, ideal for travel.

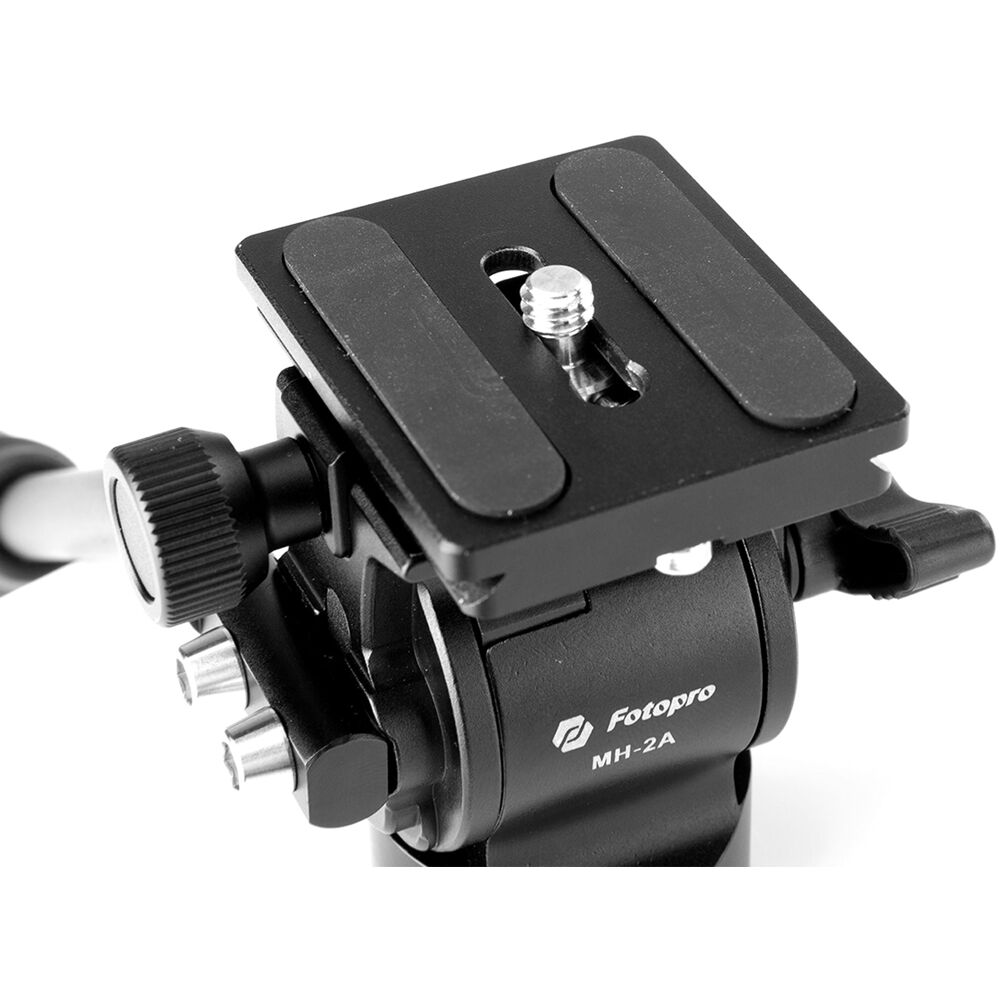

The compact head features a quick release plate with a 1/4"-20 camera mounting screw for quick changing of your camera rig. It has a tilt range of +90 to -55°, it can pan a full 360°, and it features independent pan and tilt locks. The included pan handle can be installed on either the right or left side of the head. An Allen wrench is included to help tighten the plate onto your rig, and it stores within the head.
Head
Camera Mounting | 1/4"-20 Screw (Quick Release Plate: Proprietary) |
Head Type | Fluid Head |
Base Mount | Flat Base with 3/8"-16 Female |
Counter Balance | No |
Dimensions | Base Diameter: 1.5" / 3.7 cm Height: 3.1" / 80.00 mm |
Pan & Tilt
Drag Control | Yes |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
Vertical Tilt | +90° to -55° |
General
Load Capacity | 6.6 lb / 3 kg |
Accessory Mounting | 2x Pan Handle Fitting |
Weight | 10.2 oz / 290 g |
Packaging Info
Package Weight | 0.83 lb |
Box Dimensions (LxWxH) | 10.4 x 4.1 x 3.1" |
