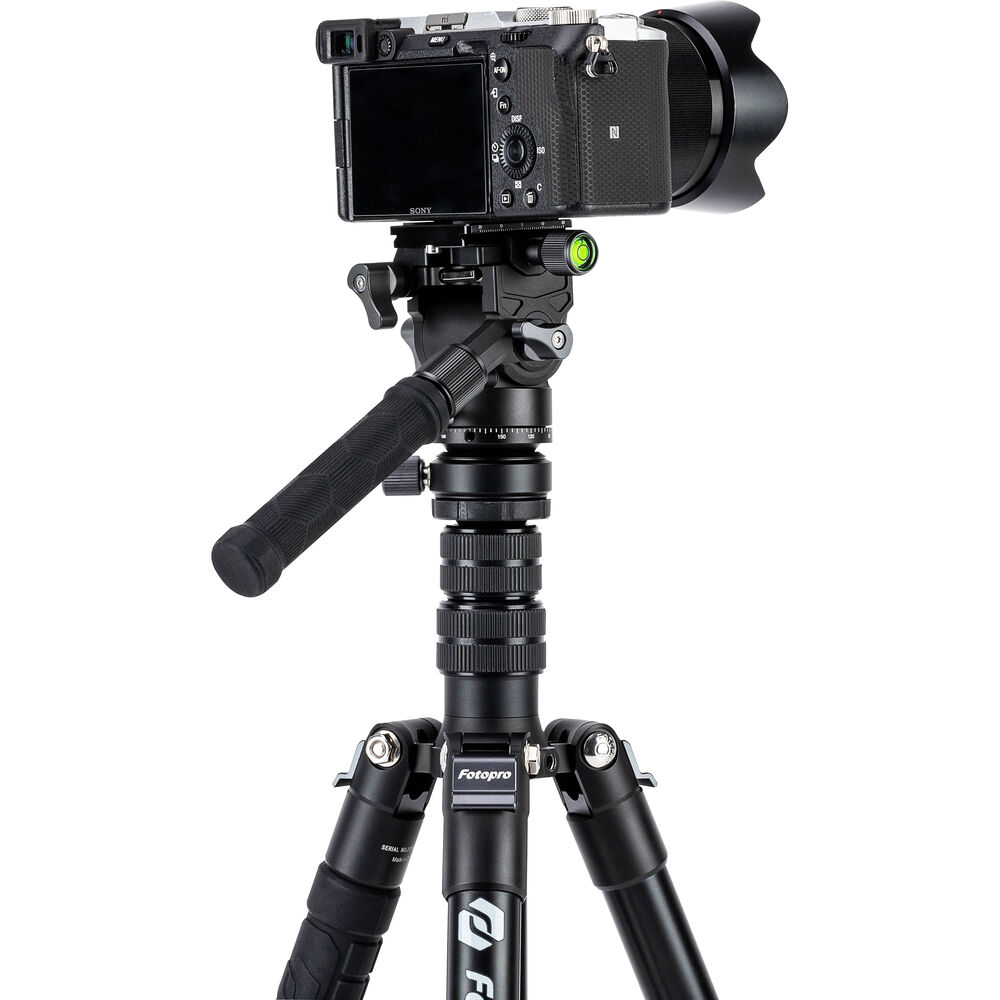

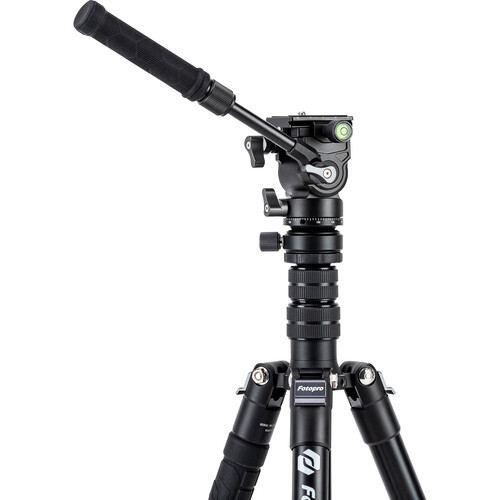

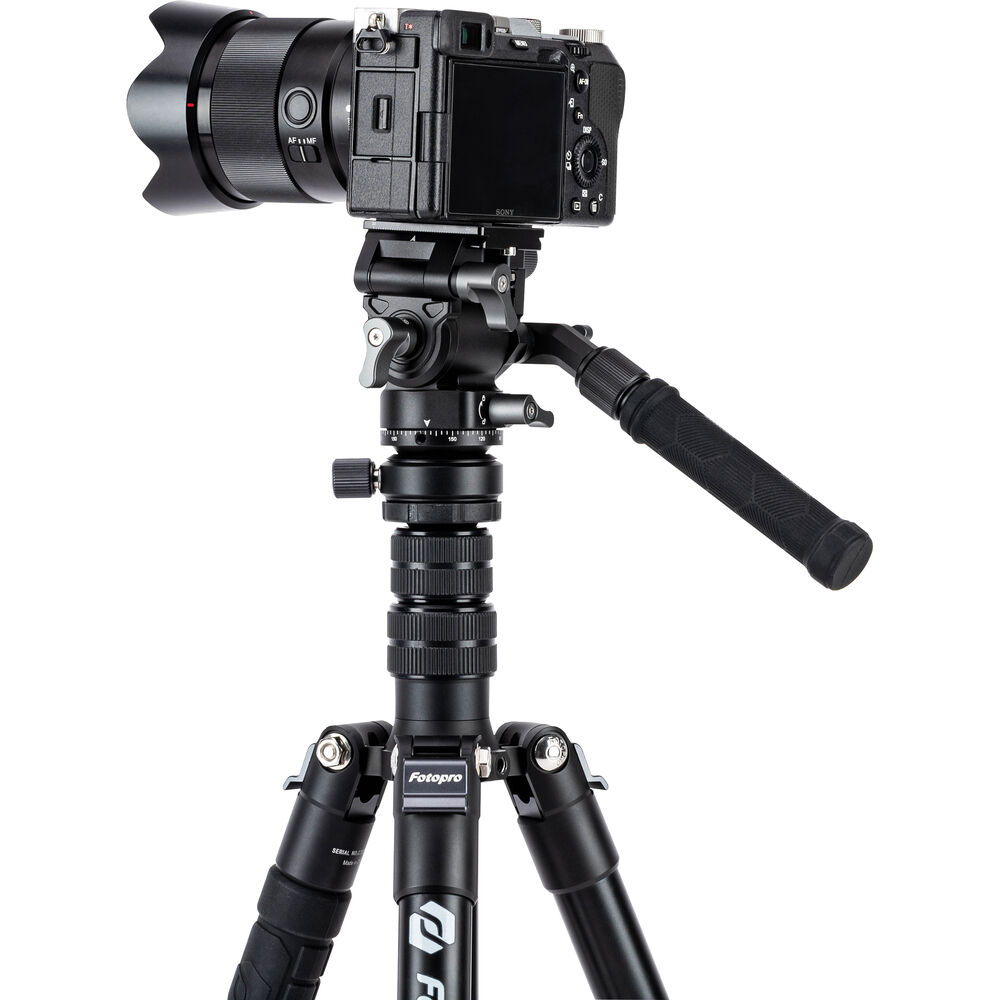

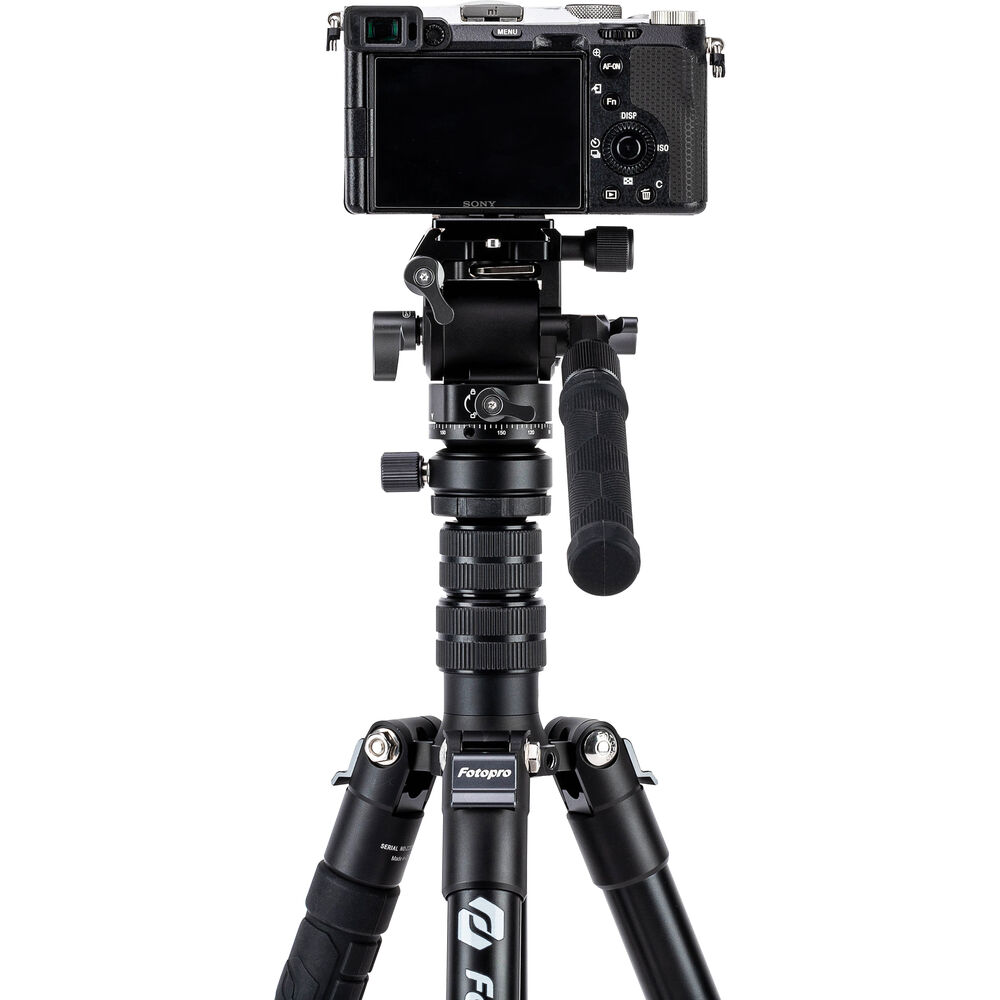

Create smooth pan and tilt moves with your small camera rig using the lightweight MH-4A Fluid Video Head from Fotopro. The tiny metal fluid head features a flat 43mm base for mounting onto a separately available compact tripod using its 1/4"-20 base thread, which can also convert to a 1/4"-20 thread with the included screw insert. Its maximum load capacity is 6.6 lb, and it only weighs 14 oz, ideal for travel.

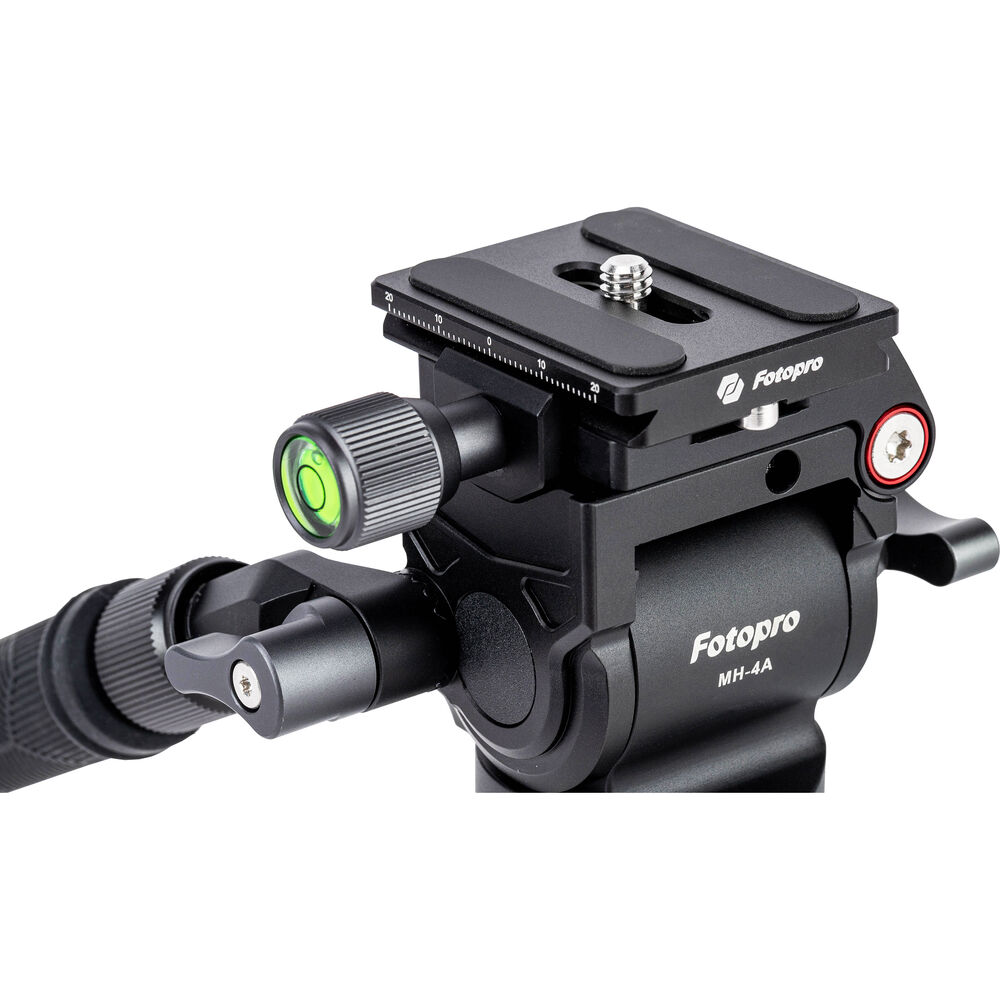

The compact head features a quick release plate with a 1/4"-20 camera mounting screw for quick changing of your camera rig. It has a tilt range of -90 to 55°, it can pan a full 360°, and it features independent pan and tilt locks. It can also tilt up to 90° laterally, allowing for horizontal or vertical shooting. The included pan handle can be installed on either the right or left side of the head, and it features a bubble level. An Allen wrench is included to help tighten the plate onto your rig, and it stores within the head.
Head
Camera Mounting | 1/4"-20 Screw (Quick Release Plate) |
Head Type | Fluid Head |
Base Mount | Flat Base with 3/8"-16 and 1/4"-20 Female |
Dimensions | Base Diameter: 1.7" / 43.00 mm Height: 7.2" / 182.00 mm |
Pan & Tilt
Drag Control | Yes |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
Vertical Tilt | +55° to -90° |
Lateral Tilt | 0° to +90° |
General
Load Capacity | 6.6 lb / 3 kg |
Bubble Level | Yes |
Weight | 14.1 oz / 400 g |
