Fujinon 2/3" HD ENG Full Servo Lens with 18x Optical Zoom

Fujinon 2/3" HD ENG Full Servo Lens with 18x Optical Zoom

Fujinon 2/3" HD ENG Full Servo Lens with 18x Optical Zoom

  • SKU : #237OHA18X7.6BEMD-DSE | MFR : #HA18X7.6BEMD-DSE
Fujinon 2/3" HD ENG Full Servo Lens with 18x Optical Zoom
Fujinon 2/3" HD ENG Full Servo Lens with 18x Optical Zoom
Features
  • 18x Optical Zoom (7.6-137mm)
  • 32-bit RISC Processor
  • CPU in Each Servo Demand
  • Optical Encoders
  • Digital Control Circuit
  • 13-bit Accuracy in Zoom
  • Quick Zoom (0.7 sec End to End)
  • Features Innerfocus Technology
  • Focused Intelligent Network Diagnosis

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 62,430.62
VAT Excl.

Fujinon 2/3" HD ENG Full Servo Lens with 18x Optical Zoom

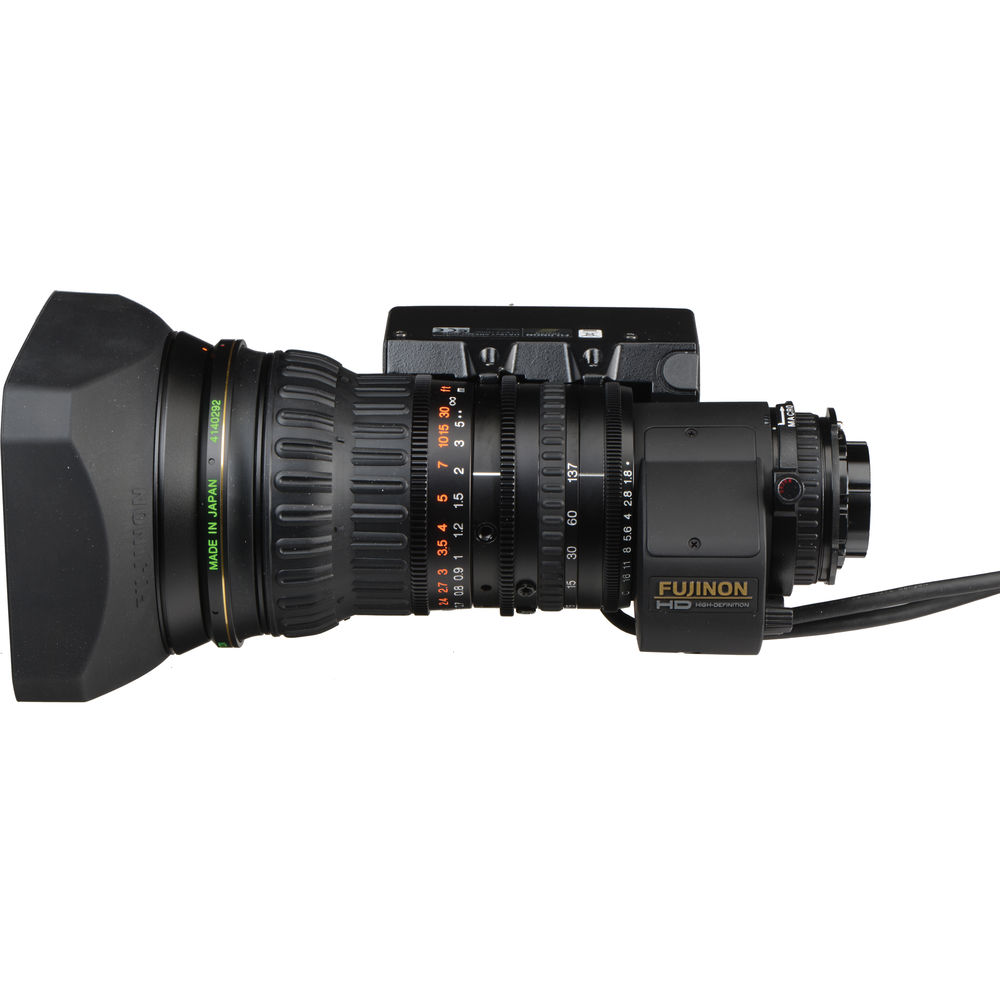

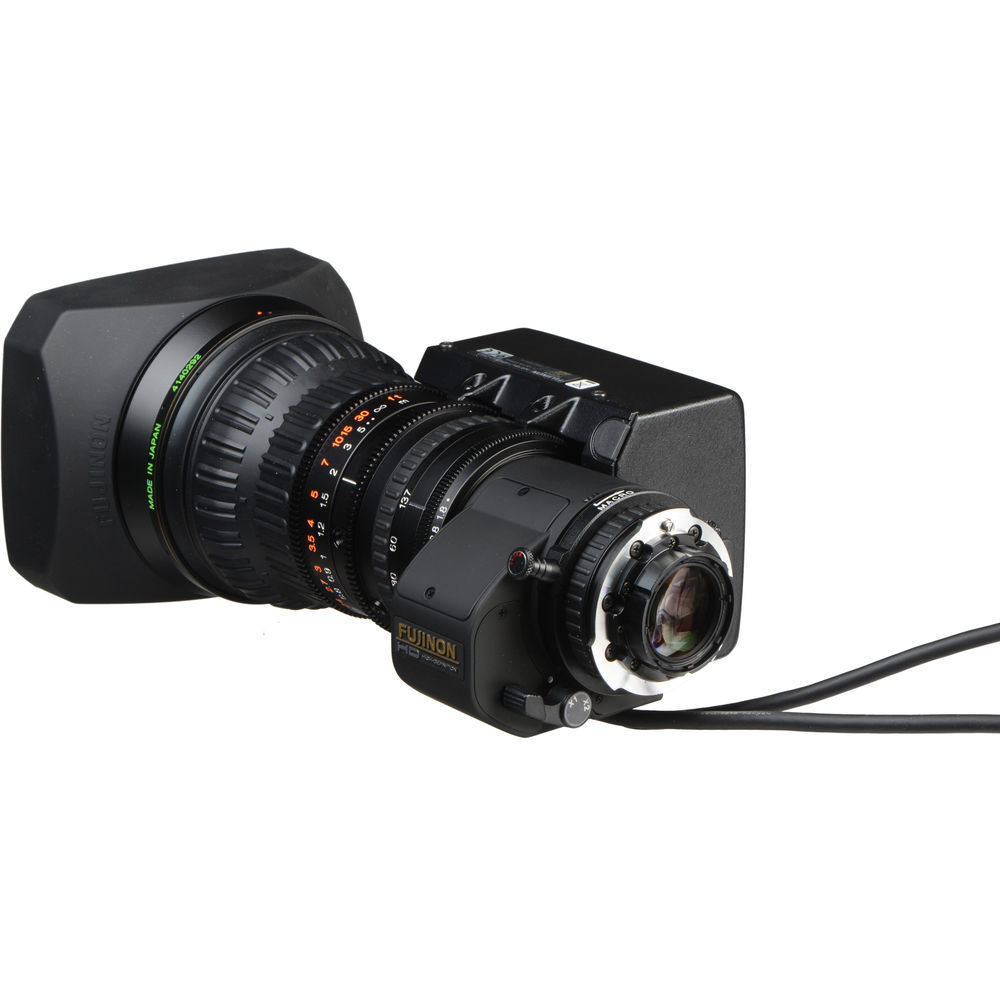

The Fujinon 2/3" HD ENG Full Servo Lens with 18x Optical Zoom is a high-definition lens for 2/3" format ENG-style cameras, and offers a focal length range of 7.6-137mm.

Featuring a 32-bit RISC processor, a CPU in each servo demand, optical encoders, and a digital control circuit, the HD lens provides 13-bit accuracy in zoom and focus control. The Quick Zoom lens offers you an end to end zoom movement in 0.7 seconds. This feature allows you to move to the telephoto position to check the focus, and then return to the previously selected zoom position by simply pushing and releasing the button.

In addition to supporting HD digital technology, the lens features Innerfocus technology which helps minimize lens breathing. The Focused Intelligent Network Diagnosis system stores and evaluates the lens' electronic and mechanical data, for use in preventive maintenance and troubleshooting. You can control the lens remotely from a PC or any other device via the RS232 connector.

  • HD lens for ENG-style cameras with 2/3" format sensors
  • 18x optical zoom with 7.6-137 mm focal length range
  • Built-in motor drive
  • 32-bit RISC processor, a CPU in each servo demand and optical encoders together with a digital control circuit help provide enhanced focus control and 13-bit accuracy in zoom
  • Quick Zoom offers you an end to end zoom movement in 0.7 seconds
  • You can move to the telephoto position at the push of a button in order to check focus, and then return to the previously selected zoom position by simply pushing and releasing the button
  • Features Innerfocus technology that helps minimize lens breathing
  • Focused Intelligent Network Diagnosis system stores and evaluates the lens' electronic and mechanical data, for use in preventive maintenance and troubleshooting

IN THE BOX

    • Fujinon 2/3" HD ENG Full Servo Lens with 18x Optical Zoom
    • 1-Year Parts and Labor Warranty
Image Format2/3"
Focal Length7.6 - 137 mm
Zoom Range18x
Maximum Relative Aperture1 : 1.8 (7.6 - 105 mm)
1 : 2.4 (137 mm)
Maximum Photometric Aperture T-No.1 : 1.9 (7.6 - 105 mm)
1 : 2.6 (137 mm)
M.O.D. from Image Plane2.75' (0.84 m)
M.O.D. from Front of Lens1.96' (0.6 m)
Object Dimensions at M.O.D.16 : 9 Aspect ratio:
7.6 mm 696 x 392 mm, 137 mm 41 x 23 mm
Angular Field of View16 : 9 Aspect ratio:
7.6 mm 64°30' x 39°03', 137 mm 4°01' x 2°15'
MacroAvailable
Filter ThreadM82 x 0.75
Diameter3.34" (85 mm)
Length8.03" (204 mm)
Weight3.48 lb / 1.58 kg (Lens hood excluded)

Packaging Info

Package Weight6.3 lb
Box Dimensions (LxWxH)13.8 x 11.6 x 10.6"
