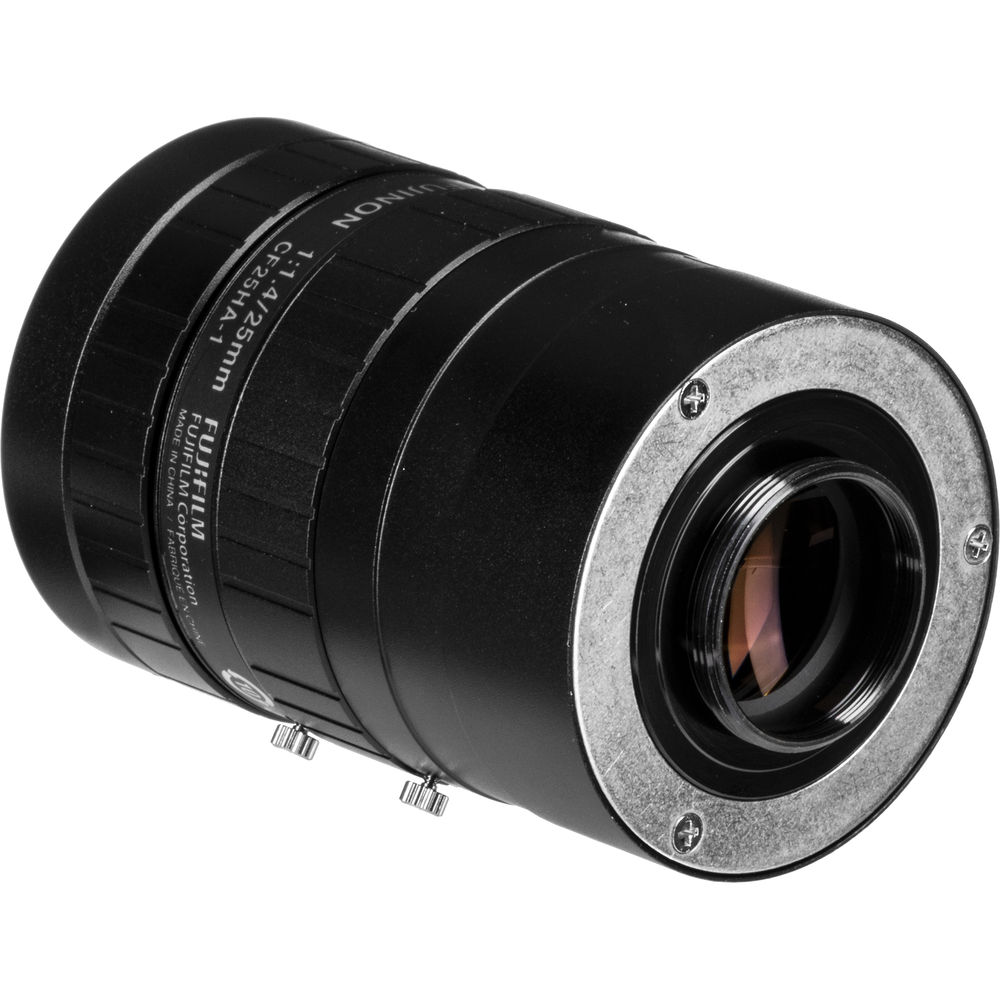

The Fujinon CF25HA-1 1" 25mm Industrial Manual Lens for C-Mount Machine Vision Cameras is a high-resolution industrial lens designed for robotics and machine vision. It offers manual iris and focus, and has a 25mm focal length that produces a 28° horizontal angle of view on 1" CCD systems.
High-Resolution Design
The lens was designed to be used with high-resolution cameras with images up to 1.5 megapixels. Advanced glass composites and anti-reflective coatings produce detailed images with high contrast.
Industrial Quality
This lens is built within a protective enclosure resistant to vibrations and shocks. The focus and iris rings can be locked into place.
Lens Mount | C |
Sensor Compatibility | 1" (1.5 MP) |
Focal Length | 25mm |
Angle of View | 2/3"-Type Sensor Horizontal: 28° Vertical: 21° |
Minimum Focus Distance | From Front of Lens: 4" / 10.2 cm |
Focus Type | Manual Focus |
Iris Type | Manual |
Dimensions (ø x L) | 2.9 x 2" / 7.4 x 5.1 cm |
Weight | 10.9 oz / 309 g |
Packaging Info
Package Weight | 0.805 lb |
Box Dimensions (LxWxH) | 4.25 x 2.9 x 2.85" |
