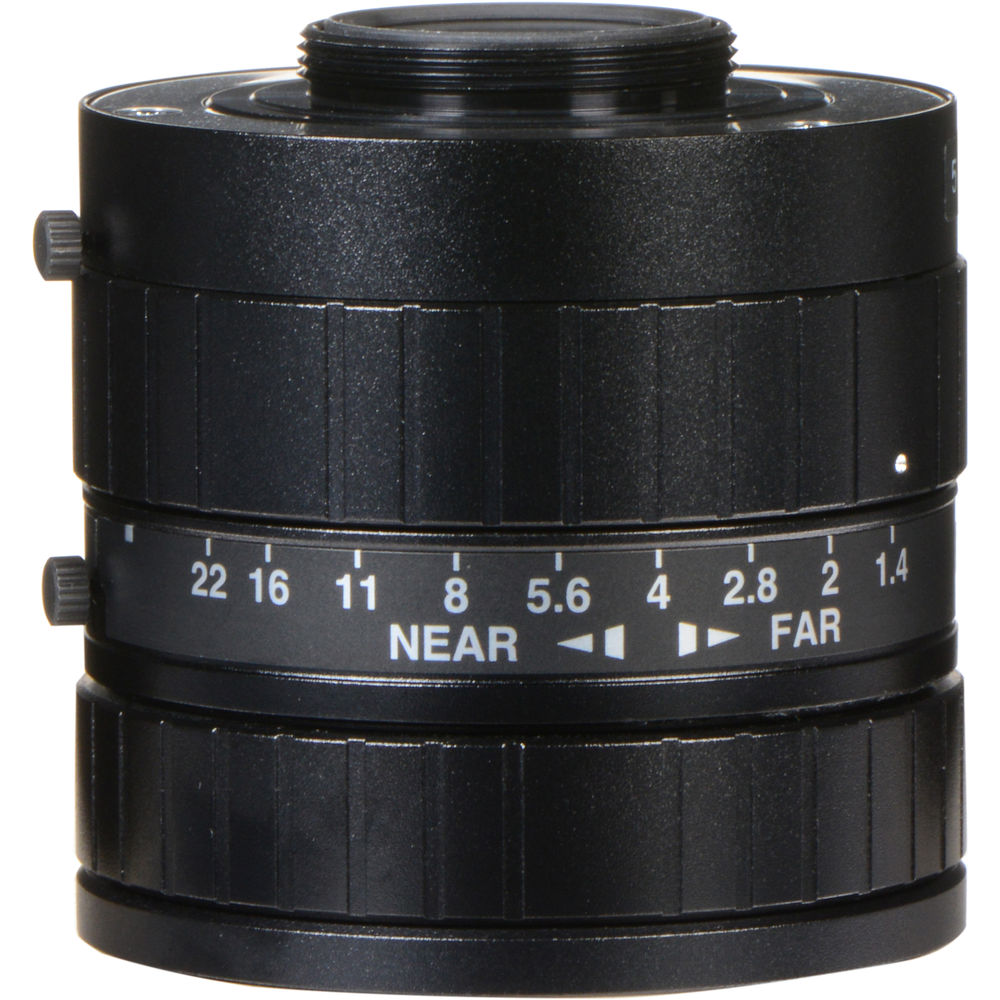

The Fujinon CF35HA-1 1" 35mm Industrial Manual Lens for C-Mount Machine Vision Cameras is a high-resolution industrial lens designed for robotics and machine vision. It offers manual iris and focus, and has a 35mm focal length that produces a 20° horizontal angle of view on 1" CCD systems.
High-Resolution Design
The lens was designed to be used with high-resolution cameras with images up to 1.5 megapixels. Advanced glass composites and anti-reflective coatings produce detailed images with high contrast.
Industrial Quality
This lens is built within a protective enclosure resistant to vibrations and shocks. The focus and iris rings can be locked into place.
Lens Mount | C |
Sensor Compatibility | 1" (1.5 MP) |
Focal Length | 35mm |
Angle of View | 1"-Type Sensor Horizontal: 20° Vertical: 15° |
Minimum Focus Distance | From Front of Lens: 9" / 22.9 cm |
Focus Type | Manual Focus |
Iris Type | Manual |
Dimensions (ø x L) | 1.9 x 2" / 4.8 x 5.1 cm |
Weight | 6.3 oz / 178.6 g |
Packaging Info
Package Weight | 0.505 lb |
Box Dimensions (LxWxH) | 4.3 x 2.9 x 2.7" |
