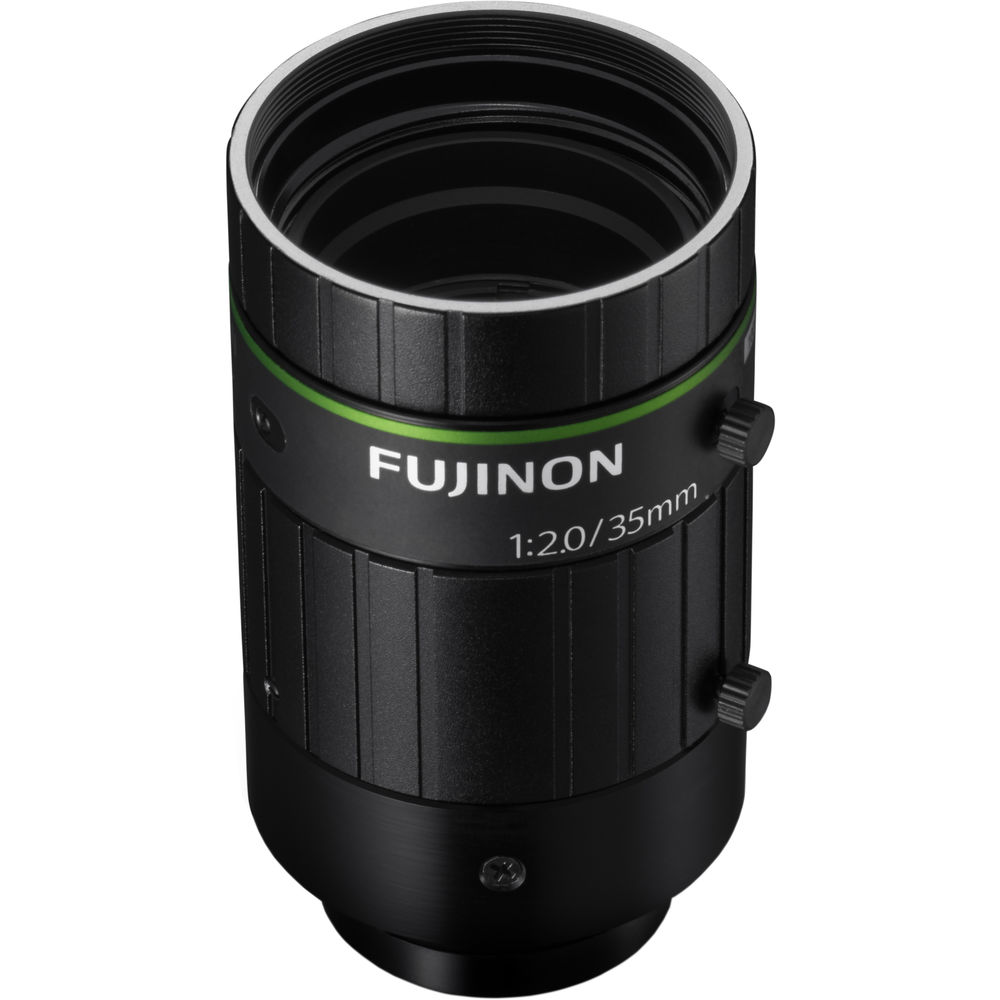

Mount the HF3520-12M C-Mount 35mm Fixed Lens from Fujinon to a compatible 2/3" type sensor in order to capture clear video. This 35mm fixed lens has a 14.7° horizontal field of view to monitor a specific area. This 12 MP-equivalent lens is designed for use in machine vision applications.
Imager Size | 2/3" |
Mount Type | C-mount |
Focal Length | 35mm |
Aperture | f/2.0-2.2 |
Iris Operation | Manual |
Focus Operation | Manual |
Field of View | Horizontal: 14.7° Vertical: 11° |
Working Distance | ∞ - 7.9" (∞ - 200 mm) |
TV Distortion | 0.01% |
Filter Thread | M30.5 x 0.5 mm |
Dimensions | 1.3 x 2.09" (33 x 53.1 mm) |
Weight | 3 oz (85 g) |
Packaging Info
Package Weight | 0.35 lb |
Box Dimensions (LxWxH) | 3.1 x 2.5 x 2.3" |
