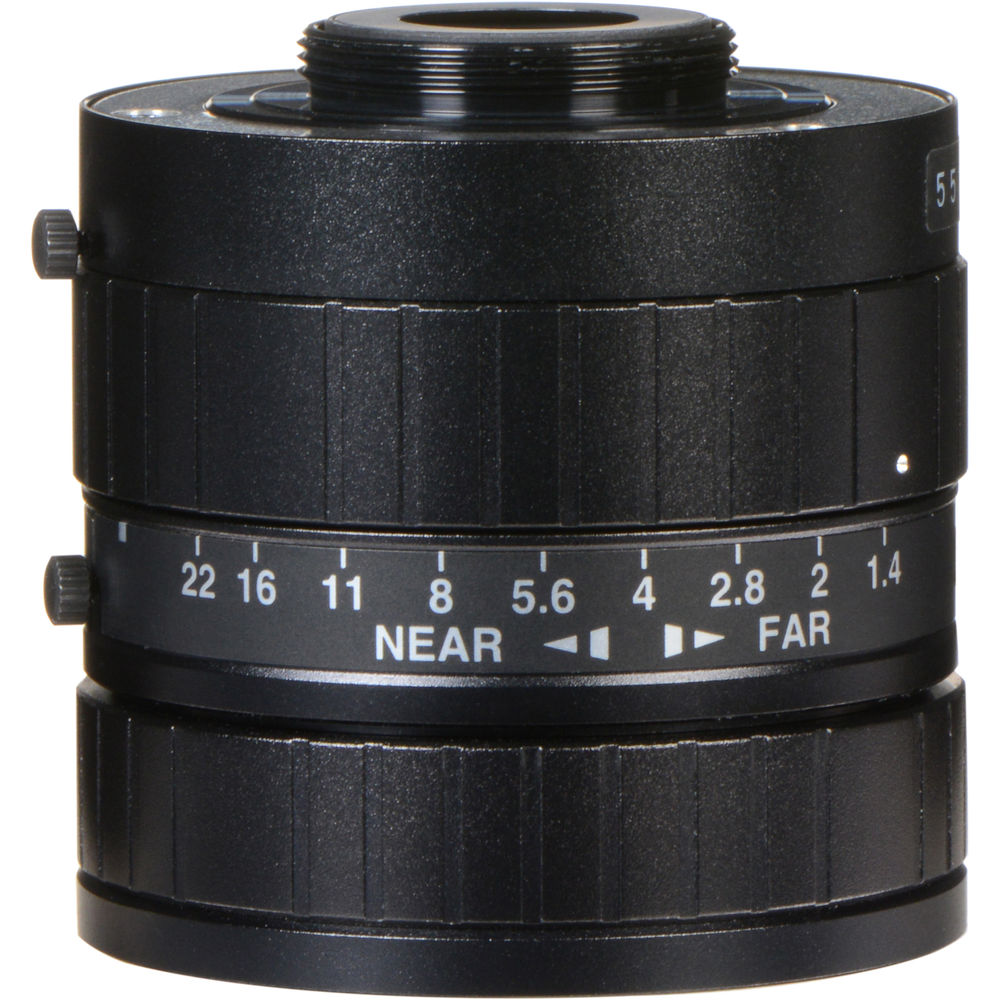

Designed for factory automation and machine vision applications, the Fujinon HF35SA-1 high resolution C-mount lens supports digital cameras up to 5 megapixel and uses superior optics to achieve corner-to-corner performance with low distortion. With a minimum focusing range of only 0.2 meters and with a rear focusing system, this compact and robust lens is particularly well suited for applications where highly detailed close-up imaging is a priority. Additionally, this lens employs a ring lock system to prevent the focus and iris rings from shifting when used on vibrating machinery.
High Resolution
Designed for digital cameras up to 5 mega pixel, this lens employs superior optics to achieve quality corner-to corner performance with low distortion and features a wide-aperture (F1.4) design to enhance image illumination in low light conditions.
Compact & Robust
Engineered for machine vision and factory automation applications, this compact and robust lens is designed to fit a wide range of machinery and uses a rear focusing system to achieve highly detailed close-up imaging.
Ring Lock
Employs a ring lock mechanism to prevent focus and iris shift when used on vibrating machinery.
Lens Mount | C |
Sensor Compatibility | 2/3" |
Focal Length | 35mm |
Back Focal Length | 22.32mm |
Angle of View | 2/3"-Type Sensor Horizontal: 19.97° Vertical: 15.03° 1/2"-Type Sensor Horizontal: 14.58° Vertical: 10.97° 1/3"-Type Sensor Horizontal: 10.97° Vertical: 8.23° |
Minimum Focus Distance | From Camera Sensor: 0.333333333333333' / 0.1 m |
Focus Type | Manual Focus |
Iris Type | Manual |
Filter Thread | M49 |
Weight | 0.6 lb / 315 g |
Packaging Info
Package Weight | 0.51 lb |
Box Dimensions (LxWxH) | 4.3 x 2.9 x 2.85" |
