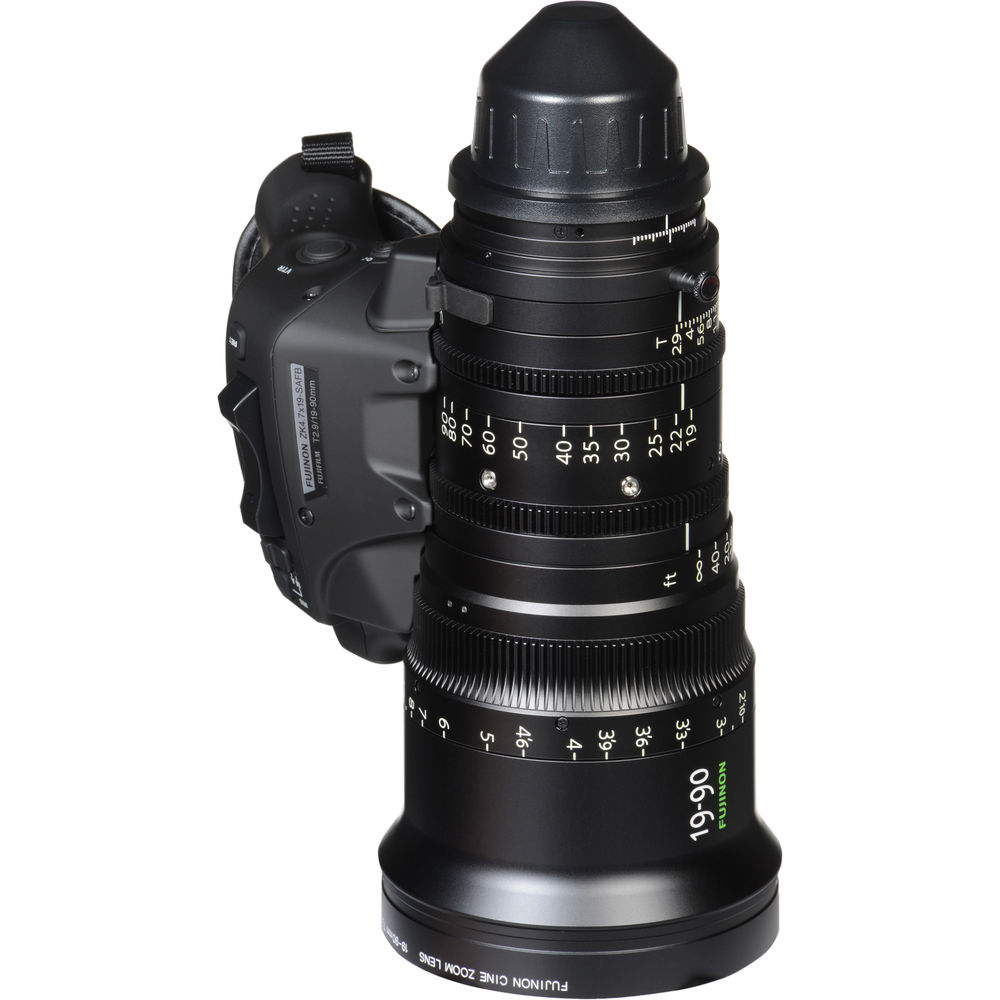

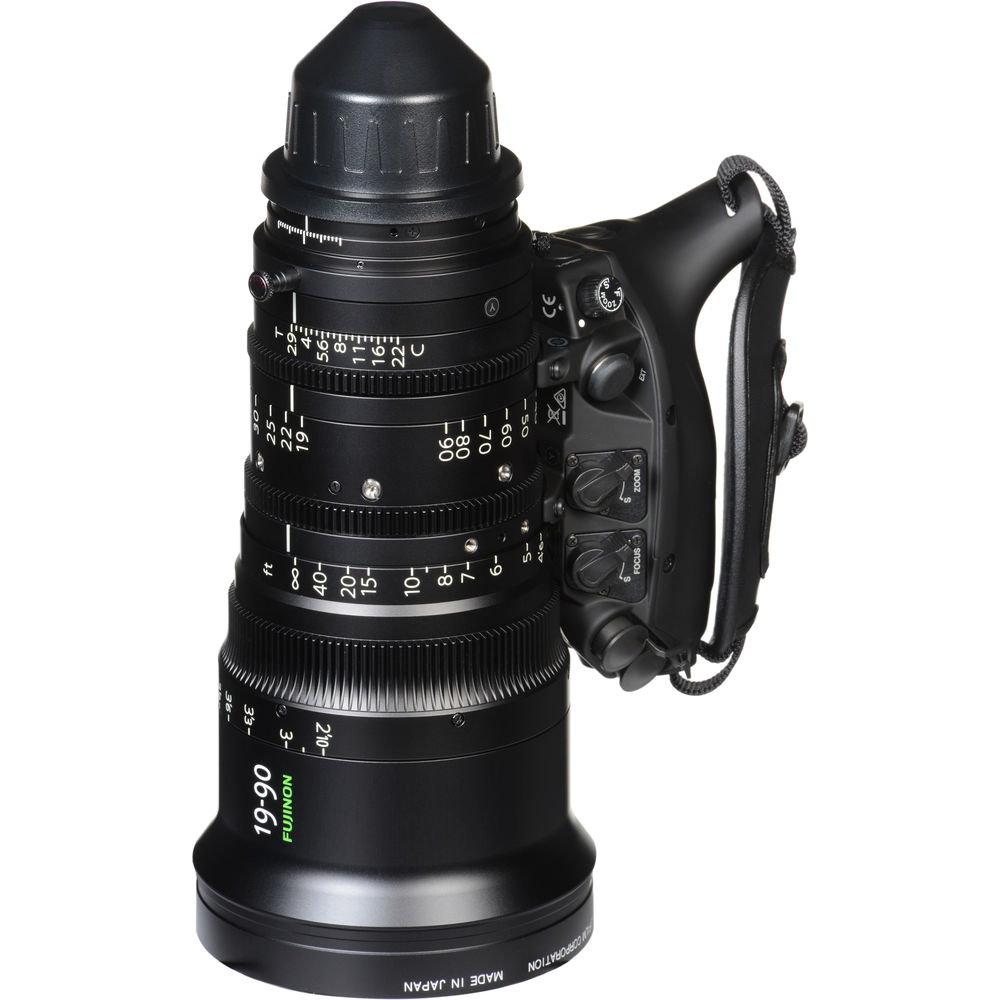

The Fujinon ZK19-90mm T2.9 Cabrio Lens is a wide to telephoto zoom lens for Super 35mm cameras, and it features a PL mount. The focus, zoom, and iris barrels are geared with standard 0.8 film pitch, which provides an interface for the removable ENG-style digital drive unit. The rear PL mount features electrical contacts for sharing ARRI LDS and Cooke /i Technology lens data with the camera.
The detachable drive unit is an ENG-style hand grip with a zoom rocker switch, 16-bit encoding, and an interface for remote control via a wired or wireless controller from Fujinon or other compatible third-party manufacturers. When the drive unit is attached to the lens, a digital auto-aligning system quickly and accurately calibrates it to the zoom, focus, and iris gears. Power is provided by either an external connector or the PL mount's "hot shoe" interface. Included with the lens is a 111mm clear protection filter that helps to protect the front of the lens.
Focal Length | 19 to 90mm |
Maximum Aperture | T2.9 |
Minimum Aperture | T22 |
Lens Mount | ARRI PL |
Lens Format Coverage | Super35/APS-C (27.45 x 15.44 mm |
Image Circle | 31.5 mm |
Focus Scales | Metric, Imperial |
Filter Thread | M111 |
Minimum Focus Distance | From Unspecified Point in Lens: 2.8' / 0.9 m |
Diaphragm Blades | 9 |
Electronic Communication | Yes |
Dimensions (W x H) | 4.5 x 8.8" / 114 x 223 mm |
Weight | 0 lb / 2.7 g |
Packaging Info
Package Weight | 10.35 lb |
Box Dimensions (LxWxH) | 14.6 x 9.8 x 9.1" |
