-Color: Black
- Material: Machined black anodized aluminum
-70mm high with 30º inclination
- Mitchell plate with tie-down adapter.
-Tapped with 3/8”-16 x 8 lateral female threads
-Two stainless steel 3/8”- 16x 8/5”(L) bolts & one Detachable 1/4”-20 screw
-Loading: 30 kg (66Ibs)
-Weight: 1.25kg (2.75Ibs)
- Drawing:
Light Blue circle: 3/8”-16 spacing 3”
Green circle: 3/8”-16 spacing 3”
Yellow circle: 1/4”-20 spacing 2”
Red circle: 3/8”-16 spacing 2”
Purple: Dia.10mm located bold for cheese plate Center
Navy Blue: 3/8"-16 Thread For KCP-831THA or KCP-831THA-T located pin

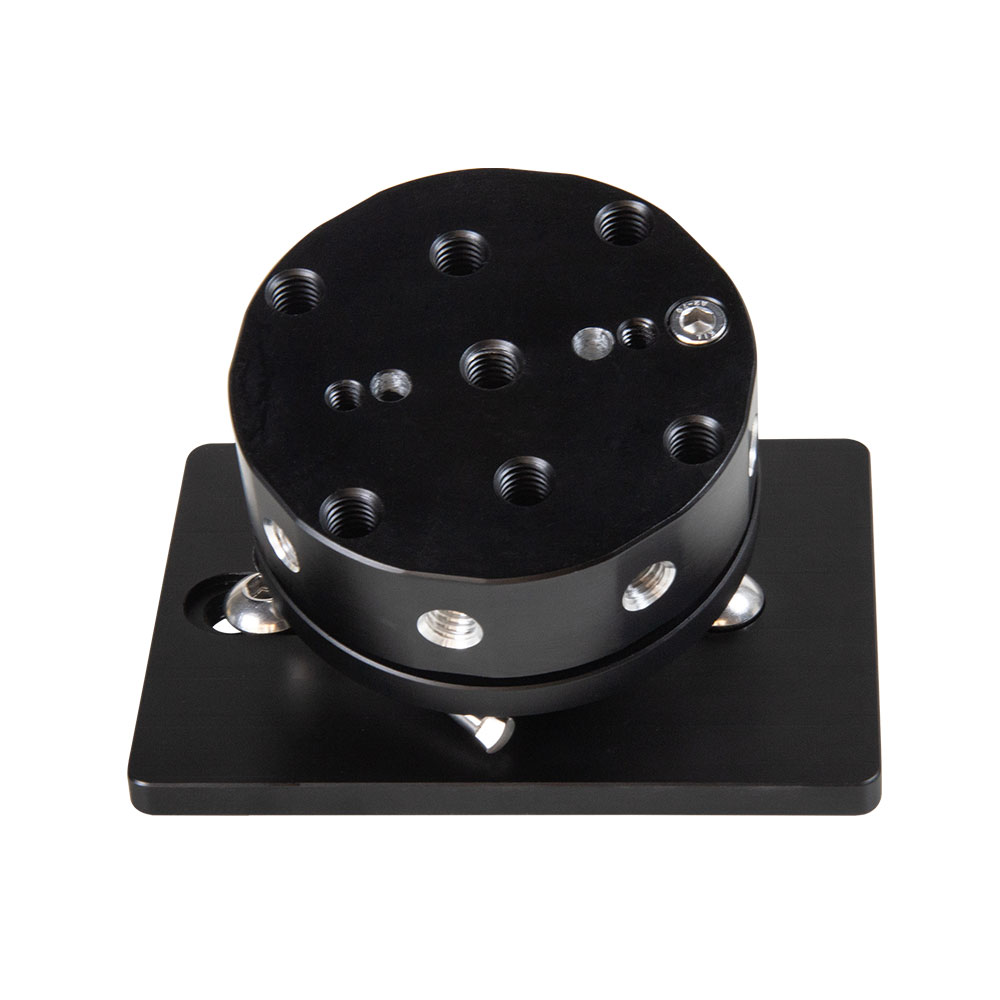

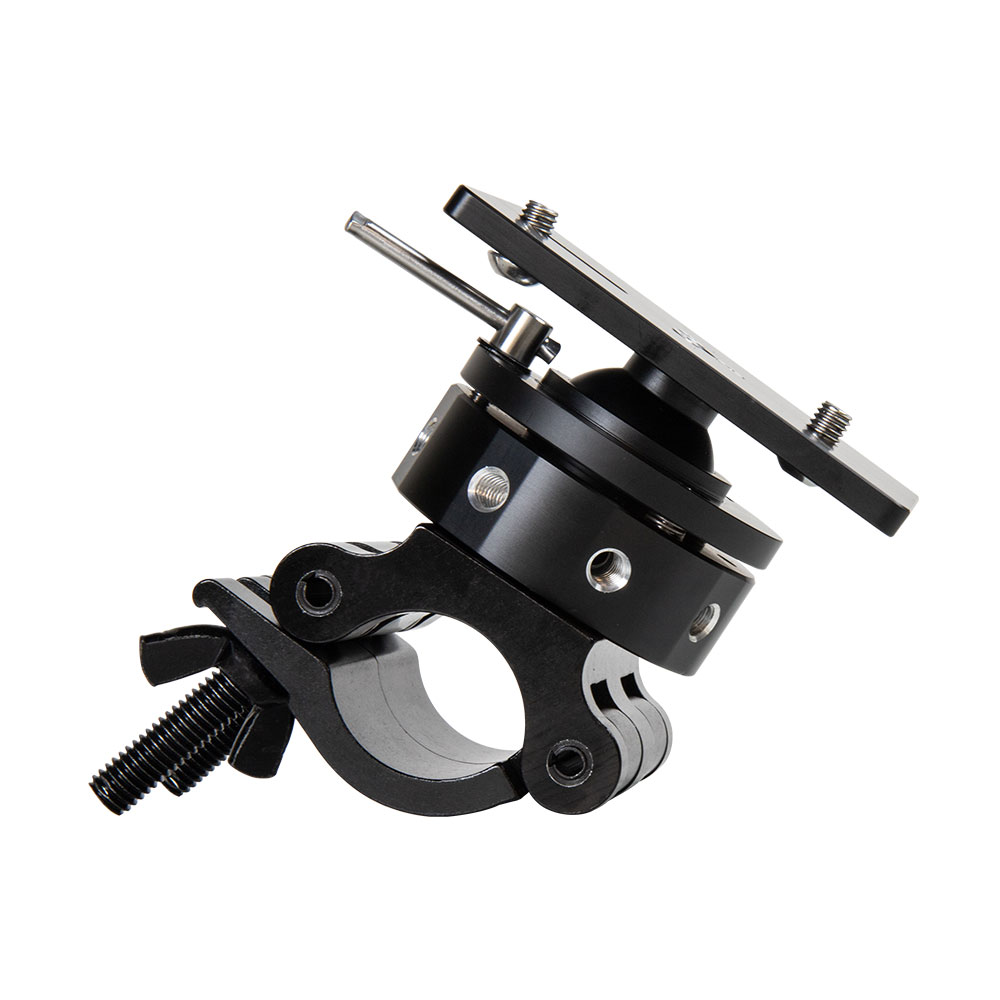

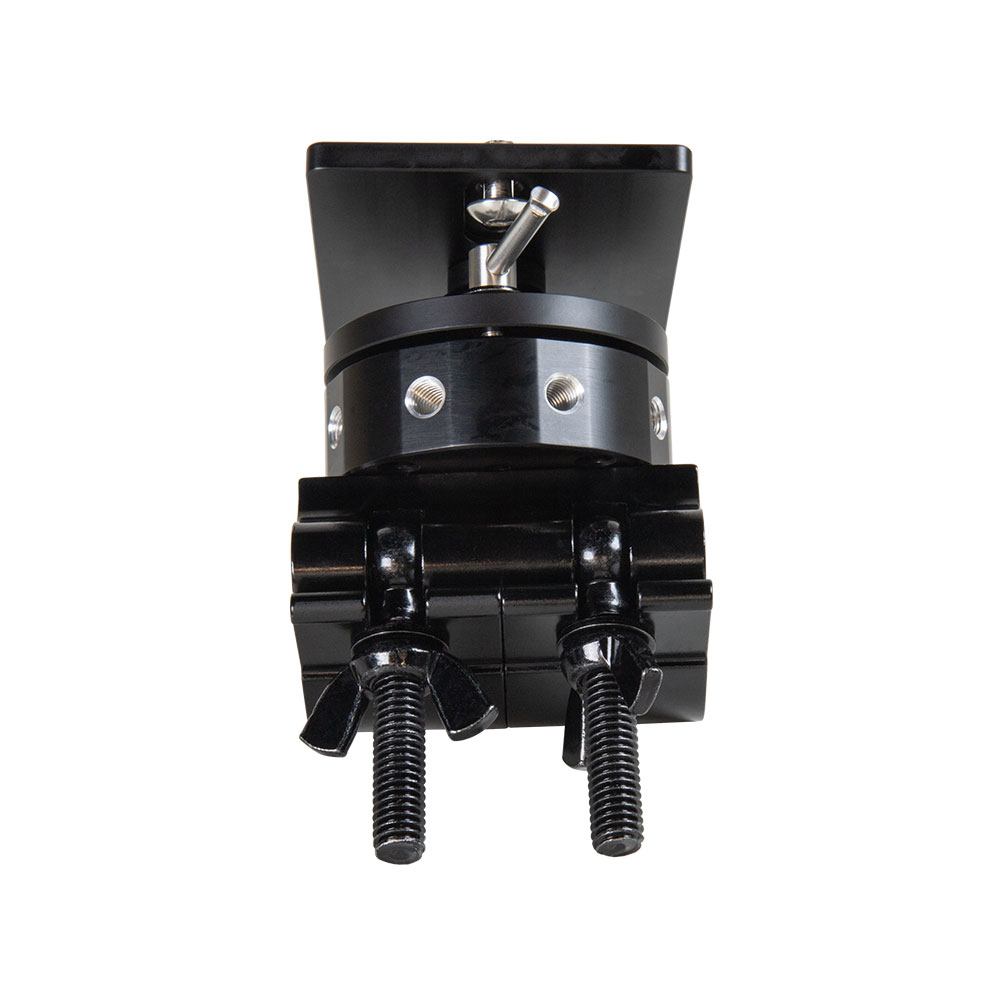

Kupo low position leveling base, made of machined black anodized aluminum, is 70mm high with 30º inclination that makes it ideal for car mounts & cameras rigs. The tapped threads and pattern allowing you to mount it on a tripod, cheese plate, couplers and mitchell plate with tie-down adapter. Tapped with 3/8”-16 x 8 lateral female threads around the base for adding support pin. The leveling base can be locked easily and securely in position with one locking tommy bar. Two stainless steel 3/8” -16x 8/5”(l) bolts is included for mounting the camera qr plate and one detachable 1/4”-20 screw is included for small camera mount when it is necessary
- Made of Machined Black Anodized Aluminum, is 70mm High with 30º inclination that Makes it Ideal for Car Mounts & Cameras Rigs
- The Tapped Threads and Pattern Allowing You to Mount Iton a Tripod, Cheese Plate, Couplersand Mitchell Plate with tie- Down Adapter
- Tapped with 3/8”- 16 X 8 Lateral Female Threads around The Base for Adding Support Pin
- The Leveling Base Can be Locked Easilyand Securely in Position with one Locking Tommy Bar
- Two Stainless Steel 3/8”- 16X 8/5”(L) Bolts is included for Mounting The Camera Qr Plateandone Detachable 1/4”- 20 Screw is included for Small Camera Mount when it is Necessary.
