Litegear LiteMat Plus 3 Bi-Color LED Light Panel (Gold Mount Dimmer Kit)

Litegear LiteMat Plus 3 Bi-Color LED Light Panel (Gold Mount Dimmer Kit)

Litegear LiteMat Plus 3 Bi-Color LED Light Panel (Gold Mount Dimmer Kit)

  • SKU : #866FLMK-PLUS-THREE-HY-KIT-DCG | MFR : #LMK-PLUS-THREE-HY-KIT-DCG
Litegear LiteMat Plus 3 Bi-Color LED Light Panel (Gold Mount Dimmer Kit)
Litegear LiteMat Plus 3 Bi-Color LED Light Panel (Gold Mount Dimmer Kit)
Features
  • For Studio & Film/TV Production
  • Output: 4898 Lux at 3.3' (6000K)
  • 2600-6200K CCT
  • 30 x 21" Panel; Optional Battery Power
  • CRI 95 | TLCI 95
  • Onboard Control; Non-DMX Unit
  • Thin & Lightweight Design
  • Includes LiteDimmer Plus
  • Includes Diffusers & Skirt
  • Includes Carry Case

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 10,908.81
VAT Excl.

Litegear LiteMat Plus 3 Bi-Color LED Light Panel (Gold Mount Dimmer Kit)

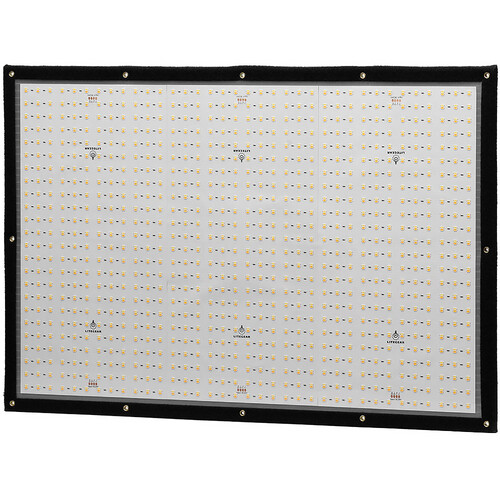

The LiteMat Plus 3 Bi-Color LED Light Panel Gold Mount Dimmer Kit from Litegear is a bright, soft, and color-accurate lighting solution for stage, studio, or location lighting setups. With a variable CCT range of 2600 to 6200K, all with CRI/TLCI ratings of 95, this 1728-LED fixture is powered by optional Gold mount batteries and controlled onboard by the included LiteDimmer Plus. The LiteMat Plus 3 is lightweight and has an extremely thin profile, allowing you to mount the 30 x 21" unit on a separately available stand, hang it overhead, or even use it as a handheld fill light.

CineMitter Chips

The LiteMat Plus 3's LEDs provide even, soft light distribution without requiring diffusion. Exclusive to the Litegear brand, the fixture's CineMitter chips are cinema emitters that allow for color-accurate LED lighting. They provide up to 40% increase in brightness over traditional emitters, making the LiteMat Plus 3 capable of delivering up to 4898 lux at 3.3' (6000K).

LiteDimmer Plus DC200G

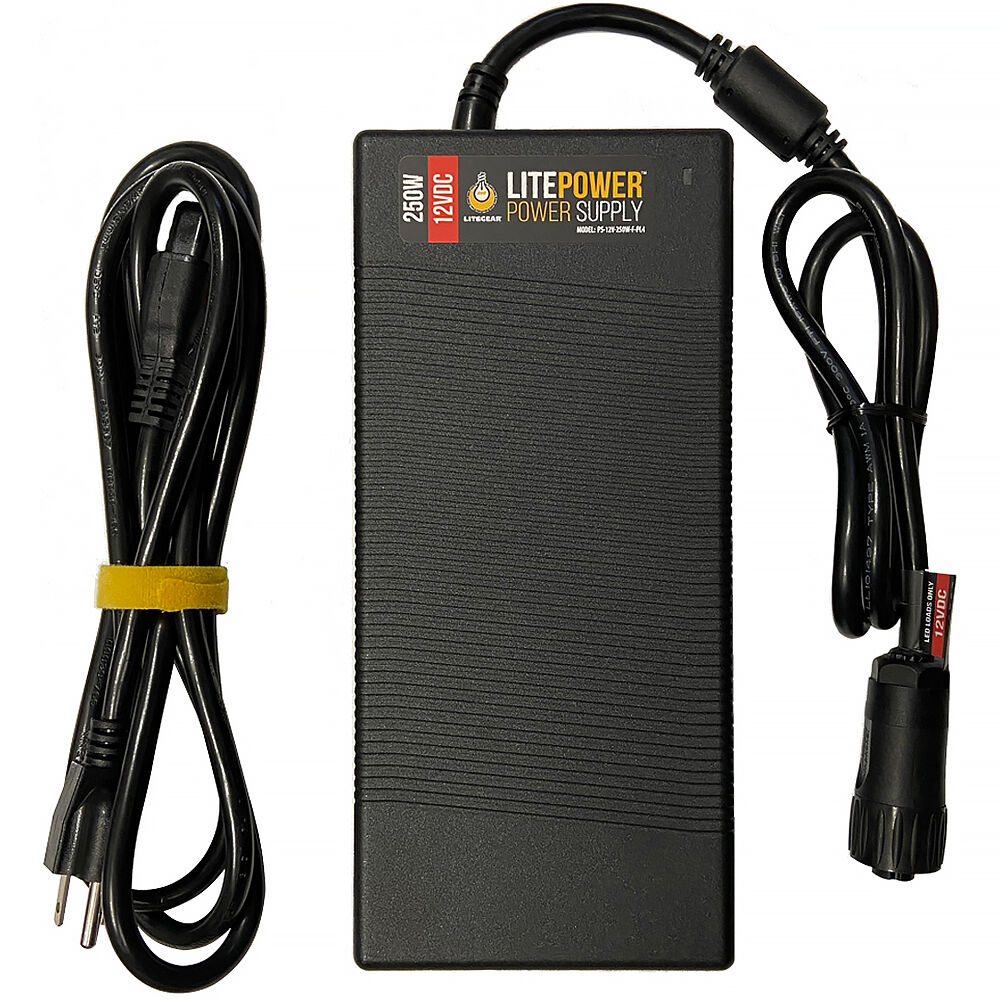

This LiteMat Plus 3 version comes with a LiteDimmer Plus DC200G that works great for powering select Plus series fixtures. With DC input power, the 200W unit accepts two separately available Gold mount batteries. Additionally, an optional AC power supply can be used and attached to the battery mount using an optional mounting plate.

  • 0 to 100% dimming
  • Onboard control; non-DMX unit
  • The LiteDimmer Plus can be mounted several ways, four included 1/4"-20 threads for attaching clamps or brackets

IN THE BOX

    • Litegear LiteMat Plus 3 Bi-Color LED Light Panel (Gold Mount Dimmer Kit)
    • LiteMat Plus 3 Head
    • LiteDimmer Plus

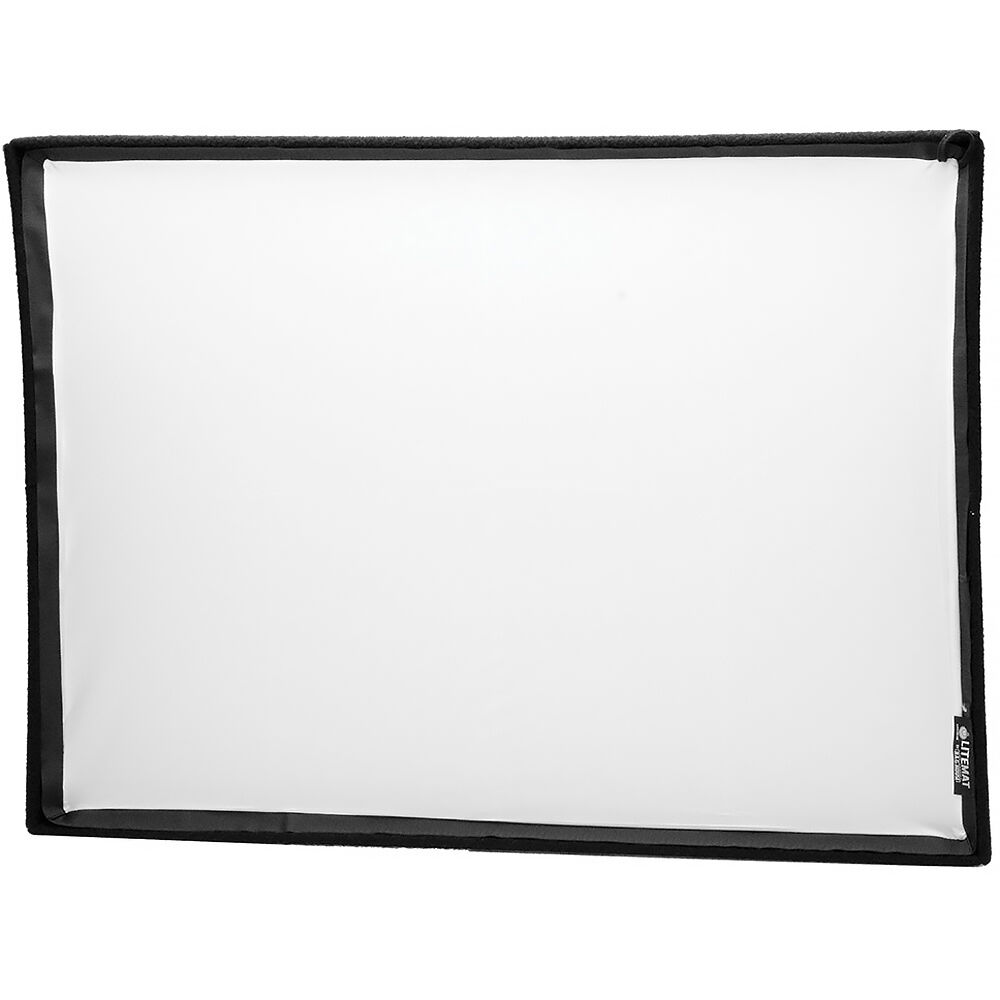

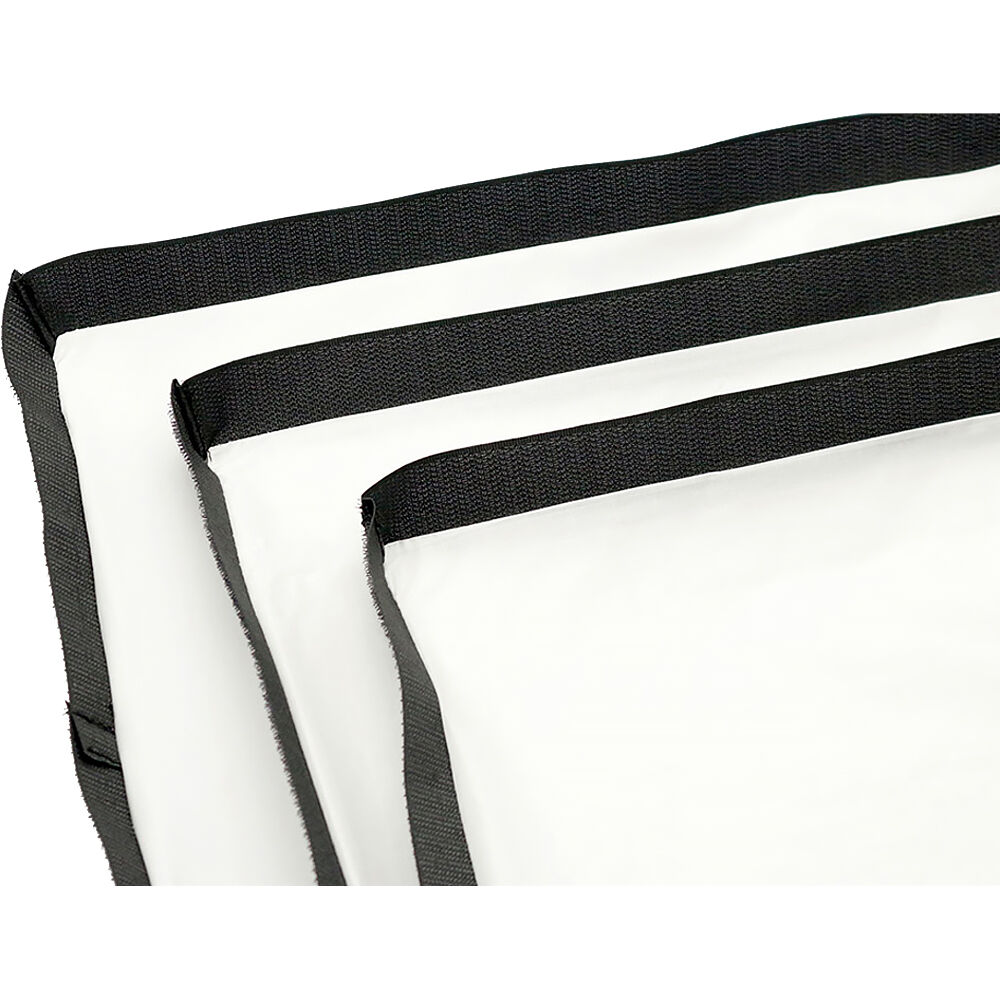

    • Full Diffuser
    • Half Diffuser
    • Quarter Diffuser

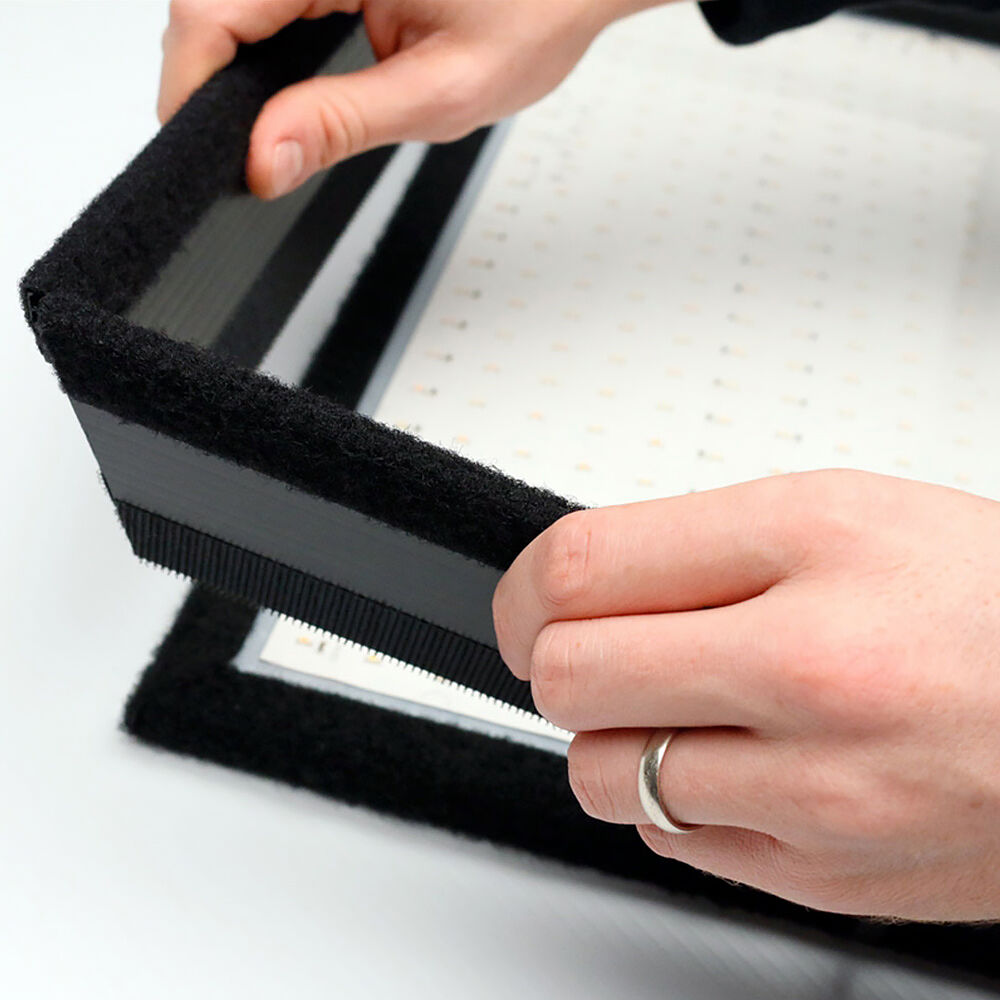

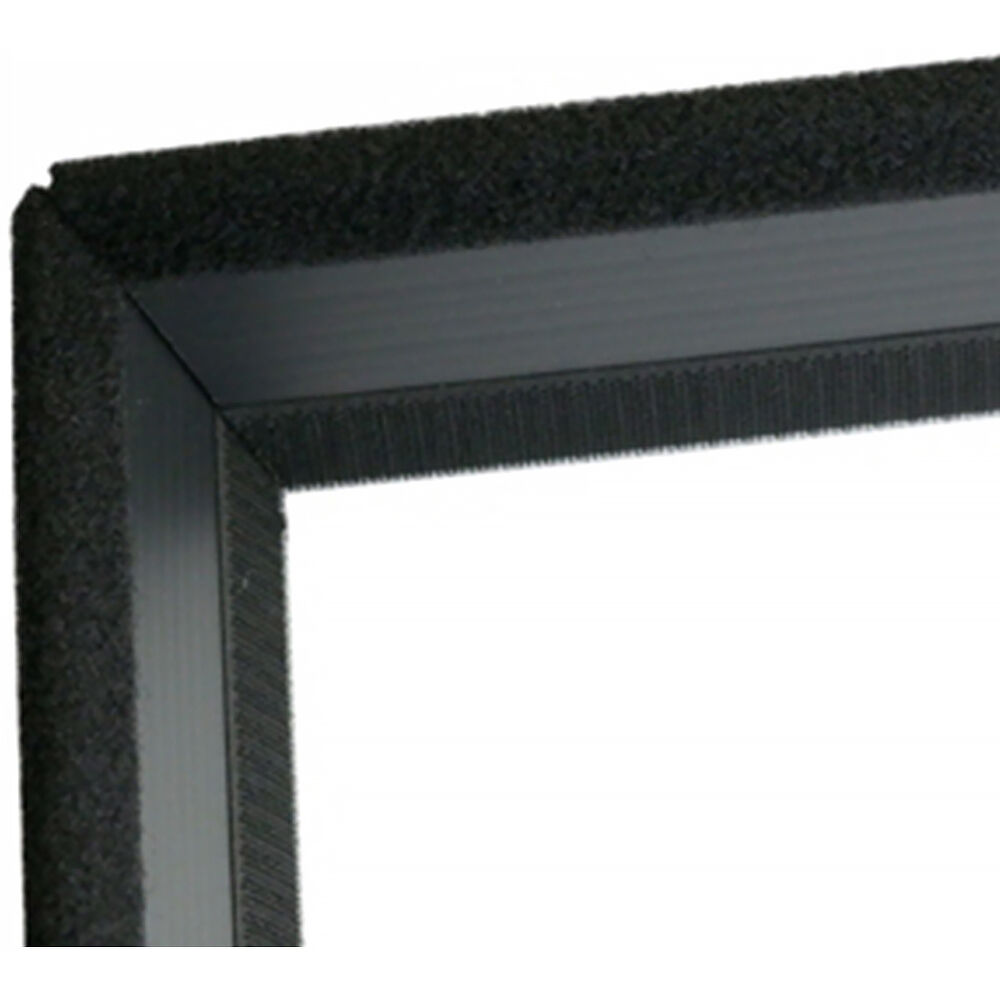

    • PolySkirt
    • Parasquare Louver

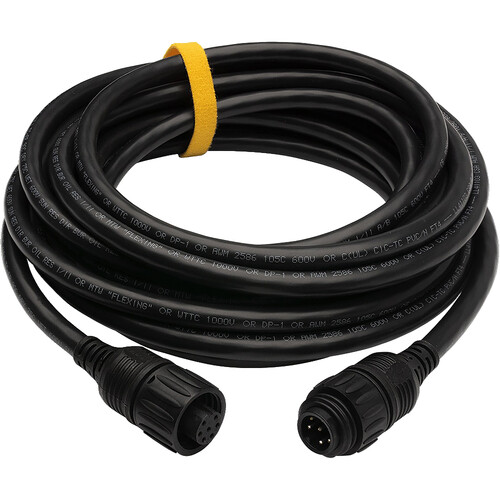

    • PL7 Cable (12')

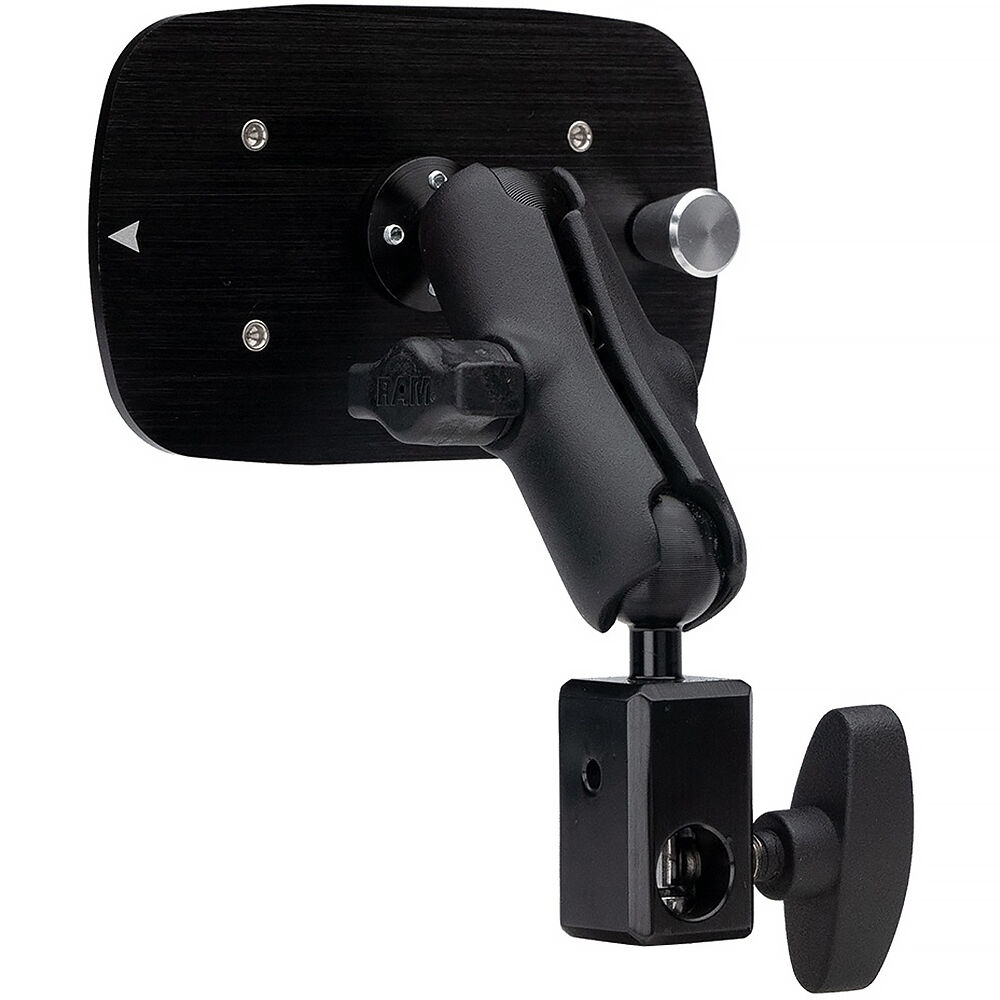

    • K-Mount
    • Carry Bag
    • Limited 1-Year Manufacturer Warranty

Light Fixture

Item Type1x LED Light Panel
Included Light Modifier1x Skirt
1x Grid/Louver
Included FiltersDiffusion
Included Storage Case1x Case

Lumens11,400 (at 2600K)
11,754 (at 4300K)
13,755 (at 6000K)
Photometrics2600K:
382 fc / 4122 Lux at 3.3' / 1 m*
170 fc / 1832 Lux at 4.9' / 1.5 m
4300K:
515 fc / 5549 Lux at 3.3' / 1 m*
229 fc / 2466 Lux at 4.9' / 1.5 m
6000K:
455 fc / 4898 Lux at 3.3' / 1 m*
202 fc / 2177 Lux at 4.9' / 1.5 m

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature2600 to 6200K
Color ModesDaylight, Tungsten
Color Accuracy StandardCRI 95
TLCI 95
DimmingController Included
Cooling SystemNo
Built-In FlashNo
Umbrella MountNo
Front Accessory MountProprietary

Connectivity

Mobile App CompatibleNo

Power & I/O

Power SourceBattery (Not Included) *Requires Power Supply/Controller (Included)
Inputs/OutputsLight Fixture
1x Built-In Cable with Proprietary Power Input
Power Supply/Controller
1x Unspecified Power Input (10 to 18 VDC)
1x Proprietary Power Output (24 VDC)
1x 2.5 mm Submini TRS Remote Input
Battery Plate Type2x Gold Mount (Included)
Battery2x Gold Mount Rechargeable, 14.4 VDC (Not Included)
DC Input Power10 to 18 VDC
Included Adapter / CableYes
Inline SwitchNo
Power Pass-ThruNo
Power Consumption200 W

Mounting

Fixture MountingProprietary

General

DisplayNo
Dimensions30.5 x 21 x 0.9" / 77.5 x 53.3 x 2.3 cm (Fixture)
11.3 x 4.4 x 3.1" / 28.7 x 11.2 x 7.9 cm (Power Supply/Controller)
Weight4.8 lb / 2.2 kg (Fixture)
3.6 lb / 1.6 kg (Power Supply/Controller)
