Litegear LiteMat Plus 4 Bi-Color LED Light Panel (Duo Dimmer Kit)

Litegear LiteMat Plus 4 Bi-Color LED Light Panel (Duo Dimmer Kit)

Litegear LiteMat Plus 4 Bi-Color LED Light Panel (Duo Dimmer Kit)

  • SKU : #OO7GLMG-PLUS-FOUR-AC-ONLY | MFR : #LMG-PLUS-FOUR-AC-ONLY
Litegear LiteMat Plus 4 Bi-Color LED Light Panel (Duo Dimmer Kit)
Litegear LiteMat Plus 4 Bi-Color LED Light Panel (Duo Dimmer Kit)
Features
  • For Studio & Film/TV Production
  • Output: 6604 Lux at 3.3' (6000K)
  • 2600-6200K CCT
  • 40 x 21" Panel; AC Power
  • CRI 95 | TLCI 95
  • Onboard, DMX & Wireless Control
  • Thin & Lightweight Design
  • Includes Local/DMX Duo Dimmer
  • Includes Diffusers & Skirt
  • Includes Carry Case

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 13,388.09
VAT Excl.

Litegear LiteMat Plus 4 Bi-Color LED Light Panel (Duo Dimmer Kit)

The LiteMat Plus 4 Bi-Color LED Light Panel Duo Dimmer Kit from Litegear is a bright, soft, and color-accurate lighting solution for stage, studio, or location lighting setups. With a variable CCT range of 2600 to 6200K, all with CRI/TLCI ratings of 95, this 2304-LED fixture is AC powered and controlled by the included Local/DMX Duo Dimmer. The LiteMat Plus 4 is lightweight and has an extremely thin profile, allowing you to mount the 40 x 21" unit on a separately available stand, hang it overhead, or even use it as a handheld fill light.

CineMitter Chips

The LiteMat Plus 4's LEDs provide even, soft light distribution without requiring diffusion. Exclusive to the Litegear brand, the fixture's CineMitter chips are cinema emitters that allow for color-accurate LED lighting. They provide up to 40% increase in brightness over traditional emitters, making the LiteMat Plus 4 capable of delivering up to 6604 lux at 3.3' (6000K).

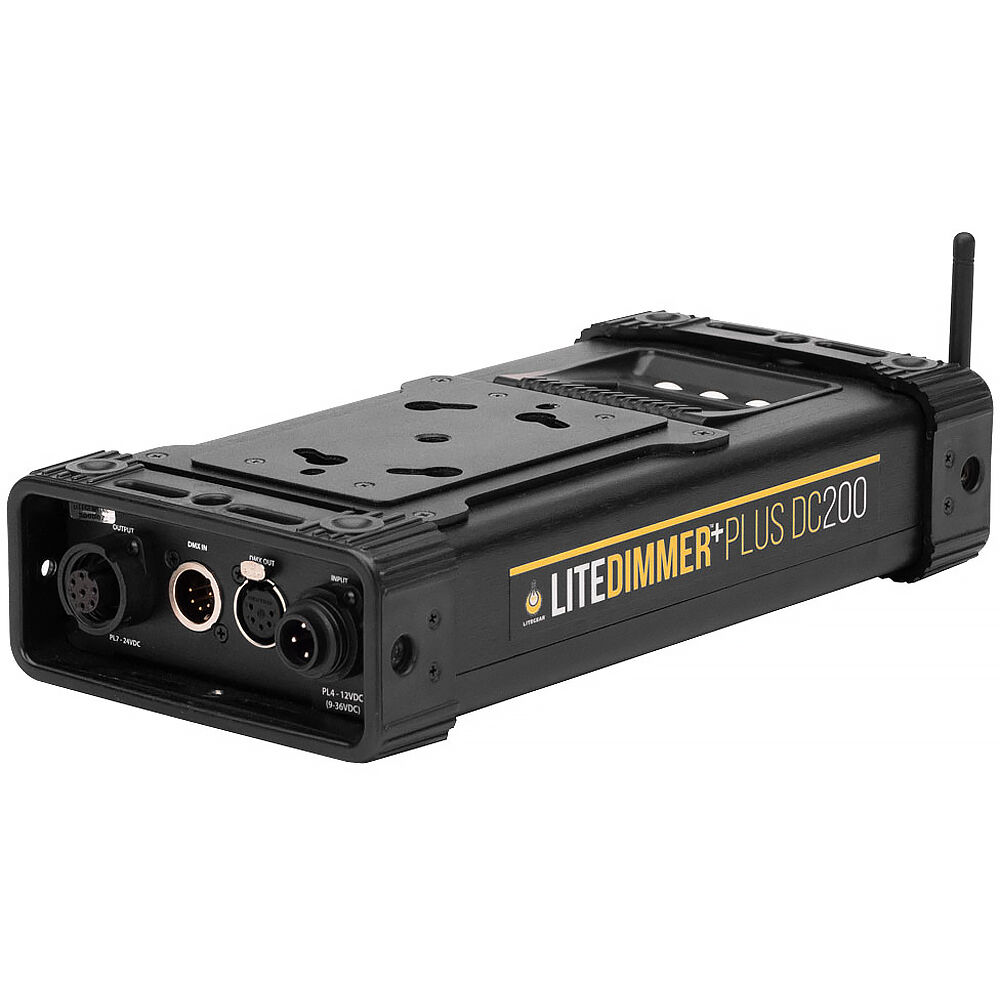

LiteDimmer Plus DC200 Duo

The included LiteDimmer Plus DC200 Duo is a 200W dimmer compatible with the brand's LiteMat Plus, LiteTile Plus, and other Plus products. The dimmer features a large OLED display for onboard control and built-in wireless capability that acts as both a transmitter and a receiver for ultimate wireless control.

  • 0 to 100% dimming
  • Explore advanced features, including load smoothing, local cueing, double circuit control, and others
  • The unit includes 1/4"-20 threads to simply rigging or mounting
  • K-mount fittings for attaching separately available accessories

IN THE BOX

    • Litegear LiteMat Plus 4 Bi-Color LED Light Panel (Duo Dimmer Kit)
    • LiteMat Plus 4 Head
    • LiteDimmer Plus Duo

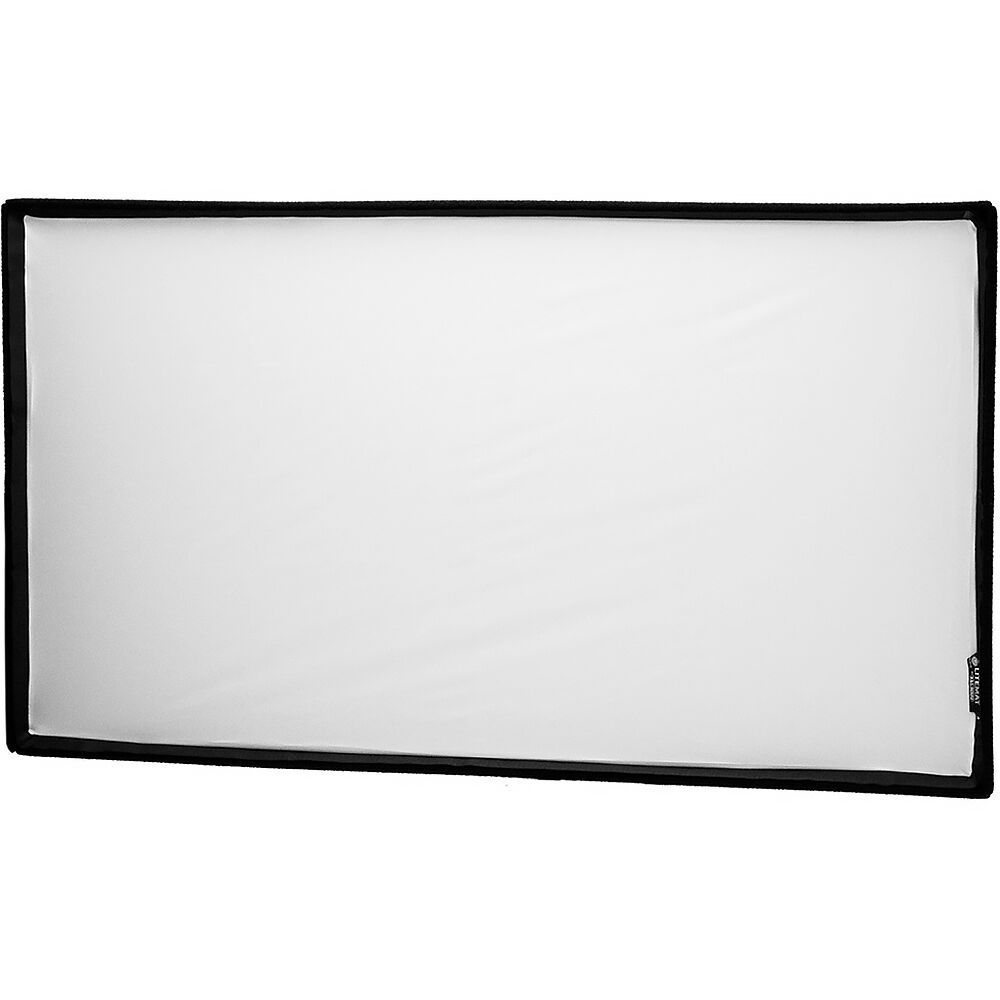

    • Full Diffuser
    • Half Diffuser
    • Quarter Diffuser
    • PolySkirt
    • Parasquare Louver
    • PL7 Cable (12')

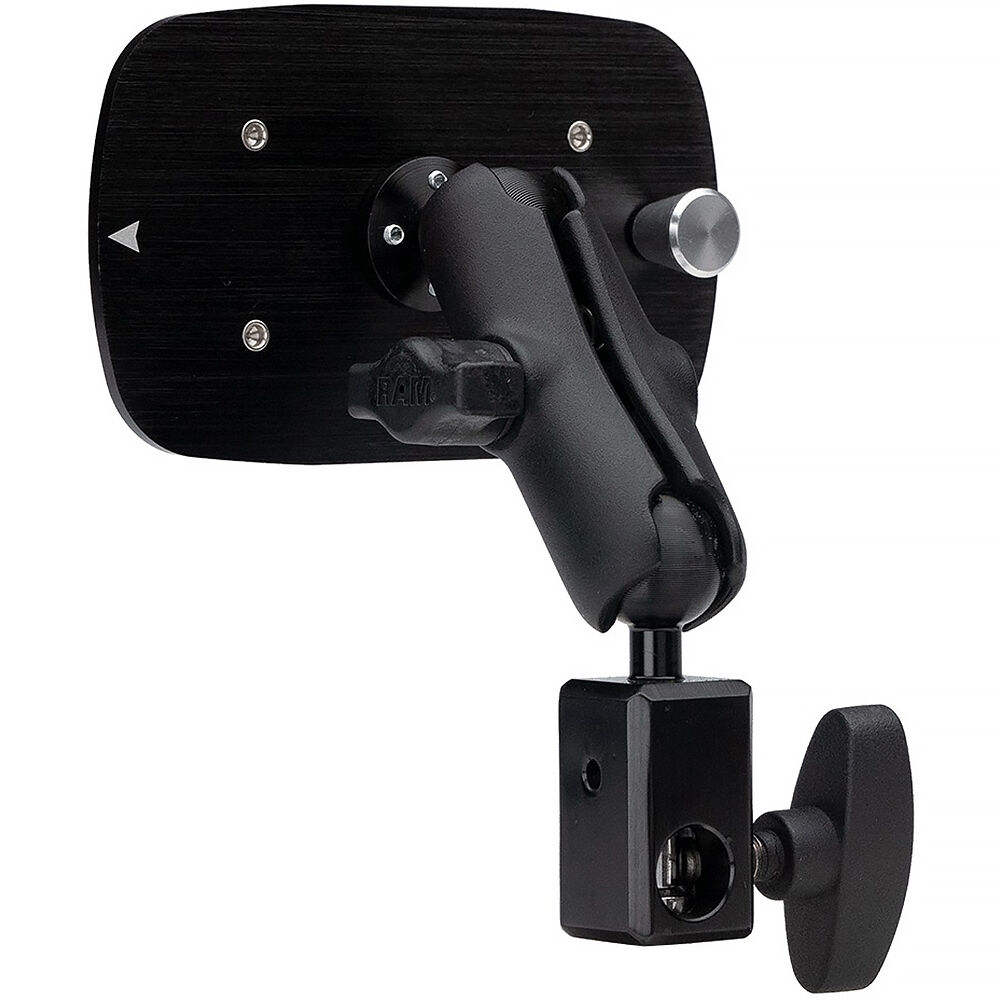

    • K-Mount
    • Carry Bag
    • Limited 1-Year Manufacturer Warranty

Light Fixture

Item Type1x LED Light Panel
Included Light Modifier1x Skirt
1x Grid/Louver
Included FiltersDiffusion
Included Storage Case1x Case

Photometrics2600K:
560 fc / 6030 Lux at 3.3' / 1 m (Unmodified)*
248 fc / 2680 Lux at 4.9' / 1.5 m (Unmodified)
4300K:
662 fc / 7130 Lux at 3.3' / 1 m (Unmodified)*
294 fc / 3169 Lux at 4.9' / 1.5 m (Unmodified)
6000K:
613 fc / 6604 Lux at 3.3' / 1 m (Unmodified)*
272 fc / 2935 Lux at 4.9' / 1.5 m (Unmodified)

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature2600 to 6200K
Color ModesDaylight, Tungsten
Color Accuracy StandardCRI 95
DimmingBuilt-In Dimmer / Controller Included (Continuous)
 • 0 to 100%
Cooling SystemPassive
Built-In FlashNo
Umbrella MountNo
Front Accessory MountProprietary

Connectivity

Mobile App CompatibleNo

Power & I/O

Power SourceAC to DC Adapter (Included) *Requires Power Supply/Controller (Included)
Battery (Not Included) *Requires Power Supply/Controller (Included)
Inputs/OutputsLight Fixture
1x Built-In Cable with Proprietary Power Input
: 1x Proprietary Power Output
1x Unspecified Power Input
Battery1x Rechargeable (Not Included)
AC Input Power120 to 240 VAC, 50 / 60 Hz
DC Input Power24 VDC
Included Adapter / CableYes
Inline SwitchNo
Power Pass-ThruNo
Power Consumption200 W

Mounting

Fixture MountingProprietary

General

DisplayNo
Dimensions40 x 21 x 0.9" / 101.6 x 53.3 x 2.3 cm (Fixture)
Weight6.2 lb / 2.8 kg (Fixture)

Packaging Info

Package Weight38.3 lb
Box Dimensions (LxWxH)45 x 26.5 x 10"
