Litepanels Studio X2 Bi-Color LED Fresnel Light (Standard Yoke, US Power Cable)

Litepanels Studio X2 Bi-Color LED Fresnel Light (Standard Yoke, US Power Cable)

Litepanels Studio X2 Bi-Color LED Fresnel Light (Standard Yoke, US Power Cable)

  • SKU : #NZG2960-2303 | MFR : #960-2303
Litepanels Studio X2 Bi-Color LED Fresnel Light (Standard Yoke, US Power Cable)
Litepanels Studio X2 Bi-Color LED Fresnel Light (Standard Yoke, US Power Cable)
Features
  • For Film, Broadcast & Video Production
  • 20,700 Lux at 3.3' (10° at 5600K)
  • Beam Angle: 10-49°
  • Color Temperature Range: 2700-6500K
  • Multi-Voltage AC Operation
  • CRI: 97, TLCI: 97
  • DMX, RDM & Local Control
  • Super Silent Fan with 3 Speed Presets
  • 0-100% Continuous Dimming
  • Includes 4-Leaf Barndoors & Gel Frame

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 8,164.97
VAT Excl.

Litepanels Studio X2 Bi-Color LED Fresnel Light (Standard Yoke, US Power Cable)

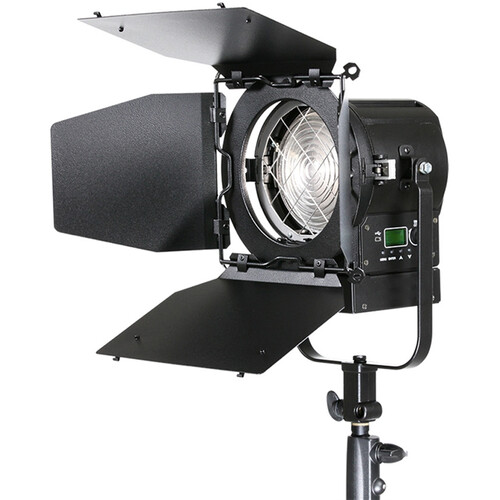

Providing high-quality wraparound illumination, the Studio X2 Bi-Color LED Fresnel Light from Litepanels features a 5" Fresnel lens with an adjustable beam angle of 10 to 49° that can be further controlled by the included 4-leaf barndoors. Similar in output to a 300W tungsten Fresnel, this light provides a variable color temperature of 2700 to 6500K and allows 0 to 100% continuous dimming for perfect skin tone rendering. A built-in keypad controller and backlit LCD display enable quick and efficient local control, and the Studio X2 also provides a 5-pin XLR connection for DMX and RDM protocols and operation. Designed for film, broadcast, and video production, this broadcast-quality fixture also features a super-silent fan with three different speed presets for use in sound-sensitive professional environments.

  • 5" Fresnel lens produces even illumination throughout the zoom range
  • 2700 to 6500K variable color temperature range to perfectly match ambient and practical set lighting
  • 10 to 49° beam angle adjustment enables precise control of beam spread
  • DMX, RDM, and local control offering 0 to 100% continuous dimming
  • Keypad controller with backlit LCD display
  • Super-silent fan with three different speed presets
  • 4-leaf barndoors to control light spill and creatively shape light
  • Gel frame for optional gels and diffusion material
  • Advanced thermal management system ensures 50,000+ hours of LED engine life
  • Standard yoke for mounting and positioning
  • Mini-USB connection enables firmware upgrades
  • Similar output to traditional 300W tungsten Fresnel

IN THE BOX

    • Litepanels Studio X2 Bi-Color LED Fresnel Light (Standard Yoke, US Power Cable)
    • 4-Leaf Barndoors
    • Gel Frame
    • Power Cable
    • Limited 1-Year Manufacturer Warranty
      Registration Extension: 1-Year

Light Fixture

Item Type1 x LED Fresnel
Included Light Modifier1 x Barndoors
Included Storage CaseNo
Photometrics10° at 3200K:
1697 fc / 18,270 Lux at 3.3' / 1 m*
188 fc / 2030 Lux at 9.8' / 3 m
67 fc / 731 Lux at 16.4' / 5 m
10° at 5600K:
1923 fc / 20,700 Lux at 3.3' / 1 m*
213 fc / 2300 Lux at 9.8' / 3 m
76 fc / 828 Lux at 16.4' / 5 m
49° at 3200K:
292 fc / 3150 Lux at 3.3' / 1 m*
32 fc / 350 Lux at 9.8' / 3 m
11 fc / 126 Lux at 16.4' / 5 m
49° at 5600K:
329 fc / 3546 Lux at 3.3' / 1 m*
36 fc / 394 Lux at 9.8' / 3 m
13 fc / 142 Lux at 16.4' / 5 m

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature2700 to 6500K
Color ModesDaylight, Tungsten
Color Accuracy StandardCRI 97
TLCI 97
DimmingBuilt-In Dimmer
 • 0 to 100%
Cooling SystemFan
Expected Lamp Life50,000 Hours
Beam Angle10 to 49°
Umbrella MountNo
Front Accessory Mount6-5/8"

Lens

Lens TypeFresnel
Lens Diameter5" / 12.7 cm
Lens MaterialBorosilicate Glass

Connectivity

Mobile App CompatibleNo
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility

Power & I/O

Power SourceAC Power (Cable Included)
Inputs/Outputs1 x powerCON TRUE1 AC Power Input
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
1 x Mini-USB Female Service Input
AC Input Power80 to 260 VAC, 50 / 60 Hz
Included Adapter / Cable1 x Edison Plug to powerCON TRUE1 Cable (' / 3 m)
 • 10 VDC
Inline SwitchNo
Power Pass-ThruNo
Power Consumption60 W (Maximum)

Mounting

Yoke TypeManually-Operated Yoke
Fixture Mounting1 x 5/8" Receiver (Via Yoke Mount)

Environmental

Operating Temperature32 to 104°F / 0 to 40°C

General

DisplayLCD
Dimensions9.7 x 8.2" / 24.6 x 20.8 cm
Weight11 lb / 5 kg

Packaging Info

Package Weight10.81 lb
Box Dimensions (LxWxH)15.8 x 13.3 x 11.9"
