Take advantage of the flexibility of your mobile device for recording and playback while bringing smooth camera moves to your shoot with the 504X Fluid Head & Carbon Fiber Tripod System with Mid-Level Spreader, Ultrasone Headphones & Amplifier from Manfrotto. Pairing the 504X tripod system with high-quality headphones and a mobile device audio amplifier allows the director or on-set editor to play back the audio from their device without interrupting the flow of the shoot by the camera as the playback device, preventing you from shooting.
Import your video/audio into your mobile playback device, and watch the video while listening to the audio through a professional amplifier and headphones, so you can evaluate the audio quality and not have to guess at the sound through earbuds. The closed-back design of the headphones provides excellent sound isolation when on location, and the DAC connects directly to your mobile device and features 1/8" (3.5mm) and 3/32" (2.5mm) output ports, allowing you to connect the included headphones for monitoring. An internal battery can power the DAC for up to 20 hours. The 504X head, combined with the lightweight carbon fiber legs and mid-level spreader, provides a solid platform supporting cameras and accessories up to 26.5 lb.
Manfrotto 504X Fluid Video Head with Flat Base
The 504X Fluid Video Head with Flat Base from Manfrotto features an open bridge design that provides a stable, smooth performance while reducing weight. The head's patented bridge technology allows for a wider top surface and longer sliding plate that add stability and balance. The head features a flat base with a 3/8"-16 female mounting thread that allows compatibility with a wide range of tripods, monopods, sliders, jibs, and dollies, and a variety of rigs.
With its ability to support up to 26.5 lb, the 504X can be used with a variety of video and photo cameras and rigs. The pan and tilt counterbalance system includes four presets from 0 to 4.8 to 9.7 to 14.3 lb, enabling proper balance no matter what the camera's size or weight.
At the same time, variable friction components with clearly marked degree scales and vibration-free movement bring new levels of fine-tuning to your tilts and pans. A leveling bubble keeps horizons from tilting, even in the dark, while independent disc-brake locks make sure the head stays secure when at rest.
Whether you're using a pro camcorder or an accessorized DSLR, the 504X provides a 504PLONGR-1 sliding quick release plate with 1/4"-20 and 3/8"-16 threads to balance the camera properly on your rig. The head is made from durable aluminum and includes a pan bar that can be attached via rosettes on either the right or left side to help create smooth pan-and-tilt movements.
Quick Features
Manfrotto Carbon Fiber Twin Leg Video Tripod Legs with Mid-Level Spreader (100/75mm Bowl)
The Manfrotto Carbon Fiber Twin Leg Video Tripod Legs with Mid-Level Spreader is suitable for use on flat, smooth surfaces as well as uneven terrain, and it features carbon fiber tubes that are both strong and lightweight while being corrosion resistant. The legs incorporate a 100mm half bowl and include a 75mm adapter ring, so you can use them with heads that have either a 100 or 75mm half ball. The legs support up to 44.1 pounds, which allows you to mount an appropriately sized fluid head, camera, and accessories without straining the capacity of the legs.
With the included mid-level spreader attached the height of the legs can be adjusted from just under 2 to over 5 feet high, and the legs collapse to under 28 inches in length for transport and storage. Removing the included rubber feet reveals the dual spiked feet, which are useful for soft surfaces such as gravel, dirt, or sand. The legs weigh a mere 6.61 pounds, making them easy to take almost anywhere you can go.

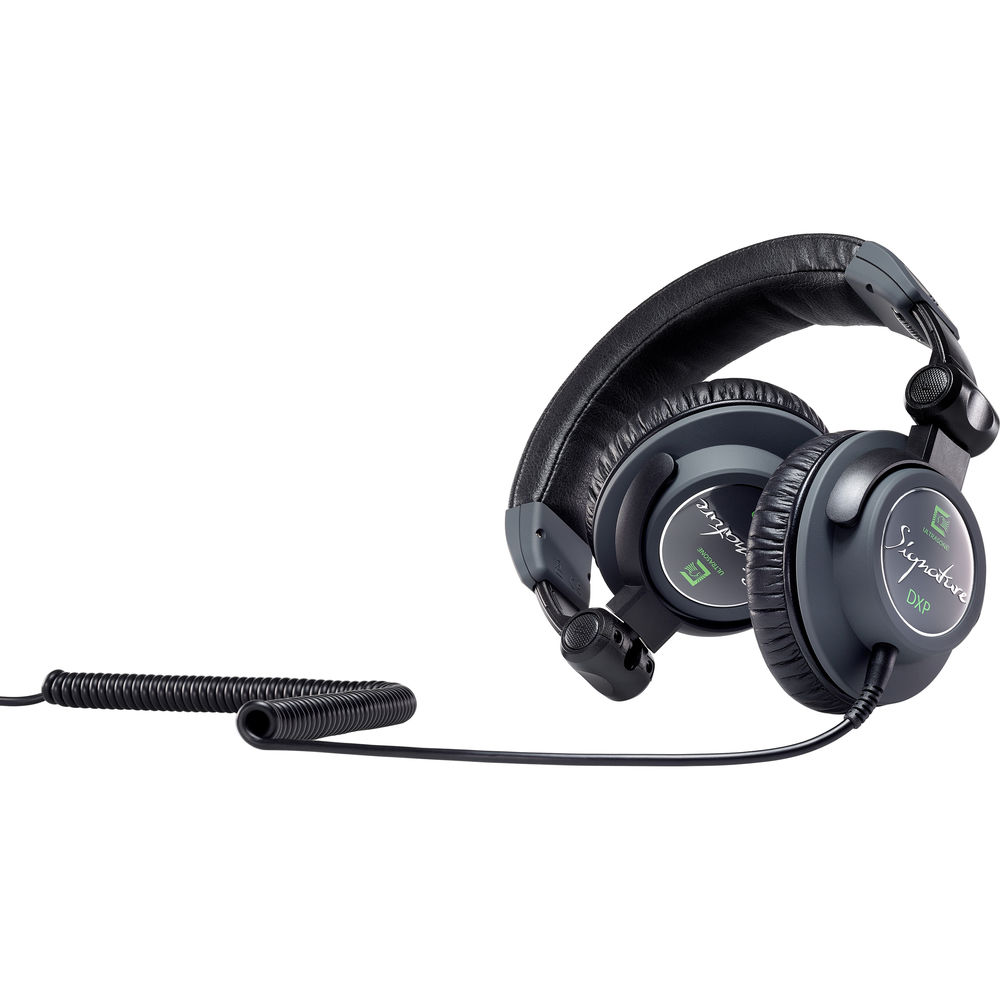

Ultrasone Signature DXP Closed-Back Stereo Headphones
The Ultrasone Signature DXP Headphones are dynamic closed-back headphones designed to deliver natural sound, noise-isolation, and minimized fatigue to professional DJs, musicians, audio engineers, and sound recordists on the road or in the studio. The 50mm Mylar drivers produce a frequency response of 5 Hz to 30 kHz with a maximum SPL of 115 dB.
The S-Logic Plus technology employed creates a more natural, three-dimensional sound, while reducing SPL at the eardrum by several decibels. Ultrasone’s ULE shielding diminishes the magnetic radiation produced by typical headphones. Use the 9.8’ cable with the 1/4” jack when performing, or go with the 3.9’ cable with the 3.5mm jack when connecting to a smartphone. For safe and easy transport, the headphones can be folded and stored in the supplied carrying case.
Basic Features
S-Logic Plus Natural Surround Sound
ULE Technology
Ultrasone Panther DSD DAC Amplifier
Upgrade the playback sound from your mobile device or computer with the Ultrasone Panther, a compact, ultralightweight, and portable DAC featuring an AKM 4490 chip and support for high-resolution audio formats including DSD 256 and PCM rates up to 32-bit / 384 kHz.
The Panther is supplied with five connection cables—Lightning, micro-USB, USB Type-C, USB Type-A, and 3.5mm TRS—to accommodate a variety of sources, such as Apple iPhones and iPads, Android smartphones and tablets, MP3 players, and laptops. A built-in headphone amplifier outputs plenty of power to drive 16- to 300-ohm headphones from the unbalanced 3.5mm or balanced 2.5mm headphone jacks.
An internal battery provides up to 20 hours of playback and recharges via micro-USB in three to four hours. The onboard gain switch and headphone volume control help you achieve the optimal listening level with ease.
Key Specs
Camera Plate Features | Quick Release, Sliding Balance Plate |
Camera Plate Type | 504PLONG |
Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
Base Mount | 3/8"-16 Female |
Load Capacity | 26.46 lb / 12 kg |
Camera Plate
Camera Plate Features | Quick Release, Sliding Balance Plate |
Camera Plate Type | 504PLONG |
Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
Head
Base Mount | 3/8"-16 Female |
Counter Balance | Incremental 4-Step Plus 0 (0 to 14.3 lb / ) |
Bubble Level | 1 |
Pan & Tilt
Drag Control | Tilt: Continuous Pan: Continuous |
Drag Type | Fluid |
Vertical Tilt | None |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
General
Load Capacity | 26.46 lb / 12 kg |
Weight | 4.41 lb / 2 kg |
Packaging Info
Package Weight | 6.085 lb |
Box Dimensions (LxWxH) | 14.5 x 9.8 x 8" |
Key Specs
Head Mount Type | 100 mm Bowl |
Maximum Working Height | 60.24" / 153 cm (with Spreader) |
Minimum Working Height | 23.03" / 58.5 cm (with Spreader) |
Closed Length | 27.2" / 69 cm |
Materials | Carbon Fiber |
Leg Lock Type | Lever Lock |
Leg Sections | 3 |
Feet Features | Dual Spiked |
General
Head Mount Type | 100 mm Bowl |
Maximum Working Height | 60.24" / 153 cm (with Spreader) |
Minimum Working Height | 23.03" / 58.5 cm (with Spreader) |
Closed Length | 27.2" / 69 cm |
Materials | Carbon Fiber |
Weight | 6.61 lb / 3 kg |
Legs
Leg Lock Type | Lever Lock |
Leg Positions | Continuously Adjustable |
Independent Leg Spread | Yes |
Leg Sections | 3 |
Feet Features | Dual Spiked |
Spreader | Mid-Level (Included) |
Packaging Info
Package Weight | 8.75 lb |
Box Dimensions (LxWxH) | 31 x 9 x 8" |
Headphone
Driver Size | 1.97" / 50 mm |
Magnet Type | Neodymium |
Maximum Sound Pressure Level (SPL) | 115 dB |
Audio Connector | 1/4" TRS 1/8" / 3.5 mm TRRS |
Connector Plating | Gold |
Cable Design | Single-Sided |
Packaging Info
Package Weight | 2.6 lb |
Box Dimensions (LxWxH) | 12.2 x 9.2 x 3.3" |
Legs
Inputs | 1 x 1/8" / 3.5 mm TRS Female (Unbalanced) |
Outputs | 1 x 1/8" / 3.5 mm TRS Female (Unbalanced) 1 x 3/32" / 2.5 mm TRS Female (Balanced) |
USB Ports | 1 x Micro-USB OTG (DAC Input) 1 x Micro-USB (Charging Input) |
DAC Chip | AKM 4490 |
Headphone Impedance Range | 16 to 300 Ohms |
Headphone Output Power | Unbalanced: >350 mW into 32 Ohms Balanced: >950 mW into 32 Ohms |
Signal-to-Noise Ratio | USB OTG: >115 dB Line Input: >101 dB |
Bit Depth | 32-Bit |
Sample Rate | 32 to 384 kHz |
DSD Support | DSD 64, 128, and 256 |
Battery Capacity | 3000 mAh |
Battery Life | Playback via Line Input: Up to 20 Hours Playback via DAC: Up to 15 Hours |
Charging Time | 3 to 4 Hours |
Dimensions | 4.6 x 2.2 x 0.5" / 115.6 x 55.6 x 12.0 mm |
Weight | 3.9 oz / 110 g |
Packaging Info
Package Weight | 0.58 lb |
Box Dimensions (LxWxH) | 5.7 x 3.7 x 2.2" |
