The Manfrotto 526-1 Fluid Head with 645 FAST Twin Carbon Fiber Tripod System with 2-in-1 Spreader & Bag combines the 526-1 fluid head with the two-stage carbon fiber FAST Twin tripod legs and a 2-in-1 mid-level/ground spreader, creating an effective combination of stability and smooth, precise control. The legs feature a 100mm half bowl with a removable 75mm adapter. The head supports up to 35 pounds, and it features 3 steps of pan and tilt drag with a zero setting for free movement, independent locks, as well as a continuous counterbalance range of 17.64 to 33.07 pounds.
The carbon fiber legs are durable and strong and feature the Ultra L-Lock that enables you to lock and unlock the legs using only one locking lever located at the top of each leg, so you don't have to bend down to unlock the legs. The legs feature three locking positions for spreader-less operation, or you can use the included spreader as a mid-level or ground spreader when you set the legs to free movement. Included with this system is a padded carrying bag for storage and transport.
Manfrotto 526-1 Professional Fluid Video Head
The 526-1 Professional Fluid Video Head from Manfrotto supports camera rigs up to 35 lb and includes the 357PLV-1 sliding plate with secure, two-screw 1/4"-20 or 3/8"-16 mounting. Controls are placed at the operator's left side, and the rosette-mounted pan arm can be easily removed or replaced if necessary.
This head features fluid drag with three levels each of pan and tilt as well as a zero-drag setting for whip-pans and fast tilts. Counterbalance is continuously variable for weights ranging from 17.5 to 33 lb. The 526-1 mounts via its 100mm ball and can be leveled using the bright bubble.
Features
Manfrotto 645 FAST Twin Leg Video Tripod with Ultra L-Lock Mechanism (Carbon Fiber)
The Manfrotto 645 FAST Twin Leg Video Tripod with Ultra L-Lock Mechanism is a two-stage carbon fiber tripod with a 100mm bowl and a single leg lock mechanism for each leg. A 100 to 75mm bowl adapter is included, so you get the flexibility to use 100 or 75mm video heads. The tripod features twin spiked feet with removable rubber overshoes, allowing for use on various terrain as well as on flat, smooth surfaces. It supports up to 55 pounds and has a maximum working height of 61.8", a minimum height of 10.6", and a folded length of 28.7".
The tripod legs are selectable between free movement or having three locking leg positions so you can use the legs without a spreader. The optional Manfrotto MVASPR2N1 2-in-1 spreader can be attached if desired.

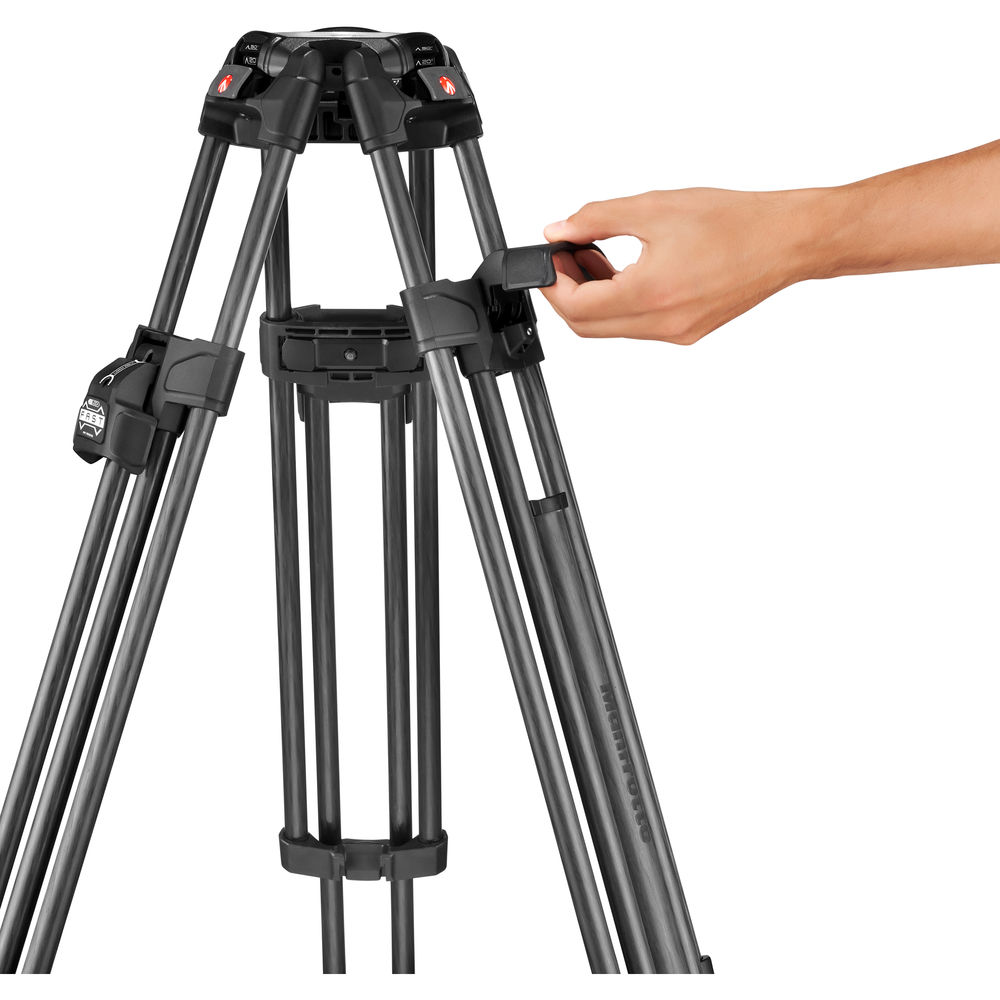

Leg Locks
The legs feature Manfrotto's Ultra-L Lock for the Twin FAST tripod legs. This allows you to lock and unlock both leg stages using only one locking lever located at the top of each leg, so you don't have to bend down to unlock the legs.
Spreader or Spreaderless
The legs incorporate a locking mechanism that enables the legs to move completely freely, suitable when working with a spreader, or to lock at one of three angles, 70, 50, and 20°, which is suitable for use when working without a spreader.
Rubber Feet
You can use the included rubber feet to protect delicate surfaces from the tripod's foot spikes.
100 to 75mm Bowl Adapter
The legs feature a 100mm bowl and include a 100 to 75mm bowl adapter. This provides the flexibility to use a video head with either a 100 or 75mm leveling ball.

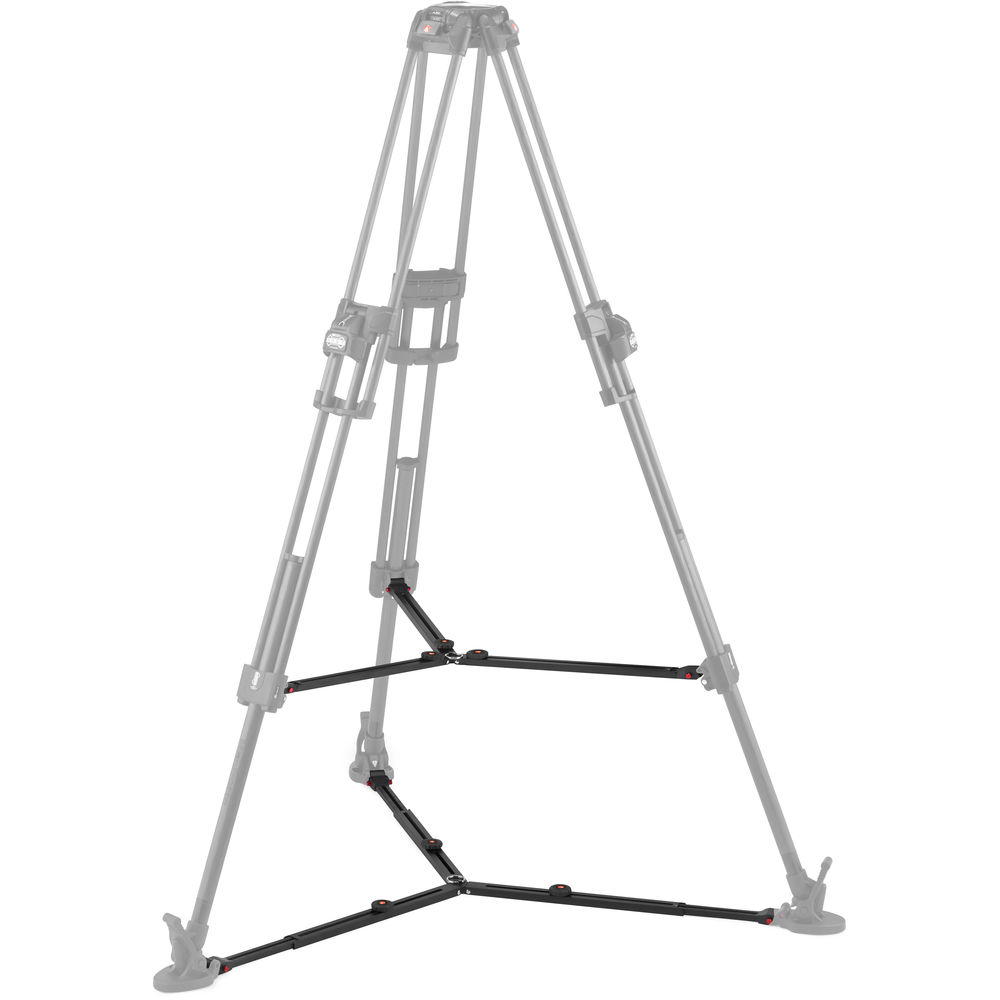

Manfrotto 2-in-1 Mid-Level/Ground Spreader
This 2-in-1 Mid-Level/Ground Spreader from Manfrotto can be used as either a mid-level spreader or a ground spreader with select Manfrotto tripod legs.
Key Specs
Camera Plate Features | Sliding Balance Plate |
Camera Mounting Screw | 2 x 1/4"-20 Male 2 x 3/8"-16 Male |
Base Mount | 100 mm Half Ball 3/8"-16 Female |
Load Capacity | 35 lb / 16 kg |
Camera Plate
Camera Plate Features | Sliding Balance Plate |
Camera Mounting Screw | 2 x 1/4"-20 Male 2 x 3/8"-16 Male |
Safety Lock | Yes |
Head
Base Mount | 100 mm Half Ball 3/8"-16 Female |
Counter Balance | Continuous (17.64 to 33.07 lb / 8 to 15 kg) |
Center of Gravity | 4.92" / 124.97 mm |
Pan Handle Fittings | 1 x Rosette |
Bubble Level | 1 |
Pan & Tilt
Drag Control | Pan: 3-Step Plus 0 Tilt: 3-Step Plus 0 |
Drag Type | Fluid |
Vertical Tilt | +75° to -70° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
General
Load Capacity | 35 lb / 16 kg |
Packaging Info
Package Weight | 9.77 lb |
Box Dimensions (LxWxH) | 15.5 x 10.6 x 9.2" |
Key Specs
Load Capacity | 55 lb / 24.9 kg |
Head Mount Type | 100 mm Bowl |
Maximum Working Height | 61.8" / 156.97 cm |
Minimum Working Height | 10.6" / 26.92 cm |
Closed Length | 28.7" / 72.90 cm |
Materials | Carbon Fiber |
Leg Lock Type | Lever Lock |
Leg Sections | 3 |
Feet Features | Rubber, Dual Spiked |
General
Load Capacity | 55 lb / 24.9 kg |
Head Mount Type | 100 mm Bowl |
Maximum Working Height | 61.8" / 156.97 cm |
Minimum Working Height | 10.6" / 26.92 cm |
Closed Length | 28.7" / 72.90 cm |
Materials | Carbon Fiber |
Weight | 7.9 lb / 3.58 kg |
Legs
Leg Lock Type | Lever Lock |
Leg Positions | Locking 3 Positions and Continuously Adjustable |
Independent Leg Spread | Yes |
Leg Sections | 3 |
Leg Diameter | 0.6" / 16 mm 1" / 25 mm |
Bubble Level | No |
Feet Features | Rubber, Dual Spiked |
Spreader | Mid-Level, Ground (Not Included) |
Packaging Info
Package Weight | 10.33 lb |
Box Dimensions (LxWxH) | 31.1 x 8.9 x 7.9" |
General
Weight | 1.15 lb / 0.52 kg |
Packaging Info
Package Weight | 1.25 lb |
Box Dimensions (LxWxH) | 15.2 x 2.9 x 2.6" |
