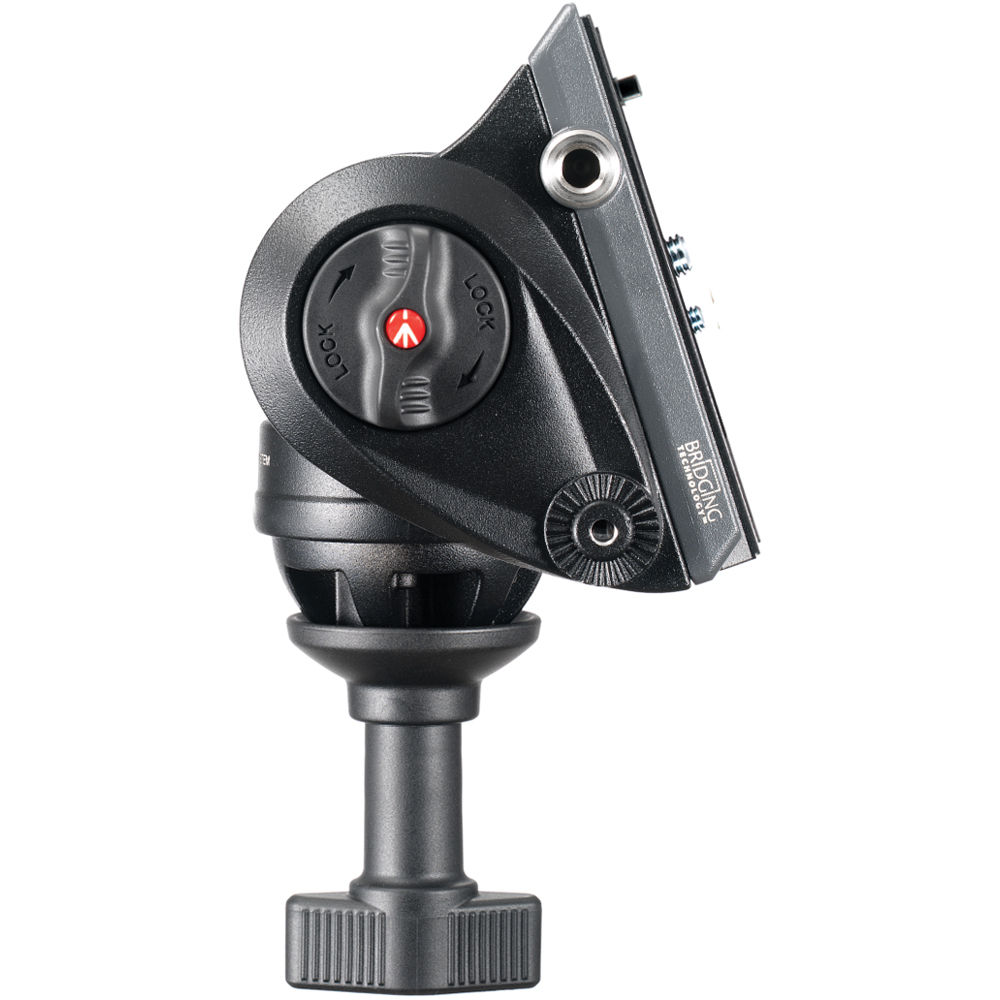

The Manfrotto MVH500A Fluid Drag Video Head with MVT502AM Tripod and Carry Bag features a fluid head with a wide platform to support the HDSLR form factor, and a 60mm half ball for quick leveling without adjusting the legs. The head supports a maximum weight load of 17.6 pounds and has a built-in, pre-set spring-loaded counterbalance of 5.3 pounds. It features a tilt range of -70°/+90° and provides a panning rotation of 360°. The head also features a side lock system for the sliding quick release plate, a pan handle, and an integrated bubble level.
The two-stage tripod features a 75mm bowl and includes a 75 to 60mm adapter for the MVH500A head. The legs are individually adjustable and feature a mid-level spreader for stability on uneven ground. The minimum height of the tripod and head is just over two feet, for getting low angle shots, and the maximum height is just over five feet. The legs feature non-removable feet suitable for exteriors and interiors, and are gentle on delicate floors. The included padded carry bag makes transporting your tripod and head simple and easy.
Fluid Head
Tripod legs
Padded Carry Bag
The padded carry bag keeps your tripod and head together during storage or transport.
Key Specs
Camera Plate Features | Quick Release, Sideload, Sliding Balance Plate |
Camera Plate Type | 500PLONG |
Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
Load Capacity | 17.6 lb / 8 kg |
Maximum Working Height | 60.63" / 154.00 cm |
Minimum Working Height | 26.57" / 67.49 cm |
Closed Length | 28.35" / 72.01 cm |
Materials | Aluminum |
Leg Lock Type | Flip Lock |
Leg Sections | 3 |
Feet Features | Rubber |
Camera Plate
Camera Plate Features | Quick Release, Sideload, Sliding Balance Plate |
Camera Plate Type | 500PLONG |
Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
Head
Base Mount | 60 mm Half Ball |
Counter Balance | Fixed (5.29 lb / 2.4 kg) |
Bubble Level | 1 |
Pan & Tilt
Drag Control | Pan: Fixed Tilt: Fixed |
Drag Type | Fluid |
Vertical Tilt | +90° to -70° |
Panning Range | 360° |
General
Load Capacity | 17.6 lb / 8 kg |
Maximum Working Height | 60.63" / 154.00 cm |
Minimum Working Height | 26.57" / 67.49 cm |
Closed Length | 28.35" / 72.01 cm |
Materials | Aluminum |
Operating Temperature | -4 to 140°F / -20 to 60°C |
Weight | 7.85 lb / 3.56 kg |
Legs
Leg Lock Type | Flip Lock |
Independent Leg Spread | No |
Leg Sections | 3 |
Leg Diameter | 0.85" / 21.59 mm (Maximum) 0.6" / 15.2 mm (Minimum) |
Bubble Level | No |
Feet Features | Rubber |
Spreader | Mid-Level |
Packaging Info
Package Weight | 9.5 lb |
Box Dimensions (LxWxH) | 32 x 8 x 7" |
