Miller Arrowx 3 2520 Solo-Q 100 3-Stage Carbon Fiber Tripod System (100mm)

Miller Arrowx 3 2520 Solo-Q 100 3-Stage Carbon Fiber Tripod System (100mm)

Miller Arrowx 3 2520 Solo-Q 100 3-Stage Carbon Fiber Tripod System (100mm)

  • SKU : #Q8523068 | MFR : #3068
Miller Arrowx 3 2520 Solo-Q 100 3-Stage Carbon Fiber Tripod System (100mm)
Miller Arrowx 3 2520 Solo-Q 100 3-Stage Carbon Fiber Tripod System (100mm)
Features
  • 41.9 lb Capacity Fluid Drag Tripod Head
  • 16-Position CB Plus Counterbalance
  • 3-Stage Carbon Fiber Tripod / 100mm Bowl
  • 15.4 to 80.4" Height Range
  • 3 x Locking Leg Angles, No Spreader
  • 5 x Pan & Tilt Drag Settings plus 0
  • Sliding Balance Plate with Safety Lock

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 21,247.80
VAT Excl.

Miller Arrowx 3 2520 Solo-Q 100 3-Stage Carbon Fiber Tripod System (100mm)

The 100mm ball Arrowx 3 2520 Solo-Q 100 3-Stage Tripod System from Miller combines the Arrowx 3 video fluid head with the carbon fiber Solo-Q carbon fiber tripod. Perfect for fast-paced ENG and documentary production, this system offers stable, rigid support for camera rigs weighing from 2.2 to 41.9 lb. This versatile payload capacity and a height range of 15.4 to 80.4" makes this system compatible with a wide range of cameras and lenses, negating the need to bring two tripods on your shoot to accommodate smaller and larger cameras.

The Arrowx 3 head features the 16-step CB Plus counterbalance system, with full and half stops, a sliding balance plate, centrally located controls and illuminated bubble level, and five steps of fluid pan and drag plus a zero setting for free spins and safe transport or storage. The 3-stage tripod features carbon fiber construction, quick-lock legs, and three leg positions with a safety lock feature, eliminating the need for a spreader.

Lightweight Versatility

Compact and lightweight, this Arrowx 3 system supports up to 41.8 lb but weighs just 15.2 in total

Quick Setup and Accurate Performance

Rapid leg extension and smooth pan, tilt, and counterbalancing are ideal for ENG and documentary production

CB Plus Counterbalance System

The 16-step CB Plus system offers precise counterbalance performance over the entire payload and temperature ranges

Fluid Pan and Tilt Drag

Select from five pan and tilt drag levels to best suit your move and rig weight, or choose "0" for free spins and safe travel or storage

Accessible Controls

Pan/tilt drag controls, counterbalance settings, and an illuminated bubble level are clustered together for quick adjustments

3-Stage Carbon Fiber Tripod

Lightweight yet strong carbon fiber tripod with three extendable stages

Locking Leg Positions

Three locking leg angles enable you to safely position the tripod without requiring a spreader

Quick Setup

Rapid-lock legs enable you to quickly set up and adjust your tripod position

IN THE BOX

    • Miller Arrowx 3 2520 Solo-Q 100 3-Stage Carbon Fiber Tripod System (100mm)

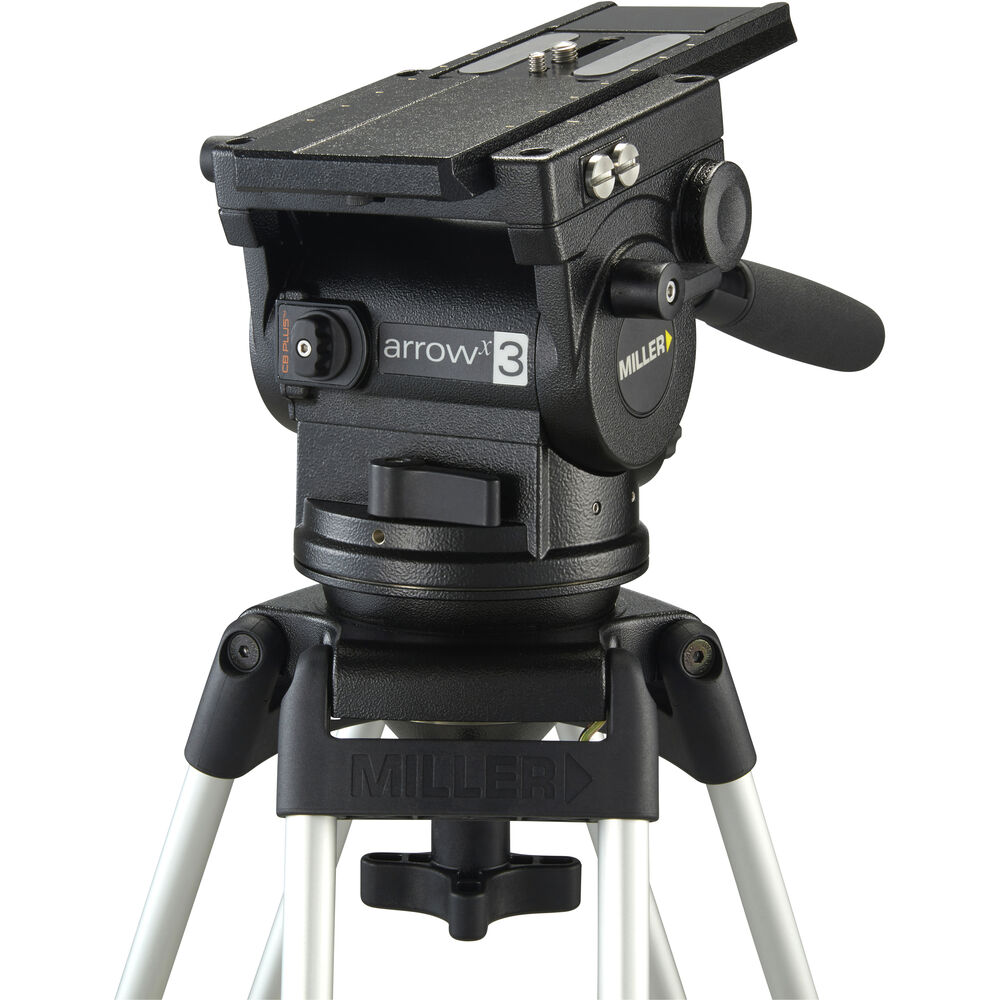

    • Miller Arrowx 3 Fluid Head
    • Miller Solo-Q 100 3-Stage Carbon Fiber Tripod

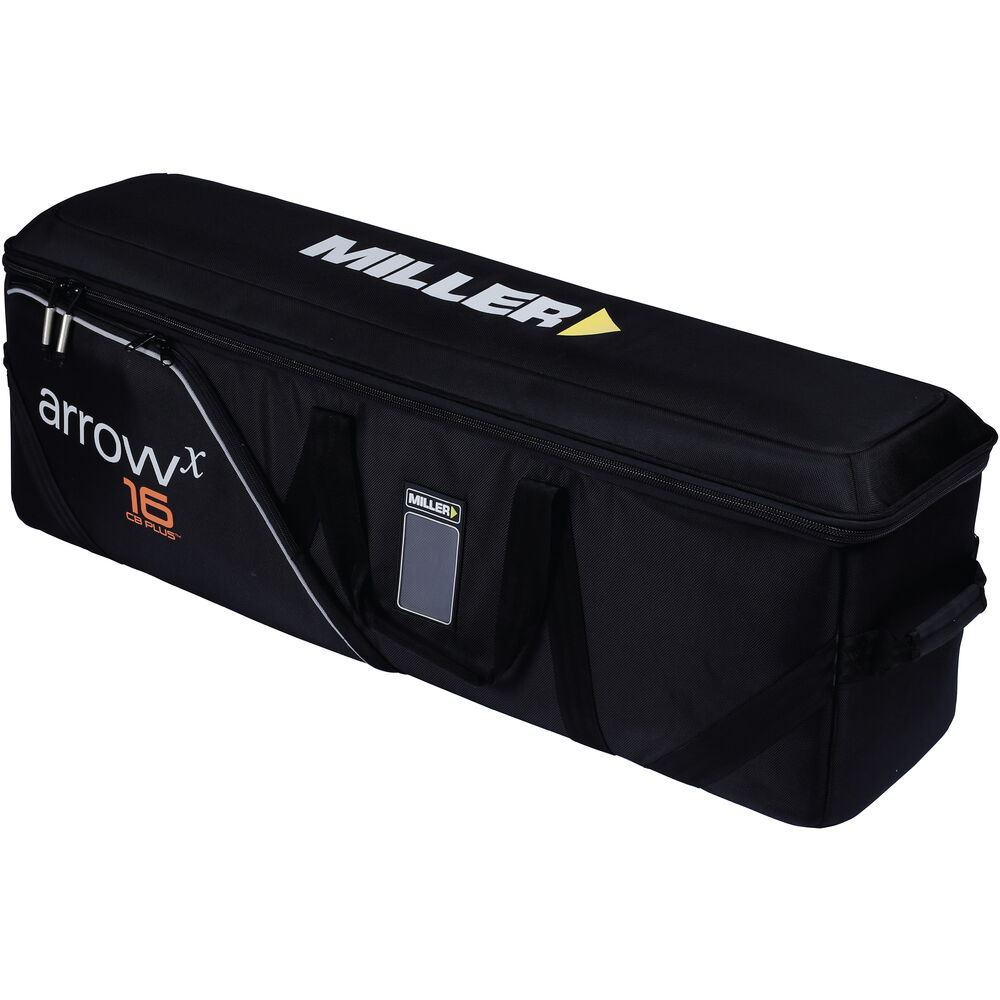

    • Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems (Black)
    • Limited 3-Year Warranty

Camera Plate

Camera Plate FeaturesQuick Release, Sliding Balance Plate
Camera Mounting Screw1 x 1/4"-20 Male
1 x 3/8"-16 Male
Balance Plate Sliding Range4.7" / 120 mm
Safety LockYes

Head

Base Mount100 mm Half Ball
Camera Platform AdjustmentYes, (4.7" / 120.0 mm)
Counter BalanceIncremental 16-Step
Pan Handle Fittings2 x Rosette
Included Pan Handle Length15.4 to 23.2" / 390 to 590 mm
Bubble Level1 x Illuminated

Pan & Tilt

Drag ControlTilt: 5-Step Plus 0
Pan: 5-Step Plus 0
Drag TypeFluid
Vertical Tilt+90° to -75°
Panning Range360°
Independent Pan LockYes
Independent Tilt LockYes

General

Load Capacity2.2 to 41.8 lb / 1 to 19 kg
Maximum Working Height80.4" / 204.1 cm
Minimum Working Height15.4" / 39 cm
Closed Length32.5" / 82.5 cm
MaterialsCarbon Fiber
Operating Temperature-40 to 149°F / -40 to 65°C
Weight15.2 lb / 6.9 kg

Legs

Leg Lock TypeTwist Lock
Leg Positions3 Positions
Independent Leg SpreadYes
Leg Sections4
SpreaderNone

Packaging Info

Package Weight33.55 lb
Box Dimensions (LxWxH)39.38 x 14.63 x 13"
