Miller CiNX 3 Fluid Head
Miller CiNX 3 Fluid Head
- SKU : #Y8I81103 | MFR : #1103
Features
- Soft Starts/Stops; Balanced Transitions
- Flat Base; Includes 100mm Bowl Adapter
- 2.2 to 41.8 lb Payload; Sideload Plate
- 16 Steps Counterbalance; 6 Steps Drag
Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less
You Pay:
AED 18,234.08
VAT Excl.
VAT Excl.

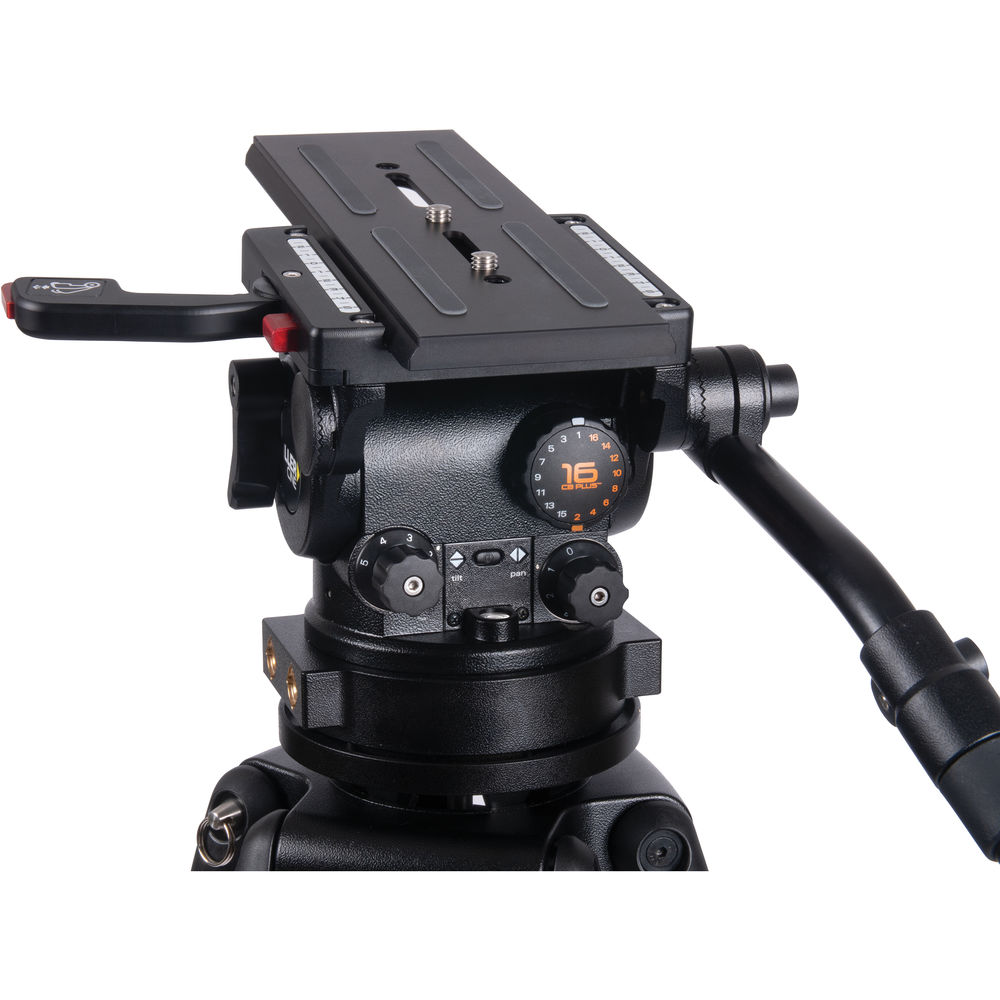

Miller CiNX 3 Fluid Head
The Miller CiNX 3 Fluid Head is designed with a strength-to-size ratio that provides an optimal solution for the supported load capacity of 2.2 to 41.8 lb. The CiNX 3 features a 3/8"-16 threaded flat base and includes a 100mm bowl claw adapter; optional 150mm bowl or Mitchell base adapters from Miller are also supported.
The CiNX 3 head features 16 steps of counterbalance and 6 steps of pan and tilt fluid drag. The drag and counterbalance systems offer progressive and equal increments of drag and torque to ensure ultra-soft starts and stops and balanced diagonal transitions. The pan/tilt controls and a bubble level are all illuminated at the press of an illumination button. The CiNX 3 comes with a GP23A type battery already installed for illumination but supports multiple other types as you will find in the user manual.
For ultimate efficiency with heavy cameras, the CiNX 3 has a sideload camera plate platform with a safety lock, and it comes with an ARRI-type camera plate that can be adjusted approximately 6". It also includes a rosette-mount telescopic pan handle while supporting two in total for dual-handed operation. On the sides, it provides four anti-twist ARRI accessory mounts. The head is made of lightweight yet high-strength die-cast aluminum and rigid composite polymers. It's finished with a durable black ripple and anti-corrosive pretreatment. It also has water- and dust-resistant sealing.
The head also has a very wide operating temperature range of -40 to 149°F.
Key Features
- Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
- 3/8"-16 threaded flat base
- Includes a 100mm bowl claw adapter (optional 150mm bowl or Mitchell base adapters supported)
- 16 steps counterbalance
- Payload range of 2.2 to 41.8 lb
- 6 steps of pan and tilt drag; illuminated controls
- Sideload platform with safety lock
- 5.9" camera plate sliding range
- Four anti-twist ARRI accessory mounts
- Illuminated bubble level
- Pan handle included; optional second one supported
- Wide operating temperature range of -40 to 149°F
IN THE BOX
- Miller CiNX 3 Fluid Head
- Miller ARRI Camera Plate for Cineline 70 Fluid Head
- Miller 698 Telescopic Pan Handle with Clamp for Cineline 70 and Skyline 70 Head
- Miller D100 Claw Ball Level Adapter for ArrowFX Fluid Head and 100mm Bowl
- Limited 3-Year Manufacturer Warranty
Camera Plate
| Camera Plate Features | Quick Release |
| Camera Plate Type | Sideload Plate |
| Camera Mounting Screw | 2 x 3/8"-16 Male |
| Balance Plate Sliding Range | 5.91" / 150 mm |
| Safety Lock | Yes |
| Plate Dimensions | 10.24 x 3.76 x 0.46" / 260 x 95.5 x 11.7 mm |
Head
| Base Mount | 100 mm Half Ball 3/8"-16 Female |
| Counter Balance | Incremental 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Accessory Mounting | 4 x ARRI Accessory Mount Female |
Pan & Tilt
| Drag Control | Pan: Stepped 5-Step Plus 0 Tilt: Stepped 5-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
General
| Load Capacity | 2.2 to 41.8 lb / 1 to 18.96 kg |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 8.4 lb / 3.81 kg |
Packaging Info
| Package Weight | 15.65 lb |
| Box Dimensions (LxWxH) | 18.2 x 14.3 x 12.4" |
