Miller CiNX 3 & HDC 150 1-Stage Tripod System with Ground Spreader

Miller CiNX 3 & HDC 150 1-Stage Tripod System with Ground Spreader

Miller CiNX 3 & HDC 150 1-Stage Tripod System with Ground Spreader

  • SKU : #H0L53814 | MFR : #3814
Miller CiNX 3 & HDC 150 1-Stage Tripod System with Ground Spreader
Miller CiNX 3 & HDC 150 1-Stage Tripod System with Ground Spreader
Features
  • CiNX 3 Flat Base/150mm Ball Fluid Head
  • 41.8 lb Payload; 27 - 70.5" Total Height
  • 16-Step Counterbalance, 5 + 0 Steps Drag
  • Ground Spreader; Wheeled Carry Case

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 30,351.45
VAT Excl.

Miller CiNX 3 & HDC 150 1-Stage Tripod System with Ground Spreader

This Miller CiNX 3 and HDC 150 1-Stage Tripod System features the CiNX 3 fluid head, 150mm bowl aluminum tripod legs, ground spreader, and a wheeled carry case. The tripod legs have 24mm tubing and integrated spiked feet and are optimized for a ground spreader.

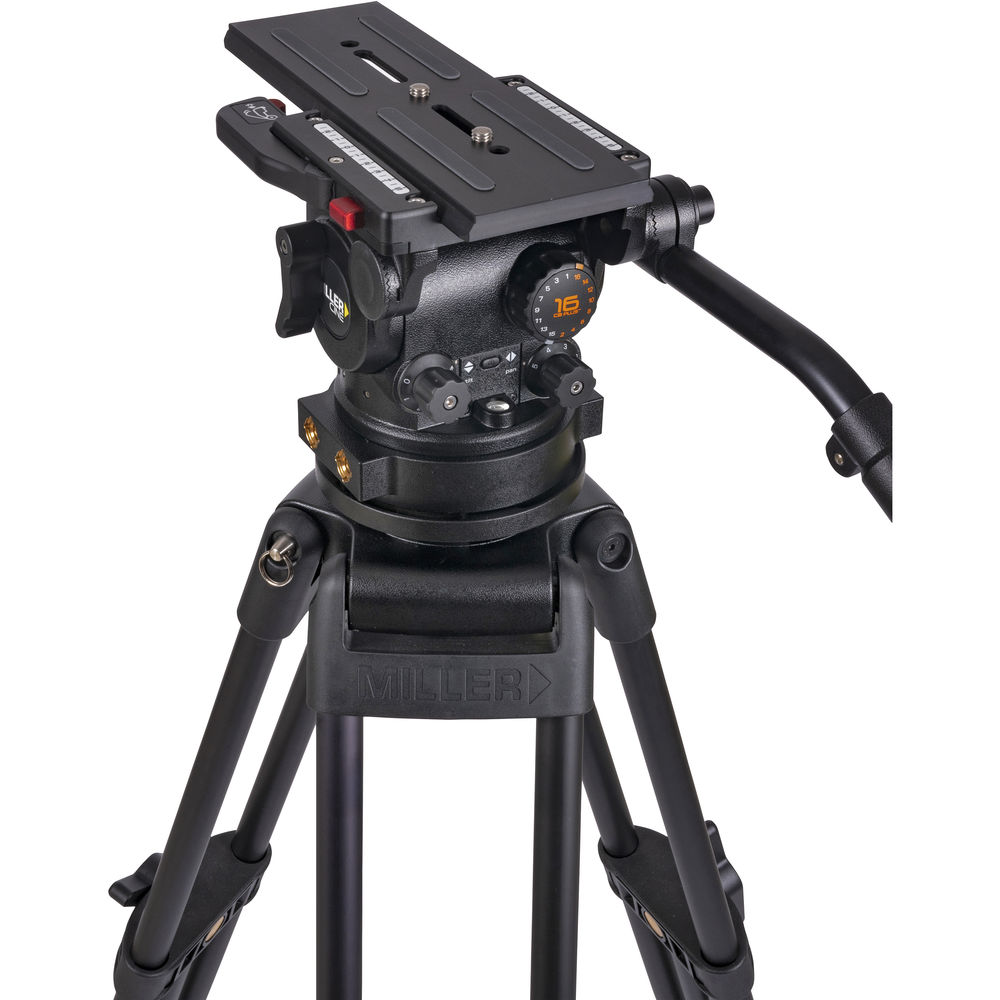

The CiNX 3 supports 2.2 to 41.8 lb loads and offers 16 steps of counterbalance and 5 + 0 steps of pan and tilt drag. It natively features a flat base with a 3/8"-16 thread, and this bundle adds a 150mm bowl claw adapter. This head is designed to achieve ultra-soft starts and stops and balanced diagonal transitions. A sideload camera plate system allows you to efficiently mount and remove your camera.

With the head and ground spreader attached, the tripod offers a height range of 26.8 to 70.5" in one stage of adjustment.

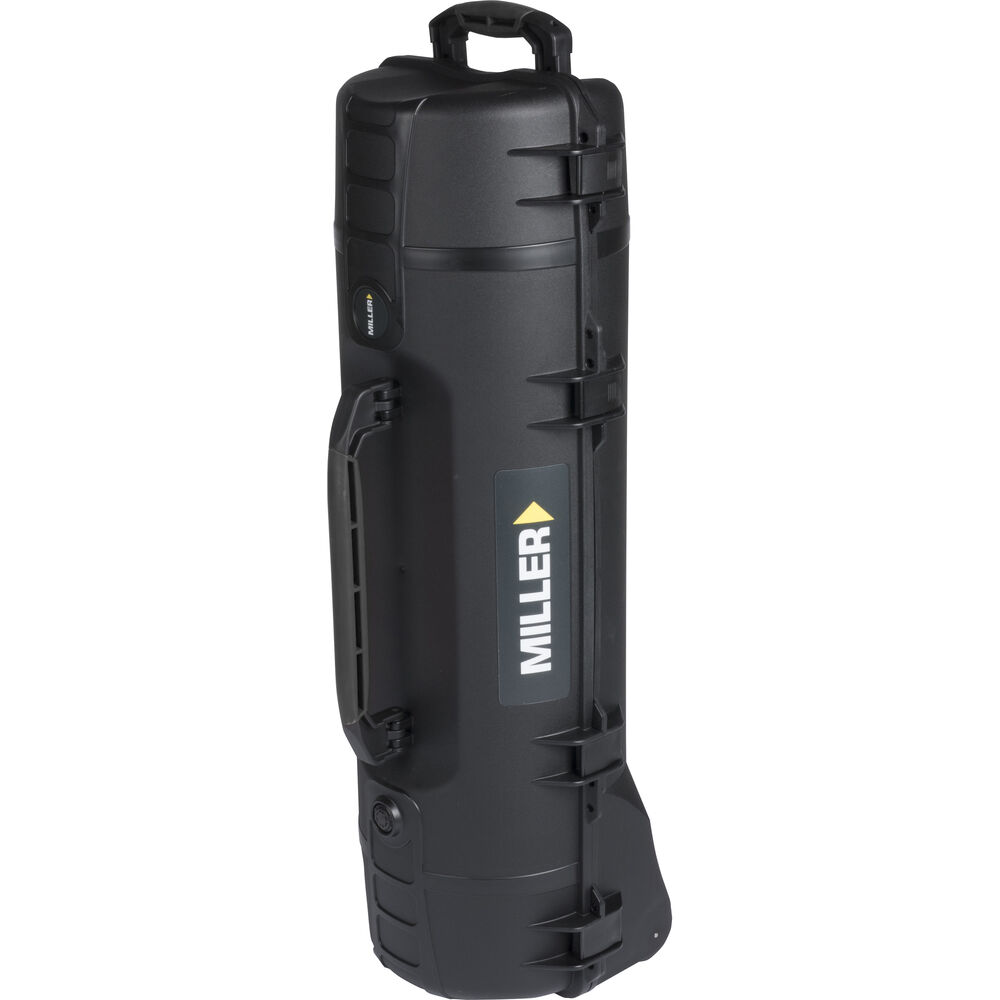

The wheeled case is designed with high-pressure resin, polymer, and aluminum materials and has a top handle, side handle, and bottom wheels. It's IP67 watertight and resistant to dust, moisture, acids, and sand. Other features include an automatic air pressure valve and inner padding

CiNX 3 Fluid Head Features

  • Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
  • 3/8"-16 threaded flat base (a 150mm bowl claw adapter is included in this bundle)
  • 16 steps of counterbalance
  • Payload range of 2.2 to 41.8 lb
  • 5 + 0 steps of pan and tilt drag; illuminated controls
  • Sideload platform with safety lock
  • 5.9" camera plate sliding range
  • Four anti-twist ARRI accessory mounts
  • Illuminated bubble level
  • Wide operating temperature range of -40 to 149°F

IN THE BOX

    • Miller CiNX 3 & HDC 150 1-Stage Tripod System with Ground Spreader
    • CiNX 3 Fluid Head
    • Miller ARRI Camera Plate for Cineline 70 Fluid Head
    • Miller 698 Telescopic Pan Handle with Clamp for Cineline 70 and Skyline 70 Head
    • Miller D150 Claw Ball Level Adapter for ArrowFX Fluid Head and 150mm Bowl
    • Miller 2115G HDC 150 1-Stage Aluminum Tripod

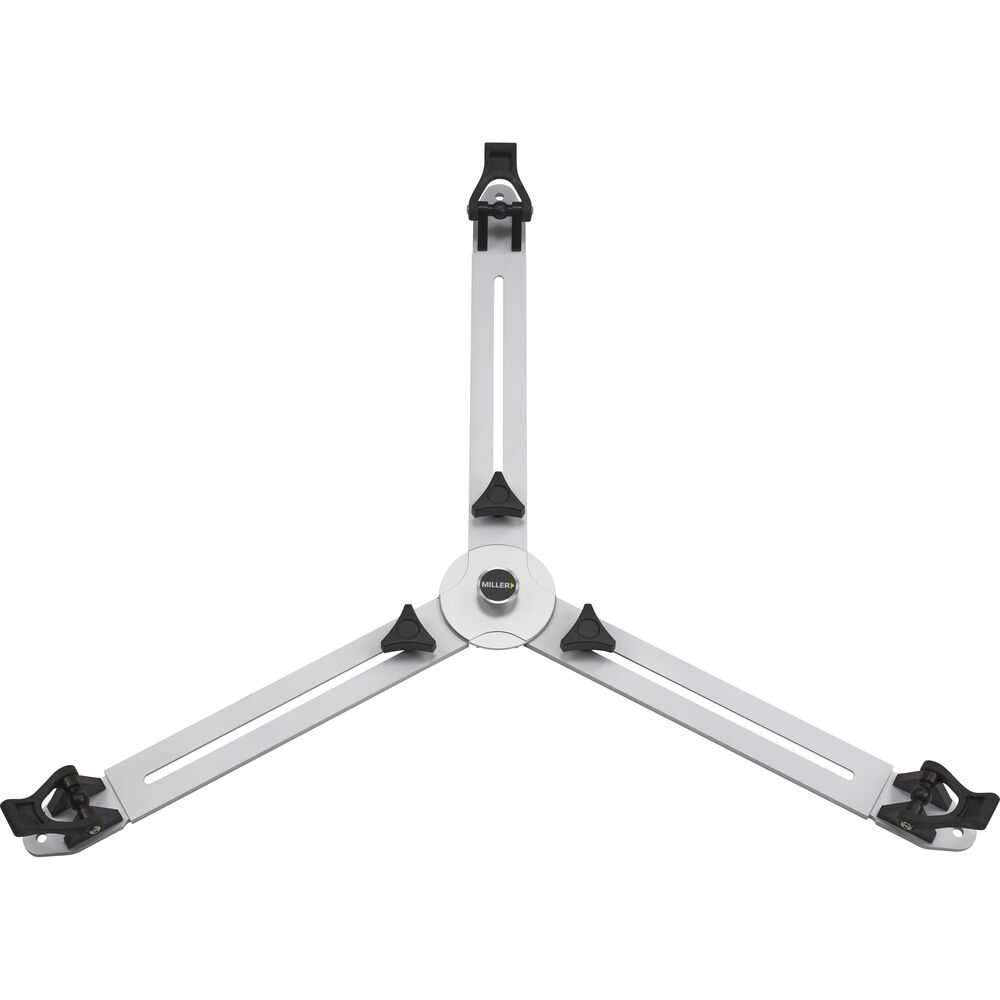

    • Miller HD Ground Spreader for HD MB 1-Stage Tripod
    • Miller Long Smart Tripod Case with Wheels for 1 Stage HD Systems (Black)

Camera Plate

Camera Plate FeaturesQuick Release
Camera Plate TypeSideload Plate
Camera Mounting Screw2 x 3/8"-16 Male
Balance Plate Sliding Range5.91" / 150 mm
Safety LockYes
Plate Dimensions10.24 x 3.76 x 0.46" / 260 x 95.5 x 11.7 mm

Head

Base Mount150 mm Half Ball
3/8"-16 Female
Counter BalanceIncremental 15-Step Plus 0
Pan Handle Fittings2 x Rosette
Bubble Level1 x Illuminated
Accessory Mounting4 x ARRI Accessory Mount Female

Pan & Tilt

Drag ControlPan: Stepped 5-Step Plus 0
Tilt: Stepped 5-Step Plus 0
Drag TypeFluid
Vertical Tilt+90° to -75°
Panning Range360°
Independent Pan LockYes
Independent Tilt LockYes

General

Load Capacity2.2 to 41.8 lb / 1 to 18.96 kg
Maximum Working Height70.55" / 179.2 cm
Minimum Working Height26.85" / 68.2 cm
Closed Length37.5" / 95.2 cm
MaterialsAluminum
Operating Temperature-40 to 149°F / -40 to 65°C
Weight22.7 lb / 10.3 kg

Legs

Leg Lock TypeRotating Locking Lever
Leg Sections2
Leg Diameter0.9" / 24 mm
Feet FeaturesSpiked
SpreaderGround (Included)
