The Miller CX14 Toggle 2-Stage Aluminum Alloy Tripod System with Ground Spreader includes a CX14 fluid head with pan handle, a Toggle 2-stage aluminum alloy tripod with 100mm bowl, a ground spreader, and a soft case. The CX14 fluid head supports up to 30.9 pounds and employs CB Plus technology, providing 15+0 positions of counterbalance, 5+0 levels of pan and tilt settings, and 2.4" of camera plate travel.
The head is matched with the 2-stage Toggle II aluminum alloy tripod, and together the system has a height range of 23.7 to 66.6". The included ground spreader is well suited for use when working on flat surfaces, and its flexible construction allows the tripod to remain stable on uneven terrain. The soft case features a triangular shape and extra-wide opening, and it includes an LW head wrap to protect your tripod. An included shoulder strap helps you carry your tripod system in the bag without occupying your hands.
Miller CX14 Fluid Head
The Miller CX14 Fluid Head is designed to accommodate a wide payload range with 16 steps of counterbalance. The head has a tilt range of +90 to -75°, which allows you to tilt the camera straight down, then nearly straight up. Pan, tilt, and counterbalance can all be set to zero, for totally free movement of the head, often useful for whip pans. The fluid head accommodates cameras and rigs weighing up to 30.9 pounds, more than adequate for use with small cinema cameras with rigs or medium sized ENG camcorders. The sideload plate design enables you to simply drop in your camera from the top without the alignment issues posed by rear-loading variations. The plate offers 2.4" of sliding range to balance your rig.
The CX14 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball-bearings for smooth mechanical operation. Even in harsh conditions, the CX14 will perform reliably. The base of the CX14 is a removable 100mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CX14 in dark environments. A fixed length pan handle is included, and an integrated second rosette is available for attaching an optional second pan handle.
Miller Toggle 2-Stage Alloy Tripod (Ground-Level Spreader Ready)
The Miller Toggle 2-Stage Alloy Tripod is designed to be a compact yet sturdy platform for your 100mm ball-base fluid head. The 2-stage design allows for a large 15.4 to 61.4" height range while maintaining a compact folded length of 27". Each stage features its own rotary clamp for secure locking, enabling support for payloads up to 55 pounds. Compatible spreaders, rubber feet, and dollies are available separately.
Miller 411 On-Ground Tripod Spreader - for DS Tripods
A On-Ground Spreader is chosen when shooting is performed on a level surface, such as studio, city streets, offices, sport fields and stadiums. It allows for rapid set-up and pull down by keeping tripod legs at an equal or preset distance relative to each other. Attaches directly to the feet at the bottom of a tripod and its arms are telescopic to allow extension of a tripod leg without detaching the spreader.
Miller 554 HD Shoulder Strap - for all Tripods
The Miller 554 HD Shoulder Strap is a tripod carry strap designed for the Miller Sprinter series tripods. It is a 2 inch wide strap that works with folded tripods from 25" to 36" and has a 3" long shoulder pad.
Compatible with;

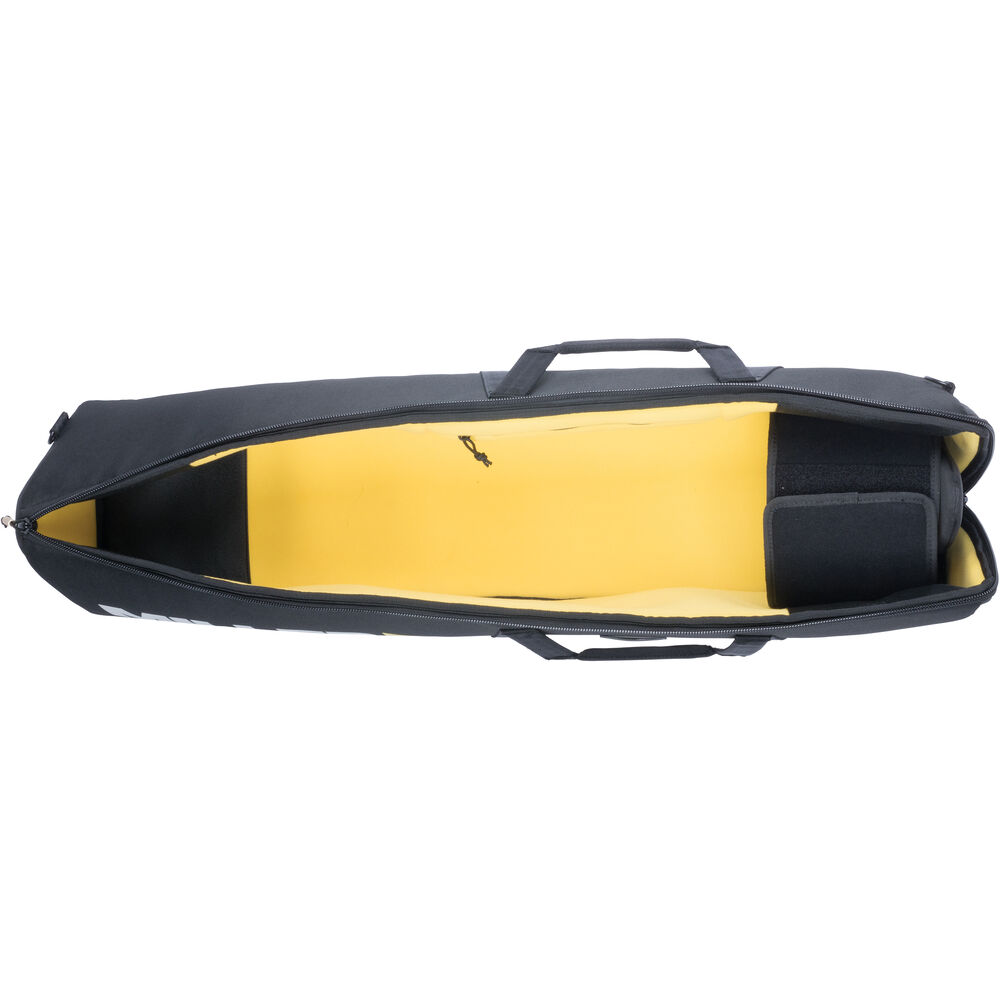

Miller Softcase for 2-Stage Toggle 2 Tripod Systems (Black)
Store, transport, and protect your tripod or other gear with the black Miller Softcase for 2-Stage Toggle 2 Tripod Systems. This sturdy case is constructed from Cordura nylon and high-density foam, with a brushed polyester interior. The triangular shape promotes a secure fit, and the dual zippers and wide opening provide easy access. Carry the case with the dual strap handles or attach an optional, user-supplied shoulder strap to the D-links. Users will appreciate the external pocket and card holder.
Camera Plate
Camera Plate Features | Sideload, Sliding Balance Plate |
Camera Plate Type | Euro Plate, Miller 1205, Sideload Plate |
Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
Balance Plate Sliding Range | 2.4" / 6 cm |
Plate Dimensions | 4.72 x 1.91 x 0.31" / 120 x 48.5 x 8 mm |
Head
Base Mount | 100 mm Half Ball |
Camera Platform Adjustment | No |
Counter Balance | Incremental 15-Step Plus 0 |
Pan Handle Fittings | 2 x Rosette |
Included Pan Handle Length | 15.35" / 390 mm |
Bubble Level | 1 x Illuminated |
Base Diameter | 3.94" / 100 mm |
Pan & Tilt
Drag Control | Pan: 5-Step Plus 0 Tilt: 5-Step Plus 0 |
Drag Type | Fluid |
Vertical Tilt | +90° to -75° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
General
Load Capacity | 0 to 30.9 lb / 0 to 14 kg |
Operating Temperature | -8 to 97°F / -40 to 65°C |
Weight | 5.51 lb / 2.5 kg |
Packaging Info
Package Weight | 7.45 lb |
Box Dimensions (LxWxH) | 11.7 x 9.9 x 7.8" |
General
Head Mount Type | 100 mm Bowl |
Maximum Working Height | 61.4" / 156 cm |
Minimum Working Height | 15.4" / 39 cm |
Closed Length | 27.2" / 69 cm |
Materials | Aluminum |
Weight | 6.6 lb / 3 kg |
Legs
Leg Sections | 3 |
Packaging Info
Package Weight | 11.9 lb |
Box Dimensions (LxWxH) | 37.3 x 13 x 10.4" |
Packaging Info
Package Weight | 2.35 lb |
Box Dimensions (LxWxH) | 20.3 x 8.5 x 8.3" |
Legs
Attachment Method | Spring-Loaded Clasp |
Shoulder Strap Length | 29 to 40" / 73.7 to 101.6 cm |
Strap Width | 2" / 5 cm |
Packaging Info
Package Weight | 0.45 lb |
Box Dimensions (LxWxH) | 5 x 3.7 x 1.1" |
General
Material | Cordura nylon exterior, high-density foam padding, and brushed polyester interior |
Type of Closure | Zipper |
Padded | Yes |
Carrying/Transport Options | Dual, top strap handles |
Interior Dimensions | 36.6 x 10.2 x 9.5" / 93.0 x 26.0 x 24.0 cm |
Weight | 2.7 lb / 1.2 kg |
Packaging Info
Package Weight | 5.1 lb |
Box Dimensions (LxWxH) | 38.5 x 10 x 10" |
