Designed for light loads such as DSLRs, mirrorless cameras, and camcorders, this Miller CX2 Fluid Head with Solo 75 2-Stage Alloy Tripod System is stable, adjustable, and overall production-ready. The CX2 head supports loads up to 17.6 pounds, offers 16 steps of counterbalance, and has two-stage aluminum/magnesium solo legs with a large height range and twist-locks. For more information on the fluid head and legs that make up this system, check out the descriptions and features below.
Miller CX2 Fluid Head

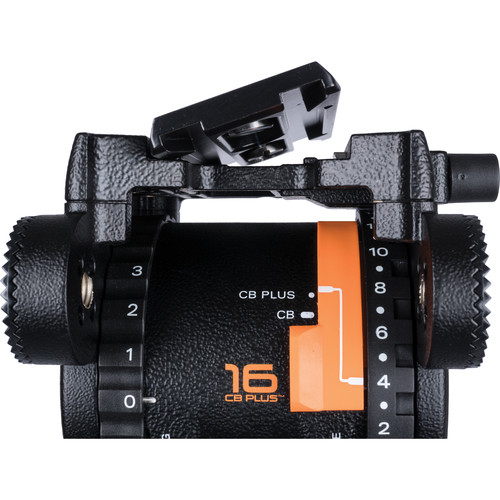

The Miller CX2 Fluid Head is designed to accommodate a wide payload range with 16 steps of counterbalance. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest of cameras to be supported. Maxed out, this head is rated to support camera setups up to 17.6 pounds, adequate for a rigged up DSLR or mirrorless camera, a smaller cinema camera, or a small ENG camcorder. Securing your camera or rig is easy. The sideload plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 2.4" of sliding range to balance your rig.
To survive fast-paced shooting environments, the CX2 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball-bearings for smooth mechanical operation. Even in harsh conditions, the CX2 will perform reliably. The base of the CX2 is a 75mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CX2 in dark environments. A fixed length pan handle is included, and a second rosette is available for attaching an optional second pan handle.
Miller Solo DV Aluminum Tripod with 75mm bowl- Supports up to 44 lb (20 kg)
The Miller Solo DV aluminum tripod is a unbraced ultra-light support meant for rapid setup and breakdown while supporting a substantial load of 44 lb (20 kg). The industry standard 75mm bowl will accommodate many fluid heads, and the spiked legs wind-down rubber pads assure the best footing no matter the terrain.
Miller Pan Handle for Compass15 and Compass20 Fluid Heads
The Miller Pan Handle for Compass15 and Compass20 Fluid Heads is a 16mm fixed-length pan arm. The main tube is black-anodized aluminum alloy and features a comfortable rubber grip.
Miller 1520 Solo DV Strap - for Miller Solo DV Tripods
The Miller 1520 Solo DV Strap is a padded tripod carry strap designed for the Miller Solo DV series tripods.
Compatible with;
Miller Softcase for 2-Stage Toggle 2 Tripod Systems (Black)
Store, transport, and protect your tripod or other gear with the black Miller Softcase for 2-Stage Toggle 2 Tripod Systems. This sturdy case is constructed from Cordura nylon and high-density foam, with a brushed polyester interior. The triangular shape promotes a secure fit, and the dual zippers and wide opening provide easy access. Carry the case with the dual strap handles or attach an optional, user-supplied shoulder strap to the D-links. Users will appreciate the external pocket and card holder.
Camera Plate
Camera Plate Features | Sliding Balance Plate |
Balance Plate Sliding Range | 2.4" / 6 cm |
Head
Base Mount | 75 mm Half Ball |
Counter Balance | Incremental 15-Step Plus 0 |
Pan & Tilt
Drag Control | Pan: 3-Step Plus 0 Tilt: 3-Step Plus 0 |
Vertical Tilt | +90° to -75° |
General
Load Capacity | 0 to 17.6 lb / 0 to 8 kg |
Weight | 4.9 lb / 2.2 kg |
Packaging Info
Package Weight | 8.6 lb |
Box Dimensions (LxWxH) | 18 x 12.6 x 12.3" |
General
Head Mount Type | 75 mm Bowl |
Maximum Working Height | 63.5" / 161.4 cm |
Minimum Working Height | 9.2" / 234 mm |
Closed Length | 27.6" / 700 mm |
Materials | Aluminum |
Weight | 6.6 lb / 3 kg |
Legs
Leg Lock Type | Twist Lock |
Independent Leg Spread | Yes |
Leg Sections | 3 |
Feet Features | Retractable, Spiked |
Packaging Info
Package Weight | 10 lb |
Box Dimensions (LxWxH) | 37.5 x 12.7 x 10.5" |
Legs
Material | Anodized aluminum alloy and rubber |
Length | 15.4" (39.0 cm) |
Weight | 0.6 lbs (285 g) |
Packaging Info
Package Weight | 1.1 lb |
Box Dimensions (LxWxH) | 15.75 x 3 x 2.15" |
Attachment Method | Spring-Loaded Clasp |
Shoulder Strap Length | 31 to 43" / 78.7 to 109.2 cm |
Strap Width | 1.5" / 3.8 cm |
Material | Nylon |
Packaging Info
Package Weight | 0.7 lb |
Box Dimensions (LxWxH) | 7 x 5.6 x 5.2" |
General
Material | Cordura nylon exterior, high-density foam padding, and brushed polyester interior |
Type of Closure | Zipper |
Padded | Yes |
Carrying/Transport Options | Dual, top strap handles |
Interior Dimensions | 36.6 x 10.2 x 9.5" / 93.0 x 26.0 x 24.0 cm |
Weight | 2.7 lb / 1.2 kg |
Packaging Info
Package Weight | 5.1 lb |
Box Dimensions (LxWxH) | 38.5 x 10 x 10" |
