Designed for light loads such as DSLRs, mirrorless cameras, and camcorders, this Miller CX2 Fluid Head with Toggle 75 2-Stage Alloy Tripod System is stable, adjustable, and overall production-ready. The CX2 head supports loads up to 17.6 pounds, offers 16 steps of counterbalance, and has two-stage toggle legs with a ground-level spreader for quick setups on flat surfaces. For more information on the fluid head and legs that make up this system, check out the descriptions and features below.
Miller CX2 Fluid Head

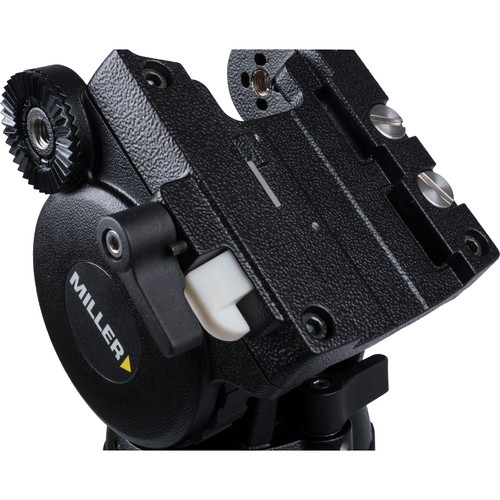

The Miller CX2 Fluid Head is designed to accommodate a wide payload range with 16 steps of counterbalance. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest of cameras to be supported. Maxed out, this head is rated to support camera setups up to 17.6 pounds, adequate for a rigged up DSLR or mirrorless camera, a smaller cinema camera, or a small ENG camcorder. Securing your camera or rig is easy. The sideload plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 2.4" of sliding range to balance your rig.
To survive fast-paced shooting environments, the CX2 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball-bearings for smooth mechanical operation. Even in harsh conditions, the CX2 will perform reliably. The base of the CX2 is a 75mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CX2 in dark environments. A fixed length pan handle is included, and a second rosette is available for attaching an optional second pan handle.
Miller Toggle 75 2-Stage Alloy Tripod (Ground-Level Spreader Ready)
The Miller Toggle 2-Stage Alloy Tripod is designed to be a compact yet sturdy platform for your 75mm ball-base fluid head. The 2-stage design allows for a large 15.4 to 61.4" height range while maintaining a compact folded length of 27". Each stage features its own rotary clamp for secure locking, enabling support for payloads up to 55 pounds. Compatible spreaders, rubber feet, and dollies are available separately.
Miller Pan Handle for Compass15 and Compass20 Fluid Heads
The Miller Pan Handle for Compass15 and Compass20 Fluid Heads is a 16mm fixed-length pan arm. The main tube is black-anodized aluminum alloy and features a comfortable rubber grip.
Miller 411 On-Ground Tripod Spreader - for DS Tripods
A On-Ground Spreader is chosen when shooting is performed on a level surface, such as studio, city streets, offices, sport fields and stadiums. It allows for rapid set-up and pull down by keeping tripod legs at an equal or preset distance relative to each other. Attaches directly to the feet at the bottom of a tripod and its arms are telescopic to allow extension of a tripod leg without detaching the spreader.
Miller 554 HD Shoulder Strap - for all Tripods
The Miller 554 HD Shoulder Strap is a tripod carry strap designed for the Miller Sprinter series tripods. It is a 2 inch wide strap that works with folded tripods from 25" to 36" and has a 3" long shoulder pad.
Compatible with;
Miller Softcase for 2-Stage Toggle 2 Tripod Systems (Black)
Store, transport, and protect your tripod or other gear with the black Miller Softcase for 2-Stage Toggle 2 Tripod Systems. This sturdy case is constructed from Cordura nylon and high-density foam, with a brushed polyester interior. The triangular shape promotes a secure fit, and the dual zippers and wide opening provide easy access. Carry the case with the dual strap handles or attach an optional, user-supplied shoulder strap to the D-links. Users will appreciate the external pocket and card holder.
Camera Plate
Camera Plate Features | Sliding Balance Plate |
Balance Plate Sliding Range | 2.4" / 6 cm |
Head
Base Mount | 75 mm Half Ball |
Counter Balance | Incremental 15-Step Plus 0 |
Pan & Tilt
Drag Control | Pan: 3-Step Plus 0 Tilt: 3-Step Plus 0 |
Vertical Tilt | +90° to -75° |
General
Load Capacity | 0 to 17.6 lb / 0 to 8 kg |
Weight | 4.9 lb / 2.2 kg |
Packaging Info
Package Weight | 8.6 lb |
Box Dimensions (LxWxH) | 18 x 12.6 x 12.3" |
General
Head Mount Type | 75 mm Bowl |
Maximum Working Height | 61.4" / 156 cm |
Minimum Working Height | 15.4" / 39 cm |
Closed Length | 27.2" / 69 cm |
Materials | Aluminum |
Weight | 6.6 lb / 3 kg |
Legs
Leg Sections | 3 |
Legs
Material | Anodized aluminum alloy and rubber |
Length | 15.4" (39.0 cm) |
Weight | 0.6 lbs (285 g) |
Packaging Info
Package Weight | 1.1 lb |
Box Dimensions (LxWxH) | 15.75 x 3 x 2.15" |
Packaging Info
Package Weight | 2.35 lb |
Box Dimensions (LxWxH) | 20.3 x 8.5 x 8.3" |
Legs
Attachment Method | Spring-Loaded Clasp |
Shoulder Strap Length | 29 to 40" / 73.7 to 101.6 cm |
Strap Width | 2" / 5 cm |
Packaging Info
Package Weight | 0.45 lb |
Box Dimensions (LxWxH) | 5 x 3.7 x 1.1" |
General
Material | Cordura nylon exterior, high-density foam padding, and brushed polyester interior |
Type of Closure | Zipper |
Padded | Yes |
Carrying/Transport Options | Dual, top strap handles |
Interior Dimensions | 36.6 x 10.2 x 9.5" / 93.0 x 26.0 x 24.0 cm |
Weight | 2.7 lb / 1.2 kg |
Packaging Info
Package Weight | 5.1 lb |
Box Dimensions (LxWxH) | 38.5 x 10 x 10" |
