Designed for light to medium loads such as DSLRs, mirrorless cameras, midsized camcorders, and small cine rigs, this Miller CX6 Fluid Head with Toggle 75 2-Stage Alloy Tripod System is stable, adjustable, and overall production-ready. The CX6 head supports loads up to 26.4 pounds, offers 16 steps of counterbalance, and has two-stage toggle legs with a mid-level spreader for quick setups on level or uneven surfaces. For more information on the fluid head and legs that make up this system, check out the descriptions and features below.
Miller CX6 Fluid Head

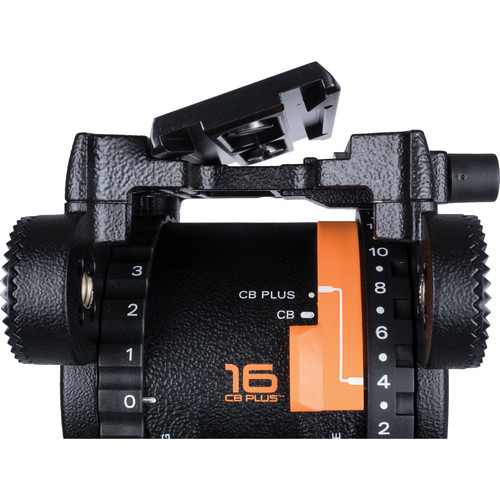

The Miller CX6 Fluid Head is designed to accommodate a wide payload range with 16 steps of counterbalance. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest of cameras to be supported. Maxed out, this head is rated to support camera setups up to 26.4 pounds, adequate for small cinema cameras with rigs or medium sized ENG camcorders. Securing your camera or rig is easy. The sideload plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 2.4" of sliding range to balance your rig.
To survive fast-paced shooting environments, the CX6 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball-bearings for smooth mechanical operation. Even in harsh conditions, the CX6 will perform reliably. The base of the CX6 is a 75mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CX6 in dark environments. A fixed length pan handle is included, and a second rosette is available for attaching an optional second pan handle.
Miller Toggle 75 2-Stage Alloy Tripod (Mid-Level Spreader Ready)
The Miller Toggle 2-Stage Alloy Tripod is designed to be a compact yet sturdy platform for your 75mm ball-base fluid head. The 2-stage design allows for a large 15.4 to 61.4" height range while maintaining a compact folded length of 27". Each stage features its own rotary clamp for secure locking, enabling support for payloads up to 55 pounds. Compatible spreaders, rubber feet, and dollies are available separately.
Miller Pan Handle for Compass15 and Compass20 Fluid Heads
The Miller Pan Handle for Compass15 and Compass20 Fluid Heads is a 16mm fixed-length pan arm. The main tube is black-anodized aluminum alloy and features a comfortable rubber grip.
Miller 550 Rubber Feet Pads for Select Tripods (Set of 3)
The 550 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods featuring 835 and 508 above ground spreaders.
Miller 508 Telescopic Above Ground Spreader
The Miller 508 Telescopic Above Ground Spreader is designed for use with the 402 and the 420 2-stage tripods, and allows you to stably setup the tripods on uneven terrains, steps, and slopes. Made of alloy tubes, the sturdy spreader offers durability. The spreader allows you to instantly setup your tripod, holding individual legs at an equal or preset distance. Telescoping spreader arms enable you to further spread the legs hence you don't have to detach the spreader from your tripod for a large area setup.
Miller 554 HD Shoulder Strap - for all Tripods
The Miller 554 HD Shoulder Strap is a tripod carry strap designed for the Miller Sprinter series tripods. It is a 2 inch wide strap that works with folded tripods from 25" to 36" and has a 3" long shoulder pad.
Compatible with;
Miller Softcase for 2-Stage Toggle 2 Tripod Systems (Black)
Store, transport, and protect your tripod or other gear with the black Miller Softcase for 2-Stage Toggle 2 Tripod Systems. This sturdy case is constructed from Cordura nylon and high-density foam, with a brushed polyester interior. The triangular shape promotes a secure fit, and the dual zippers and wide opening provide easy access. Carry the case with the dual strap handles or attach an optional, user-supplied shoulder strap to the D-links. Users will appreciate the external pocket and card holder.
Camera Plate
Camera Plate Features | Sliding Balance Plate |
Balance Plate Sliding Range | 2.4" / 6 cm |
Head
Base Mount | 75 mm Half Ball |
Counter Balance | Incremental 15-Step Plus 0 |
Pan & Tilt
Drag Control | Pan: 3-Step Plus 0 Tilt: 3-Step Plus 0 |
Vertical Tilt | +90° to -75° |
General
Load Capacity | 0 to 26.4 lb / 0 to 12 kg |
Weight | 4.9 lb / 2.2 kg |
Packaging Info
Package Weight | 8.7 lb |
Box Dimensions (LxWxH) | 18.1 x 12.6 x 12.3" |
General
Head Mount Type | 75 mm Bowl |
Maximum Working Height | 61.4" / 156 cm |
Minimum Working Height | 15.4" / 39 cm |
Closed Length | 27.2" / 69 cm |
Materials | Aluminum |
Weight | 6.6 lb / 3 kg |
Legs
Leg Sections | 3 |
Packaging Info
Package Weight | 13 lb |
Box Dimensions (LxWxH) | 37.4 x 12.8 x 10.7" |
Material | Anodized aluminum alloy and rubber |
Length | 15.4" (39.0 cm) |
Weight | 0.6 lbs (285 g) |
Packaging Info
Package Weight | 1.1 lb |
Box Dimensions (LxWxH) | 15.75 x 3 x 2.15" |
Dimensions | 2.7" (70 mm) |
Weight | 8 oz (210 g) |
Packaging Info
Package Weight | 0.74 lb |
Box Dimensions (LxWxH) | 7.2 x 5.55 x 5.4" |
Tripod Attachment | Pin & Eyelet |
Folded Length | 12.8" (325 mm) |
Extended Length | 20.7" (525 mm) |
Construction | Alloy tube |
Weight | 0.9 lb (400 g) |
Packaging Info
Package Weight | 0.885 lb |
Box Dimensions (LxWxH) | 14.15 x 3.45 x 3.25" |
Attachment Method | Spring-Loaded Clasp |
Shoulder Strap Length | 29 to 40" / 73.7 to 101.6 cm |
Strap Width | 2" / 5 cm |
Packaging Info
Package Weight | 0.45 lb |
Box Dimensions (LxWxH) | 5 x 3.7 x 1.1" |
Material | Cordura nylon exterior, high-density foam padding, and brushed polyester interior |
Type of Closure | Zipper |
Padded | Yes |
Carrying/Transport Options | Dual, top strap handles |
Interior Dimensions | 36.6 x 10.2 x 9.5" / 93.0 x 26.0 x 24.0 cm |
Weight | 2.7 lb / 1.2 kg |
Packaging Info
Package Weight | 5.1 lb |
Box Dimensions (LxWxH) | 38.5 x 10 x 10" |
