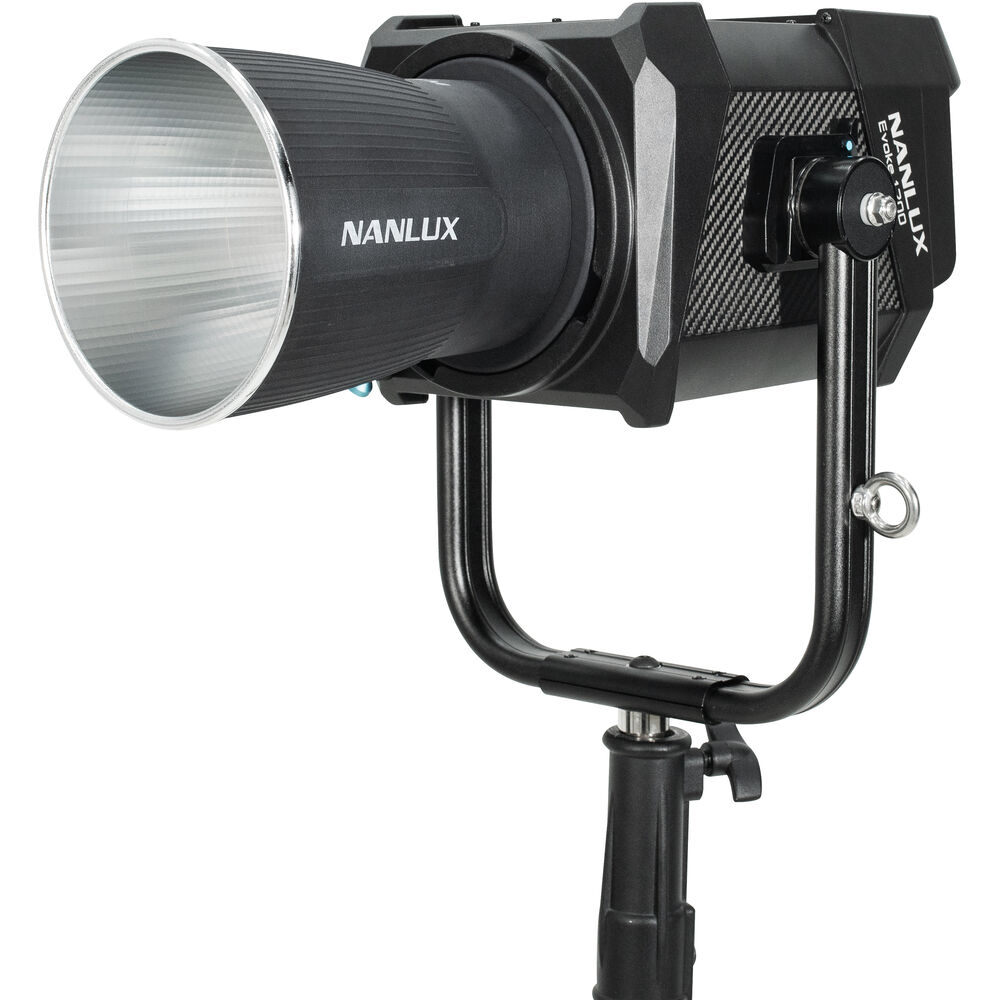

Nanlux Evoke 1200 LED Daylight Spot Light

Nanlux Evoke 1200 LED Daylight Spot Light

Nanlux Evoke 1200 LED Daylight Spot Light

  • SKU : #8SMXEVOKE 1200 | MFR : #EVOKE 1200
Nanlux Evoke 1200 LED Daylight Spot Light
Nanlux Evoke 1200 LED Daylight Spot Light
Features
  • For Studio and Film/TV Production
  • Output: 18,400 Lux at 9.8'
  • Color Temperature: 5600K
  • 96/97 CRI/TLCI
  • AC Power, Optional Battery
  • Bluetooth, Wired or Wireless DMX Control
  • 11 Special Effects, Dims 0 to 100%
  • Optional Softboxes and Fresnel Lens
  • IP54 Weatherproof
  • NLM200 Mount

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 11,000.64
VAT Excl.

Nanlux Evoke 1200 LED Daylight Spot Light

Adopting a popular, easy-to-use form factor, this Evoke 1200 LED Daylight Spot Light from Nanlux has a daylight color temperature of 5600K and a high CRI/TLCI rating of 96/97 to indicate precise accuracy in color rendition. The fixture with yoke measures 19.8 x 14.5 x 8.3" and will give you 18,400 Lux with the included 45° reflector, rivaling the output of a 1.2K incandescent fixture. It is dimmable from 0 to 100% and you can make power adjustments and turn the unit on and off locally on the light as well as from a remote console or wirelessly via 2.4 GHz signal, Bluetooth, DMX/RDM, or LumenRadio. You can turn the quiet fan off for in sound-sensitive situations.

One of the many benefits is a library of special effects including INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Fireworks, Explosion, and Welding. The light is ready for worldwide use thanks to its universal power supply, but it can also run on optional batteries when mains current is unavailable. Optional accessories include a variety of softboxes and the FL-35 Fresnel lens.

Design

Robust construction, a practical design, and an IP54 rating make the Evoke ideal for use in almost any conditions

Precision Performance

The highly accurate user interface with its 0.1% precision allows for pinpoint accuracy in both output and intensity

Ultimate Control

Supporting both wired and wireless control via Nanlink APP, DMX/RDM, Bluetooth, and Lumenradio Timo 2

IN THE BOX

    • Nanlux Evoke 1200 LED Daylight Spot Light
    • Yoke
    • Power Supply
    • Reflector
    • Connecting Cable (16.4')
    • Power Cable (15')
    • USB Flash Drive
    • Limited 3-Year Manufacturer Warranty

Key Specs

Item Type1 x LED Spot Light
Included Light Modifier1 x Reflector
Photometrics

5600K:
4625 fc / 49,788 Lux at 3.3' / 1 m*
513 fc / 5532 Lux at 9.8' / 3 m
1714 fc / 18,460 Lux at 9.8' / 3 m (with Reflector)
220 fc / 2373 Lux at 16.4' / 5 m
611 fc / 6583 Lux at 16.4' / 5 m (with Reflector)

*Standardized Measurement Calculated Internally Based on Closest Distance

Show More

Color Temperature5600K
Color ModesDaylight
Color Accuracy StandardCRI 96
TLCI 97
DimmingYes, Built-In Dimmer
0 to 100%
Front Accessory MountProprietary
Wireless Remote Control TypeBluetooth
Radio/RF *Remote Not Included
Wireless CRMX
Power Source

AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Battery (Not Included) *Requires Power Supply/Controller (Included)

Show More

AC Input Power100 to 240 VAC, 50 / 60 Hz
DC Input Power48 VDC at 25 A
Power Consumption1200 W
Fixture Mounting1 x 1-1/8" Stud (Via Yoke Mount)

Light Fixture

Item Type1 x LED Spot Light
Included Light Modifier1 x Reflector
Included Storage CaseNone
Photometrics5600K:
4625 fc / 49,788 Lux at 3.3' / 1 m*
513 fc / 5532 Lux at 9.8' / 3 m
1714 fc / 18,460 Lux at 9.8' / 3 m (with Reflector)
220 fc / 2373 Lux at 16.4' / 5 m
611 fc / 6583 Lux at 16.4' / 5 m (with Reflector)

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature5600K
Color ModesDaylight
Color Accuracy StandardCRI 96
TLCI 97
Cooling SystemFan
DimmingYes, Built-In Dimmer
0 to 100%
Built-In FlashNo
Umbrella MountNo
Front Accessory MountProprietary

Connectivity

Wireless Remote Control TypeBluetooth
Radio/RF *Remote Not Included
Wireless CRMX
Mobile App CompatibleYes: Android & iOS
App Name: NANLINK
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility

Power & I/O

Power SourceAC Power (Cable Included) *Requires Power Supply/Controller (Included)
Battery (Not Included) *Requires Power Supply/Controller (Included)
AC Input Power100 to 240 VAC, 50 / 60 Hz
DC Input Power48 VDC at 25 A
Included Adapter / CableYes
Inline SwitchNo
Power Pass-ThruNo
Power Consumption1200 W

Mounting

Yoke TypeManually-Operated Yoke
Fixture Mounting1 x 1-1/8" Stud (Via Yoke Mount)

Environmental

Environmental ProtectionAdvertised as Dust Resistant/Water Resistant
*Manufacturer Testing: IP54

General

Dimensions14.8 x 9.7 x 7.1" / 37.6 x 24.6 x 18 cm (Power Supply/Controller)
19.8 x 14.6 x 8.3" / 50.3 x 37.1 x 21.1 cm (Fixture with Yoke)
Weight15.3 lb / 6.94 kg (Fixture with Yoke)
22 lb / 10 kg (Power Supply/Controller)

Packaging Info

Package Weight56.1 lb
Box Dimensions (LxWxH)21.5 x 20.7 x 20.7"
